2007 TOYOTA CAMRY Owners Manual

’07Camry_U (L/O 0608)
161
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
only shift out of “P” position when the
brake pedal is depressed (with the ignition
switch is set at ON).

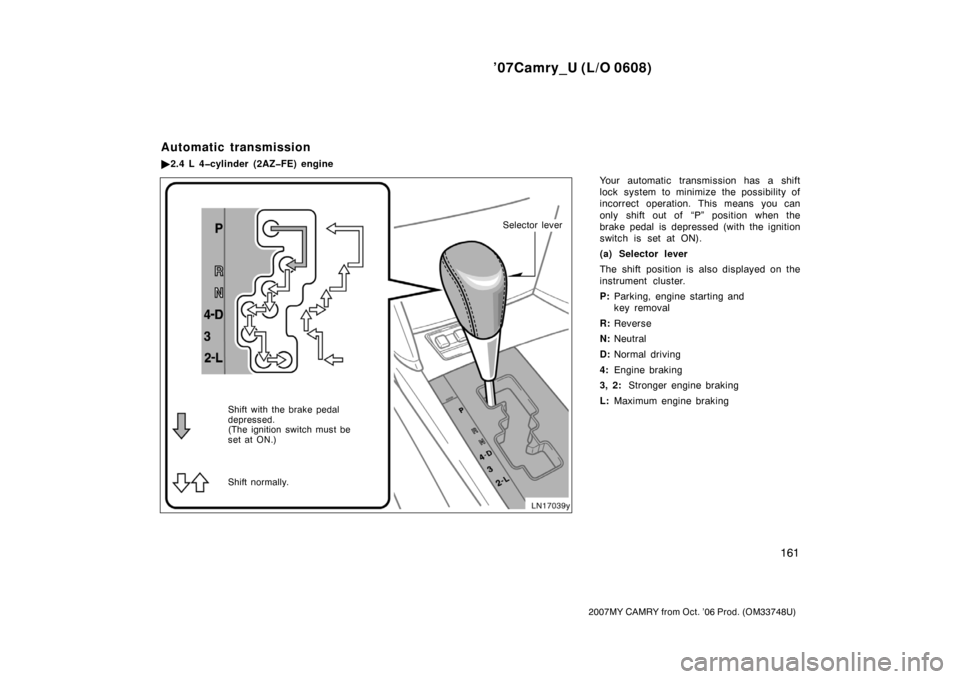

(a) Selector lever
The shift position is also displayed on the
instrument cluster.
P:Parking, engine starting and
key removal
R:Reverse
N:Neutral
D:Normal driving
4:Engine braking
3, 2:Stronger engine braking
L:Maximum engine braking
Automatic transmission
2.4 L 4cylinder (2AZFE) engine
Shift with the brake pedal
depressed.
(The ignition switch must be
set at ON.)
Shift normally.
Selector lever

’07Camry_U (L/O 0608)
162
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
(b) Normal driving
1. Start the engine as instructed in “How
to start the engine” on page 316 in
Section 3. The transmission must be in
“P” or “N”.
2. With your foot holding down the brake
pedal, shift the selector lever to “D”.
When the lever is in the “D” position, the
automatic transmission system will select
the most suitable gear for running condi-
tions such as normal cruising, hill climb-
ing, hard towing, etc.
Always use the “D” position for better fuel
economy and quieter driving. If the engine
coolant temperature is low, the transmis-
sion will not shift into overdrive gear even
in the “D” position.
CAUTION
Never put your foot on the accelera-
tor pedal while shifting.
3. Release the parking brake and brake
pedal. Depress the accelerator pedal
slowly for smooth starting.(c) Using engine braking
To use engine braking, you can downshift
the transmission as follows:
Shift into the “4” position. The trans-
mission will downshift to fourth gear
and engine braking will be enabled.
Shift into the “3” position. The trans-
mission will downshift to third gear
when the vehicle speed drops down to
or lower than 141 km/h (76 mph), and
stronger engine braking will be en-
abled.
Shift into the “2” position. The trans-
mission will downshift to second gear
when the vehicle speed drops down to
or lower than 89 km/h (48 mph), and
stronger engine braking will be en-
abled.
Shift into the “L” position. The trans-
mission will downshift to first gear
when the vehicle speed drops down to
or lower than 40 km/h (21 mph), and
maximum engine braking will be en-
abled.
Vehicles with cruise control—When the
cruise control is being used, even if you
downshift from “D” to “4”, engine braking
will not be enabled because the cruise
control is not cancelled.For ways to decrease the vehicle speed,
see “Cruise control” on page 181 in this
Section.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to skid or
spin.
(d) Using “3”, “2” and “L” positions
The “3”, “2” and “L” positions are used for
strong engine braking as described pre-
viously.
With the selector lever in “3”, “2” or “L”,
you can start the vehicle in motion as
with the lever in “D”.
With the selector lever in “3” or “2”, the
vehicle will start in first gear and automat-
ically shift to third gear or second gear.
With the selector lever in “L”, the trans-
mission is engaged in first gear.

’07Camry_U (L/O 0608)
163
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
NOTICE
Be careful not to overrev the en-
gine. Watch the tachometer to keep
engine rpm from going into the red
zone. The approximate maximum al-
lowable speed for each position is
given below for your reference:
“3” 152 km/h (94 mph). . . . . . . . . . .
“2” 98 km/h (60 mph). . . . . . . . . . . .
“L” 54 km/h (33 mph). . . . . . . . . . . .
Do not continue hill climbing or
hard towing for a long time in the
“3”, “2” or “L” position. This may
cause severe automatic transmis-
sion damage from overheating. To
prevent such damage, “4” position
should be used in hill climbing or
hard towing.
(e) Backing up
1. Bring the vehicle to a complete stop.
2. With the brake pedal held down with
your foot, shift the selector lever to the
“R” position.
NOTICE
Never shift into reverse while the ve-
hicle is moving.
(f) Parking
1. Bring the vehicle to a complete stop.
2. With the brake pedal pressed down,
fully depress the parking brake pedal
to apply the parking brake securely.
3. With the brake pedal pressed down,
shift the selector lever to the “P” posi-
tion.
CAUTION
Never attempt to move the selector
lever into “P” position under any cir-
cumstances while the vehicle is mov-
ing. Serious mechanical damage and
loss of vehicle control may result.
(g) Good driving practice
If the transmission repeatedly shifts up
and down between fourth gear and ov-
erdrive when climbing a gentle slope,
shift the selector lever to the “4” posi-
tion. Be sure to shift the selector lever
to the “D” position immediately after-
ward.
When towing a trailer, in order to main-
tain engine braking efficiency, do not
use overdrive.
CAUTION
Always keep your foot on the brake
pedal while stopped with the engine
running. This prevents the vehicle
from creeping.
NOTICE
Always use the brake pedal or the
parking brake to hold the vehicle on
an upgrade. Do not attempt to hold
the vehicle using the accelerator ped-
al, as this can cause the transmission
to overheat.
(h) If you cannot shift the selector le-
ver out of “P” position
If you cannot shift the selector lever from
“P” position even though the brake pedal
is depressed, use the shift lock override
button. For instructions, see “If you cannot
shift automatic transmission selector lever”
on page 355 in Section 4.

’07Camry_U (L/O 0608)
164
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
only shift out of “P” position when the
brake pedal is depressed (with the ignition
switch is set at ON).

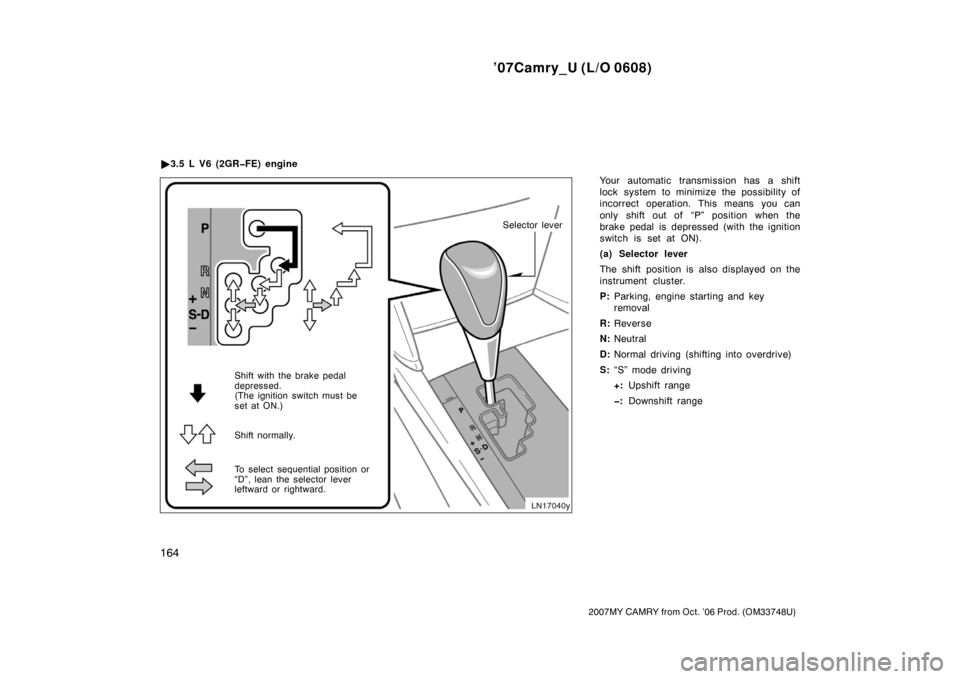

(a) Selector lever
The shift position is also displayed on the
instrument cluster.
P:Parking, engine starting and key
removal
R:Reverse
N:Neutral
D:Normal driving (shifting into overdrive)
S:“S” mode driving
+:Upshift range
:Downshift range 3.5 L V6 (2GRFE) engine
Shift with the brake pedal
depressed.
(The ignition switch must be
set at ON.)
Shift normally.
To select sequential position or
“D”, lean the selector lever
leftward or rightward.
Selector lever

’07Camry_U (L/O 0608)
165
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
(b) Normal driving
1. Start the engine as instructed in “How
to start the engine” on page 316 in
Section 3. The transmission must be in
“P” or “N”.
2. With your foot holding down the brake
pedal, shift the selector lever to “D”.
When the lever is in the “D” position, the
automatic transmission system will select
the most suitable gear for running condi-
tions such as normal cruising, hill climb-
ing, hard towing, etc.
Always use the “D” position for better fuel
economy and quieter driving. In this posi-
tion, shifting into the overdrive gear is
possible. If the engine coolant temperature
is low, the transmission will not shift into
the overdrive gear even in the “D” posi-
tion.
CAUTION
Never put your foot on the accelera-
tor pedal while shifting.
3. Release the parking brake and brake
pedal. Depress the accelerator pedal
slowly for smooth starting.AI (Artificial Intelligence) shifting con-
trol—
AI shifting control selects the most
suitable shift range automatically ac-
cording to the driver’s operation and
driving condition.
AI shifting control operates automatical-
ly with the selector lever in the “D”
position. When the lever is moved to
the “S” position, this function will be
cancelled.
Shifting control on the slope:
On inclines, you can drive smoothly
with reduced shifting quantity. On de-
clines, the vehicle will shift down auto-
matically to obtain optimum engine
braking and reduce the driver ’s foot
braking load.
Automatic shifting point change con-
trol:
The most suitable shift range is se-
lected depending on the driver ’s accel-
erator pedal operation and vehicle con-
dition.(c) Driving in “S” mode
You can change the shift range position
in the “S” mode. The shift range posi-
tion can be switched between “6” (sixth
range) and “1” (first range) by moving
the selector lever up to the “+” side or
down to the “–” side. When the selec-
tor lever is shifted to the “S” position,
the initial shift range position is “4”
(fourth range) or “5” (fifth range) de-
pending on the vehicle speed.
However, if the selector lever is shifted
to the “S” position when AI shifting
control is being performed, the initial
shift range position may be “3” (third
range). This is because the suitable
shift range is selected depending on
the driving condition.

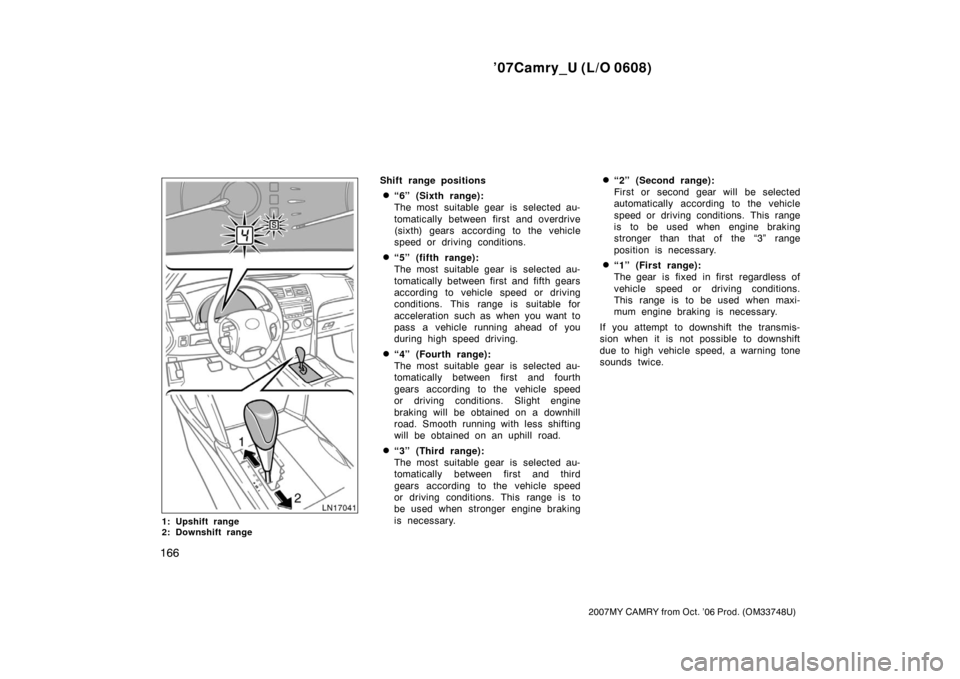

The “S” mode indicator light and the cur-
rent shift range position are shown on the
instrument cluster.

’07Camry_U (L/O 0608)
166
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
1: Upshift range
2: Downshift range
Shift range positions
“6” (Sixth range):
The most suitable gear is selected au-
tomatically between first and overdrive
(sixth) gears according to the vehicle
speed or driving conditions.
“5” (fifth range):
The most suitable gear is selected au-
tomatically between first and fifth gears
according to vehicle speed or driving
conditions. This range is suitable for
acceleration such as when you want to
pass a vehicle running ahead of you
during high speed driving.
“4” (Fourth range):
The most suitable gear is selected au-
tomatically between first and fourth
gears according to the vehicle speed
or driving conditions. Slight engine
braking will be obtained on a downhill
road. Smooth running with less shifting
will be obtained on an uphill road.
“3” (Third range):
The most suitable gear is selected au-
tomatically between first and third
gears according to the vehicle speed
or driving conditions. This range is to
be used when stronger engine braking
is necessary.
“2” (Second range):
First or second gear will be selected
automatically according to the vehicle
speed or driving conditions. This range
is to be used when engine braking
stronger than that of the “3” range
position is necessary.
“1” (First range):
The gear is fixed in first regardless of
vehicle speed or driving conditions.
This range is to be used when maxi-
mum engine braking is necessary.
If you attempt to downshift the transmis-
sion when it is not possible to downshift
due to high vehicle speed, a warning tone
sounds twice.

’07Camry_U (L/O 0608)
167
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Maximum allowable speeds
To get on a highway or to pass slower
traffic, maximum acceleration may be nec-
essary. Make sure you observe the follow-
ing maximum allowable speeds in each
range:
range km/h (mph)
1 60 (37)
2 104 (65)
3 139 (86)
4 198 (123)
NOTICE
Do not downshift if you are going
faster than the maximum allowable
speed for the next lower range.
When the “S” mode indicator light does
not come on even with the selector lever
moved to the sequential position, there
may be a problem somewhere in the
system. Have your vehicle checked/re-
paired by your Toyota dealer as soon as
possible. In this case, you can drive in
the same condition as in the “D” position.(d) Using engine braking
To use engine braking, you can downshift
the transmission as follows:
When driving in the “D” position—
Shift the selector lever to the “S”
position.
When driving in the “6” range within
the “S” position—
Move the selector lever down to the
“–” side to select the “5” range.
The transmission will downshift to fifth
range and engine braking will be en-
abled.
Vehicles with cruise control—when the
cruise control is being used, even if
you downshift the transmission, engine
braking will not be enabled because
the cruise control is not cancelled.
For ways to decrease the vehicle
speed, see “Cruise control” on page
181 in this Section.
Move the selector lever down to the
“−” side to select the “4” range. The
transmission will downshift to fourth
range when the vehicle speed drops
down to or lower than 169 km/h (105
mph), and stronger engine braking will
be enabled.
Vehicles with cruise control—when the
cruise control is being used, even if
you downshift the transmission, engine
braking will not be enabled because
the cruise control is not cancelled.
Move the selector lever down to the
“−” side to select the “3” range. The
transmission will downshift to third
range when the vehicle speed drops
down to or lower than 121 km/h (75
mph), and more powerful engine brak-
ing than that of the “4” range position
will be enabled.
Move the selector lever down to the
“−” side to select the “2” range. The
transmission will downshift to second
range when the vehicle speed drops
down to or lower than 87 km/h (54
mph), and more powerful engine brak-
ing will be enabled.

’07Camry_U (L/O 0608)
168
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Move the selector lever down to the
“−” side to select the “1” range. The
downshift to first range when the ve-
hicle speed drops down to or lower
than 38 km/h (24 mph), and maximum
engine braking will be enabled.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to skid or
spin.
(e) Backing up
1. Bring the vehicle to a complete stop.
2. With the brake pedal held down with
your foot, shift the selector lever to the
“R” position.
NOTICE
Never shift into reverse while the ve-
hicle is moving.
(f) Parking
1. Bring the vehicle to a complete stop.
2. With the brake pedal pressed down,
fully depress the parking brake pedal
to apply the parking brake securely.
3. With the brake pedal pressed down,
shift the selector lever to the “P” posi-
tion.
CAUTION
Never attempt to move the selector
lever into “P” position under any cir-
cumstances while the vehicle is mov-
ing. Serious mechanical damage and
loss of vehicle control may result.
(g) Good driving practice
If the transmission repeatedly shifts up
and down between third gear and over-
drive when climbing a gentle slope,
shift the selector lever into sequential
position.
When towing a trailer, in order to main-
tain engine braking efficiency, do not
use overdrive.
CAUTION
Always keep your foot on the brake
pedal while stopped with the engine
running. This prevents the vehicle
from creeping.
NOTICE
Always use the brake pedal or the
parking brake to hold the vehicle on
an upgrade. Do not attempt to hold
the vehicle using the accelerator ped-
al, as this can cause the transmission
to overheat.
(h) If you cannot shift the selector le-
ver out of “P” position
If you cannot shift the selector lever from
the “P” position even though the brake
pedal is depressed, use the shift lock
override button. For instructions, see “If
you cannot shift automatic transmission
selector lever” on page 355 in Section 4.
