2007 TOYOTA CAMRY Owners Manual

’07Camry_U (L/O 0608)
217
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
The system may not function in the follow-
ing conditions and places:
The cellular phone is turned off.
The current position is outside the
communication area.
The cellular phone is not connected.
The cellular phone has a low battery.
The cellular phone is hiding behind the
seat or in the glove box and console
box.
The cellular phone touches or is cov-
ered with metal materials.
This system supports the following ser-
vice.
HFP (Hands Free Profile) Ver. 1.0
OPP (Object Push Profile) Ver. 1.1
If your cellular phone does not support
HFP, you cannot enter the Bluetooth
phone, and take OPP service individually.
BLUETOOTH is a trademark owned by
Bluetooth SIG. Inc.When transferring ownership of the ve-
hicle:
A lot of personal data is registered
when you use the handsfree system.
When transferring ownership of the ve-
hicle, initialize the system.
If you initialize it, the former state will
never come back again. Pay much atten-
tion when initializing the data.
You can initialize the following data in the
system.
Phone book data
Dialed numbers and received calls
Speed dial
Bluetooth phone data
Security code
FCC ID: HYQBTAU01A
IC ID: 1551ABTAU01A
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules and RSS−210. Operation is
subject to the following two conditions:
(1) This device may not cause harmful
interference, and (2) This device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.

’07Camry_U (L/O 0608)
218
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

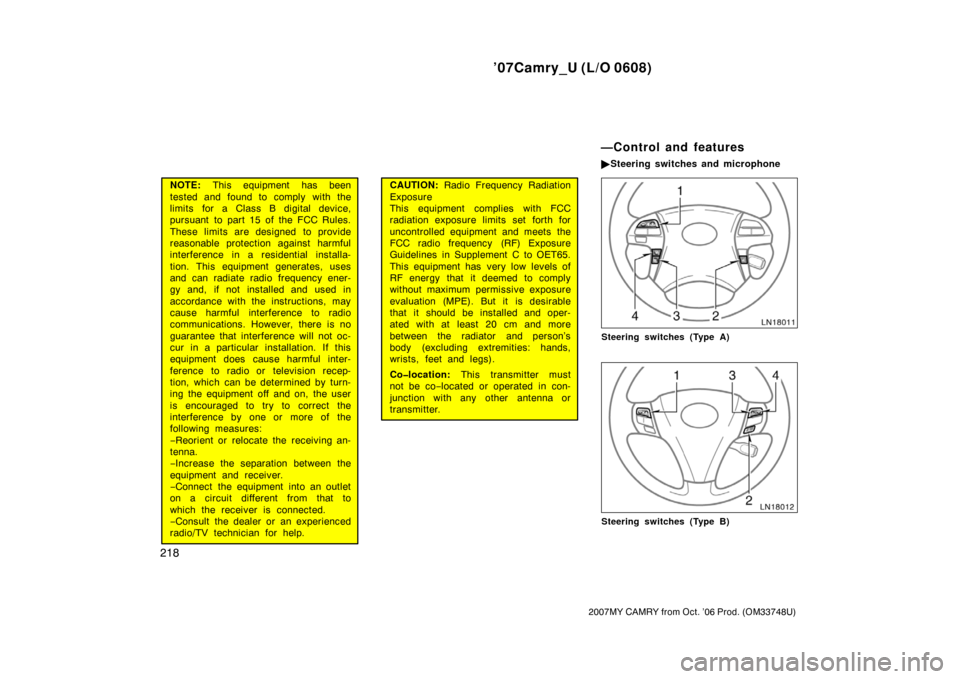

NOTE: This equipment has been
tested and found to comply with the
limits for a Class B digital device,
pursuant to part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installa-
tion. This equipment generates, uses
and can radiate radio frequency ener-
gy and, if not installed and used in
accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no
guarantee that interference will not oc-
cur in a particular installation. If this
equipment does cause harmful inter-
ference to radio or television recep-
tion, which can be determined by turn-
ing the equipment off and on, the user
is encouraged to try to correct the
interference by one or more of the
following measures:
−Reorient or relocate the receiving an-
tenna.
−Increase the separation between the
equipment and receiver.
−Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
−Consult the dealer or an experienced
radio/TV technician for help.CAUTION: Radio Frequency Radiation
Exposure
This equipment complies with FCC
radiation exposure limits set forth for
uncontrolled equipment and meets the
FCC radio frequency (RF) Exposure
Guidelines in Supplement C to OET65.
This equipment has very low levels of
RF energy that it deemed to comply
without maximum permissive exposure
evaluation (MPE). But it is desirable
that it should be installed and oper-
ated with at least 20 cm and more
between the radiator and person’s
body (excluding extremities: hands,
wrists, feet and legs).
Colocation: This transmitter must
not be co−located or operated in con-
junction with any other antenna or
transmitter.
Steering switches (Type A)
Steering switches (Type B)
—Control and features
Steering switches and microphone

’07Camry_U (L/O 0608)
219
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Overhead console
1. Volume control switch
To increase the volume: Push “+”.
To decrease the volume: Push “−”.
When driving at 80 km/h (50 mph) or
more, the volume automatically increases
without switch adjustment. When your
speed falls below 70 km/h (43 mph), the
volume automatically returns to its original
level.
Voice guidance volume cannot be changed
by pushing the volume control switch on
the steering wheel.2. Talk switch
Pushing the talk switch turns the hands−
free system on and initiates the speech
command system.
Pushing and holding the talk switch ends
the speech command system.
3. Offhook switch
Pushing the off−hook switch turns the
hands−free system on.
When receiving a call, pushing the off−
hook switch allows you to talk on the
phone.
4. Onhook switch
When the hands−free system is on, push-
ing the on−hook switch turns the hands−
free system off.
5. Microphone
The microphone is used when talking on
the phone or using the speech command
system.

’07Camry_U (L/O 0608)
220
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
1. Display
Displays such items as the reception lev-
el, a party’s name and phone number. See
“DISPLAY” described on the following
page for further details about the display.
2. “AUDIO CTRL” knob
Turning the “AUDIO CTRL” knob displays
the menu items, names, numbers, etc. to
be selected. To select an item, push the
“AUDIO CTRL” knob. Due to safety con-
cerns, the “AUDIO CTRL” knob does not
function while the vehicle is in motion.
3. Preset buttons
Pushing the preset button displays the
registered speed dial numbers.
4. “TEXT” button
When the party’s name or phone number
is too long to be displayed, pushing and
holding the “TEXT” button displays the re-
maining characters. Audio unit

’07Camry_U (L/O 0608)
221
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
DISPLAY
1. Bluetooth display
Displays when a Bluetooth connection is
made. If there is no display, the
Bluetooth connection has not been made
and communication between the phone
and system is not possible. When using
the hands−free system, make sure that
“BT” is displayed. The display is updated
in real time.2. Reception level display
Displays the reception level of the radio
wave signals. This may not match the
display on the cellular phone. The recep-
tion level of some cellular phones may not
be displayed.
The number of bars is greater when the
signal received is stronger.
3. Message display
Displays phone numbers, names, com-
ments, menu items, etc.The phone setup menu includes the fol-
lowing:
Pair Phone
To use the hands−free system, you need
to register your phone in the system.
Once you have registered it, you can
make a hands−free call. Up to 6 phones
can be registered.
Select Phone
When the system connects to Bluetooth,
the phone previously used is automatically
selected. Select a different phone if nec-
essary. Only the selected phone can be
used with the hands−free system.
Change Name
The registered phone names can be
changed.
List Phones
The registered phone names can be
checked.
The following can be performed during the
name playback:
Select phone
Change name
Delete
—Phone Setup

’07Camry_U (L/O 0608)
222
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Set PassKey
The passkey can be changed. A 4 to 8
digit code can be input as a passkey.
Delete
The registered phones can be deleted.
To enter the phone setup menu
1. Push the off−hook switch to turn the
hands−free system on.
2. Follow voice guidance instructions, or
turn the “AUDIO CTRL” knob until
“Setup” is displayed and push the
knob.
“Setup. Please push the talk switch and
say security, or phone setup.” is heard.
3. Follow voice guidance instructions, or
turn the “AUDIO CTRL” knob until
“Phone Setup” is displayed and push
the knob.
“Phone setup. Push the talk switch and
say pair phone, select phone, change
name, list phones, set passkey or delete.”
is heard.
“XXX (phone name) already selected.” is
heard and “XXX (phone name)” is dis-
played.
If no phone has been registered, the sys-
tem may not function properly.To pair phones
1. Push the talk switch and say “Pair
phone”, or turn the “AUDIO CTRL”
knob until “Pair Phone” is displayed
and push the knob.
“Pair. Push the talk switch and say a
name for the phone.” is heard.
2. Follow voice guidance instructions, or
turn the “AUDIO CTRL” knob until
“Record Name” is displayed, push the
knob and say “XXX (desired phone
name)”.
“Push the talk switch and say confirm.
Otherwise, say go back.” is heard.
3. Follow voice guidance instructions, or
turn the “AUDIO CTRL” knob until
“Confirm” is displayed and push the
knob.
“XXX Ready for phone pairing. Please use
the phone to connect it to the hands−free
system. The passkey for the phone is....”
is heard.
After “HANDS FREE” is displayed, a pass-
key
∗ is displayed and “Searching.” is
heard.
4. Input the displayed passkey into the
phone.“The phone is paired and ready for use.
Returning to the main menu.” is heard and
“Paired” is displayed.
The system may not function in the follow-
ing cases:
If 6 phones have already been regis-
tered.
If the vehicle is moving.
If the system cannot communicate with
the phone.
∗: Passkey is a password required to reg-
ister a phone to the system.
INFORMATION
To use the handsfree system, you
need to register your phone in the
system. Once you have registered
it, you can make a handsfree call.
Up to 6 phones can be registered.
For the operation of the phone, see
the manual that comes with your
cellular phone.
The passkey can be changed. See
page 225 for changing the passkey.

’07Camry_U (L/O 0608)
223
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
To select a phone
1. Push the talk switch and say “Select
phone”, or turn the “AUDIO CTRL”
knob until “Select Phone” is displayed
and push the knob.
“Select phone. Push the talk switch and
say the phone name or say list phones.”
is heard.
2. Follow voice guidance instructions, or
turn the “AUDIO CTRL” knob until the
desired phone name is displayed and
push the knob.
When the phone is selected by a voice
command:
“XXX Push the talk switch and say con-
firm. Otherwise, say go back.” is heard
and “XXX” is displayed.
Follow voice guidance instructions, or turn
the “AUDIO CTRL” knob until “Confirm” is
displayed and push the knob.
“XXX selected. Returning to the phone
setup.” is heard.When the phone is selected by using
the knob:
“XXX selected. Returning to the phone
setup.” is heard.
The system may not function in the follow-
ing cases:
If the phone is not found.
If the system does not recognize the
voice command.To change a name
1. Push the talk switch and say “Change
name”, or turn the “AUDIO CTRL” knob
until “Change Name” is displayed and
push the knob.
“Change name. Push the talk switch and
say the phone name to change.” is heard.
2. Follow voice guidance instructions, or
turn the “AUDIO CTRL” knob until the
phone name that you want to change
is displayed and push the knob.

’07Camry_U (L/O 0608)
224
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
When the phone is selected by a voice
command:
“XXX Push the talk switch and say con-
firm. Otherwise, say go back.” is heard
and “XXX” is displayed.
1. Follow voice guidance instructions, or
turn the “AUDIO CTRL” knob until
“Confirm” is displayed and push the
knob.
“Push the talk switch and say a new
name.” is heard.
2. Follow voice guidance instructions, or
turn the “AUDIO CTRL” knob until
“Record Name” is displayed, push the
knob and say “XXX (desired phone
name)”.
“XXX Push the talk switch and say con-
firm. Otherwise, say go back.” is heard.
3. Follow voice guidance instructions, or
turn the “AUDIO CTRL” knob until
“Confirm” is displayed and push the
knob.
“Name changed. Returning to the phone
setup.” is heard and “Changed” is dis-
played.When the phone is selected by using
the knob:
“XXX Push the talk switch and say con-
firm. Otherwise, say go back.” is heard
and “XXX” is displayed.
1. Follow voice guidance instructions, or
turn the “AUDIO CTRL” knob until
“Confirm” is displayed and push the
knob.
“Push the talk switch and say a new
name.” is heard.
2. Follow voice guidance instructions, or
turn the “AUDIO CTRL” knob until
“Record Name” is displayed, push the
knob and say “XXX (desired phone
name)”.
“XXX Push the talk switch and say con-
firm. Otherwise, say go back.” is heard.
3. Follow voice guidance instructions, or
turn the “AUDIO CTRL” knob until
“Confirm” is displayed and push the
knob.
“Name changed. Returning to the phone
setup.” is heard and “Changed” is dis-
played.The system may not function in the follow-
ing cases:
If no phone has been registered.
If the system does not recognize the
voice command.
To list phones
1. Push the talk switch and say “List
phones”, or turn the “AUDIO CTRL”
knob until “List Phones” is displayed
and push the knob.
“List phones. To select a name, push the
talk switch during the name playback.” is
heard.
2. Follow voice guidance instructions.
“Push the talk switch and say select
phone, change name, or delete.” is heard.
Select one of the following:
