2007 TOYOTA CAMRY Owners Manual

’07Camry_U (L/O 0608)
105
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

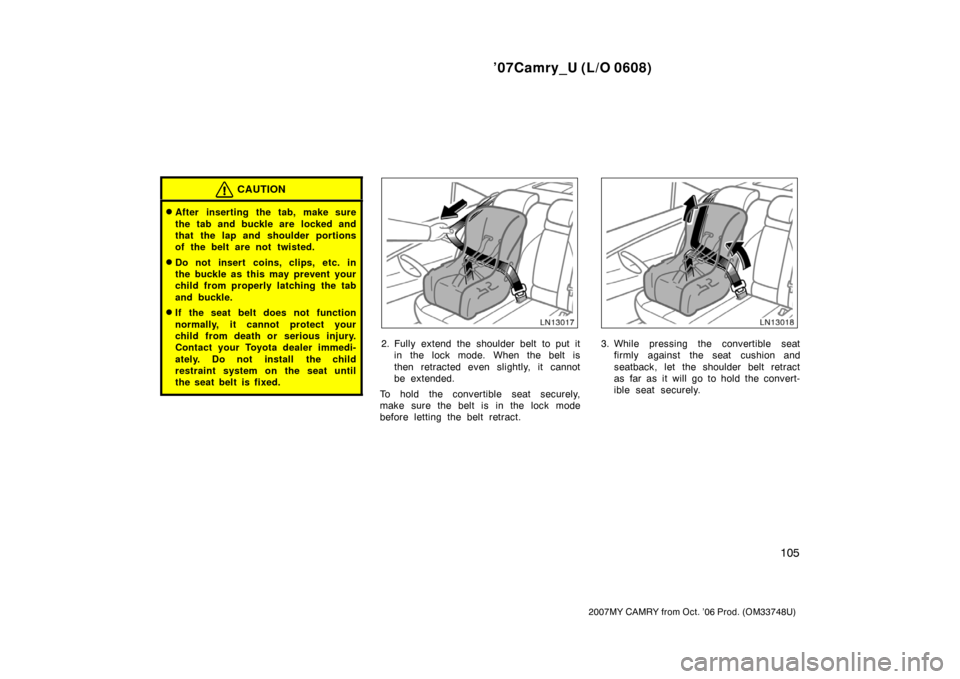

CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.3. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.

’07Camry_U (L/O 0608)
106
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

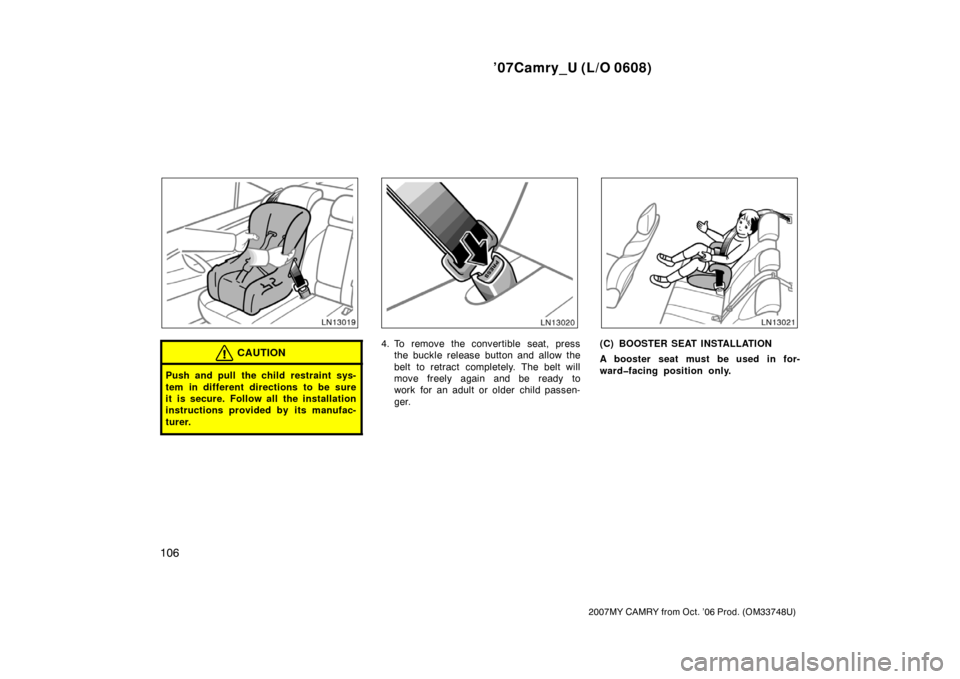

CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the convertible seat, press
the buckle release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.(C) BOOSTER SEAT INSTALLATION
A booster seat must be used in for-
wardfacing position only.

’07Camry_U (L/O 0608)
107
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

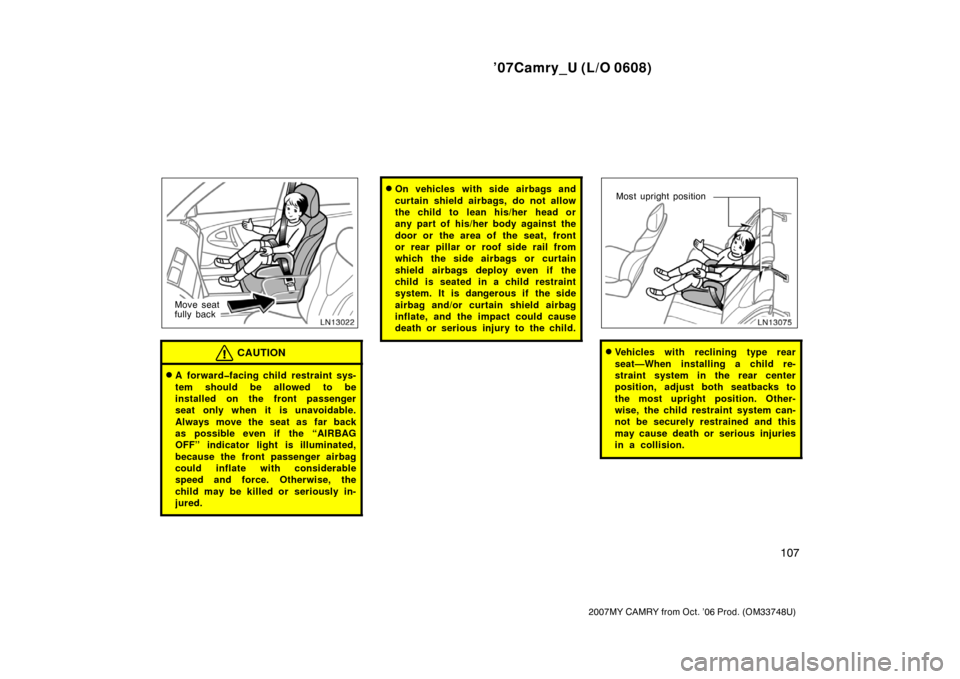

Move seat
fully back
CAUTION
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible even if the “AIRBAG
OFF” indicator light is illuminated,
because the front passenger airbag
could inflate with considerable
speed and force. Otherwise, the
child may be killed or seriously in-
jured.
On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean his/her head or
any part of his/her body against the
door or the area of the seat, front
or rear pillar or roof side rail from
which the side airbags or curtain
shield airbags deploy even if the
child is seated in a child restraint
system. It is dangerous if the side
airbag and/or curtain shield airbag
inflate, and the impact could cause
death or serious injury to the child.Most upright position
Vehicles with reclining type rear
seat—When installing a child re-
straint system in the rear center
position, adjust both seatbacks to
the most upright position. Other-
wise, the child restraint system can-
not be securely restrained and this
may cause death or serious injuries
in a collision.

’07Camry_U (L/O 0608)
108
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

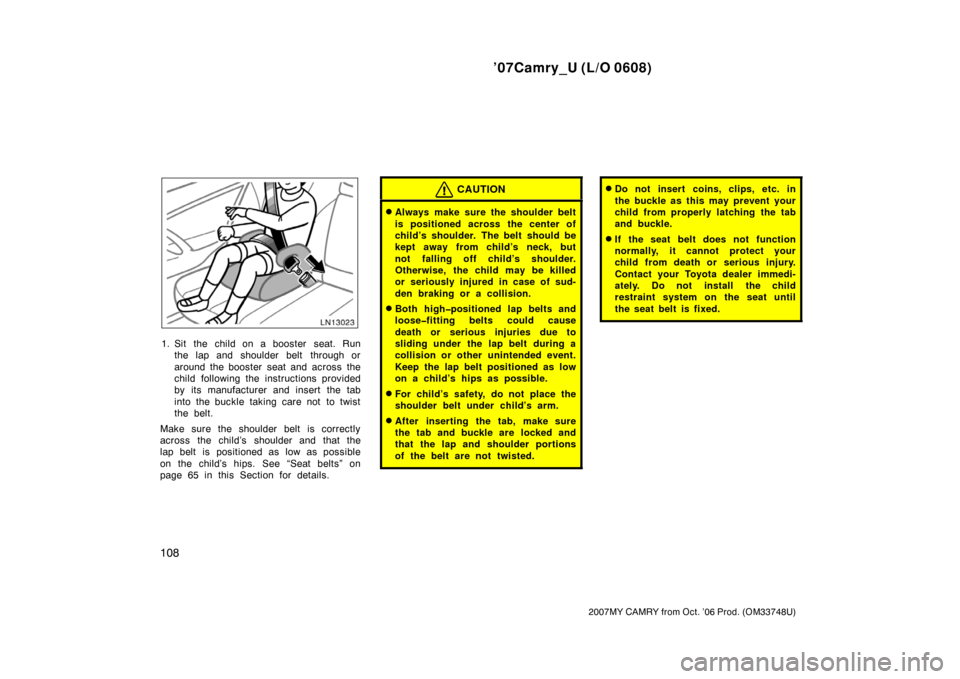

1. Sit the child on a booster seat. Run
the lap and shoulder belt through or
around the booster seat and across the
child following the instructions provided
by its manufacturer and insert the tab
into the buckle taking care not to twist
the belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on the child’s hips. See “Seat belts” on
page 65 in this Section for details.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s shoulder.
Otherwise, the child may be killed
or seriously injured in case of sud-
den braking or a collision.
Both highpositioned lap belts and
loosefitting belts could cause
death or serious injuries due to
sliding under the lap belt during a
collision or other unintended event.
Keep the lap belt positioned as low
on a child’s hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.

’07Camry_U (L/O 0608)
109
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

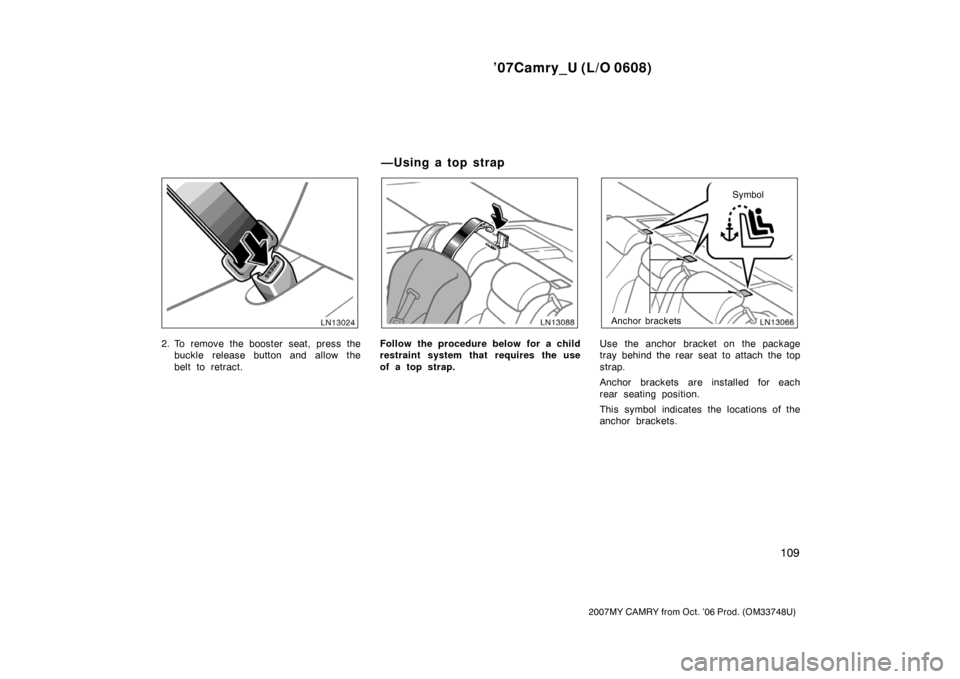

2. To remove the booster seat, press the
buckle release button and allow the
belt to retract.Follow the procedure below for a child
restraint system that requires the use
of a top strap.
Symbol
Anchor brackets
Use the anchor bracket on the package
tray behind the rear seat to attach the top
strap.
Anchor brackets are installed for each
rear seating position.
This symbol indicates the locations of the
anchor brackets.
— U sin g a to p st rap

’07Camry_U (L/O 0608)
11 0
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

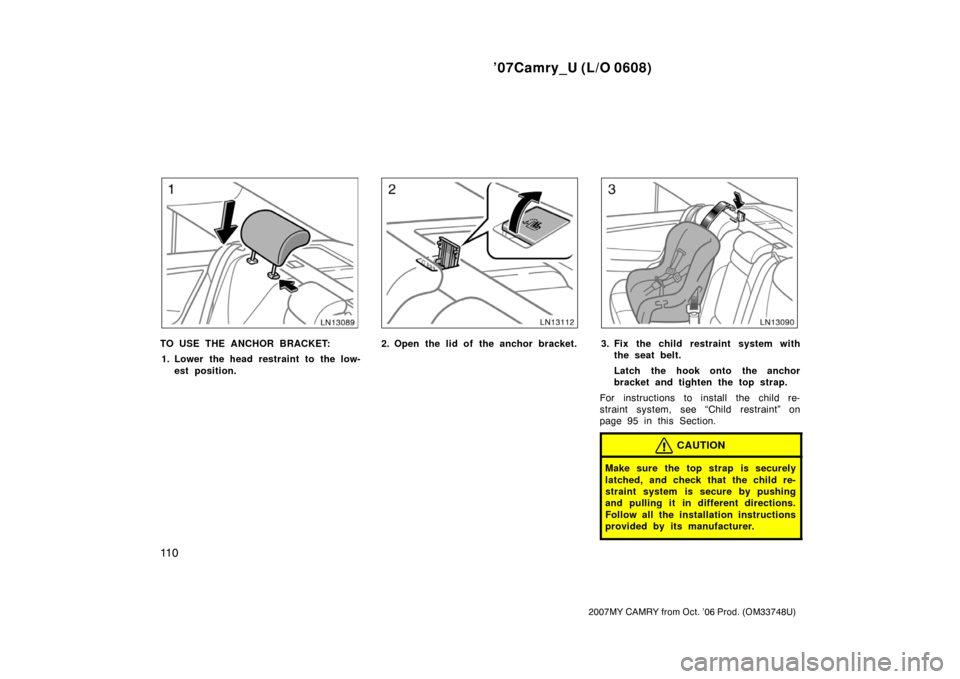

TO USE THE ANCHOR BRACKET:
1. Lower the head restraint to the low-
est position.2. Open the lid of the anchor bracket.3. Fix the child restraint system with
the seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” on
page 95 in this Section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.

’07Camry_U (L/O 0608)
111
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

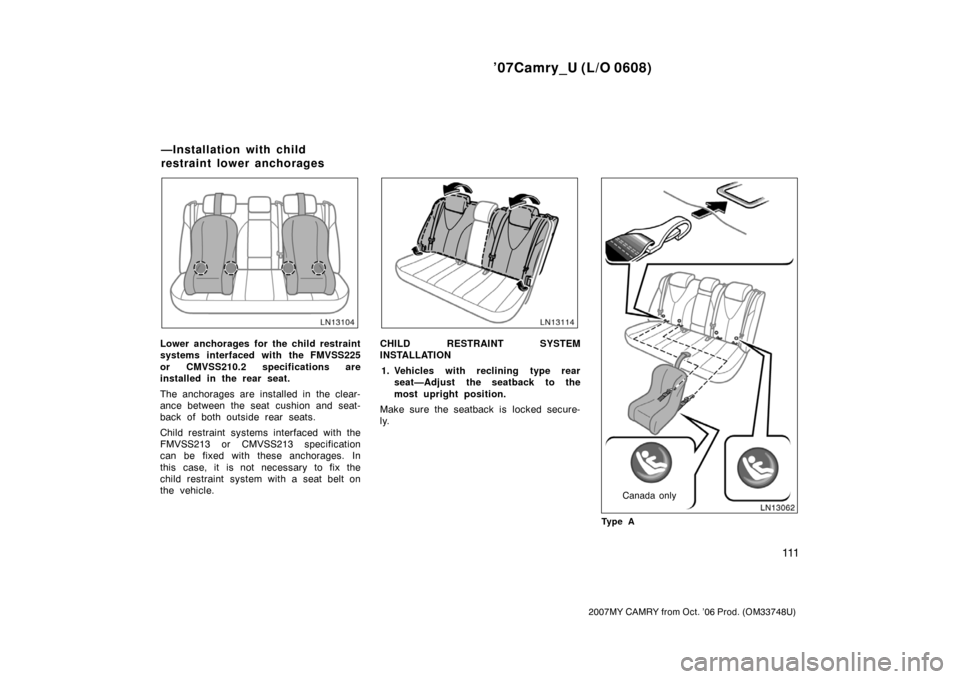

Lower anchorages for the child restraint
systems interfaced with the FMVSS225
or CMVSS210.2 specifications are
installed in the rear seat.
The anchorages are installed in the clear-
ance between the seat cushion and seat-
back of both outside rear seats.
Child restraint systems interfaced with the
FMVSS213 or CMVSS213 specification
can be fixed with these anchorages. In
this case, it is not necessary to fix the
child restraint system with a seat belt on
the vehicle.CHILD RESTRAINT SYSTEM
INSTALLATION
1. Vehicles with reclining type rear
seat—Adjust the seatback to the
most upright position.
Make sure the seatback is locked secure-
ly.
Canada only
Ty p e A
—Installation with child
restraint lower anchorages

’07Camry_U (L/O 0608)
11 2
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

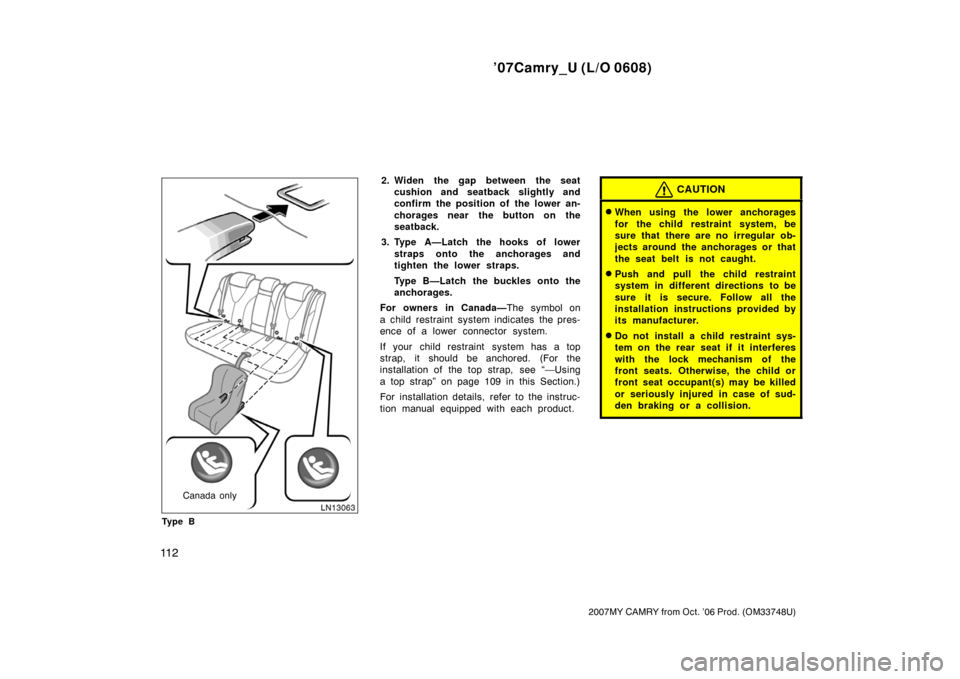

Canada only
Ty p e B
2. Widen the gap between the seat
cushion and seatback slightly and
confirm the position of the lower an-
chorages near the button on the
seatback.
3. Type A—Latch the hooks of lower
straps onto the anchorages and
tighten the lower straps.
Type B—Latch the buckles onto the
anchorages.
For owners in Canada—The symbol on
a child restraint system indicates the pres-
ence of a lower connector system.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 109 in this Section.)
For installation details, refer to the instruc-
tion manual equipped with each product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.
