A child restraint system for a small
child or baby must itself be properly
restrained on the seat with the lap por-
tion of the lap/shoulder belt. You must
carefully consult the manufacturer ’s in-
structions which accompany the child
restraint system.
To provide proper restraint, use a child
restraint system following the manufactur-
er ’s instructions about the appropriate age
and size of the child for the child restraint
system.
Install the child restraint system correctly
following the instructions provided by its
manufacturer. General directions are also
provided under the following illustrations.
The child restraint system should be
installed on the rear seat. According to
accident statistics, the child is safer when
properly restrained in the rear seat than
in the front seat.
When not using the child restraint system,
keep it secured with the seat belt or place
it in the trunk or somewhere other than
the passenger compartment. This will pre-
vent it from injuring passengers in the
event of a sudden stop or accident.Child restraint systems are classified into
the following 3 types depending on the
child’s age and size.

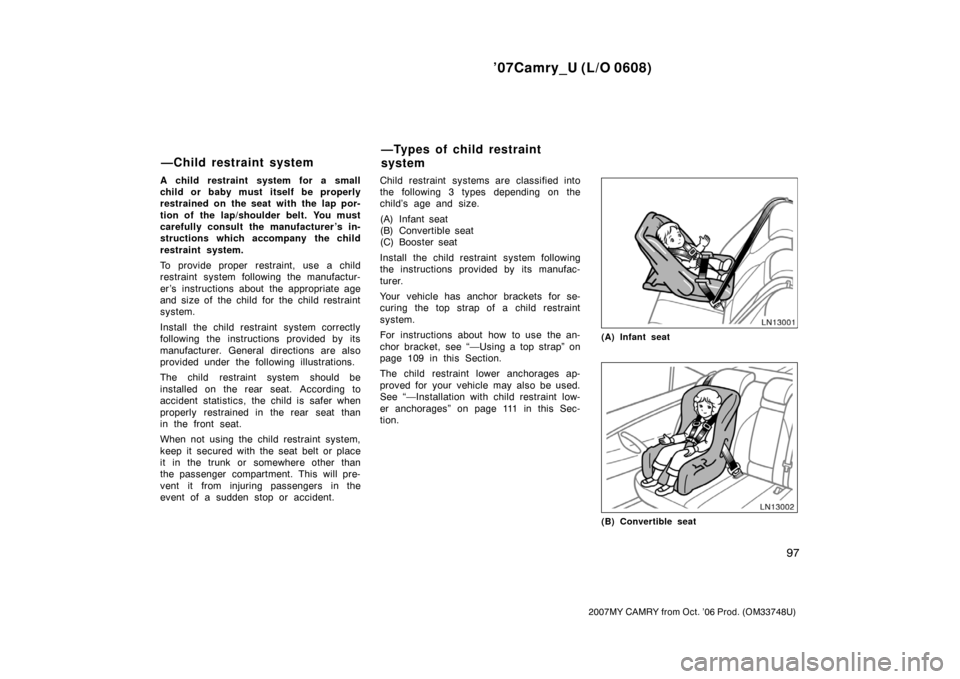

(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufac-
turer.
Your vehicle has anchor brackets for se-
curing the top strap of a child restraint
system.
For instructions about how to use the an-
chor bracket, see “—Using a top strap” on
page 109 in this Section.
The child restraint lower anchorages ap-
proved for your vehicle may also be used.
See “—Installation with child restraint low-
er anchorages” on page 111 in this Sec-
tion.
(A) Infant seat
(B) Convertible seat
—Child restraint system—Types of child restraint
system

’07Camry_U (L/O 0608)
98
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

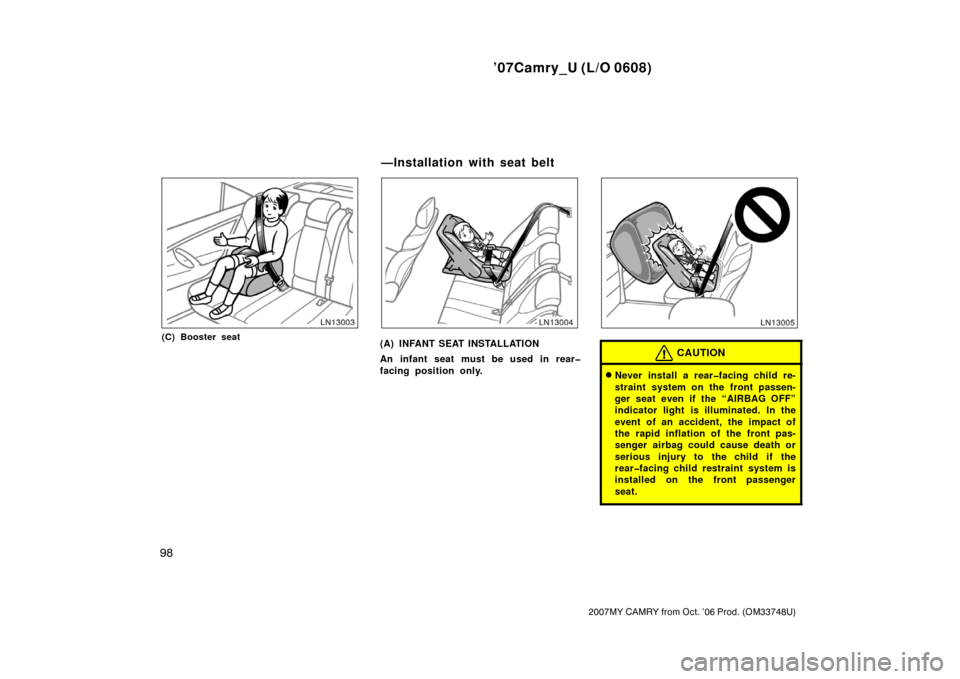

(C) Booster seat(A) INFANT SEAT INSTALLATION
An infant seat must be used in rear
facing position only.CAUTION
Never install a rearfacing child re-
straint system on the front passen-
ger seat even if the “AIRBAG OFF”
indicator light is illuminated. In the
event of an accident, the impact of
the rapid inflation of the front pas-
senger airbag could cause death or
serious injury to the child if the
rearfacing child restraint system is
installed on the front passenger
seat.
—Installation with seat belt

’07Camry_U (L/O 0608)
99
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the rear right
seat.
Most upright position
Vehicles with reclining type rear
seat—When installing a child re-
straint system in the rear center
position, adjust both seatbacks to
the most upright position. Other-
wise, the child restraint system can-
not be securely restrained and this
may cause death or serious injuries
in a collision.1. Run the lap and shoulder belt through
or around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.

’07Camry_U (L/O 0608)
100
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.

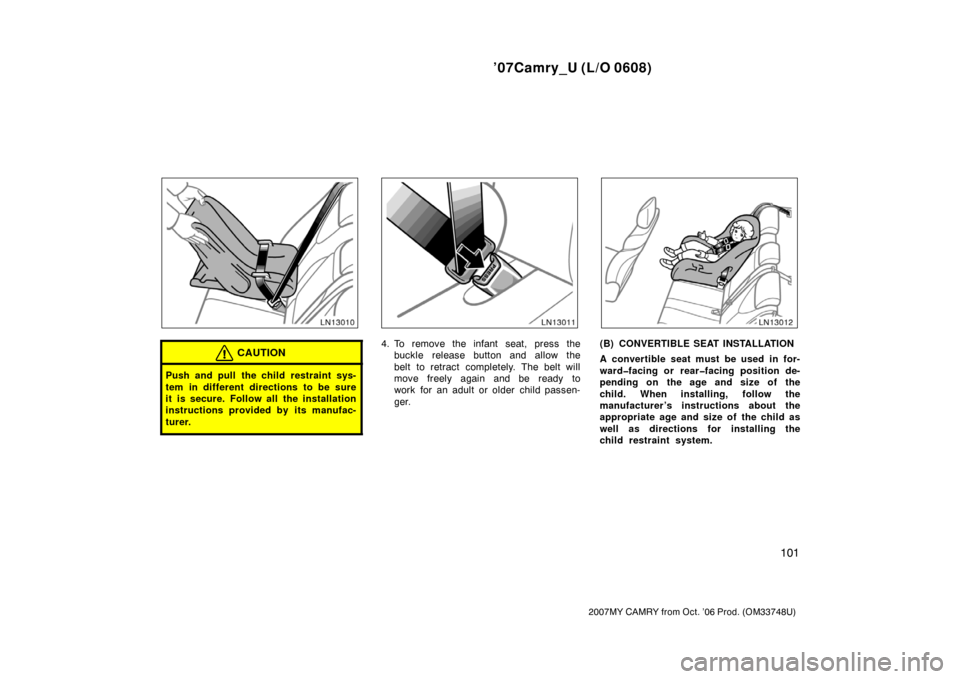

2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.3. While pressing the infant seat firmly
against the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat secure-
ly.

’07Camry_U (L/O 0608)
101
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the infant seat, press the
buckle release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat must be used in for-
wardfacing or rearfacing position de-
pending on the age and size of the
child. When installing, follow the
manufacturer ’s instructions about the
appropriate age and size of the child as
well as directions for installing the
child restraint system.

’07Camry_U (L/O 0608)
102
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Install the child restraint system on the
front passenger seat only when it is un-
avoidable. Your vehicle is equipped with a
front passenger occupant classification
system. In order to activate the occupant
classification system correctly, install the
forward−facing child restraint system on
the front passenger seat in the following
order:
1. Set the ignition switch to ON.
2. Move the front passenger seat to the
rearward position.
3. Put the child restraint system on the
front passenger seat without putting
your weight on the front passenger
seat.
4. Insert the seat belt tab into the seat
belt buckle.
5. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended. To hold the seat securely,
make sure the belt is in the lock mode
before letting the belt retract.
6. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.CAUTION

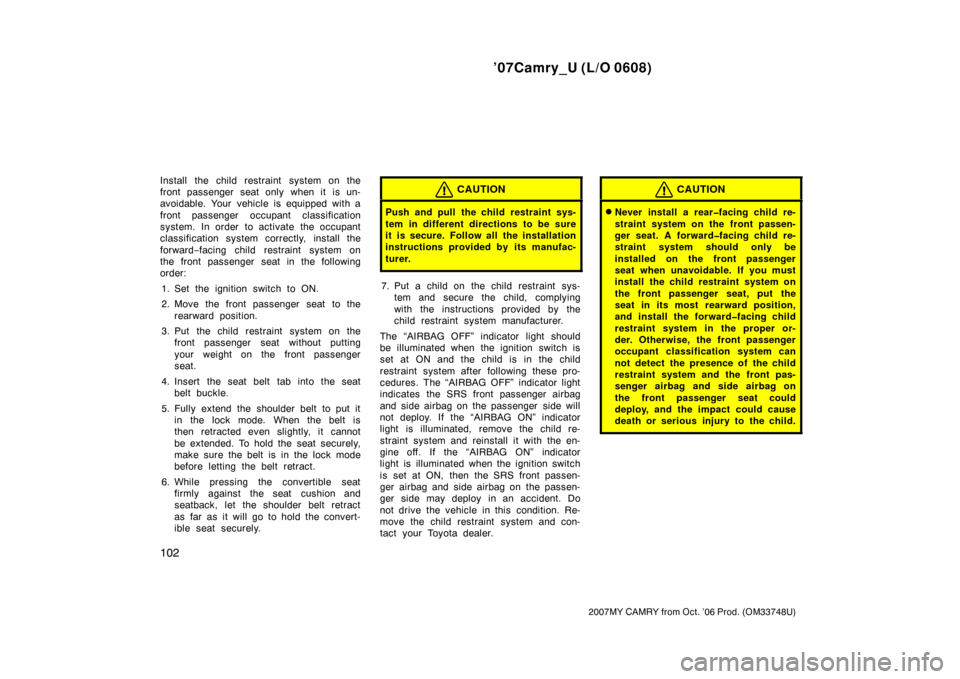

Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
7. Put a child on the child restraint sys-
tem and secure the child, complying
with the instructions provided by the
child restraint system manufacturer.
The “AIRBAG OFF” indicator light should
be illuminated when the ignition switch is
set at ON and the child is in the child
restraint system after following these pro-
cedures. The “AIRBAG OFF” indicator light
indicates the SRS front passenger airbag
and side airbag on the passenger side will
not deploy. If the “AIRBAG ON” indicator
light is illuminated, remove the child re-
straint system and reinstall it with the en-
gine off. If the “AIRBAG ON” indicator
light is illuminated when the ignition switch
is set at ON, then the SRS front passen-
ger airbag and side airbag on the passen-
ger side may deploy in an accident. Do
not drive the vehicle in this condition. Re-
move the child restraint system and con-
tact your Toyota dealer.
CAUTION
Never install a rearfacing child re-
straint system on the front passen-
ger seat. A forwardfacing child re-
straint system should only be
installed on the front passenger
seat when unavoidable. If you must
install the child restraint system on
the front passenger seat, put the
seat in its most rearward position,
and install the forwardfacing child
restraint system in the proper or-
der. Otherwise, the front passenger
occupant classification system can
not detect the presence of the child
restraint system and the front pas-
senger airbag and side airbag on
the front passenger seat could
deploy, and the impact could cause
death or serious injury to the child.

’07Camry_U (L/O 0608)
103
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

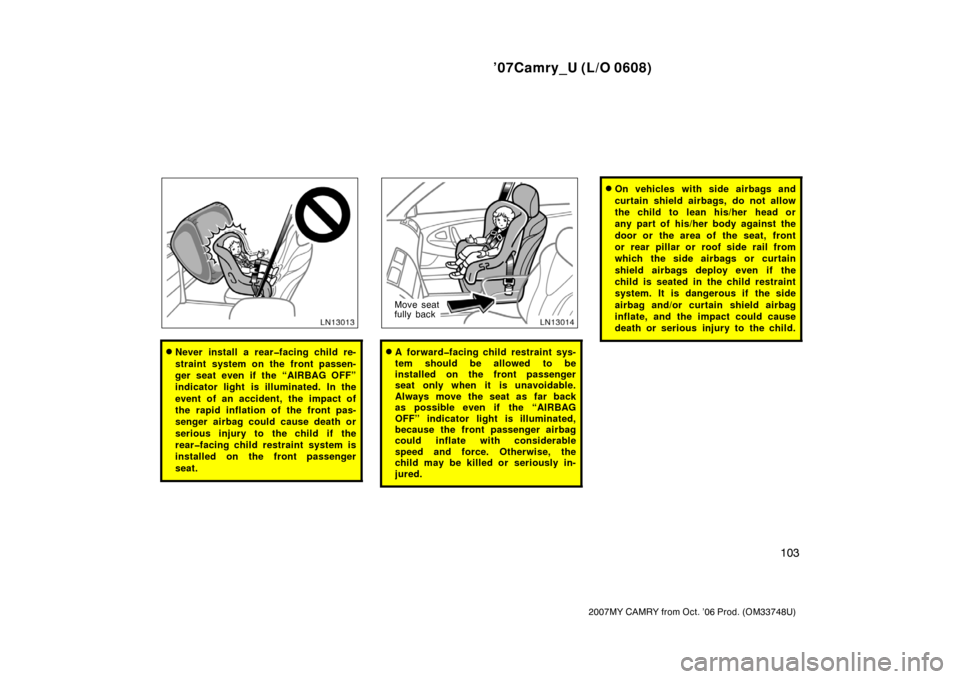

Never install a rearfacing child re-
straint system on the front passen-
ger seat even if the “AIRBAG OFF”
indicator light is illuminated. In the
event of an accident, the impact of
the rapid inflation of the front pas-
senger airbag could cause death or
serious injury to the child if the
rearfacing child restraint system is
installed on the front passenger
seat.
Move seat
fully back
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible even if the “AIRBAG
OFF” indicator light is illuminated,
because the front passenger airbag
could inflate with considerable
speed and force. Otherwise, the
child may be killed or seriously in-
jured.
On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean his/her head or
any part of his/her body against the
door or the area of the seat, front
or rear pillar or roof side rail from
which the side airbags or curtain
shield airbags deploy even if the
child is seated in the child restraint
system. It is dangerous if the side
airbag and/or curtain shield airbag
inflate, and the impact could cause
death or serious injury to the child.

’07Camry_U (L/O 0608)
104
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

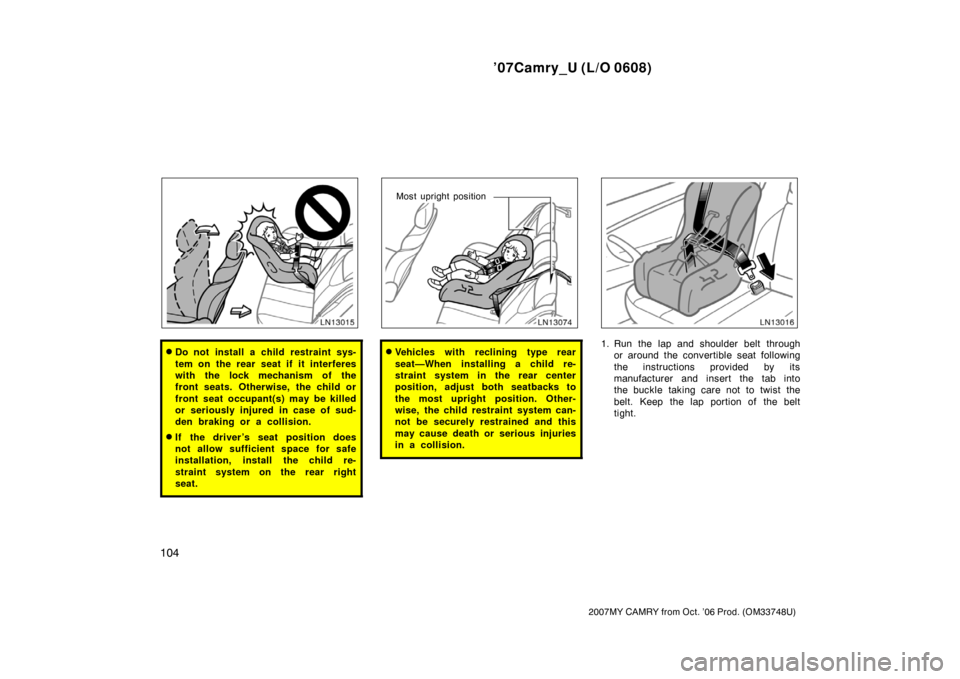

Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the rear right
seat.
Most upright position
Vehicles with reclining type rear
seat—When installing a child re-
straint system in the rear center
position, adjust both seatbacks to
the most upright position. Other-
wise, the child restraint system can-
not be securely restrained and this
may cause death or serious injuries
in a collision.1. Run the lap and shoulder belt through
or around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
