2007 TOYOTA CAMRY HYBRID Owners Manual

’07Camry hybrid_U (L/O 0610)
173
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:
−Reorient or relocate the receiving an-
tenna.
− Increase the separation between the
equipment and receiver.− Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
− Consult the dealer or an experienced
radio/TV technician for help.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
Operation is subject to the following two
conditions: (1) this device may not
cause interference, and (2) this device
must accept any interference, including
interference that may cause undesired
operation of the device.
REPLACING TIRES AND WHEELS
When replacing the tires and wheels, be
sure to install tire pressure warning valves
and transmitters. ID codes on the tire
pressure warning valves and transmitters
are registered on the tire pressure warning
ECU. When replacing a tire pressure
warning valve and transmitter, it is neces-
sary to register the ID code of tire pres-
sure warning valve and transmitter. Have
the ID code registered by your Toyota
dealer.
If the ID code is not registered the sys-
tem will not work properly, After about 1
hour, the tire pressure warning light come
on after blinking for 1 minute to indicate
a system malfunction.
NOTICE
When the tires or tire pressure warn-
ing valves and transmitters must be
replaced, have them replaced by your
Toyota dealer. The tire pressure warn-
ing valves and transmitters will be
affected by the installation or removal
of tires.

’07Camry hybrid_U (L/O 0610)
174
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
TIRE PRESSURE WARNING RESET
SWITCH
When initializing the system, the present
tire inflation pressure is stored as stan-
dard. The tire pressure warning system
determines decreased air pressure by
comparing the present and the standard
tire inflation pressures. When you change
the set tire inflation pressure, it is neces-
sary to initialize the tire pressure warning
system.
When rotating the tires on vehicles dif-
fering with front and rear tire inflation
pressures.
When changing the tire size.
To initialize the system, perform the fol-
lowing: 1. Park the vehicle in a safe place and turn the “POWER” switch off.
2. Adjust the pressure of all the installed tires to the specified cold tire inflation
pressure level. (See “Tires” on page
385 in Section 8.)
3. Press the “POWER” switch and set it at ON.

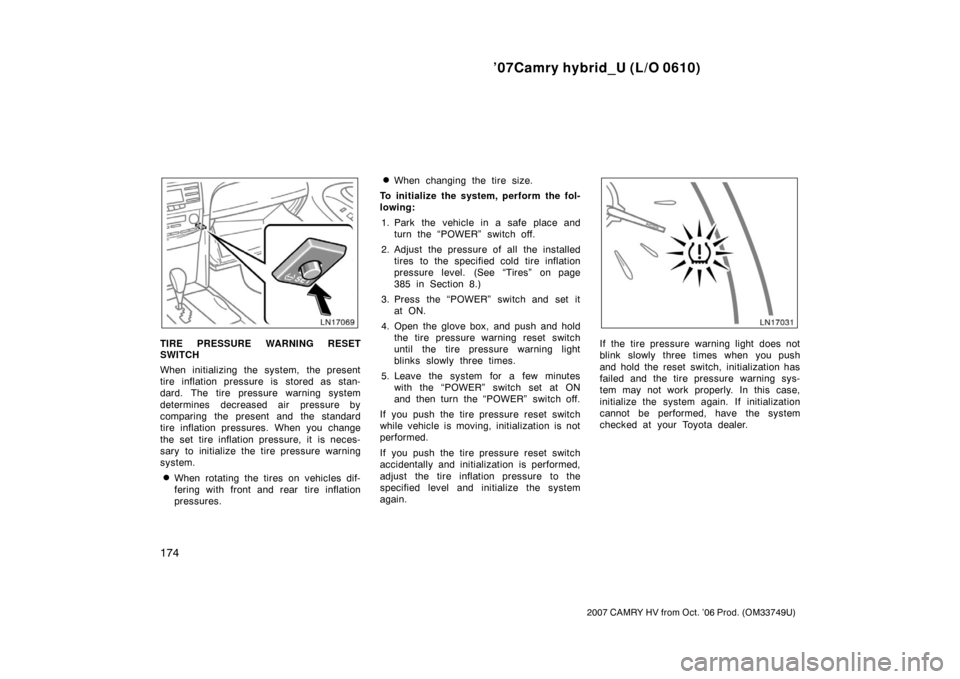

4. Open the glove box, and push and hold the tire pressure warning reset switch
until the tire pressure warning light
blinks slowly three times.
5. Leave the system for a few minutes with the “POWER” switch set at ON
and then turn the “POWER” switch off.
If you push the tire pressure reset switch
while vehicle is moving, initialization is not
performed.
If you push the tire pressure reset switch
accidentally and initialization is performed,
adjust the tire inflation pressure to the
specified level and initialize the system
again.
If the tire pressure warning light does not
blink slowly three times when you push
and hold the reset switch, initialization has
failed and the tire pressure warning sys-
tem may not work properly. In this case,
initialize the system again. If initialization
cannot be performed, have the system
checked at your Toyota dealer.

’07Camry hybrid_U (L/O 0610)
175
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
CAUTION
Do not push the reset switch without
adjusting the tire inflation pressure to
the specified level. Otherwise, the tire
pressure warning light may not come
on even if the tire inflation pressure
is low, or it may come on when the
tire inflation pressure is actually nor-
mal.

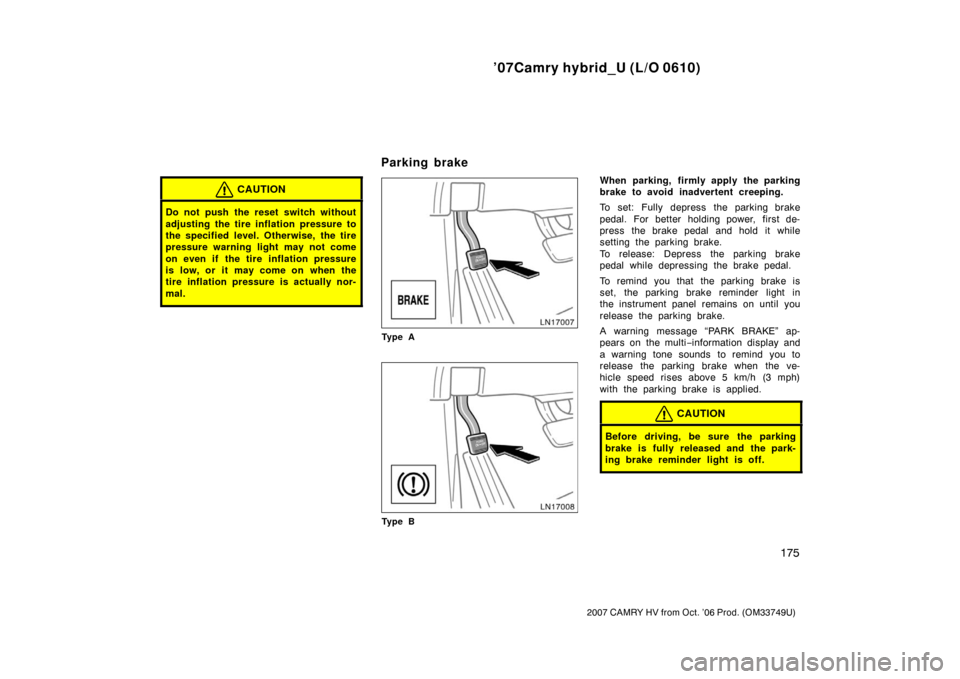

Ty p e A
Ty p e B
When parking, firmly apply the parking
brake to avoid inadvertent creeping.
To set: Fully depress the parking brake
pedal. For better holding power, first de-
press the brake pedal and hold it while
setting the parking brake.
To release: Depress the parking brake
pedal while depressing the brake pedal.
To remind you that the parking brake is
set, the parking brake reminder light in
the instrument panel remains on until you
release the parking brake.
A warning message “PARK BRAKE” ap-
pears on the multi−information display and
a warning tone sounds to remind you to
release the parking brake when the ve-
hicle speed rises above 5 km/h (3 mph)
with the parking brake is applied.
CAUTION
Before driving, be sure the parking
brake is fully released and the park-
ing brake reminder light is off.
Parking brake

’07Camry hybrid_U (L/O 0610)
176
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
The cruise control is designed to main-
tain a set cruising speed without requir-
ing the driver to operate the accelera-
tor. Cruising speed can be set to any
speed above 40 km/h (25 mph).
Within the limits of the vehicle capabili-
ties, cruising speed can be maintained up
or down grades. However, changes in ve-
hicle speed may occur on steeper grades.
CAUTION
To help maintain maximum control
of your vehicle, do not use the
cruise control when driving in
heavy or varying traffic, or on slip-
pery (rainy, icy or snowcovered) or
winding roads.
Avoid vehicle speed increases when
driving downhill. If the vehicle
speed is too fast in relation to the
cruise control set speed, cancel the
cruise control then downshift the
transmission to use engine braking
to slow down.

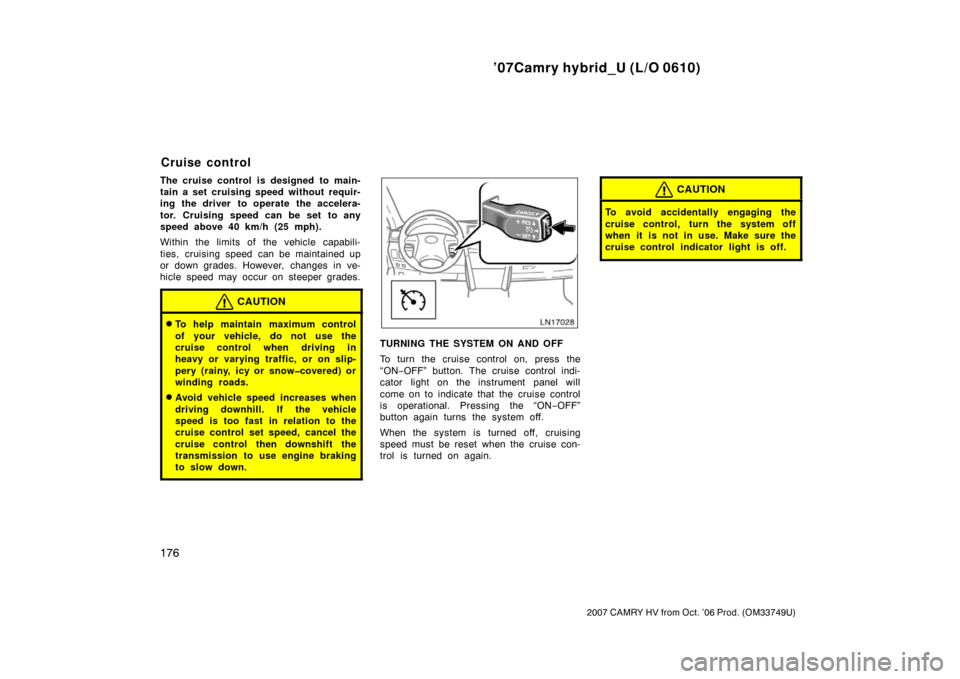

TURNING THE SYSTEM ON AND OFF
To turn the cruise control on, press the
“ON−OFF” button. The cruise control indi-
cator light on the instrument panel will
come on to indicate that the cruise control
is operational. Pressing the “ON −OFF”
button again turns the system off.
When the system is turned off, cruising
speed must be reset when the cruise con-
trol is turned on again.
CAUTION
To avoid accidentally engaging the
cruise control, turn the system off
when it is not in use. Make sure the
cruise control indicator light is off.
Cruise control

’07Camry hybrid_U (L/O 0610)
177
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

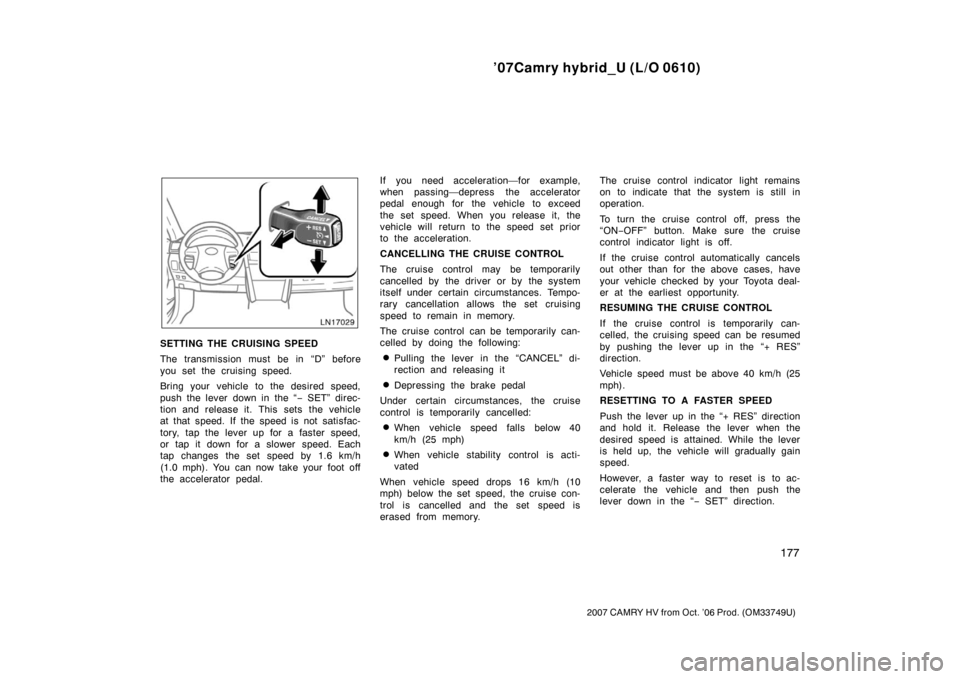

SETTING THE CRUISING SPEED
The transmission must be in “D” before
you set the cruising speed.
Bring your vehicle to the desired speed,
push the lever down in the “− SET” direc-
tion and release it. This sets the vehicle
at that speed. If the speed is not satisfac-
tory, tap the lever up for a faster speed,
or tap it down for a slower speed. Each
tap changes the set speed by 1.6 km/h
(1.0 mph). You can now take your foot off
the accelerator pedal. If you need acceleration—for example,
when passing—depress the accelerator
pedal enough for the vehicle to exceed
the set speed. When you release it, the
vehicle will return to the speed set prior
to the acceleration.
CANCELLING THE CRUISE CONTROL
The cruise control may be temporarily
cancelled by the driver or by the system
itself under certain circumstances. Tempo-
rary cancellation allows the set cruising
speed to remain in memory.
The cruise control can be temporarily can-
celled by doing the following:
Pulling the lever in the “CANCEL” di-
rection and releasing it
Depressing the brake pedal
Under certain circumstances, the cruise
control is temporarily cancelled:
When vehicle speed falls below 40
km/h (25 mph)
When vehicle stability control is acti-
vated
When vehicle speed drops 16 km/h (10
mph) below the set speed, the cruise con-
trol is cancelled and the set speed is
erased from memory. The cruise control indicator light remains
on to indicate that the system is still in
operation.
To turn the cruise control off, press the
“ON
−OFF” button. Make sure the cruise
control indicator light is off.
If the cruise control automatically cancels
out other than for the above cases, have
your vehicle checked by your Toyota deal-
er at the earliest opportunity.
RESUMING THE CRUISE CONTROL
If the cruise control is temporarily can-
celled, the cruising speed can be resumed
by pushing the lever up in the “+ RES”
direction.
Vehicle speed must be above 40 km/h (25
mph).
RESETTING TO A FASTER SPEED
Push the lever up in the “+ RES” direction
and hold it. Release the lever when the
desired speed is attained. While the lever
is held up, the vehicle will gradually gain
speed.
However, a faster way to reset is to ac-
celerate the vehicle and then push the
lever down in the “− SET” direction.

’07Camry hybrid_U (L/O 0610)
178
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
RESETTING TO A SLOWER SPEED
Push the lever down in the “− SET” direc-
tion and hold it. Release the lever when
the desired speed is attained. While the
lever is held down, the vehicle speed will
gradually decrease.
However, a faster way to reset is to de-
press the brake pedal and then push the
lever down in the “− SET” direction.
CRUISE CONTROL FAILURE WARNING
If the cruise control indicator light flashes
when using the cruise control, press the
“ON −OFF” button to turn the system off
and then press it again to turn it on.
If any of the following conditions then oc-
curs, there is some trouble in the cruise
control system.
The indicator light does not come on.
The indicator light flashes again.
The indicator light goes out after it
comes on.
If this is the case, contact your Toyota
dealer and have your vehicle inspected.

’07Camry hybrid_U (L/O 0610)
179
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

’07Camry hybrid_U (L/O 0610)
180
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Audio and handsfree phone systems
Reference181
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Using your audio system 181
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Audio remote controls 201
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
AUX adapter 202
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Audio system operating hints 203
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hands −free phone system 210
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For vehicle equipped with Navigation system, please refer to the
separate “Navigation System Owner’s Manual”.
SECTION 1 8
