NOTICE
Do not use gasohol other than
stated above. It will cause fuel sys-
tem damage or vehicle performance
problems.
 If driveab ility problems are encoun-
tered (poor hot starting, vaporizing,
engine knock, etc.), discontinue the
use.
 Take care not to spill gasohol dur-
ing refueling. Gasohol may cause
paint damage.
FUEL TANK CAPACITY
65 L (17.2 gal., 14.3 Imp. gal.) If you plan to drive your Toyota in
another country...
First,
comply with the vehicle registration
laws.
Second, confirm the availability of the cor-
rect fuel (unleaded and minimum octane
number).
The threeway catalytic converter is an
emission control device installed in the
exhaust system.
The purpose is to reduce pollutants in the
exhaust gas.

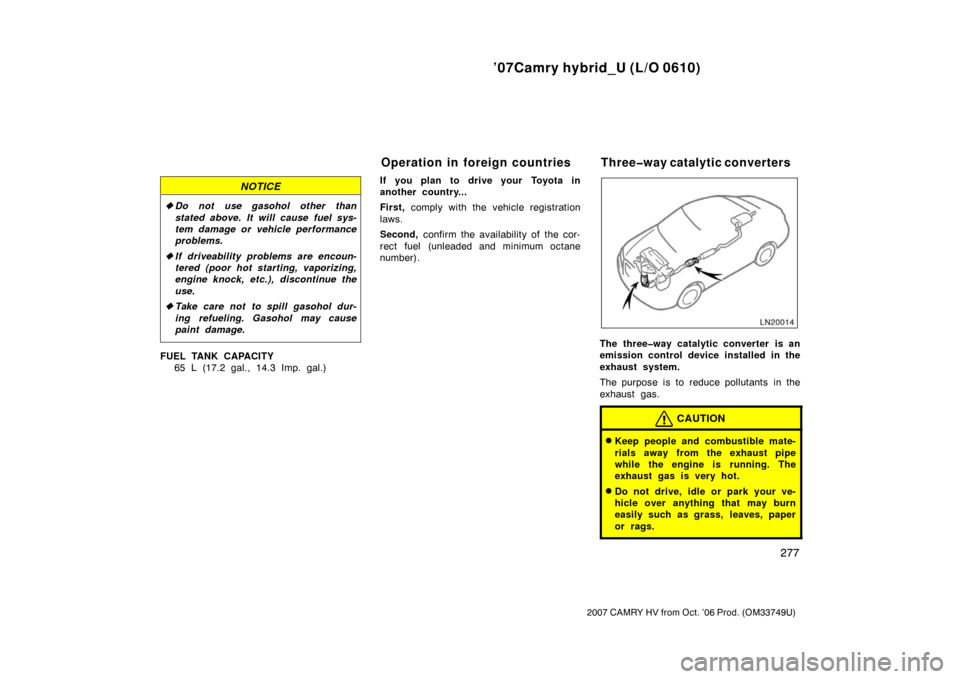

CAUTION
Keep people and combustible mate-
rials away from the exhaust pipe
while the engine is running. The
exhaust gas is very hot.
Do not drive, idle or park your ve-
hicle over anything that may burn
easily such as grass, leaves, paper
or rags.
Operation in foreign countries Threeway catalytic converters

’07Camry hybrid_U (L/O 0610)
278
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
NOTICE
A large amount of unburned gases
flowing into the threeway catalytic
converter may cause it to overheat
and create a fire hazard. To prevent
this and other damage, observe the
following precautions:
Use only unleaded gasoline.
 Do not drive with an extremely low
fuel level; running out of fuel could
cause the engine to misfire, creat-
ing an excessive load on the three
way catalytic converter.
 Do not turn the “POWER” switch
off while the vehicle is moving.
 Keep your engine in good running
order. Malfunctions in the engine
electrical system, electronic ignition
system/distributor ignition system
or fuel system could cause an ex-
tremely high threeway catalytic
converter temperature.
If the engine becomes difficult to
start or stalls frequently, take your
vehicle in for a checkup as soon
as possible. Remember, your Toyota
dealer knows your vehicle and its
threeway catalytic converter sys-
tem best.
 To ensure that the threeway cata-
lytic converter and the entire emis-
sion control system operate proper-
ly, your vehicle must receive the
periodic inspections required by the
Toyota Maintenance Schedule. For
scheduled maintenance information,
refer to the “Scheduled Maintenance
Guide” or “Owner ’s Manual Supple-
ment”.
 Do not apply a coating agent such
as an antirust undercoating to the
exhaust pipe.CAUTION
Avoid inhaling the engine exhaust.
It contains carbon monoxide, which
is a colorless and odorless gas. It
can cause unconsciousness or even
death.
Make sure the exhaust system has
no holes or loose connections. The
system should be checked from
time to time. If you hit something,
or notice a change in the sound of
the exhaust, have the system
checked immediately.
Do not run the hybrid system in a
garage or enclosed area except for
the time needed to drive the vehicle
in or out. The exhaust gases cannot
escape, making this a particularly
dangerous situation.
Do not remain for a long time in a
parked vehicle with the hybrid sys-
tem operating. If it is unavoidable,
however, do so only in an uncon-
fined area and adjust the heating or
cooling system to force outside air
into the vehicle.
Engine exhaust cautions

’07Camry hybrid_U (L/O 0610)
279
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Keep the trunk lid closed while
driving. An open or unsealed trunk
lid may cause exhaust gases to be
drawn into the vehicle.
To allow proper operation of your
vehicle’s ventilation system, keep
the inlet grilles in front of the wind-
shield clear of snow, leaves, or oth-
er obstructions.
If you smell exhaust fumes in the
vehicle, open the windows and
close the trunk lid to ensure plenty
of fresh air enters the vehicle. If
you can smell exhaust fumes even
though there are no other vehicles
in the surrounding area, have your
vehicle checked by your Toyota
dealer. Continued inhalation of ex-
haust fumes can lead to death by
gas poisoning.
FUNCTIONS OF ENGINE OIL
Engine oil has the primary functions of
lubricating and cooling the inside of the
engine, and plays a major role in main-
taining the engine in proper working order.
ENGINE OIL CONSUMPTION
It is normal that an engine should con-
sume some engine oil during normal
engine operation. The causes of oil
consumption in a normal engine are as
follows.
Oil is used to lubricate pistons, piston
rings and cylinders. A thin film of oil
is left on the cylinder wall when a pis-
ton moves downwards in the cylinder.
High negative pressure generated when
the vehicle is decelerating sucks some
of this oil into the combustion chamber.
This oil as well as some part of the oil
film left on the cylinder wall is burned
by the high temperature combustion
gases during the combustion process.
Oil is also used to lubricate the stems
of the intake valves. Some of this oil
is sucked into the combustion chamber
together with the intake air and is
burned along with the fuel. High tem-
perature exhaust gases also burn the
oil used to lubricate the exhaust valve
stems.
The amount of engine oil consumed de-
pends on the viscosity of the oil, the
quality of the oil and the conditions the
vehicle is driven under.
More oil is consumed by high −speed driv-
ing and frequent acceleration and decel-
eration.
A new engine consumes more oil, since
its pistons, piston rings and cylinder walls
have not become conditioned.
Oil consumption: Max. 1.0 L per 1000
km (1.1 qt./600 miles, 0.9 lmp. qt./600
miles)
Facts about engine oil
consumption

’07Camry hybrid_U (L/O 0610)
280
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
When judging the amount of oil con-
sumption, note that the oil may become
diluted and make it difficult to judge
the true level accurately.
As an example, if a vehicle is used for
repeated short trips, and consumes a nor-
mal amount of oil, the dipstick may not
show any drop in the oil level at all, even
after 1000 km (600 miles) or more. This
is because the oil is gradually becoming
diluted with fuel or moisture, making it
appear that the oil level has not changed.
The diluting ingredients evaporate out
when the vehicle is then driven at high
speeds, as on an express way, making it
appear that oil is excessively consumed
after driving at high speeds.IMPORTANCE OF ENGINE OIL LEVEL
CHECK
One of the most important points in prop-
er vehicle maintenance is to keep the en-
gine oil at the optimum level so that oil
function will not be impaired. Therefore, it
is essential that the oil level be checked
regularly. Toyota recommends that the oil
level be checked every time you refuel
the vehicle.
NOTICE
Failure to check the oil level regularly
could lead to serious engine trouble
due to insufficient oil.
For detailed information on oil level check,
see “Checking the engine oil level” on
page 355 in Section 7
−2.
Your engine is fitted with iridiumtipped
spark plugs.
NOTICE
Use only iridiumtipped spark plugs.
Do not adjust gaps for engine perfor-
mance or smooth driveability.
Iridiumtipped spark plugs

’07Camry hybrid_U (L/O 0610)
281
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
REGENERATIVE BRAKE
When the brake is applied, the motor gen-
erator converts kinetic energy into electric
energy.
When applying brakes, you may hear a
sound coming from the motor generator.
However, this does not indicate any
trouble.
The regenerative brake works in the fol-
lowing operations.1. When the accelerator pedal is released, the reduced speed equal to engine
braking in a gasoline −fueled vehicle is
obtained in accordance with the running
mode position of the selector lever.
2. When the brake pedal is depressed with the selector lever in “D” or “B”,
the regenerative brake works.
HYDRAULIC BRAKE
This brake system has 3 independent hy-
draulic circuits. If any circuit should fail,
the other will still work. However, the ped-
al will be harder to press, and your stop-
ping distance will increase. Also, the
brake system warning light may come on.CAUTION
Do not drive your vehicle if any hy-
draulic circuit has failed. Have your
brakes fixed immediately.
BRAKE ACTUATOR
The brake actuator uses brake fluid pres-
surized by the pump to power −assist the
brakes. If the brake actuator fails during
driving, the brake system warning light
comes on and the buzzer sounds continu-
ously. In this case, the brakes may not
work properly. If they do not work well,
depress the brake pedal firmly. If the
brake system warning light comes on, im-
mediately stop your vehicle and contact
your Toyota dealer.
The red and yellow brake system warning
lights may stay on for about 60 seconds
after the hybrid system is turned on. It is
normal if the light turns off after a while.
Depressing the brake pedal repeatedly
may turn on the red warning light and
buzzer. It is normal if the light turns off
after a few seconds. In the following conditions, you may hear
a sound in the engine compartment. This
is not a malfunction.
The driver ’s door is opened with the
hybrid system turned off.
The brake pedal is depressed with the
hybrid system turned off.
After the hybrid system is turned on.
The brake pedal is depressed repeated-
ly with the hybrid system turned on.
After the hybrid system is turned off.
The brake pedal may be hard to depress
or the brake pedal stroke may be short
before turning the hybrid system on. This
is not a malfunction.
Brake system

’07Camry hybrid_U (L/O 0610)
282
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
CAUTION
Do not pump the brake pedal if the
hybrid system is not operating.
Each push on the pedal uses up
your reserved brake fluid pressure.
Even if the power assist is com-
pletely lost, the brakes will still
work. But you will have to push the
pedal hard, much harder than nor-
mal. And your braking distance will
increase.
DRUMINDISC TYPE PARKING BRAKE
SYSTEM
Your vehicle has a drum−in −disc type
parking brake system. This type of brake
system n eeds bedding −down of the brake
shoes periodically or whenever the parking
brake shoes and/or drums are replaced.
Have your Toyota dealer perform the bed-
ding− down. Driving conditions where the steering
wheel must be turned frequently may
cause an overload to the electric power
steering system. The system will reduce
assistance for sometime to prevent the
power steering from overheating. In this
case, you may feel some resistance when
turning the steering wheel though it is not
a malfunction.
CAUTION
If the “P/S” warning light comes on,
take your vehicle to the Toyota dealer
as soon as possible. In this case, you
may feel the heavy steering wheel
maneuvering. Drive your vehicle while
gripping the steering wheel firmly.
The brake pad wear limit indicators on
your disc brakes give a warning noise
when the brake pads are worn to where
replacement is required.

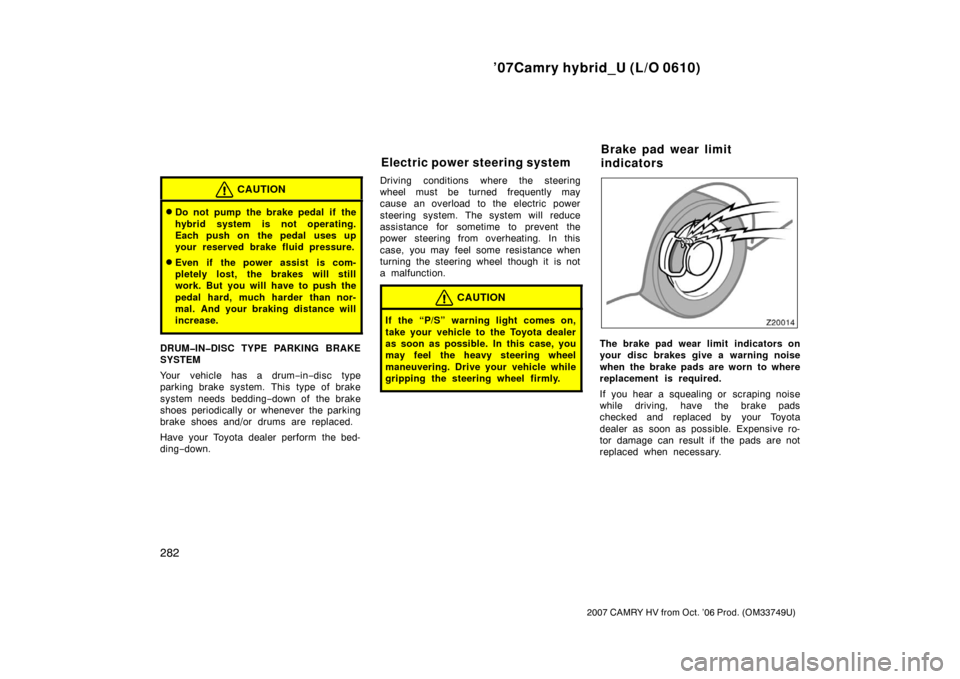

If you hear a squealing or scraping noise
while driving, have the brake pads
checked and replaced by your Toyota
dealer as soon as possible. Expensive ro-
tor damage can result if the pads are not
replaced when necessary.
Electric power steering system
Brake pad wear limit
indicators

’07Camry hybrid_U (L/O 0610)
283
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

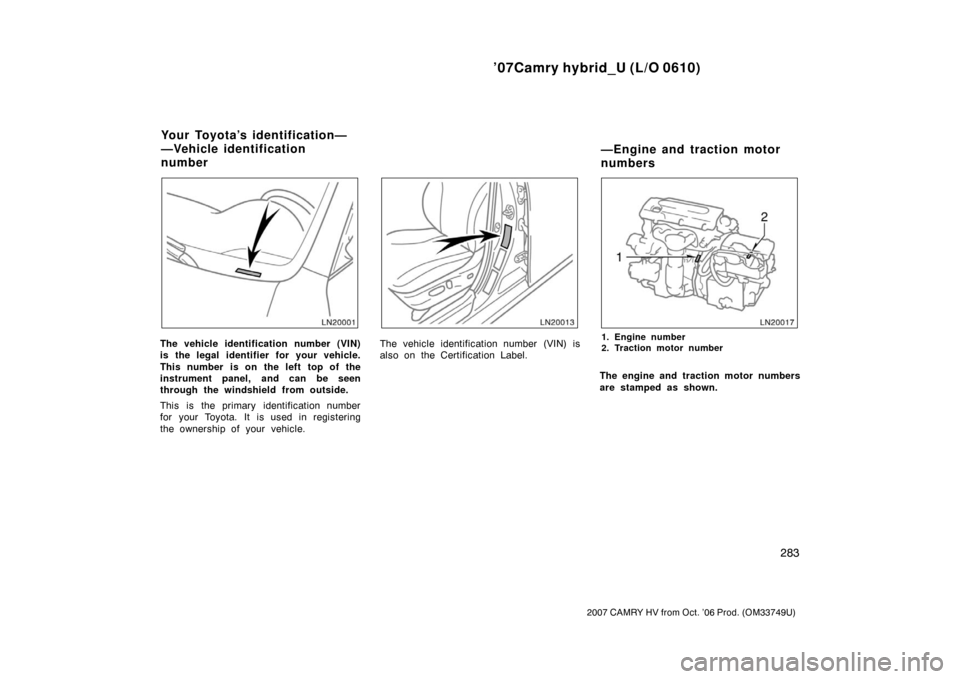

The vehicle identification number (VIN)
is the legal identifier for your vehicle.
This number is on the left top of the
instrument panel, and can be seen
through the windshield from outside.
This is the primary identification number
for your Toyota. It is used in registering
the ownership of your vehicle.The vehicle identification number (VIN) is
also on the Certification Label.1. Engine number
2. Traction motor number
The engine and traction motor numbers
are stamped as shown.
Your Toyota’s identification—
—Vehicle identification
number—Engine and traction motor
numbers

’07Camry hybrid_U (L/O 0610)
284
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Your new vehicle carries theft preven-
tion labels which are approximately 47
mm (1.85 in.) by 12 mm (0.47 in.).
The purpose of these labels is to reduce
the incidence of vehicle thefts by facilitat-
ing the tracing and recovery of parts from
stolen vehicles. The label is designed so
that once it is applied to a surface, any
attempt to remove it will result in destroy-
ing the integrity of the label. Transferring
these labels intact from one part to anoth-
er, will be impossible.
NOTICE
You should not attempt to remove the
theft prevention labels as it may vio-
late certain state or federal laws.
CAUTION
Do not modify the suspension/chassis
with lift kits, spacers, springs, etc. It
can cause dangerous vehicle handling
characteristics, resulting in loss of
control.
Theft prevention labelsSuspension and chassis
