2007 TOYOTA CAMRY HYBRID Owners Manual

’07Camry hybrid_U (L/O 0610)
245
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
NOTICE
Do not insert anything into the driv-
er’s side vent, attach anything to it,
or use sprays around the driver ’s side
vent. These things may cause the sys-
tem not to work properly.
∗: This system adopts the plasmacluster
technology, manufactured under license
from SHARP Corporation. “Plasmacluster
TM”
is a trademark of SHARP Corporation.
“ECO HEAT/COOL” switch
Push the “ECO HEAT/COOL” switch to
select the “ECO HEAT/COOL” (economi-
cal) mode of the air conditioning. The indi-
cator on the switch comes on and “ECO”
appears on the air conditioning display to
indicate that the mode is on.
The efficiency of the air conditioning is
limited because the consumption of elec-
tricity is reduced, achieving a reduction of
fuel consumption. As a result, it may take
longer than the usual amount of time for
the inside air temperature to reach the set
temperature. The “ECO HEAT/COOL” mode is canceled
in the following cases:
The temperature control is set at “LO”
(the lowest temperature) or “HI” (the
highest temperature).
The air flow is set in the floor/wind-
shield mode or windshield mode.
“ECO HEAT/COOL” switch is pushed
again.

’07Camry hybrid_U (L/O 0610)
246
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.
Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.
Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.
On cold days, set the fan speed to
high for a minute to help clear the
intake ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except “OFF”.
—Air flow selector settings—Operating tips

’07Camry hybrid_U (L/O 0610)
247
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATE, which will close off the
outside passage and prevent outside
air and dust from entering the vehicle
interior.Heating
For best results, set controls as follows:
For automatic operation—
Press in the “AUTO” button.
Temperature— To the desired
temperature
Air intake—FRESH (outside air)
Air conditioning—OFF
For manual operation—
Fan speed— To the desired fan speed
Temperature— To w a r d s WARM
Air intake—FRESH (outside air)
Air flow—FLOOR
Air conditioning—OFF
For quick heating, select recirculated
air for a few minutes. To keep the
windows from fogging, select fresh af-
ter the vehicle interior has been war-
med.
Press the “A/C” button on for dehumidi-
fied heating.
Choose floor/windshield air flow to heat
the vehicle interior while defrosting or
defogging the windshield. Air conditioning
For best results, set controls as follows:
For automatic operation—
Press in the “AUTO” button.
Temperature— To the desired
temperature
Air intake—FRESH (outside air)
Air conditioning—ON
For manual operation—
Fan speed— To the desired fan speed
Temperature— To w a r d s COLD
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—ON
For quick cooling, select recirculated
air for a few minutes.

’07Camry hybrid_U (L/O 0610)
248
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Ventilation
For best results, set controls as follows:
For automatic operation—Press in the “AUTO” button.
Temperature— Towards low temperature
Air intake—FRESH (outside air)
Air conditioning—OFF
For manual operation—
Fan speed— To the desired fan speed
Temperature— To w a r d s COLD
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—OFF
Defogging and defrosting
—The inside of the windshield
For best results, set controls as follows:
—For automatic operation
Temperature— To w a r d s high temperature
to heat; low temperature
to cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
—For manual operation
Fan speed— To the desired fan speed
Temperature— To w a r d s high temperature
to heat; low temperature
to cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Pressing the windshield air flow button
turns on the defogging function with the
purpose of clearing the front view.
When pressing the windshield air flow but-
ton, the air intake selects FRESH auto-
matically. This is to clean up the front
view more quickly. It is not possible to
return to RECIRCULATE in this mode. Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
On humid days, do not blow cold air
on the windshield—the difference be-
tween the outside and inside tempera-
tures could make the fogging worse.
—The outside of the windshield
For best results, set controls as follows:
—For automatic operation
Temperature— Towards high temperature
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
—For manual operation
Fan speed— To the desired fan speed
Temperature— Towards high temperature
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Pressing the windshield air flow button
turns on the defrosting function with the
purpose of clearing the front view.
When pressing the windshield air flow but-
ton, the air intake selects FRESH auto-
matically. This is to clean up the front
view more quickly. It is not possible to
return to RECIRCULATE in this mode.

’07Camry hybrid_U (L/O 0610)
249
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.
Some parts of the air conditioning system
can be adjusted using the switches on the
steering wheel.
Details of the specific switches, controls,
and features are described below.1. Temperature selector (“TEMP”) (with “DUAL” button indicator
on—individual setting on driver side
only)
(with “DUAL” button indicator
off—simultaneous setting on driver and
front passenger)
2. “AUTO” button
3. “OFF” button “AUTO” button
For automatic operation of the air condi-
tioning, press the “AUTO” button. The
“AUTO” button will turn on, indicating that
the automatic operation mode has been
selected.
In the automatic operation mode, the air
conditioning selects the most suitable fan
speed, air flow, air intake and on
−off of
the air conditioning according to the tem-
perature.
When you press the “AUTO” button with
the air intake mode at FRESH, internal
circulation may be applied for maximum
cooling.
You may use manual controls if you want
to select your own settings.
Temperature selector
To increase the temperature, press the
“  ” side. To decrease it, press the “ ”
side.
“LO” appears when you adjust to maxi-
mum cooling, and “HI” appears when you
adjust to maximum warming.
With the “DUAL” button indicator on—This
button changes the temperature on the
driver side only.
Climate remote controls
(steering switches)

’07Camry hybrid_U (L/O 0610)
250
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
With the “DUAL” button indicator off—This
button changes the temperature on the
driver side and front passenger side si-
multaneously.
This function will be cancelled when the
“PASS TEMP” knob on the instrument pan-
el is turned.
“OFF” button
Push the “OFF” button to turn off the air
conditioning system.
Side vents
Rear vents
If air flow control is not satisfactory, check
the side and rear vents. The side and rear
vents may be opened or closed as shown.
Side and rear vents

’07Camry hybrid_U (L/O 0610)
251
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

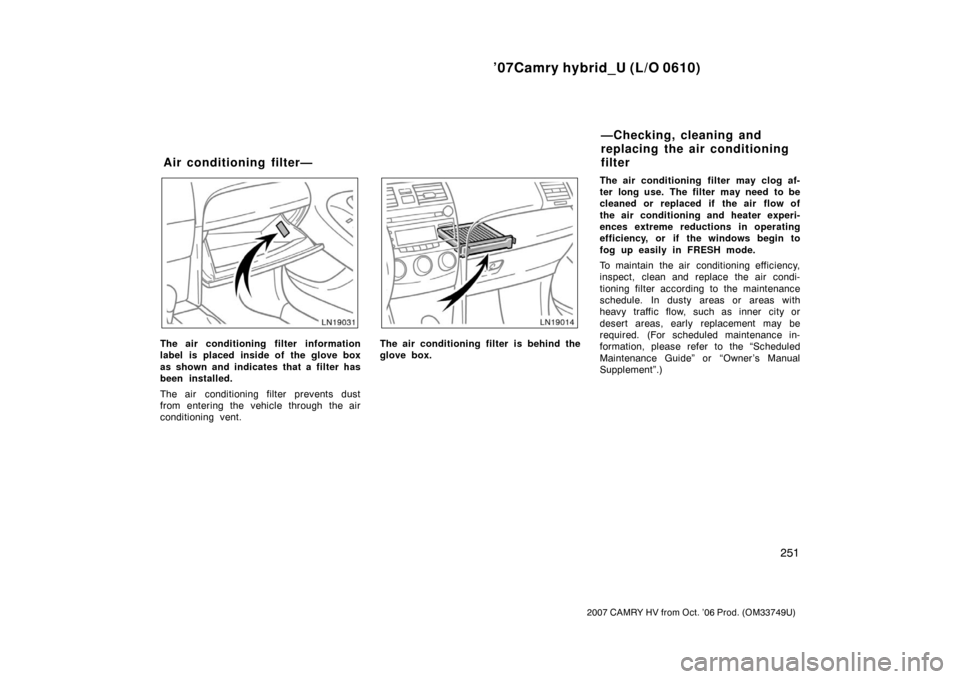

The air conditioning filter information
label is placed inside of the glove box
as shown and indicates that a filter has
been installed.
The air conditioning filter prevents dust
from entering the vehicle through the air
conditioning vent.The air conditioning filter is behind the
glove box.The air conditioning filter may clog af-
ter long use. The filter may need to be
cleaned or replaced if the air flow of
the air conditioning and heater experi-
ences extreme reductions in operating
efficiency, or if the windows begin to
fog up easily in FRESH mode.
To maintain the air conditioning efficiency,
inspect, clean and replace the air condi-
tioning filter according to the maintenance
schedule. In dusty areas or areas with
heavy traffic flow, such as inner city or
desert areas, early replacement may be
required. (For scheduled maintenance in-
formation, please refer to the “Scheduled
Maintenance Guide” or “Owner ’s Manual
Supplement”.)
Air conditioning filter—
—Checking, cleaning and
replacing the air conditioning
filter

’07Camry hybrid_U (L/O 0610)
252
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
1. Open the glove box, and slide offthe damper as shown.2. Apply pressure to the glove box asshown to disengage the claws.3. Remove the filter cover while push-ing in both ends of the cover.
