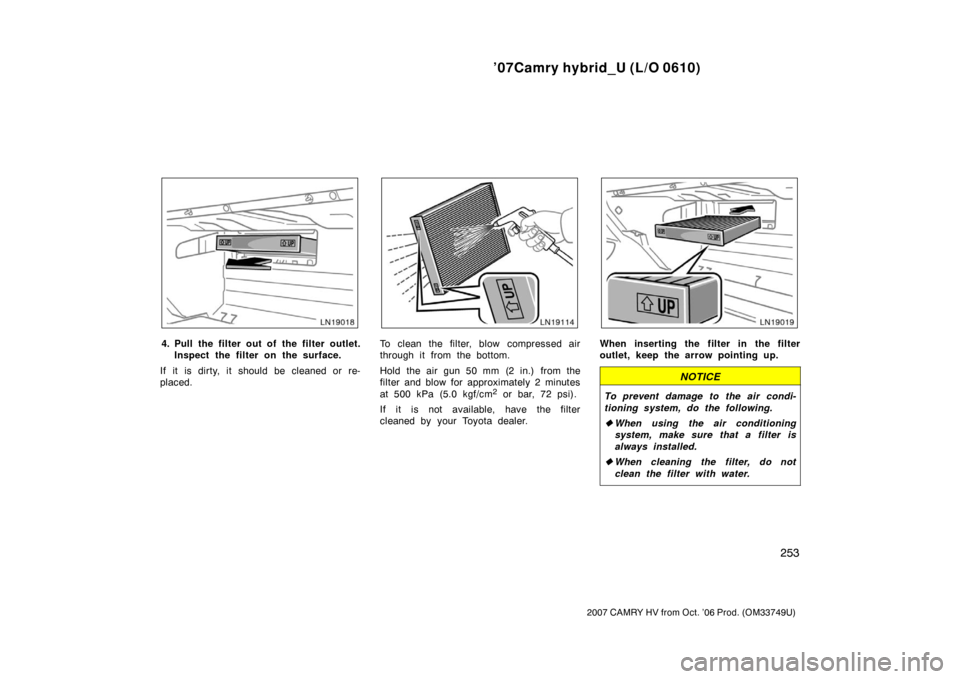

4. Pull the filter out of the filter outlet.Inspect the filter on the surface.
If it is dirty, it should be cleaned or re-
placed.To clean the filter, blow compressed air
through it from the bottom.
Hold the air gun 50 mm (2 in.) from the
filter and blow for approximately 2 minutes
at 500 kPa (5.0 kgf/cm
2 or bar, 72 psi).
If it is not available, have the filter
cleaned by your Toyota dealer.
When inserting the filter in the filter
outlet, keep the arrow pointing up.
NOTICE
To prevent damage to the air condi-
tioning system, do the following.
 When using the air conditioning
system, make sure that a filter is
always installed.
 When cleaning the filter, do not
clean the filter with water.

’07Camry hybrid_U (L/O 0610)
254
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Trip information255
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Clock 257
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Compass 258
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power outlets 262
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Garage door opener 263
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Portable ashtray 266
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Glove box 267
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Auxiliary boxes 268
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Rear console box 270
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Front cup holder 270
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Rear cup holder 271
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Grocery bag hooks 271
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Cargo net 272
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Floor mat 272
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 10

’07Camry hybrid_U (L/O 0610)
255
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

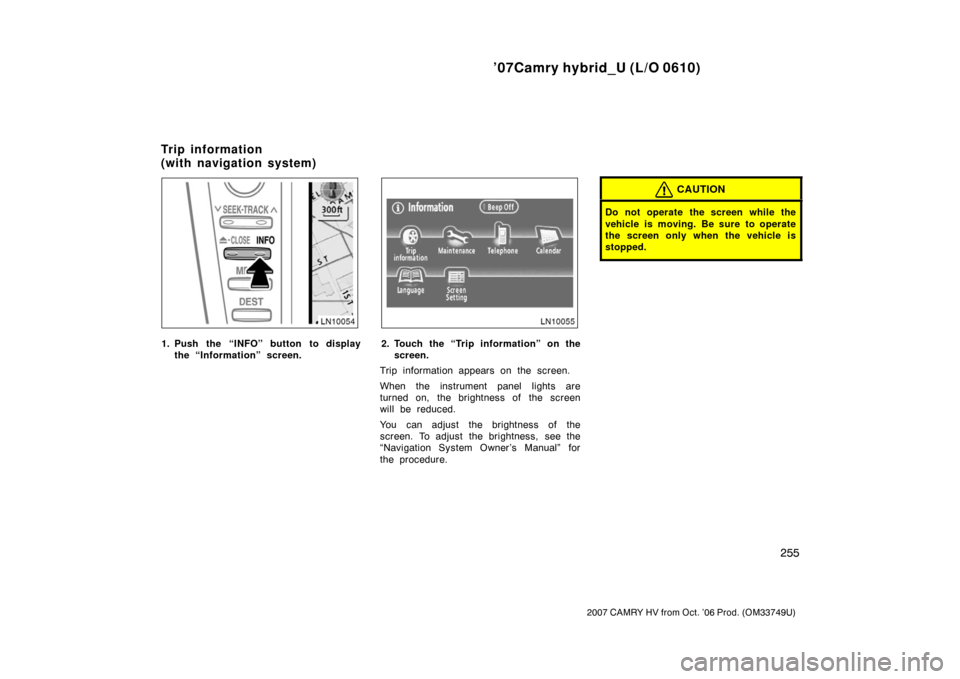

1. Push the “INFO” button to displaythe “Information” screen.2. Touch the “Trip information” on thescreen.
Trip information appears on the screen.
When the instrument panel lights are
turned on, the brightness of the screen
will be reduced.
You can adjust the brightness of the
screen. To adjust the brightness, see the
“Navigation System Owner ’s Manual” for
the procedure.
CAUTION
Do not operate the screen while the
vehicle is moving. Be sure to operate
the screen only when the vehicle is
stopped.
Trip information
(with navigation system)

’07Camry hybrid_U (L/O 0610)
256
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

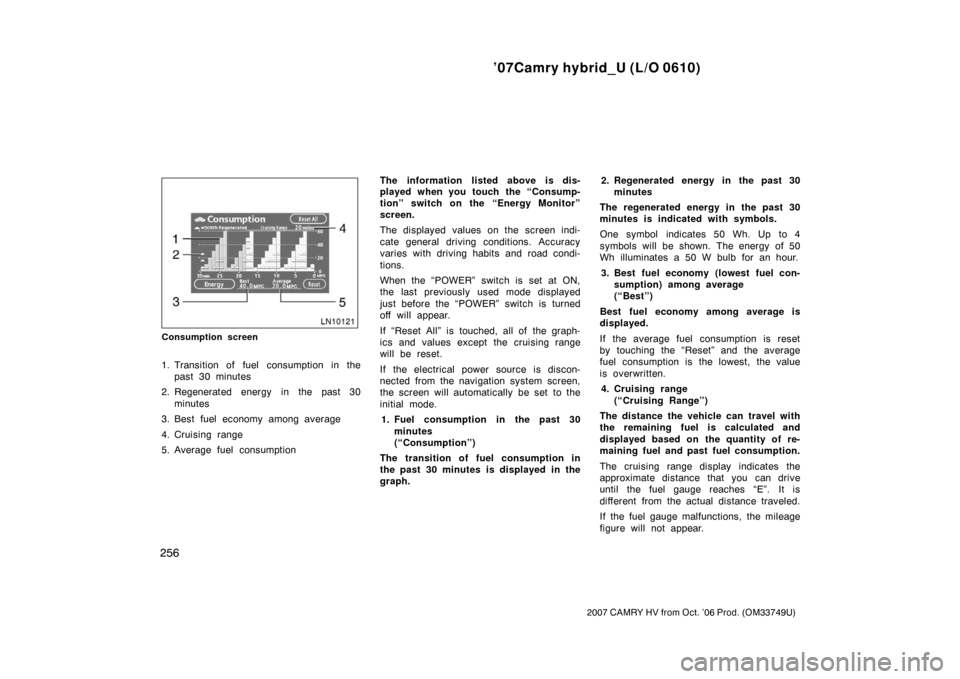

Consumption screen
1. Transition of fuel consumption in thepast 30 minutes
2. Regenerated energy in the past 30 minutes
3. Best fuel economy among average
4. Cruising range
5. Average fuel consumption The information listed above is dis-
played when you touch the “Consump-
tion” switch on the “Energy Monitor”
screen.
The displayed values on the screen indi-
cate general driving conditions. Accuracy
varies with driving habits and road condi-
tions.
When the “POWER” switch is set at ON,
the last previously used mode displayed
just before the “POWER” switch is turned
off will appear.
If “Reset All” is touched, all of the graph-
ics and values except the cruising range
will be reset.
If the electrical power source is discon-
nected from the navigation system screen,
the screen will automatically be set to the
initial mode.
1. Fuel consumption in the past 30 minutes
(“Consumption”)
The transition of fuel consumption in
the past 30 minutes is displayed in the
graph. 2. Regenerated energy in the past 30
minutes
The regenerated energy in the past 30
minutes is indicated with symbols.
One symbol indicates 50 Wh. Up to 4
symbols will be shown. The energy of 50
Wh illuminates a 50 W bulb for an hour.
3. Best fuel economy (lowest fuel con- sumption) among average
(“Best”)
Best fuel economy among average is
displayed.
If the average fuel consumption is reset
by touching the “Reset” and the average
fuel consumption is the lowest, the value
is overwritten. 4. Cruising range (“Cruising Range”)
The distance the vehicle can travel with
the remaining fuel is calculated and
displayed based on the quantity of re-
maining fuel and past fuel consumption.
The cruising range display indicates the
approximate distance that you can drive
until the fuel gauge reaches “E”. It is
different from the actual distance traveled.
If the fuel gauge malfunctions, the mileage
figure will not appear.

’07Camry hybrid_U (L/O 0610)
257
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
When the vehicle is refueled, the driving
range is recalculated.
The actual driving range varies with driv-
ing habits and road conditions. If fuel con-
sumption is good, the driving range will be
longer than indicated. If fuel consumption
is poor, the driving range will be shorter
than indicated.
If the low fuel level warning light comes
on, refuel the vehicle even if the display
indicates that the vehicle can be driven
further.5. Average fuel consumption (“Average”)
Average fuel consumption is displayed
based on total driving distance and to-
tal fuel consumption.
The calculation is reset by touching the
“Reset”. If the average fuel consumption
is the lowest, the value of the best fuel
economy among average is overwritten.
Energy Monitor screen
Touching the “Energy” switch turns on
the “Energy Monitor” that displays the
hybrid system operating condition.
The arrow on the screen indicates the
movement of the energy. See “Energy
monitor” on page 3 for the representative
screen.
The segments of the battery on the
screen indicate the status of the hybrid
battery. See “—Hybrid battery status” on
page 5 for details.
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
The “POWER” switch must be set at ACC
or ON.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).
When the instrument panel lights are
turned on, the brightness of the time indi-
cator will be reduced.
Clock

’07Camry hybrid_U (L/O 0610)
258
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

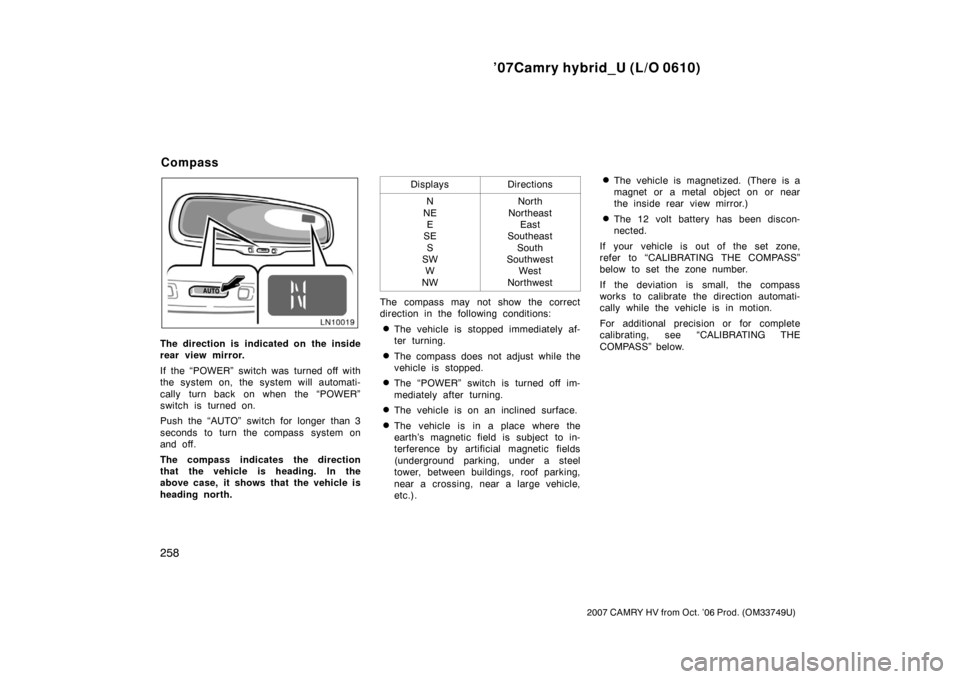

The direction is indicated on the inside
rear view mirror.
If the “POWER” switch was turned off with
the system on, the system will automati-
cally turn back on when the “POWER”
switch is turned on.
Push the “AUTO” switch for longer than 3
seconds to turn the compass system on
and off.
The compass indicates the direction
that the vehicle is heading. In the
above case, it shows that the vehicle is
heading north.Displays
Directions
N
NE E
SE
S
SW W
NWNorth
Northeast East
Southeast
South
Southwest West
Northwest
The compass may not show the correct
direction in the following conditions:
The vehicle is stopped immediately af-
ter turning.
The compass does not adjust while the
vehicle is stopped.
The “POWER” switch is turned off im-
mediately after turning.
The vehicle is on an inclined surface.
The vehicle is in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
The vehicle is magnetized. (There is a
magnet or a metal object on or near
the inside rear view mirror.)
The 12 volt battery has been discon-
nected.
If your vehicle is out of the set zone,
refer to “CALIBRATING THE COMPASS”
below to set the zone number.
If the deviation is small, the compass
works to calibrate the direction automati-
cally while the vehicle is in motion.
For additional precision or for complete
calibrating, see “CALIBRATING THE
COMPASS” below.
Compass

’07Camry hybrid_U (L/O 0610)
259
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
The compass sensor is in the inside
rear view mirror.
NOTICE
Do not put magnets or a metal object
on or near the inside rear view mirror
of the vehicle. Doing this may cause
malfunction of the compass sensor.
CALIBRATING THE COMPASS (deviation
calibration)
The direction display on the compass
deviates from the true direction deter-
mined by the earth’s magnetic field. The
angle of deviation varies according to the
geographic position of the vehicle.
To adjust this deviation, stop the vehicle,
then push and hold the switch until the
zone number appears on the display.
Then push the switch, referring to the fol-
lowing map to select the number of the
zone where the vehicle is.

’07Camry hybrid_U (L/O 0610)
260
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

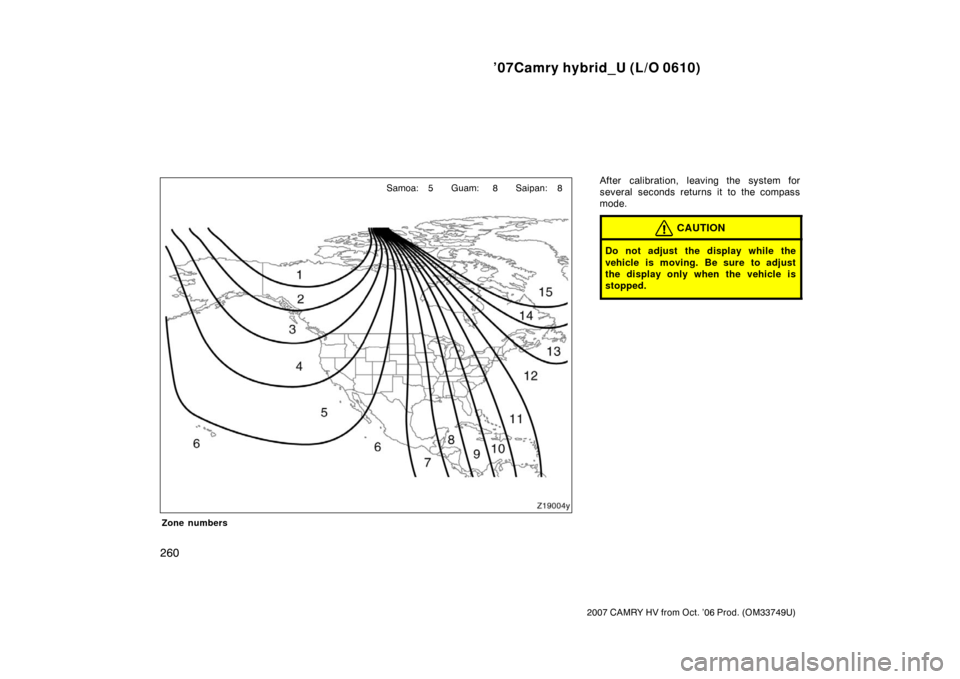

Zone numbers
