2007 TOYOTA CAMRY HYBRID Owners Manual

’07Camry hybrid_U (L/O 0610)
13
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
CAUTION
Pull your vehicle off the road, put
the transmission in the “P” posi-
tion, apply the parking brake, turn
the hybrid system off and carry the
key.
In order to avoid death or serious
injury, do not touch high voltage
wiring, connectors or high voltage
parts (inverter unit, hybrid battery
and etc.). High voltage parts and
cables are indicated in the illustra-
tion on page 7.
If exposed electric wires are pro-
truding inside or outside of your
vehicle, an electric shock may oc-
cur. Never touch the electric wires.
If fluid leaks or gets into some
parts of the vehicle, never touch it
because it may be strong alkaline
electrolyte from the hybrid battery.
If it contacts your skin or eyes,
wash it off immediately with a large
amount of water or if possible, bo-
ric acid solution. Get immediate
medical attention in order to help
avoid serious injury.
If a fire occurs in the hybrid ve-
hicle, leave the vehicle as soon as
possible. Never use a fire extin-
guisher that is not meant for elec-
tric fires. Using a small amount of
water may be also dangerous.
If your vehicle needs to be towed,
do it with the front wheels raised.
If the wheels with the motor gener-
ator are on the ground when tow-
ing, the motor may continue to gen-
erate electricity. This may cause the
electricity leakage. Depending on
the severity of the damage, electric-
ity leakage may cause fire. See “If
your vehicle needs to be towed” on
page 327 in Section 4.
The emergency shut off system blocks
off the high voltage current and stops
the fuel pump to minimize the risk of
the electric leakage and the fuel leak-
age when a certain level of impact is
detected by the impact sensor. If the
system activates, your vehicle will not
restart. To restart the hybrid system,
contact a Toyota dealer.
CAUTION
Check to see if there are exposed
high voltage parts and cables. Nev-
er touch the parts and cables. See
“—High voltage components” on
page 7 in this Section for the loca-
tions of the high voltage parts and
cables.
Inspect the ground under the ve-
hicle. If you find that liquid has
leaked onto the ground, the fuel
system may have been damaged.
Leave the vehicle as soon as pos-
sible.
Road accident cautions——Emergency shut off system

’07Camry hybrid_U (L/O 0610)
14
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Power door lock switches
6. Power window switches
7. Glove box
8. Cup holder
9. Rear console box
10. Rear vents
11. Power outlet
12. Transmission selector lever
13. Seat heater switches
14. Tilt and telescopic steering wheel lock release lever
15. Hood lock release lever
16. Parking brake pedal
17. Window lock switch

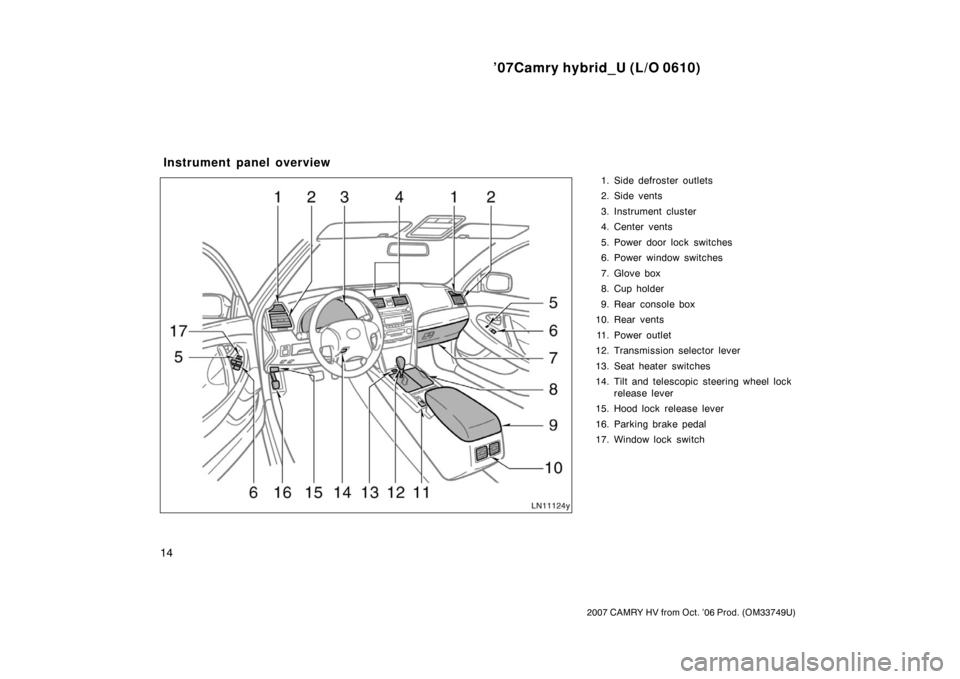

Instrument panel overview

’07Camry hybrid_U (L/O 0610)
15
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
1. Headlight and turn signal switches
2. Wiper and washer switches
3. Engine immobilizer system indicatorlight
4. Clock
5. “AIRBAG ON” and “AIRBAG OFF” indicator lights and front passenger
seat belt reminder light
6. Emergency flasher switch
7. Audio system or navigation system including audio system (For the
navigation system, see the separate
“Navigation System Owner ’s Manual”.)
8. Air conditioning controls
9. Tire pressure warning system reset switch
10. Rear window and outside rear view mirror defogger switch
11. AUX adapter
12. Power outlet
13. Auxiliary boxes
14. “POWER” switch
15. Air conditioning economy mode switch
16. Fuel filler door opener switch
17. Power rear view mirror control switches

’07Camry hybrid_U (L/O 0610)
16
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
1. Audio remote control switches
2. Climate remote control switches
3. Multi−information display control switch
4. Cruise control switch
5. Speech command switch
6. Telephone switchesWithout moon roof
With moon roof
1. Personal lights
2. Interior light
3. Moon roof switches
4. Microphone
5. Auxiliary box
6. Garage door opener
7. Interior light switch

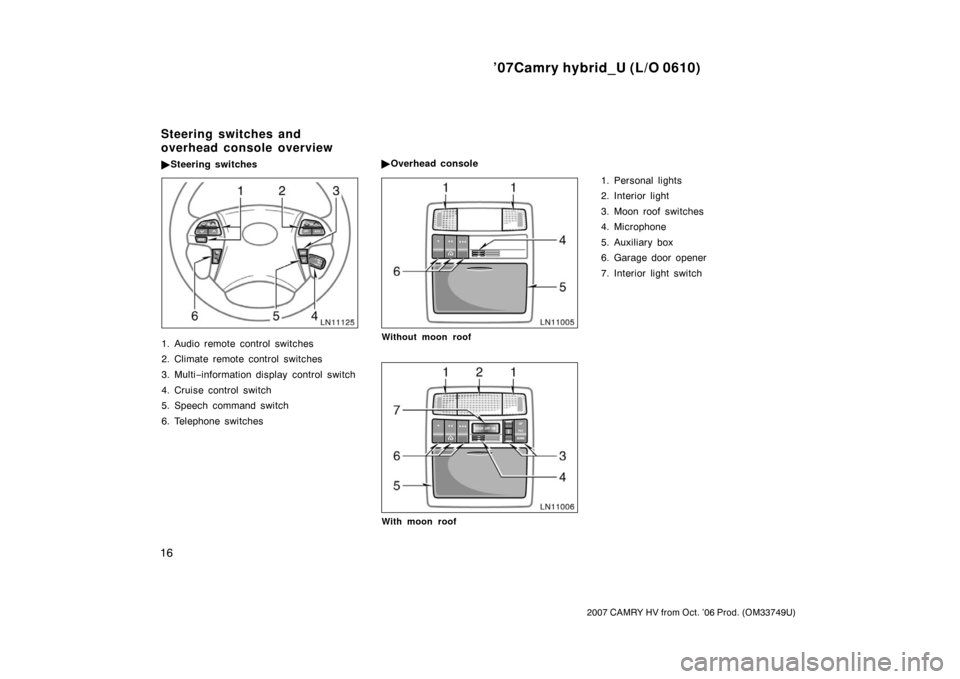

Steering switches and
overhead console overview
 Steering switches
Overhead console

’07Camry hybrid_U (L/O 0610)
17
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
LN11126y
1. Engine coolant temperature gauge
2. Service reminder indicators andindicator lights
3. Fuel economy meter 4. Transmission shift position indicator
lights
5. Speedometer
6. Fuel gauge 7. Trip meter reset knob/instrument panel
light control knob
8. Multi −information display
9. Driving ready light
Instrument cluster overview

’07Camry hybrid_U (L/O 0610)
18
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Driver ’s seat belt reminder light∗1
Charging system warning light∗1
Malfunction indicator lamp∗1
Anti −lock brake system warning light∗
1
Open door warning light∗1
SRS warning light∗1
Front passenger ’s seat belt reminder light∗1
or
or
Electric power steering system warning light∗1
Low fuel level warning light∗1Brake system warning lights∗1
or
(red
indicator)
(yellow
indicator)
Indicator symbols on the instrument panel

’07Camry hybrid_U (L/O 0610)
19
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Slip indicator light
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 150 in Section 1 −6.
∗
2: If this light flashes, see “Cruise control” on page 176 in Sec-
tion 1 −7. Cruise control indicator light
∗
2
Turn signal indicator lights
“AIRBAG OFF” indicator light
Headlight indicator light
Tail light indicator light
Headlight high beam indicator light
“AIRBAG ON” indicator light
Driving ready light
Master warning light∗1
Low tire pressure warning light∗1
