2007 TOYOTA CAMRY HYBRID Owners Manual

’07Camry hybrid_U (L/O 0610)
237
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
To dial by Number1. Push the talk switch and say “Dial by Number”.
“Dial by number. Please push the talk
switch and say the number.” is heard and
“Dial by Num” is displayed. 2. Push talk switch and say “XXXX”.
“Push the off −hook switch to dial. Other-
wise, push the talk switch and say dial,
go back, or delete.” is heard.
To dial the number, do the one of the
following:
Push the off −hook switch.
Push the talk switch and say “Dial”.
Turn the “AUDIO CTRL” knob until
“Dial” is displayed and push the knob.
If the number exceeds 24 digits, the sys-
tem may not function properly.
INFORMATION
The system can recognize single
digits from zero to nine, # (pound),
∗ (star) and + (plus). Numbers that
are ten or greater are not recog-
nized.
To speed up input, it is a good idea
to group all digits into a continuous
string. However, you can enter each
digit individually or group digits to-
gether in preferred string lengths.
The display corresponding to each op-
eration appears on the screen as fol-
lows:
Input operation—
You say: “Nine, nine, five”
Voice output: “995 push the offhook
switch to dial. Otherwise, push the
talk switch and say dial, go back, or
delete.”
Display: “995”
You say: “Seven, three, four”
Voice output: “734 push the offhook
switch to dial. Otherwise, push the
talk switch and say dial, go back, or
delete.”
Display: “995734”
Repeat the above procedure until the
entire number that you want to dial is
input.
Go back operation—
You say: “Go back”
Voice output: “Go back, the last num-
bers entered have been removed.
Push the talk switch and continue
adding numbers otherwise say dial,
go back, or delete.”
Display: “995”
Repeating the above operation deletes
the last digits in reverse order of in-
put.
Delete operation—
You say: “Delete”
Voice output: “Deleted. The entire
number to dial has been deleted.
Please push the talk switch and say
the number.”
Display: “Dial by Num”
The display will return to the initial
screen that allows a number to be
input.

’07Camry hybrid_U (L/O 0610)
238
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Cancel operation—
Do either one of the following:
Push the onhook switch at anytime
during the operation.
Push the talk switch and say “Can-
cel” after the beep at anytime dur-
ing the operation except while a call
is connected.
When receiving a phone call, a ring tone
is audible and the system changes into
the telephone mode.
When receiving a phone call, the display
is as follows. The display differs depend-
ing on whether or not the vehicle is in
motion.
When the vehicle is stopped:
Number, name or “Incoming” is displayed.
When the vehicle is in motion:
“Incoming” is displayed.
Do either one of the following:
Pushing the off−hook switch allows you
to talk on the phone.
Pushing the on −hook switch refuses
the call.
To adjust the ring volume, push “+” or “ −”
on the steering volume controls. Volume
adjustment cannot be done using the au-
dio system.
Repeatedly pushing “ −” on the steering
volume controls mutes the ring.
When receiving an international phone
call, the name of the party may not be
displayed correctly depending on the cellu-
lar phone. To transfer a call to the phone:
The received call can be transferred from
the hands
−free system to the cellular
phone that is connected to Bluetooth . For
details, refer to the user’s guide for the
cellular phone.
—Receiving a p hone call

’07Camry hybrid_U (L/O 0610)
239
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
While talking on the phone, the display is
as follows. The display differs depending
on whether or not the vehicle is in motion.
When the vehicle is stopped:
Number is displayed.
When the vehicle is in motion:
“Talking” is displayed.
When the call is finished, push the on−
hook switch.
In the following situations, your voice may
not reach the party.
Talk alternately with the other party on
the phone. If you talk at the same
time, the voice may not reach each
other. (It is not a malfunction.)
Keep the volume of receiving voice
down. Otherwise, echo is coming up.
When you talk on the phone, speak
clearly towards the microphone.
When driving on a rough road.
When driving at high speeds.
When the window is open.
When the air conditioning vents face
the microphone.
When the sound of the air conditioning
fan is loud. To transfer a call from the phone:
Pushing the off
−hook switch while talking
on the cellular phone that is connected to
Bluetooth  allows you to talk hands −free.
To transfer a call to the phone:
The call can be transferred from the
hands −free system to the phone that is
connected to Bluetooth . For details, refer
to the user ’s guide for the cellular phone.
—Talking on the phone

’07Camry hybrid_U (L/O 0610)
240
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Air conditioning system
Automatic air conditioning systemControls 241
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Air flow selector settings 246
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating tips 246
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Climate remote controls 249
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Side and rear vents 250
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Air conditioning filter 251
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 1 9

’07Camry hybrid_U (L/O 0610)
241
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

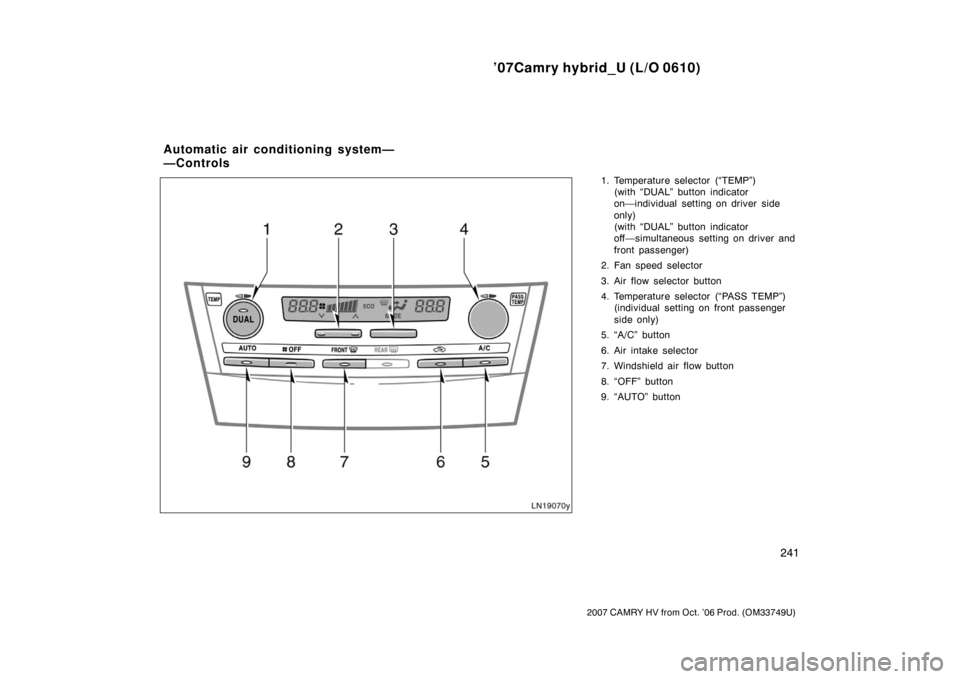

1. Temperature selector (“TEMP”)(with “DUAL” button indicator
on—individual setting on driver side
only)
(with “DUAL” button indicator
off—simultaneous setting on driver and
front passenger)
2. Fan speed selector
3. Air flow selector button
4. Temperature selector (“PASS TEMP”) (individual setting on front passenger
side only)
5. “A/C” button
6. Air intake selector
7. Windshield air flow button
8. “OFF” button
9. “AUTO” button
Automatic air conditioning system—
—Controls

’07Camry hybrid_U (L/O 0610)
242
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
“AUTO” button
For automatic operation of the air condi-
tioning, press the “AUTO” button. The
“AUTO” button will turn on, indicating that
the automatic operation mode has been
selected.
In the automatic operation mode, the air
conditioning selects the most suitable fan
speed, air flow, air intake and on−off of
the air conditioning according to the tem-
perature.
When you press the “AUTO” button with
the air intake mode at FRESH, internal
circulation may be applied for maximum
cooling.
You may use manual controls if you want
to select your own settings.
Fan speed selector
Push the “ ” (increase) or “ ” (decrease)
side of the button to adjust the fan speed.
In automatic operation, you do not have
to adjust the fan speed unless you desire
another fan speed mode. “DUAL” button
Push the button to change the mode of
the temperature setting.
With the indicator on—
Individual temper-
ature setting for driver and front passen-
ger
With the indicator off— Simultaneous
temperature setting for driver and front
passenger
Temperature selectors
Turn the knob to adjust the temperatu-
re—to the right to warm, to the left to
cool.
“LO” appears when you adjust to maxi-
mum cooling, and “HI” appears when you
adjust to maximum warming.
—“TEMP” knob
With the “DUAL” button indicator on—This
knob changes the temperature on the driv-
er side only.
With the “DUAL” button indicator off—This
knob changes the temperature on the driv-
er side and front passenger side simulta-
neously. This function will be cancelled
when the “PASS TEMP” knob is turned.
—“PASS TEMP” knob
This knob changes the temperature on the
front passenger side only. “OFF” button
Push the button to turn off the air condi-
tioning system.

’07Camry hybrid_U (L/O 0610)
243
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Air flow selector button
Push the button to select the vents used
for air flow.
In automatic operation, you do not have
to select the air flow unless you desire
another air flow mode.1. Panel— Air flows mainly from the
instrument panel vents and the rear
vents.
2. Bilevel— Air flows from both the floor
vents, the instrument panel vents and
the rear vents.
3. Floor— Air flows mainly from the floor
vents. 4. Floor/Windshield—
Air flows mainly
from the floor vents and windshield
vents.
This position allows the air intake to
select FRESH automatically. This is to
clean up the front view more quickly.
If you want to return the setting to
RECIRCULATE mode, press the air in-
take selector button once again.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears
the front view more quickly. Windshield air flow button
When this button is pressed, air flows
mainly from the windshield vents and
turns on the defogging function with the
purpose of clearing the front view.
Pressing this button once again returns
the air flow mode to the last one used.
This button allows the air intake to select
FRESH automatically. This is to clean up
the front view more quickly. It is not pos-
sible to return to RECIRCULATE in this
mode.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
For details about air flow selector settings,
see “—Air flow selector settings” de-
scribed below.
When the “POWER” switch is set at ON
after the 12 volt battery is reconnected,
the indicator light on the button may flash
and a motor sound may be heard. This
does not indicate a malfunction.

’07Camry hybrid_U (L/O 0610)
244
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

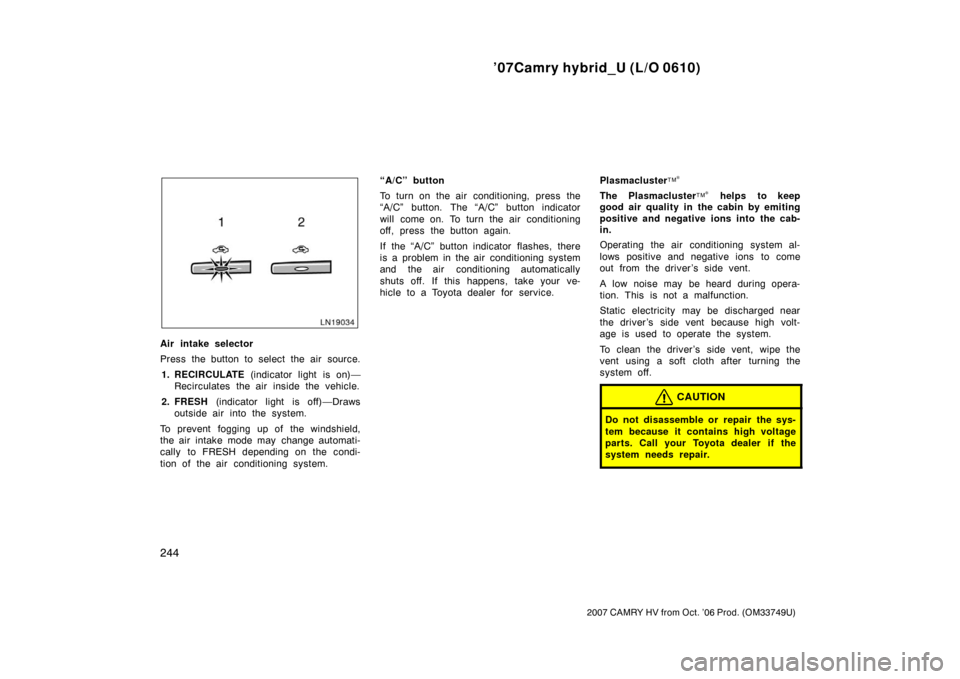

Air intake selector
Press the button to select the air source.1. RECIRCULATE (indicator light is on)—
Recirculates the air inside the vehicle.
2. FRESH (indicator light is off)—Draws
outside air into the system.
To prevent fogging up of the windshield,
the air intake mode may change automati-
cally to FRESH depending on the condi-
tion of the air conditioning system. “A/C” button
To turn on the air conditioning, press the
“A/C” button. The
“A/C” button indicator
will come on. To turn the air conditioning
off, press the button again.
If the “A/C” button indicator flashes, there
is a problem in the air conditioning system
and the air conditioning automatically
shuts off. If this happens, take your ve-
hicle to a Toyota dealer for service. Plasmacluster
TM∗
The PlasmaclusterTM∗ helps to keep
good air quality in the cabin by emiting
positive and negative ions into the cab-
in.
Operating the air conditioning system al-
lows positive and negative ions to come
out from the driver ’s side vent.
A low noise may be heard during opera-
tion. This is not a malfunction.
Static electricity may be discharged near
the driver ’s side vent because high volt-
age is used to operate the system.
To clean the driver’s side vent, wipe the
vent using a soft cloth after turning the
system off.
CAUTION
Do not disassemble or repair the sys-
tem because it contains high voltage
parts. Call your Toyota dealer if the
system needs repair.
