CAUTION
Never touch, remove or disassemble
high voltage parts and cables.
Touching, removing or disassem-
bling those parts and cables can
cause severe burns or electric
shock that may result in death or
serious injury. For the locations of
high voltage parts and cables, see
“—High voltage components” on
page 7 in Section 11.
When the hybrid system is on, keep
hands, clothing, and tools away
from the moving fan. (Removing
rings, watches, and ties is advis-
able.)
Right after driving, the engine
compartment—the engine, radiator,
exhaust manifold and spark plug
boots, etc.—will be hot. So be care-
ful not to touch them. Oil, fluids
and spark plugs may also be hot.
If the radiator is hot, do not remove
the radiator cap or loosen the drain
plugs to prevent burning yourself.
Do not leave anything that may
burn easily, such as paper or rags,
in the engine compartment.
When the hybrid system is operat-
ing with the “READY” light on, the
engine may suddenly start in some
cases. When you inspect the engine
compartment, be sure to turn off
the hybrid system.
Do not get under your vehicle with
just the body jack supporting it. Al-
ways use automotive jack stands or
other solid supports.
Be sure that the POWER” switch is
off if you work near the electric
cooling fans or radiator grille. With
the “POWER” switch on, the elec-
tric cooling fans will automatically
start to run if the engine coolant
temperature is high and/or the air
conditioning is on.
Use eye protection whenever you
work on or under your vehicle
where you may be exposed to flying
or falling material, fluid spray, etc.
Brake fluid can harm your hands or
eyes and damage painted surfaces.
If fluid gets on your hands or in
your eyes, flush the affected area
with clean water immediately. If you
still feel uncomfortable with your
hands or eyes, go to the doctor.
Used engine oil contains potentially
harmful contaminants which may
cause skin disorders such as in-
flammation or skin cancer, so care
should be taken to avoid prolonged
and repeated contact with it. To re-
move used engine oil from your
skin, wash thoroughly with soap
and water.
Do not leave used oil within the
reach of children.
Dispose of used oil and filter only
in a safe and acceptable manner.
Do not dispose of used oil and fil-
ter in household trash, in sewers or
onto the ground. Call your dealer or
a service station for information
concerning recycling or disposal.
Be extremely cautious when work-
ing on the 12 volt battery. It con-
tains poisonous and corrosive
sulfuric acid.

’07Camry hybrid_U (L/O 0610)
350
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
NOTICE
Remember that the 12 volt battery
and ignition cables carry high cur-
rents or voltages. Be careful of ac-
cidentally causing a short circuit.
 Add only “Toyota Super Long Life
Coolant” or similar high quality eth-
ylene glycol based nonsilicate,
nonamine, nonnitrite, and nonbo-
rate coolant with longlife hybrid
organic acid technology to fill the
radiator. “Toyota Super Long Life
Coolant” is a mixture of 50% cool-
ant and 50% deionized water (for
the U.S.A.) or 55% coolant and 45%
deionized water (for Canada).
 If you spill some of the coolant, be
sure to wash it off with water to
prevent it from damaging the parts
or paint.
 Do not allow dirt or anything else
to fall through the spark plug holes.
 Use only spark plugs of the speci-
fied type. Using other types will
cause engine damage, loss of per-
formance or radio noise.
Do not reuse iridiumtipped spark
plugs by cleaning or regapping.
 Do not drive with the air cleaner
filter removed, or excessive engine
wear could result. Also backfiring
could cause a fire in the engine
compartment.
 Be careful not to scratch the glass
surface with the wiper frame.
 When closing the engine hood,
check to see that you have not for-
gotten any tools, rags, etc.
Front
Rear

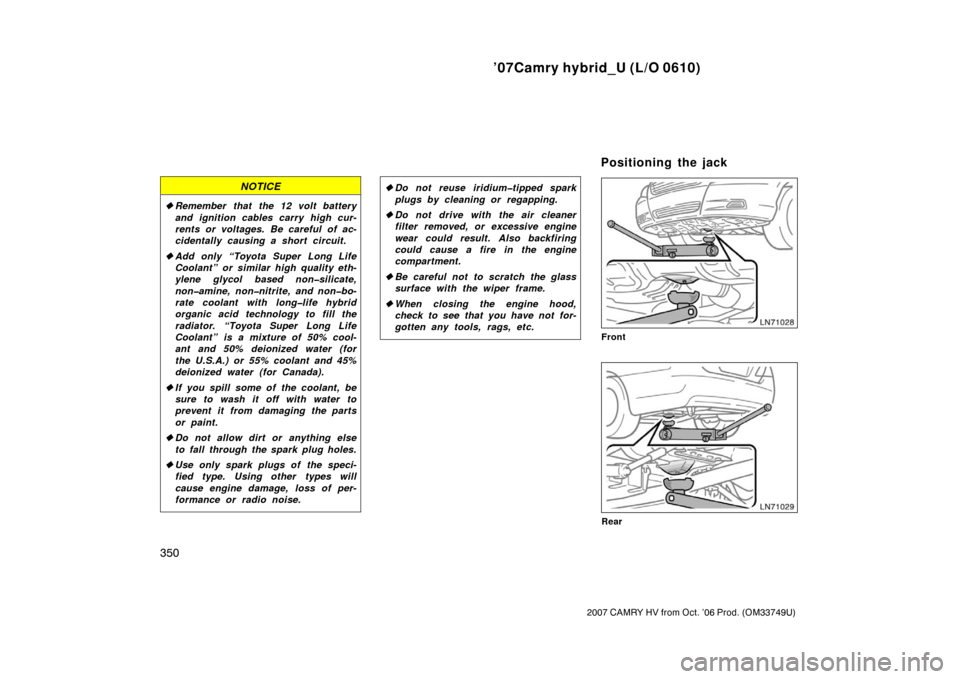

Positioning the jack

’07Camry hybrid_U (L/O 0610)
351
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
When jacking up your vehicle with the
jack, position the jack correctly as
shown in the illustrations.
CAUTION
When jacking, be sure to observe the
following to reduce the possibility of
death or serious injury:
Follow jacking instructions.
Do not put any part of your body
under the vehicle supported by the
jack. Personal injury may occur.
Do not start the hybrid system
while your vehicle is supported by
the jack.
Stop the vehicle on a level firm
ground, firmly set the parking brake
and put the transmission in “P”.
Block the wheels on the opposite
side of the jack up point if neces-
sary.
Make sure to set the jack properly
in the jack point. Raising the ve-
hicle with jack improperly posi-
tioned will damage the vehicle or
may allow the vehicle to fall off the
jack and cause personal injury.
Never get under the vehicle when
the vehicle is supported by the jack
alone; use vehicle support stands.
Do not raise the vehicle with some-
one in the vehicle.
When raising the vehicle, do not
place any objects on top of or un-
derneath the jack.
NOTICE
Make sure to place the jack correctly,
or your vehicle may be damaged.
Here is a list of parts and tools you will
need to perform do−it−yourself mainte-
nance. Remember all Toyota parts are de-
signed in metric sizes, so your tools must
be metric.
CHECKING THE ENGINE OIL LEVEL
Parts (if level is low):
“Toyota Genuine Motor Oil” or equiva-
lent
See page 356 in Section 7− 2 for de-
tails about engine oil selection.
Tools:
Rag or paper towel
Funnel (only for adding oil)
Parts and tools

’07Camry hybrid_U (L/O 0610)
352
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
CHECKING THE COOLANT LEVEL
Parts (if level is low):
“Toyota Super Long Life Coolant” or
similar high quality ethylene glycol
based non−silicate, non −amine, non− ni-
trite, and non −borate coolant with long −
life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a
mixture of 50% coolant and 50% deion-
ized water (for the U.S.A.) or 55%
coolant and 45% deionized water (for
Canada).
Tools:
Funnel (only for adding coolant)
CHECKING 12 VOLT BATTERY CON-
DITION
Tools:
Warm water
Baking soda
Grease
Conventional wrench (for terminal
clamp bolts) CHECKING AND REPLACING FUSES
Parts (if replacement is necessary):
Genuine Toyota fuse or equivalent with
same amperage rating as original
ADDING WASHER FLUID
Parts:
Water
Washer fluid containing antifreeze (for
winter use)
Tools:
Funnel
REPLACING LIGHT BULBS
Parts:
Bulb with same number and wattage
rating as original (See charts in “Re-
placing light bulbs” on page 373 in
Section 7 −3.)

’07Camry hybrid_U (L/O 0610)
353
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

’07Camry hybrid_U (L/O 0610)
354
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
DOITYOURSELF MAINTENANCE
Engine and Chassis
Checking the engine oil level355
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the coolant level 357
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the radiator and condenser 358
. . . . . . . . . . . . . . . . . . . . . . . . .
Checking brake fluid 359
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Checking tire inflation pressure 359
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing tires 362
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rotating tires 364
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Installing snow tires and chains 365
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing wheels 367
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Aluminum wheel precautions 367
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 7 2

’07Camry hybrid_U (L/O 0610)
355
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Low level Full level
Add oil O.K. Too full
With the hybrid system at operating
temperature and turned off, check the
oil level on the dipstick. 1. To get a correct reading, the vehicle should be on level ground. After turning
off the hybrid system, wait a few min-
utes for the oil to drain back into the
bottom of the engine.
2. Pull the dipstick out, hold a rag under the end and wipe it clean.
3. Reinsert the dipstick—push it in as far as it will go, or the reading will not be
correct.
4. Pull the dipstick out and look at the oil level while holding a rag under the
end.
CAUTION
Be careful not to touch the hot ex-
haust manifold.
NOTICE
Be careful not to drop engine oil on
the vehicle components.
If the oil level is below or only slightly
above the low level line, add engine oil
of the same type as already in the en-
gine.
Remove the oil filler cap and add engine
oil in small quantities at a time, checking
the dipstick. We recommend that you use
a funnel when adding oil.
The approximate quantity of oil needed to
raise the level between low and full on the
dipstick is indicated as follows:
1.1L(1.2qt.,1.0Imp.qt.)
For the engine oil capacity, see “Service
specifications” on page 382 in Section 8.
When the level reaches within the correct
range, install the filler cap hand− tight.
NOTICE
Be careful not to spill engine oil on
the vehicle components.
 Avoid overfilling, or the engine
could be damaged.
 Check the oil level on the dipstick
once again after adding the oil.
Checking the engine oil level

’07Camry hybrid_U (L/O 0610)
356
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
ENGINE OIL SELECTION
“Toyota Genuine Motor Oil” is used in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and
viscosity.

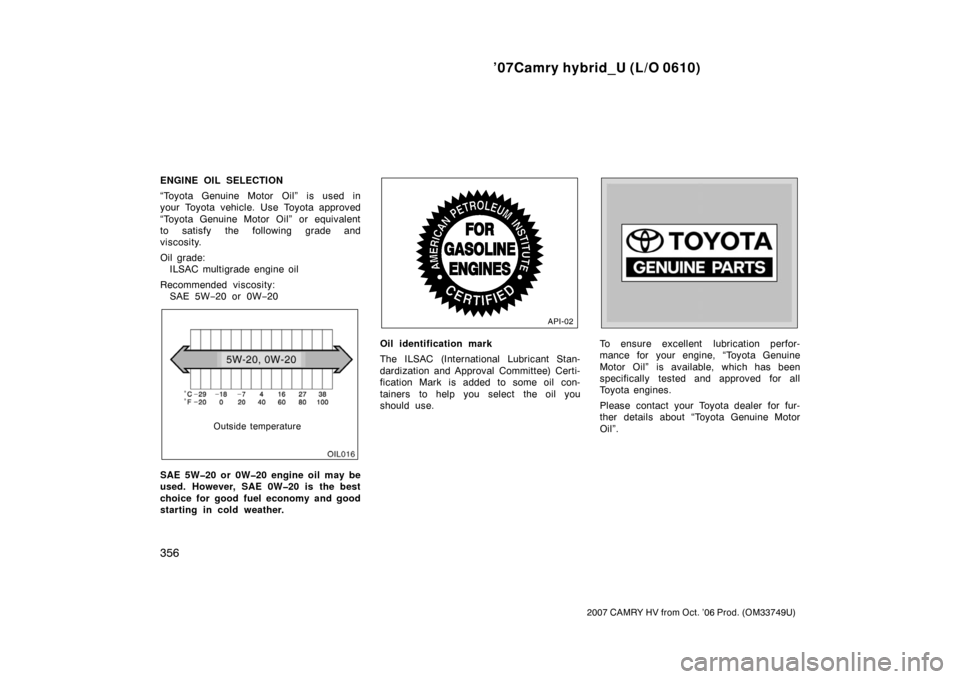

Oil grade:ILSAC multigrade engine oil
Recommended viscosity: SAE 5W −20 or 0W −20
Outside temperature
SAE 5W20 or 0W20 engine oil may be
used. However, SAE 0W20 is the best
choice for good fuel economy and good
starting in cold weather.
Oil identification mark
The ILSAC (International Lubricant Stan-
dardization and Approval Committee) Certi-
fication Mark is added to some oil con-
tainers to help you select the oil you
should use.To ensure excellent lubrication perfor-
mance for your engine, “Toyota Genuine
Motor Oil” is available, which has been
specifically tested and approved for all
Toyota engines.
Please contact your Toyota dealer for fur-
ther details about “Toyota Genuine Motor
Oil”.
