2007 TOYOTA CAMRY HYBRID Owners Manual

’07Camry hybrid_U (L/O 0610)
205
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

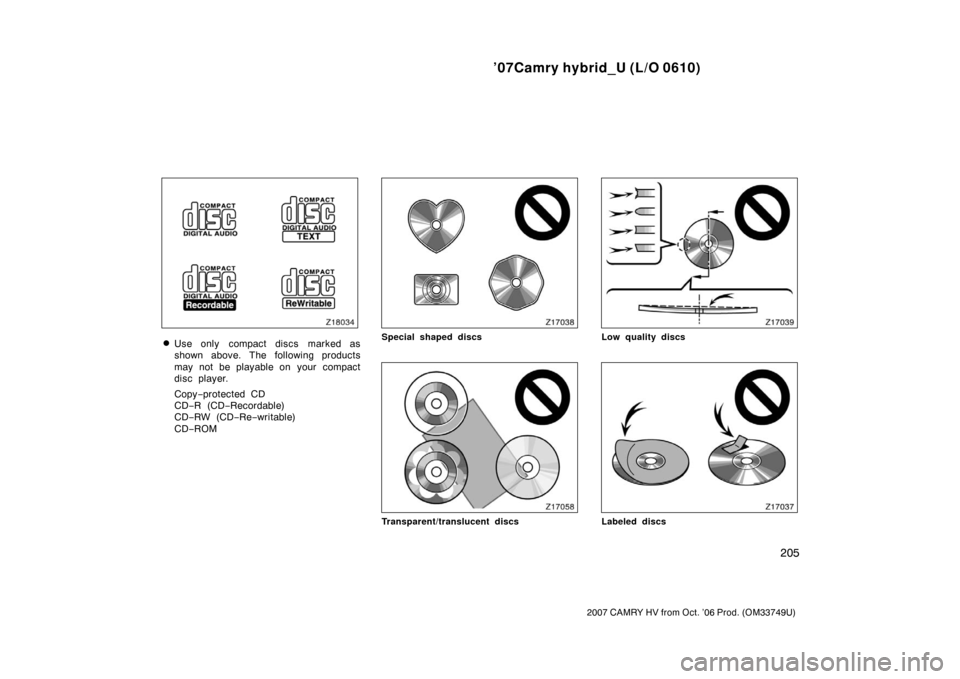

Use only compact discs marked as
shown above. The following products
may not be playable on your compact
disc player.
Copy−protected CD
CD− R (CD −Recordable)
CD− RW (CD −Re −writable)
CD− ROMSpecial shaped discs
Transparent/tr anslucent discs
Low quality discs
Labeled discs

’07Camry hybrid_U (L/O 0610)
206
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
NOTICE
Do not use special shaped, transpar-
ent/translucent, low quality or labeled
discs such as those shown in the il-
lustrations. The use of such discs
may damage the player, or it may be
impossible to eject the disc.
CorrectWrong
Handle compact discs carefully, espe-
cially when you are inserting them.
Hold them on the edge and do not
bend them. Avoid getting fingerprints
on them, particularly on the shiny side.
Dirt, scratches, warping, pin holes, or
other disc damage could cause the
player to skip or to repeat a section of
a track. (To see a pin hole, hold the
disc up to the light.)
Remove discs from the compact disc
player when you are not listening to
them. Store them in their plastic cases
away from moisture, heat, and direct
sunlight.
To clean a compact disc: Wipe it with a
soft, lint−free cloth that has been damp-
ened with water. Wipe in a straight line
from the center to the edge of the disc
(not in circles). Dry it with another soft,
lint −free cloth. Do not use a conventional
record cleaner or anti −static device.

’07Camry hybrid_U (L/O 0610)
207
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
MP3/WMA FILES
MP3 (MPEG Audio Layer 3) and WMA
(Windows Media Audio) are audio com-
pression standards.
The MP3/WMA player can play MP3
and WMA files on CD−ROM, CD −R and
CD− RW discs.
The unit can play disc recordings com-
patible with ISO 9660 level 1 and level
2 and with the Romeo and Joliet file
system.
When naming an MP3 or WMA file,
add the appropriate file extension (.mp3
or .wma).
The MP3/WMA player plays back files
with .mp3 or .wma file extensions as
MP3 or WMA files. To prevent noise
and playback errors, use the appropri-
ate file extensions.
Multi −session compatible CDs can also
be played.
MP3 files are compatible with the ID3
Tag Ver. 1.0, Ver. 1.1, Ver. 2.2, and
Ver. 2.3 formats. The unit cannot dis-
play disc title, track title and artist
name in other formats.
WMA files can contain a WMA tag that
is used in the same way as an ID3
tag. WMA tags carry information such
as track title, artist name.
The emphasis function is available only
when playing MP3/WMA files recorded
at 32, 44.1 and 48 kHz. (The system
can play MP3 files with sampling fre-
quencies of 16, 22.05, and 24 kHz.
However, the emphasis function is not
available for files recorded at these fre-
quencies.)
The sound quality of MP3/WMA files
generally improves with higher bit
rates. In order to achieve a reasonable
level of sound quality, discs recorded
with a bit rate of at least 128 kbps are
recommended.
Playable bit rates
MP3 files:
MPEG1 LAYER3—64 to 320 kbps
MPEG2 LSF LAYER3—64 to 160 kbps
WMA files:
Ver. 7, 8 CBR—48 to 192 kbps
Ver. 9 CBR—48 to 320 kbps
The MP3/WMA player does not play
back MP3/WMA files from discs record-
er using packet write data transfer
(UDF format). Discs should be re-
corded using “pre −mastering” software
rather than packet −write software.
M3u playlists are not compatible with
the audio player.
MP3i (MP3 interactive) and MP3PRO
formats are not compatible with the au-
dio player.
The MP3 player is compatible with
VBR (Variable Bit Rate).
When playing back files recorded as
VBR (Variable Bit Rate) files, the play
time will not be correctly displayed if
fast forward or reverse operations are
used.
It is not possible to check folders that
do not include MP3/WMA files.
MP3/WMA files in folders up to 8 lev-
els deep can be played. However, the
start of playback may be delayed when
using discs containing numerous levels
of folders. For this reason, we recom-
mend creating discs with no more than
two levels of folders.
It is possible to play up to 192 folders
or 255 files on one disc.

’07Camry hybrid_U (L/O 0610)
208
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
001.mp3
002.wmaFolder 1
003.mp3
Folder 2
004.wma
005.mp3 Folder 3
006.mp3
The play order of the compact disc
with the structure shown on the left is
as follows:
CDR and CDRW discs
CD−R/CD− RW discs that have not been
subject to the “finalizing process” (a
process that allows discs to be played
on a conventional CD player) cannot
be played.
It may not be possible to play CD −
R/CD− RW discs recorded on a music
CD recorder or a personal computer
because of disc characteristics,
scratches or dirt on the disc, or dirt,
condensation, etc. on the lens of the
unit.
It may not be possible to play discs
recorded on a personal computer de-
pending on the application settings and
the environment. Record with the cor-
rect format. (For details, contact the
appropriate application manufacturers of
the applications.)
CD− R/CD− RW discs may be damaged
by direct exposure to sunlight, high
temperatures or other storage condi-
tions. The unit may be unable to play
some damaged di scs.
If you insert a CD −RW disc into the
MP3/WMA player, playback will begin
more slowly than with a conventional
CD or CD −R disc.
Recordings on CD −R/CD− RW cannot
be played using the DDCD (Double
Density CD) system.

’07Camry hybrid_U (L/O 0610)
209
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
TERMS
Packet write—
This is a general term that describes the
process of writing data on−demand to
CD− R, etc., in the same way that data is
written to floppy or hard di scs.
ID3 Tag—
This is a method of embedding track −re-
lated information in an MP3 file. This em-
bedded information can include the track
title, the artist’s name, the album title, the
music genre, the year of production, com-
ments and other data. The contents can
be freely edited using software with ID3
tag editing functions. Although the tags
are restricted to the number of characters,
the information can be viewed when the
track is played back.
WMA Tag—
WMA files can contain a WMA tag that is
used in the same way as an ID3 tag.
WMA tags carry information such as track
title, artist name. ISO 9660 format—
This is the international standard for the
formatting of CD
−ROM folders and files.
For the ISO 9660 format, there are two
levels of regulations.
Level 1:
The file name is in 8.3 format (8 charac-
ter file names, with a 3 character file
extension. File names must be composed
of one −byte capital letters and numbers.
The “_” symbol may also be included.)
Level 2:
The file name can have up to 31 charac-
ters (including the separation mark “.” and
file extension). Each folder must contain
fewer than 8 hierarchies.
m3u—
Playlists created using “WINAMP” software
have a playlist file extension (.m3u).
MP3—
MP3 is an audio compression standard
determined by a working group (MPEG) of
the ISO (International Standard Organiza-
tion). MP3 compresses audio data to
about 1/10 the size of that on convention-
al discs. WMA—
WMA (Windows Media Audio) is an audio
compression format developed by
Microsoft. It compresses files into a size
smaller than that of MP3 files. The
decoding formats for WMA files are Ver.
7, 8, and 9.

’07Camry hybrid_U (L/O 0610)
210
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Phone Setup (see page 216)
Pair phone
To use the hands−free system, you
need to register your phone in the sys-
tem.
Change name
The registered phone names can be
changed.
Delete
The registered phones can be deleted.
List phones
The registered phone names can be
checked.
Select phone
The registered phones can be selected.
Set passkey
The passkey can be c hanged.Security (see page 221)
Set PIN
The PIN can be set or changed.
Phone book lock
The phone book can be locked.
Phone book unlock
The locked phone book can be un-
locked.
System Setup (see page 225)
Adjust Guidance Volume
Guidance volume can be adjusted.
Initialize
Phone Book (see page 225)
Add Entry
Phone numbers and voice tags can be
registered.
Change Name
The registered names can be changed.
Delete Entry
The registered names can be deleted.
Delete Speed Dial
The registered speed dial can be de-
leted.
List names
The registered names can be checked.
Set Speed Dial
Speed dials can be set
Redial (see page 233)
Callback (see page 234)
Making a phone call (see page 235)
Receiving a phone call (see page 238)
Talking on the phone (see page 239)
Handsfree phone system—
—Reference

’07Camry hybrid_U (L/O 0610)
211
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
This system supports Bluetooth, a
wireless system that allows you to
make or receive calls without taking
your hands from the steering wheel and
without using cables to connect the
phone and system.
The phone must be paired to the system
before using the hands −free feature. If
your cellular phone does not support Blue-
tooth , this system will not function.
CAUTION
While you are driving, do not use a
cellular phone or connect the
Bluetooth  phone.
NOTICE
Do not leave your cellular phone in
the car. The temperature indoor may
be high and damage the phone.
The system may not function in the follow-
ing conditions and places:
The cellular phone is turned off.
The current position is outside the
communication area.
The cellular phone is not connected.
The cellular phone has a low battery.
The cellular phone is hiding behind the
seat or in the glove box and console
box.
The cellular phone touches or is cov-
ered with metal materials.
This system supports the following ser-
vice.
HFP (Hands Free Profile) Ver. 1.0
OPP (Object Push Profile) Ver. 1.1
If your cellular phone does not support
HFP, you cannot enter the Bluetooth
phone, and take OPP service individually.
BLUETOOTH is a trademark owned by
Bluetooth SIG. Inc.
—Some basics

’07Camry hybrid_U (L/O 0610)
212
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
When transferring ownership of the ve-
hicle:
A lot of personal data is registered
when you use the handsfree system.
When transferring ownership of the ve-
hicle, initialize the system.
If you initialize it, the former state will
never come back again. Pay much atten-
tion when initializing the data.
You can initialize the following data in the
system.
Phone book data
Dialed numbers and received calls
Speed dial
Bluetooth phone data
Security code
FCC Information
Caution: Any changes or modifica-
tions in construction of this device
which are not expressly approved by
the party responsible for compliance
could void the user’s authority to op-
erate the equipment.
FCC Label Information This device complies with part 15 of
the FCC Rules. Operation is subject
to the following two conditions: (1)
This device may not cause harmful
interference, and (2) this device must
accept any interference received, In-
cluding interference that may cause
undesired operation.NOTE: This equipment has been
tested and found to comply with the
limits for a Class B digital device,
pursuant to part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installa-
tion. This equipment generates, uses
and can radiate radio frequency ener-
gy and, if not installed and used in
accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no
guarantee that interference will not oc-
cur in a particular installation. If this
equipment does cause harmful inter-
ference to radio or television recep-
tion, which can be determined by turn-
ing the equipment off and on, the user
is encouraged to try to correct the
interference by one or more of the
following measures:
− Reorient or relocate the receiving an-
tenna.
− Increase the separation between the
equipment and receiver.
− Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
− Consult the dealer or an experienced
radio/TV technician for help.
