2007 TOYOTA CAMRY HYBRID Owners Manual

’07Camry hybrid_U (L/O 0610)
213
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

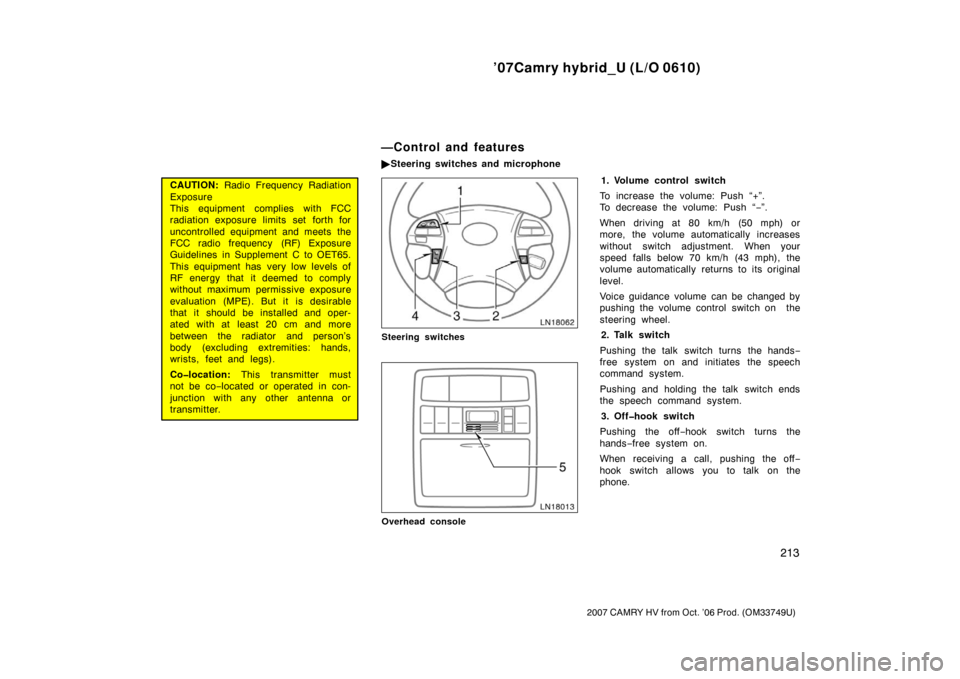

CAUTION: Radio Frequency Radiation
Exposure
This equipment complies with FCC
radiation exposure limits set forth for
uncontrolled equipment and meets the
FCC radio frequency (RF) Exposure
Guidelines in Supplement C to OET65.
This equipment has very low levels of
RF energy that it deemed to comply
without maximum permissive exposure
evaluation (MPE). But it is desirable
that it should be installed and oper-
ated with at least 20 cm and more
between the radiator and person’s
body (excluding extremities: hands,
wrists, feet and legs).
Colocation: This transmitter must
not be co −located or operated in con-
junction with any other antenna or
transmitter.
Steering switches
Overhead console
1. Volume control switch
To increase the volume: Push “+”.
To decrease the volume: Push “ −”.
When driving at 80 km/h (50 mph) or
more, the volume automatically increases
without switch adjustment. When your
speed falls below 70 km/h (43 mph), the
volume automatically returns to its original
level.
Voice guidance volume can be changed by
pushing the volume control switch on the
steering wheel. 2. Talk switch
Pushing the talk switch turns the hands −
free system on and initiates the speech
command system.
Pushing and holding the talk switch ends
the speech command system.
3. Offhook switch
Pushing the off −hook switch turns the
hands −free system on.
When receiving a call, pushing the off −
hook switch allows you to talk on the
phone.
—Control and features
 Steering switches and microphone

’07Camry hybrid_U (L/O 0610)
214
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
4. Onhook switch
When the hands −free system is on, push-
ing the on −hook switch turns the hands −
free system off.
5. Microphone
The microphone is used when talking on
the phone or using the speech command
system.

’07Camry hybrid_U (L/O 0610)
215
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
1. Display
Displays such items as the reception lev-
el, a party’s name and phone number. See
“DISPLAY” described on the following
page for further details about the display.
2. “AUDIO CTRL” knob
Turning the “AUDIO CTRL” knob displays
the menu items, names, numbers, etc. to
be selected. To select an item, push the
“AUDIO CTRL” knob. Due to safety con-
cerns, the “AUDIO CTRL” knob does not
function while the vehicle is in motion. 3. Preset buttons
Pushing the preset button displays the
registered speed dial numbers. 4. “TEXT” button
When the party’s name or phone number
is too long to be displayed, pushing and
holding the “TEXT” button displays the re-
maining characters.

Audio unit

’07Camry hybrid_U (L/O 0610)
216
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
DISPLAY1. Bluetooth  display
Displays when a Bluetooth  connection is
made. If there is no display, the
Bluetooth  connection has not been made
and communication between the phone
and system is not possible. When using
the hands −free system, make sure that
“BT” is displayed. The display is updated
in real time. 2. Reception level display
Displays the reception level of the radio
wave signals. This may not match the
display on the cellular phone. The recep-
tion level of some cellular phones may not
be displayed.
The number of bars is greater when the
signal received is stronger.
3. Message display
Displays phone numbers, names, com-
ments, menu items, etc. The phone setup menu includes the fol-
lowing:
Pair Phone
To use the hands −free system, you need
to register your phone in the system.
Once you have registered it, you can
make a hands −free call. Up to 6 phones
can be registered.
Select Phone
When the system connects to Bluetooth ,
the phone previously used is automatically
selected. Select a different phone if nec-
essary. Only the selected phone can be
used with the hands −free system.
Change Name
The registered phone names can be
changed.
List Phones
The registered phone names can be
checked.
The following can be performed during the
name playback:
Select phone
Change name
Delete
—Phone Setup

’07Camry hybrid_U (L/O 0610)
217
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Set PassKey
The passkey can be c hanged. A 4 to 8
digit code can be input as a pa sskey.
Delete
The registered phones can be deleted.
To enter the phone setup menu 1. Push the off −hook switch to turn the
hands −free system on.
2. Follow voice guidance instructions, or turn the “AUDIO CTRL” knob until
“Setup” is displayed and push the
knob.
“Setup. Please push the talk switch and
say security, or phone setup.” is heard. 3. Follow voice guidance instructions, or turn the “AUDIO CTRL” knob until
“Phone Setup” is displayed and push
the knob.
“Phone setup. Push the talk switch and
say pair phone, select phone, change
name, list phones, set pa sskey or delete.”
is heard.
“XXX (phone name) already selected.” is
heard and “XXX (phone name)” is dis-
played.
If no phone has been registered, the sys-
tem may not function properly. To pair phones
1. Push the talk switch and say “Pair phone”, or turn the “AUDIO CTRL”
knob until “Pair Phone” is displayed
and push the knob.
“Pair. Push the talk switch and say a
name for the phone.” is heard. 2. Follow voice guidance instructions, or turn the “AUDIO CTRL” knob until “Re-
cord Name” is displayed, push the
knob and say “XXX (desired phone
name)”.
“Push the talk switch and say confirm.
Otherwise, say go back.” is heard. 3. Follow voice guidance instructions, or turn the “AUDIO CTRL” knob until
“Confirm” is displayed and push the
knob.
“XXX Ready for phone pairing. Please use
the phone to connect it to the hands −free
system. The passkey for the p hone is....”
is heard.
After “HANDS FREE” is displayed, a pass-
key
∗ is displayed and “Searching.” is
heard. 4. Input the displayed pa
sskey into the
phone.
“The phone is paired and ready for use.
Returning to the main menu.” is heard and
“Paired” is displayed.
The system may not function in the follow-
ing cases:
If 6 phones have already been regis-
tered.
If the vehicle is moving.
If the system cannot communicate with
the phone.
∗: Passkey is a password r equired to reg-
ister a phone to the system.
INFORMATION
To use the handsfree system, you
need to register your phone in the
system. Once you have registered
it, you can make a handsfree call.
Up to 6 phones can be registered.
For the operation of the phone, see
the manual that comes with your
cellular phone.
The passkey can be changed. See
page 220 for changing the passkey.

’07Camry hybrid_U (L/O 0610)
218
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
To select a phone1. Push the talk switch and say “Select phone”, or turn the “AUDIO CTRL”
knob until “Select Phone” is displayed
and push the knob.
“Select phone. Push the talk switch and
say the phone name or say list phones.”
is heard. 2. Follow voice guidance instructions, or turn the “AUDIO CTRL” knob until the
desired phone name is displayed and
push the knob.
When the phone is selected by a voice
command:
“XXX Push the talk switch and say con-
firm. Otherwise, say go back.” is heard
and “XXX” is displayed.
Follow voice guidance instructions, or turn
the “AUDIO CTRL” knob until “Confirm” is
displayed and push the knob.
“XXX selected. Returning to the phone
setup.” is heard. When the phone is selected by using
the knob:
“XXX selected. Returning to the phone
setup.” is heard.
The system may not function in the follow-
ing cases:
If the phone is not found.
If the system does not recognize the
voice command.
To change a name
1. Push the talk switch and say “Change name”, or turn the “AUDIO CTRL” knob
until “Change Name” is displayed and
push the knob.
“Change name. Push the talk switch and
say the phone name to change.” is heard. 2. Follow voice guidance instructions, or turn the “AUDIO CTRL” knob until the
phone name that you want to change
is displayed and push the knob.

’07Camry hybrid_U (L/O 0610)
219
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
When the phone is selected by a voice
command:
“XXX Push the talk switch and say con-
firm. Otherwise, say go back.” is heard
and “XXX” is displayed.1. Follow voice guidance instructions, or turn the “AUDIO CTRL” knob until
“Confirm” is displayed and push the
knob.
“Push the talk switch and say a new
name.” is heard.
2. Follow voice guidance instructions, or turn the “AUDIO CTRL” knob until “Re-
cord Name” is displayed, push the
knob and say “XXX (desired phone
name)”.
“XXX Push the talk switch and say con-
firm. Otherwise, say go back.” is heard. 3. Follow voice guidance instructions, or turn the “AUDIO CTRL” knob until
“Confirm” is displayed and push the
knob.
“Name changed. Returning to the phone
setup.” is heard and “Changed” is dis-
played. When the phone is selected by using
the knob:
“XXX Push the talk switch and say con-
firm. Otherwise, say go back.” is heard
and “XXX” is displayed.
1. Follow voice guidance instructions, or turn the “AUDIO CTRL” knob until
“Confirm” is displayed and push the
knob.
“Push the talk switch and say a new
name.” is heard.
2. Follow voice guidance instructions, or turn the “AUDIO CTRL” knob until “Re-
cord Name” is displayed, push the
knob and say “XXX (desired phone
name)”.
“XXX Push the talk switch and say con-
firm. Otherwise, say go back.” is heard. 3. Follow voice guidance instructions, or turn the “AUDIO CTRL” knob until
“Confirm” is displayed and push the
knob.
“Name changed. Returning to the phone
setup.” is heard and “Changed” is dis-
played. The system may not function in the follow-
ing cases:
If no phone has been registered.
If the system does not recognize the
voice command.
To list phones 1. Push the talk switch and say “List phones”, or turn the “AUDIO CTRL”
knob until “List Phones” is displayed
and push the knob.
“List phones. To select a name, push the
talk switch during the name playback.” is
heard. 2. Follow voice guidance instructions.
“Push the talk switch and say select
phone, change name, or delete.” is heard.
Select one of the following:

’07Camry hybrid_U (L/O 0610)
220
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Select phone
Push the talk switch and say “Select
phone”, or turn the “AUDIO CTRL” knob
until “Select Phone” is displayed and push
the knob.
For further details on selecting a phone,
see page 218.
Change name
Push the talk switch and say “Change
name”, or turn the “AUDIO CTRL” knob
until “Change Name” is displayed and
push the knob.
For further details on changing a name,
see page 218.
Delete
Push the talk switch and say “Delete”, or
turn the “AUDIO CTRL” knob until “Delete”
is displayed and push the knob.
For further details on deleting a phone,
see page 221.
If no phone has been registered, the sys-
tem may not function properly.To set a passkey
1. Push the talk switch and say “Set passkey”, or turn the “AUDIO CTRL”
knob until “Set PassKey” is displayed
and push the knob.
“Set Passkey. The passkey is r equired for
the phone pairing process. Push the talk
switch and say a new passkey.” is heard
and passkey is displayed.
2. Follow voice guidance instructions, or turn the “AUDIO CTRL” knob to select
a number.
When using a voice command:
“XXXX (new pa sskey) Push the talk switch
and say confirm. Otherwise, continue add-
ing numbers, or say go back or delete.”
is heard and “XXXX (new pa sskey)” is
displayed.
Follow voice guidance instructions, or turn
the “AUDIO CTRL” knob until “Confirm” is
displayed and push the knob.
“Passkey ch anged. Returning to the phone
setup.” is heard. When using the knob:
1. Turn the “AUDIO CTRL” knob to select a number. Push the “AUDIO CTRL”
knob to set.
2. When the passkey is set, push the “AUDIO CTRL” knob.
“Passkey c hanged. Returning to the phone
setup.” is heard.
The system may not function in the follow-
ing cases:
If the passkey has less than 4 digits.
If the passkey has more than 8 digits.
