2007 TOYOTA CAMRY HYBRID Owners Manual

’07Camry hybrid_U (L/O 0610)
45
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle in an accident. It also helps pre-
vent the doors from being opened
unintentionally.
The windows can be operated with the
switch on each door.
The power windows work when the
“POWER” switch is set at ON.
Key off operation: All windows work for
about 45 seconds even after the
“POWER” switch is turned off. They stop
working when either front door is opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.Automatic operation: Push the switch
completely down and then release it. The
window will fully open. To stop the window
partway, pull the switch up and then re-
lease it.
Power windows

’07Camry hybrid_U (L/O 0610)
46
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Window
lock
switchOPERATING THE PASSENGERS’
WINDOWS
Use the switches on the passengers’
doors. The driver ’s door also has
switches that control the passengers’
windows.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passengers’ windows
cannot be operated.CAUTION
To avoid death or serious personal
injury, you must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
windows, make sure he or she op-
erates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.

’07Camry hybrid_U (L/O 0610)
47
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the “POWER” switch
set at ON. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
When you carry the registered key into
the actuation area, the trunk can be
opened. For further information of actua-
tion area, see “Smart key system” on
page 32 in this Section.
See “—Stowage precautions” on page 295
in Section 2 for precautions when loading
luggage.
To close the trunk lid, lower it and press
down on it. After closing the trunk lid, try
pulling it up to make sure it is securely
closed.The trunk lid can be opened with the wire-
less remote control function, see “—Open-
ing trunk lid” on page 28 in this Section.
CAUTION
Keep the trunk lid closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
A warning buzzer may sound when:
The key is brought into the cabin after
the trunk is opened, and the trunk is
then closed.
The key is near the trunk when the
trunk is closed.
The buzzer may sound even when the key
is not in the trunk. This does not indicate
a problem. However, under these circum-
stances, the trunk cannot be opened using
the smart key system. Open the trunk
using other methods.
Trunk lid—
—Opening trunk lid with
smart key system

’07Camry hybrid_U (L/O 0610)
48
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
If the trunk is closed with the key left in
the trunk when all side doors are locked,
a beep will sound continuously for 2 sec-
onds. You can open the trunk pushing the
trunk opener switch without carrying
another key. However, in some instances,
the beep may not sound when the trunk
is closed depending on the location of the
key in the trunk. In addition, when the
doors are open or unlocked, the beep may
not sound when the trunk is closed. When
closing the trunk, make sure that the key
is not left in it.
To open the trunk lid from the driver’s
seat, pull up on the lock release lever.
To deactivate this lock release lever from
opening the trunk lid, see “—Luggage se-
curity system” described below.To open the trunk lid manually from the
outside, insert the mechanical key and
turn it clockwise.
—Opening trunk lid by lock
release lever—Opening trunk lid with
mechanical key

’07Camry hybrid_U (L/O 0610)
49
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
This system helps protect things locked
in the trunk by safeguarding the trunk
lid lock release lever from unwanted
access.
Close the trunk lid. Insert the mechani-
cal key and turn it counterclockwise to
deactivate the trunk lid lock release le-
ver.
After the operation, try pulling up on the
trunk lid lock release lever to make sure
it is locked.
NOTICE
Implement the above steps to maxi-
mize security of the luggage in the
trunk whenever the vehicle is unat-
tended.
If a person is locked in the trunk,
he/she can pull up the phosphorescent
strap on the inside of trunk lid to open
the trunk lid.
The phosphorescent (glow−in −the −dark)
strap will continue to glow for a time after
the trunk lid is closed. Exposing the han-
dle to stronger light will cause it to glow
longer.
—Luggage security system —Internal trunk release strap

’07Camry hybrid_U (L/O 0610)
50
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
CAUTION
Always lock the trunk lid and all
doors, and keep away the vehicle
keys out of children’s reach.
Never leave children unattended in
the vehicle. Unsupervised children
may lock themselves in the vehicle
or trunk and suffer serious injuries
or death.
To open the hood:1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood and make sure
it locks into place. If necessary, press
down gently on the front edge to lock it.
Hood

’07Camry hybrid_U (L/O 0610)
51
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

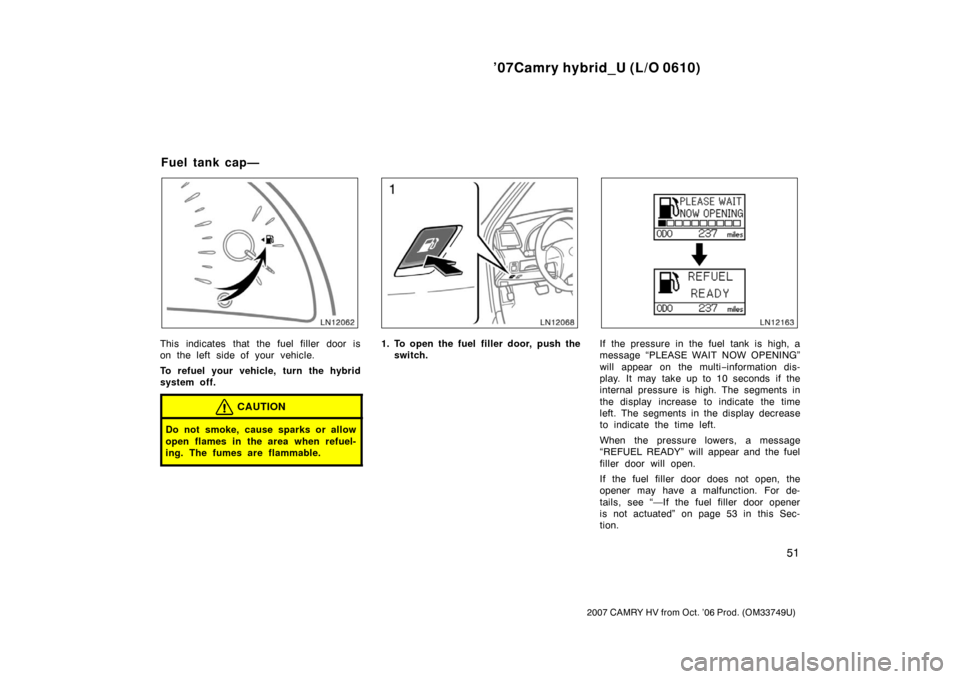

This indicates that the fuel filler door is
on the left side of your vehicle.
To refuel your vehicle, turn the hybrid
system off.
CAUTION
Do not smoke, cause sparks or allow
open flames in the area when refuel-
ing. The fumes are flammable.
1. To open the fuel filler door, push theswitch.If the pressure in the fuel tank is high, a
message “PLEASE WAIT NOW OPENING”
will appear on the multi −information dis-
play. It may take up to 10 seconds if the
internal pressure is high. The segments in
the display increase to indicate the time
left. The segments in the display decrease
to indicate the time left.
When the pressure lowers, a message
“REFUEL READY” will appear and the fuel
filler door will open.
If the fuel filler door does not open, the
opener may have a malfunction. For de-
tails, see “—If the fuel filler door opener
is not actuated” on page 53 in this Sec-
tion.
Fuel tank cap—

’07Camry hybrid_U (L/O 0610)
52
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
CAUTION
When opening the cap, do not remove
the cap quickly. In hot weather, fuel
under pressure could cause injury by
spraying out of the filler neck if the
cap is suddenly removed.
2. Turn the cap slowly counterclockwiseand remove it.
The removed cap can be stored on the
backside of the fuel filler door.
When reinstalling, turn the cap clockwise
until you hear a click.
If the cap is not tightened securely, the
malfunction indicator lamp will come on.
Make sure the cap is tightened securely.
The indicator lamp will go off after driving
the vehicle several times. If the indicator
lamp does not go off, contact your Toyota
dealer as soon as possible. If you leave the fuel filler door open and
start the hybrid system, a message
“CLOSE FUEL LID” will appear on the
multi
−information display. Make sure the
fuel filler door is closed.
CAUTION
Make sure the cap is installed se-
curely to prevent fuel sp illage in
the event of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
NOTICE
Finish refueling within 30 minutes. If
more than 30 minutes passes, the in-
ternal valve closes. In this condition,
fuel may spill out if you continue to
refuel the vehicle. About 5 minutes
after the valve is closed, a message
“CLOSE FUEL LID” will appear on the
multiinformation display. To refuel
the vehicle again, tighten the fuel
tank cap and close the fuel filler
door, and then push the fuel f iller
door opener switch again.
