If your hybrid system stalls while driving...1. Reduce your speed gradually, keeping a straight line. Move cautiously off the
road to a safe place.
2. Turn on your emergency flashers.
3. Set the “POWER” switch at ACC or off, and try starting the hybrid system
again.
If the hybrid system will not start, see “If
your vehicle will not start” on page 313 in
this Section.
CAUTION
If the hybrid system is not operat-
ing, the power assist for the brakes
and steering will not work so steer-
ing and braking will be much hard-
er than usual.
If the hybrid system stalls while
driving, do not open the driver’s
door until the vehicle comes to a
complete stop. Opening the driver’s
door locks the steering wheel, re-
sulting in loss of steering control.
Any of the following may indicate that
the hybrid system has overheated:
The engine coolant temperature
gauge indicates overheating.
The message “WATER TEMP” or
“HYBRID SYSTEM OVER HEAT” ap-
pears on the multiinformation dis-
play.
A loss of power is experienced.
A loud knocking or pinging noise is
heard.
If the hybrid system overheats, follow
the procedures below:
1. Pull safely off the road, stop the ve- hicle and turn on your emergency
flashers. Put the transmission in “P”
and apply the parking brake. Turn off
the air conditioning if it is being used.
2. If coolant or steam is boiling out of the radiator or reservoir, stop the hybrid
system. Wait until the steam subsides
before opening the hood. If there is no
coolant boiling over or steam, leave the
hybrid system turned on and make
sure the electric cooling fan is operat-
ing. If it is not, turn the hybrid system
off.
CAUTION
To help avoid personal injury, keep
the hood closed until there is no
steam. Escaping steam or coolant is
a sign of very high pressure.
3. Look for obvious coolant leaks from theradiator, hoses, and under the vehicle.
However, note that water draining from
the air conditioning is normal if it has
been used.
CAUTION
When the hybrid system is on, keep
hands and clothing away from the
moving fan.
4. If the coolant is leaking, stop the hy-
brid system immediately. Call a Toyota
dealer for assistance.
5. If there are no obvious leaks, check the coolant reservoir. If it is dry, add
coolant to the reservoir while the hy-
brid system is on. Fill it about half full.
For the coolant type, see “Coolant type
selection” on page 357 in Section 7 −2.
If your hybrid system stalls
while driving If your vehicle overheats

’07Camry hybrid_U (L/O 0610)
318
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
CAUTION
Do not attempt to remove the radiator
cap when the hybrid system and ra-
diator are hot. Serious injury could
result from scalding hot fluid and
steam blown out under pressure.
6. After the coolant temperature hascooled to normal, again check the cool-
ant level in the reservoir. If necessary,
bring it up to half full again. Serious
coolant loss indicates a leak in the
system. You s hould have it checked as
soon as possible at your Toyota dealer.
1. Reduce your speed gradually, keeping a straight line. Move cau-
tiously off the road to a safe place
well away from the traffic. Avoid
stopping on the center divider of
a highway. Park on a level spot
with firm ground.
2. Stop the hybrid system and turn on your emergency flashers.
3. Firmly set the parking brake and put the transmission in “P”.
4. Have everyone get out of the ve- hicle on the side away from traffic.
5. Read the following instructions thoroughly.CAUTION
When jacking, be sure to observe
the following to reduce the possi-
bility of death or serious injury:
Follow jacking instructions.
 Do not put any part of your
body under the vehicle sup-
ported by the jack. Otherwise,
personal injury may occur.
 Do not start the hybrid system
while your vehicle is supported
by the jack.
 Stop the vehicle on a level firm
ground, firmly set the parking
brake and put the transmission
in “P”. Block the wheel diago-
nally opposite to the one being
changed if necessary.
If you have a flat tire—

’07Camry hybrid_U (L/O 0610)
319
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Make sure to set the jack prop-
erly in the jack point. Raising
the vehicle with jack improper-
ly positioned will damage the
vehicle or may allow the ve-
hicle to fall off the jack and
cause personal injury.
 Never get under the vehicle
when the vehicle is supported
by the jack alone.
 Use the jack only for lifting
your vehicle during wheel
changing.
 Do not raise the vehicle with
someone in the vehicle.
 When raising the vehicle, do
not place any objects on top
of or underneath the jack.
 Raise the vehicle only high
enough to remove and change
the tire.NOTICE
Do not continue driving with a
deflated tire. Driving even a
short distance can damage a
tire and wheel beyond repair.
Compact spare tire
The compact spare tire is designed
for temporary emergency use only.
The compact spare tire is identified
by the distinctive wording
“TEMPORARY USE ONLY” molded
into the side wall of the tire.
The compact spare tire saves space
in your luggage compartment, and its
lighter weight helps to improve fuel
economy and permits easier installa-
tion in case of a flat tire.

’07Camry hybrid_U (L/O 0610)
320
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
The compact spare tire can be used
many times, if necessary. It has tread
life of up to 4800 km (3000 miles) de-
pending on road conditions and your
driving habits. When tread wear indi-
cators appear on the tire, replace the
tire.
See also the tire information on page
362 in Section 7−2 for details on the
tread wear indicators and other ser-
vice information.
CAUTION
 The compact spare tire was de-
signed especially for your Toy-
ota. Do not use it on any other
vehicle.
 Do not use more than one com-
pact spare tire at the same
time.
 The pressure for the compact
spare tire must be 420 kPa (4.2
kgf/cm
2 or bar, 60 psi).
 Do not exceed 80 km/h (50
mph) when driving with the
compact spare tire.
Replace the compact spare tire
with the standard tire as soon
as possible.
 Avoid sudden a cceleration,
sudden d eceleration and sharp
turns with the compact spare
tire.
NOTICE
Your ground clearance is re-
duced when the compact spare
tire is installed so avoid driving
over obstacles and drive slowly
on rough, unpaved roads and
speed bumps. Also, do not at-
tempt to go through an auto-
matic car wash as the vehicle
may get caught, resulting in
damage.
1. Get the required tools and spare tire.
1. Jack handle
2. Wheel nut wrench
3. Transport eyelet (on some models)
4.
Jack
5.
Spare tire
To prepare yourself for an emergency,
you should familiarize yourself with
the use of the jack, each of the tools
and their storage locations.
— R eq u ired to o ls an d sp are
tire

’07Camry hybrid_U (L/O 0610)
321
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
To remove the spare tire:1. Loosen the nut and remove it.
2. Remove the spare tire cover.
3. Loosen the bolt and remove it.
4. Remove the jack tray.
Then take the spare tire out of the
vehicle. When storing the spare tire, put it in
place with the outer side of the wheel
facing up. Then secure the tire by re-
peating the above removal steps in
reverse order to prevent it from flying
forward during a collision or sudden
braking.Before removing the jack, unhook the
tightening strap.
After storing the jack,
make sure it is
securely held by the tightening strap.
This prevents the jack from flying for-
ward during a collision or sudden
stop.

’07Camry hybrid_U (L/O 0610)
322
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
2. Block the wheel diagonally op-posite the flat tire to keep the
vehicle from rolling when it is
jacked up.
When blocking the wheel, place a
wheel block or equivalent in front of
one of the front wheels or behind one
of the rear wheels.3. Loosen all the wheel nuts.
Always loosen the wheel nuts before
raising the vehicle.
Turn the wheel nuts counterclockwise
to loosen. To get maximum leverage,
fit the wrench to the nut so that the
handle is on the right side, as shown
above. Grab the wrench near the end
of the handle and pull up on the han-
dle. Be careful that the wrench does
not slip off the nut.
Do not remove the nuts yet—just un-
screw them about one −half turn.
CAUTION
Never use oil or grease on the
bolts or nuts. The nuts may be-
come loose and the wheels may
fall off, which could cause a seri-
ous accident.
—Blocking the wheel —Loosening wheel nuts

’07Camry hybrid_U (L/O 0610)
323
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
4. Position the jack at the correctjack point as shown.
Make sure the jack is positioned on
a level and solid place.
Jack point guide
The jack point guides are located un-
der the rocker panel. They indicate
the jack point positions.
5. After making sure that no one is in the vehicle, raise it high
enough so that the spare tire
can be installed.
Remember you will need more ground
clearance when putting on the spare
tire than when removing the flat tire.
To raise the vehicl e, insert the jack
handle into the jack (it is a loose fit)
and turn it clockwise. As the jack
touches the vehicle and begins to lift,
double −check that it is properly posi-
tioned.
—Positioning the jack —Raising your vehicle

’07Camry hybrid_U (L/O 0610)
324
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
CAUTION
Never get under the vehicle when
the vehicle is supported by the
jack alone.

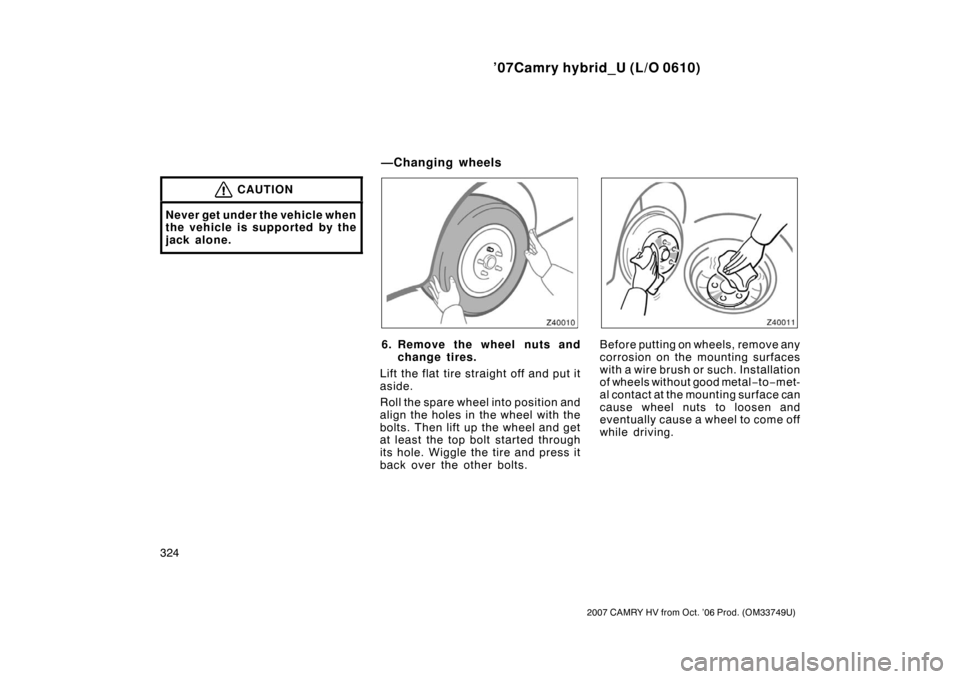

6. Remove the wheel nuts andchange tires.
Lift the flat tire straight off and put it
aside.
Roll the spare wheel into position and
align the holes in the wheel with the
bolts. Then lift up the wheel and get
at least the top bolt started through
its hole. Wiggle the tire and press it
back over the other bolts.Before putting on wheels, remove any
corrosion on the mounting surfaces
with a wire brush or such. Installation
of wheels without good metal− to−met-
al contact at the mounting surface can
cause wheel nuts to loosen and
eventually cause a wheel to come off
while driving.
—Changing wheels
