2007 TOYOTA CAMRY HYBRID fuse

’07Camry hybrid_U (L/O 0610)
238
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Cancel operation—
Do either one of the following:
Push the onhook switch at anytime
during the operation.
Push the talk switch and say “Can-
cel” after the beep at anytime dur-
ing the operation except while a call
is connected.
When receiving a phone call, a ring tone
is audible and the system changes into
the telephone mode.
When receiving a phone call, the display
is as follows. The display differs depend-
ing on whether or not the vehicle is in
motion.
When the vehicle is stopped:
Number, name or “Incoming” is displayed.
When the vehicle is in motion:
“Incoming” is displayed.
Do either one of the following:
Pushing the off−hook switch allows you
to talk on the phone.
Pushing the on −hook switch refuses
the call.
To adjust the ring volume, push “+” or “ −”
on the steering volume controls. Volume
adjustment cannot be done using the au-
dio system.
Repeatedly pushing “ −” on the steering
volume controls mutes the ring.
When receiving an international phone
call, the name of the party may not be
displayed correctly depending on the cellu-
lar phone. To transfer a call to the phone:
The received call can be transferred from
the hands
−free system to the cellular
phone that is connected to Bluetooth . For
details, refer to the user’s guide for the
cellular phone.
—Receiving a p hone call

’07Camry hybrid_U (L/O 0610)
262
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
CAUTION
When doing the circling calibration,
be sure to secure a wide space,
and watch out for people and ve-
hicles in the neighborhood. Do not
violate any local traffic rules while
performing circling calibration.
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
Front console
Center console
The power outlets are designed for
power supply for car accessories.
The “POWER” switch must be set at ACC
or ON for the power outlet to be used.
Front console power outlet—Connected
cables can be passed through the hole to
the front passenger side of the auxiliary
box. For details, see “Auxiliary boxes” on
page 268 in this Section.
NOTICE
To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of
12V/120W.
 To prevent the 12 volt battery from
being discharged, do not use the
power outlets longer than necessary
when the hybrid system is turned
off.
 Close the power outlet lids when
the power outlets are not in use.
Inserting anything other than an ap-
propriate plug that fits the outlet,
or allowing any liquid to get into
the outlet may cause electrical fail-
ure or short circuits.
Power outlets

’07Camry hybrid_U (L/O 0610)
346
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
DOITYOURSELF MAINTENANCE
Introduction
Engine compartment overview347
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse locations 348
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Do −it− yourself service precautions 348
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Positioning the jack 350
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Parts and tools 351
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
SECTION 7 1

’07Camry hybrid_U (L/O 0610)
347
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
1. Brake fluid reservoir
2. Engine oil filler cap
3. Engine oil level dipstick
4. Coolant reservoir (for inverter, tractionmotor and motor generator)
5. Radiator (for engine)
6. Fuse block
7. Condenser
8. Electric cooling fans
9. Radiator (for inverter, traction motor and motor generator)
10. Windshield washer fluid tank 11. Coolant reservoir (for engine)
Engine compartment overview

’07Camry hybrid_U (L/O 0610)
348
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

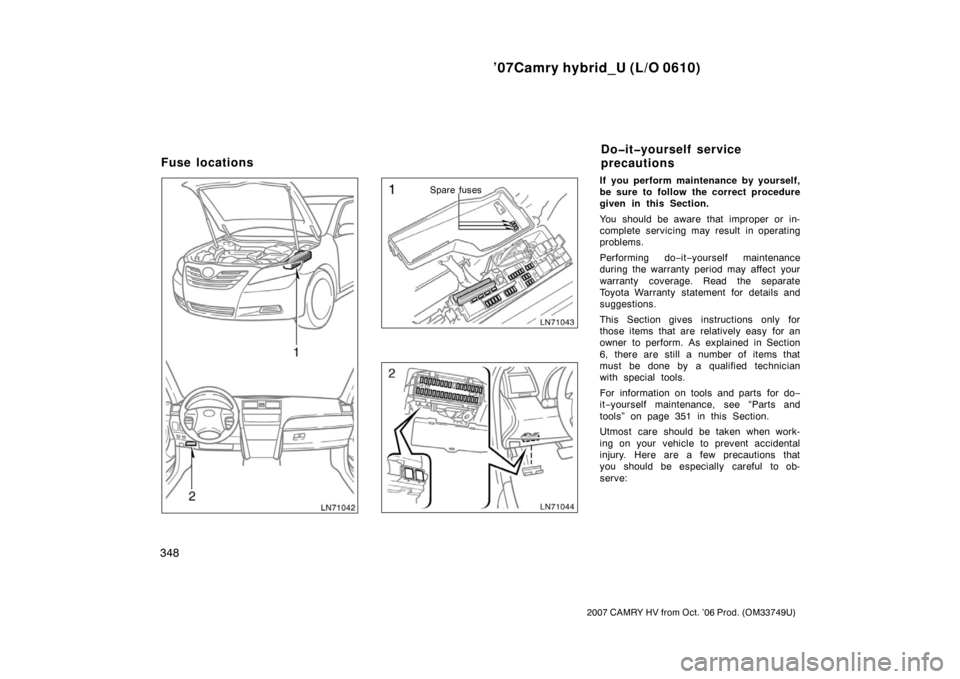

Spare fusesIf you perform maintenance by yourself,
be sure to follow the correct procedure
given in this Section.
You should be aware that improper or in-
complete servicing may result in operating
problems.
Performing do−it−yourself maintenance
during the warranty period may affect your
warranty coverage. Read the separate
Toyota Warranty statement for details and
suggestions.
This Section gives instructions only for
those items that are relatively easy for an
owner to perform. As explained in Section
6, there are still a number of items that
must be done by a qualified technician
with special tools.
For information on tools and parts for do −
it −yourself maintenance, see “Parts and
tools” on page 351 in this Section.
Utmost care should be taken when work-
ing on your vehicle to prevent accidental
injury. Here are a few precautions that
you should be especially careful to ob-
serve:
Fuse locations Doityourself service
precautions

’07Camry hybrid_U (L/O 0610)
352
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
CHECKING THE COOLANT LEVEL
Parts (if level is low):
“Toyota Super Long Life Coolant” or
similar high quality ethylene glycol
based non−silicate, non −amine, non− ni-
trite, and non −borate coolant with long −
life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a
mixture of 50% coolant and 50% deion-
ized water (for the U.S.A.) or 55%
coolant and 45% deionized water (for
Canada).
Tools:
Funnel (only for adding coolant)
CHECKING 12 VOLT BATTERY CON-
DITION
Tools:
Warm water
Baking soda
Grease
Conventional wrench (for terminal
clamp bolts) CHECKING AND REPLACING FUSES
Parts (if replacement is necessary):
Genuine Toyota fuse or equivalent with
same amperage rating as original
ADDING WASHER FLUID
Parts:
Water
Washer fluid containing antifreeze (for
winter use)
Tools:
Funnel
REPLACING LIGHT BULBS
Parts:
Bulb with same number and wattage
rating as original (See charts in “Re-
placing light bulbs” on page 373 in
Section 7 −3.)

’07Camry hybrid_U (L/O 0610)
368
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
DOITYOURSELF MAINTENANCE
Electrical components
Checking 12 volt battery condition369
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
12 volt battery recharging precautions 370
. . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing fuses 371
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the fusible link 372
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Adding washer fluid 373
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Replacing light bulbs 373
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 7 3

’07Camry hybrid_U (L/O 0610)
371
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
GoodBlown
Ty p e A
Good Blown
Ty p e B
Good Blown
Ty p e C
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” on page 348 in Sec-
tion 7 −1 for locations of the fuses.
Turn the hybrid system and inoperative
component off. Pull the suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
page 386 in Section 8 for the functions
controlled by each circuit.
Type B fuses—When any of the fuses are
blown, contact your Toyota dealer.
Checking and replacing fuses
