ronment. Always conform to local
regulations for disposal of vehicle
fluid.
This “8. Maintenance and do-it-yourself” section
gives instructions regarding only those items
which are relatively easy for an owner to perform.
A genuine NISSAN Service Manual is also avail-
able. See “Owner’s Manual/Service Manual or-
der information” in the “9. Technical and con-
sumer information” section.
You should be aware that incomplete or im-
proper servicing may result in operating difficul-
ties or excessive emissions, and could affect
your warranty coverage.If in doubt about any
servicing, have it done by a NISSAN dealer.
8-6
Maintenance and do-it-yourself


06.4.14/T30-J/V5.0


1. Power steering fluid reservoir
2. Engine oil filler cap
3. Automatic transmission fluid dipstick
(Automatic Transmission (AT) model)
4. Brake and clutch (Manual Transmission (MT)
model) fluid reservoir
5. Air cleaner
6. Window washer fluid reservoir
7. Engine coolant reservoir
8. Engine oil dipstick
9. Radiator cap
10. Fuse/Fusible link holder
11. Battery
SDI1947
ENGINE COMPARTMENT CHECK
LOCATIONS
Maintenance and do-it-yourself
8-7


06.4.14/T30-J/V5.0


The engine cooling system is filled at the factory
with a high-quality, year-round, antifreeze cool-
ant solution. The antifreeze solution contains rust
and corrosion inhibitors, therefore additional
cooling system additives are not necessary.
WARNING

Never remove the radiator cap when
the engine is hot. Wait until the en-
gine and radiator cool down. Serious
burns could be caused by high pres-
sure fluid escaping from the radiator.
Wait until the engine and radiator
cool down.

See “If your vehicle overheats” in the
“6. In case of emergency” section.

The radiator is equipped with a pres-
sure cap. To prevent engine damage,
use only a genuine NISSAN radiator
cap.
CAUTION
When adding or replacing coolant, besure to use only a Genuine NISSAN
Long Life Antifreeze Coolant or equiva-
lent with the proper mixture ratio of 50%
antifreeze and 50% demineralized
water/distilled water. The use of other
types of coolant solutions may damage
your engine cooling system.
Outside temperature
down to
Anti-
freezeDeminer-
alized
water/
distilled
water °C °F
−35 −30 50% 50%
CHECKING ENGINE COOLANT
LEVELCheck the coolant level in the reservoir tank
when the engine is cold. If the coolant level is
below MIN
2, add coolant up to the MAX
1
level. If the reservoir tank is empty, check the
coolant level in the radiatorwhen the engine is
cold.If there is insufficient coolant in the radia-
tor, fill the radiator with Genuine NISSAN Long
Life Antifreeze/Coolant or equivalent up to the
filler opening and also add it to the reservoir tank
up to the MAX level
1.
If the engine cooling system frequently
SDI1926
ENGINE COOLING SYSTEM8-8
Maintenance and do-it-yourself


06.4.14/T30-J/V5.0


requires coolant, have it checked by a
NISSAN dealer.

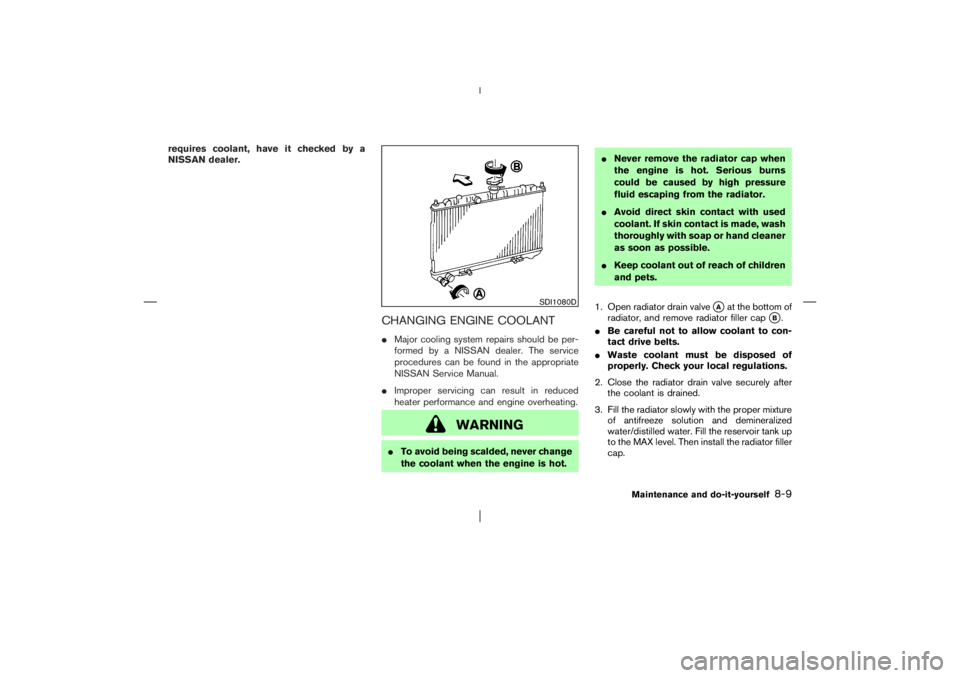

CHANGING ENGINE COOLANT
Major cooling system repairs should be per-
formed by a NISSAN dealer. The service
procedures can be found in the appropriate
NISSAN Service Manual.

Improper servicing can result in reduced
heater performance and engine overheating.
WARNING

To avoid being scalded, never change
the coolant when the engine is hot.
Never remove the radiator cap when
the engine is hot. Serious burns
could be caused by high pressure
fluid escaping from the radiator.

Avoid direct skin contact with used
coolant. If skin contact is made, wash
thoroughly with soap or hand cleaner
as soon as possible.

Keep coolant out of reach of children
and pets.
1. Open radiator drain valve
Aat the bottom of
radiator, and remove radiator filler cap
B.

Be careful not to allow coolant to con-
tact drive belts.

Waste coolant must be disposed of
properly. Check your local regulations.
2. Close the radiator drain valve securely after
the coolant is drained.
3. Fill the radiator slowly with the proper mixture
of antifreeze solution and demineralized
water/distilled water. Fill the reservoir tank up
to the MAX level. Then install the radiator filler
cap.
SDI1080D
Maintenance and do-it-yourself
8-9


06.4.14/T30-J/V5.0


4. Start the engine and warm it up until it
reaches normal operating temperature. Then
race the engine 2 or 3 times under no load.
Watch the engine coolant temperature
gauge for signs of overheating.
5. Stop the engine. After it completely cools
down, refill the radiator up to the filler open-
ing. Fill the reservoir tank up to the MAX level.
Check the drain valve for any sign of leakage.
6. Recheck the coolant level after the vehicle
has been driven for a day.
CHECKING ENGINE OIL LEVEL1. Park the vehicle on a level surface and apply
parking brake.
2. Run the engine until it reaches operating
temperature.
3. Turn off the engine.Wait more than 10
minutes for the oil to drain back into the
oil pan.
4. Remove the dipstick and wipe it clean. Rein-
sert it all the way.5. Remove the dipstick again and check the oil
level. It should be between the H and L marks
1. If the oil level is below the L mark
2,
remove the oil filler cap and pour recom-
mended oil through the opening.Do not
overfill
3.
When filling the engine oil, do not remove the
dipstick.
6. Recheck oil level with dipstick.
It is normal to add some oil between oil
maintenance intervals or during the
break-in period, depending on the severity
of operating conditions.
CAUTION
Oil level should be checked regularly.
Operating with insufficient amount of
oil can damage the engine, and such
damage is not covered by warranty.
SDI1597
ENGINE OIL
8-10
Maintenance and do-it-yourself


06.4.14/T30-J/V5.0


CHANGING ENGINE OILChange the engine oil and filter according to the
maintenance log shown in the Service and Main-
tenance Guide.
1. Park the vehicle on a level surface and apply
the parking brake.
2. Run the engine until it reaches operating
temperature.
3. Turn the engine off andwait more than 10
minutes.
4. Place a large drain pan under the drain plug
1.5. Remove the oil filler cap
2.
6. Remove the drain plug
1with a wrench and
completely drain the oil.
If oil filter is to be changed, remove and
replace it at this time. See later in this section
for changing engine oil filter.
WARNING
Be careful not to burn yourself, as the
engine oil is hot.

Waste oil must be disposed of properly.

Check your local regulations.
7. Clean and re-install the drain plug
1
with a
new washer. Securely tighten the drain plug
with a wrench.
Drain plug tightening torque:
29 to 39 N⋅m (3.0 to 4.0 kg-m, 22 to 29
ft-lb)
Do not use excessive force.
8. Refill engine with recommended oil and in-
stall the cap securely.
CAUTION
Never pull out the oil level gauge while
filling engine oil.
See “Capacities and recommended
fuel/lubricants” in the “9. Technical and con-
sumer information” section for drain and refill
capacity. The drain and refill capacity de-
pends on the oil temperature and drain time.
Use these specifications for reference only.
Always use the dipstick to determine the
proper amount of oil in the engine.
9. Start the engine.
Check for leakage around the drain plug.
Correct as required.
10. Turn the engine off andwait more than 10
minutes. Check the oil level with the dip-
stick. Add engine oil if necessary.
11. Dispose of waste oil properly.
WARNING

Prolonged and repeated contact with
SDI1318B
Maintenance and do-it-yourself
8-11


06.4.14/T30-J/V5.0


used engine oil may cause skin can-
cer.

Try to avoid direct skin contact with
used oil. If skin contact is made,
wash thoroughly with soap or hand
cleaner as soon as possible.

Keep used engine oil out of reach of
children.
CHANGING ENGINE OIL FILTER1. Park the vehicle on a level surface and apply
the parking brake.
2. Turn the engine off.
3. Loosen the oil filter
3
with an oil filter
wrench. Remove the oil filter by turning it by
hand.
WARNING
Be careful not to burn yourself, as theengine oil may be hot.
4. Wipe the engine oil filter mounting surface
with a clean rag.
Be sure to remove any old rubber gasket
remaining on the mounting surface of the
engine.
5. Coat the rubber gasket on the new filter with
clean engine oil.
6. Screw in the oil filter until a slight resistance
is felt, then tighten additionally more than 2/3
turn.
Oil filter tightening torque:
15 to 20 N⋅m (1.6 to 2.0 kg-m, 11 to 15
ft-lb)
7. Start the engine and check for leakage
around the oil filter. Correct as required.
8. Turn the engine off and wait several minutes.
Check the oil level. Add engine oil if neces-
sary.
SDI1318B
8-12
Maintenance and do-it-yourself


06.4.14/T30-J/V5.0


WARNING

When engine is running, keep hands
and clothing away from any moving
parts such as fan drive belt.

Automatic transmission fluid is poi-
sonous and should be stored care-
fully in marked containers out of the
reach of children.
The fluid level should be checked using the HOT
range on the dipstick at fluid temperatures be-
tween 50 and 80°C (122 and 176°F) after the
vehicle has been driven approximately 5 minutes
in urban areas after the engine is warmed up.
The level can be checked at fluid temperatures
between 30 and 50°C (86 and 122°F) using the
COLD range on the dipstick for reference, after
the engine is warmed up but before driving.
However, the fluid level must be rechecked
using the HOT range.
1. Park the vehicle on a level surface and set the
parking brake.
2. Start the engine and then move the selector
lever through each gear range, ending in P.
3. Check the fluid level with the engine idling.If the vehicle has been driven for a long
time at high speeds, or in city traffic in hot
weather, or if it is being used to pull a
trailer, the fluid level cannot be read accu-
rately. You should wait until the fluid has
cooled down (about 30 minutes).
4. Remove the dipstick and wipe it clean with
lint-free paper.
5. Re-insert the dipstick into the charging pipe
as far as it will go.
6. Remove the dipstick and note the reading.
If the level is on the low side of either range, add
fluid to the charging pipe.
Do not overfill.
CAUTION
Use CANADA NISSAN Automatic Trans-
mission Fluid (ATF) or equivalent. (For
more information regarding suitable flu-
ids, contact a NISSAN dealer for cor-
rect brands of DEXRON
TMIII/MERCON
TM
Automatic Transmission Fluid.)
SDI1583
AUTOMATIC TRANSMISSION
FLUID
Maintenance and do-it-yourself
