2006 NISSAN X-TRAIL Owners Manual

board, or by installing additional trim
material around the air bag system.

Work around and on the supplemen-
tal front air bag system should be
done by a NISSAN dealer. Installa-
tion of electrical equipment should
also be done by a NISSAN dealer.
The yellow and orange Supplemental
Restrain System (SRS) wiring and
connectors should not be modified or
disconnected. Unauthorized electri-
cal test equipment and probing de
vices should not be used on the air
bag system.

A cracked windshield should be re-
placed immediately by a qualified re-
pair facility. A cracked windshield
could affect the function of the
supplemental air bag system.

The SRS wiring harness connectors
are yellow and orange for easy iden-
tification.
When selling your vehicle, we request that you
inform the buyer about the supplemental front air
bag system and guide the buyer to the appro-
priate sections in this Owner’s Manual.
Supplemental side air bag system (if
so equipped)The supplemental side air bags are located in
the outside of the seatback of the front seats.All
of the information, cautions and warnings
in this manual still apply and must be
followed.The supplemental side air bags are
designed to inflate in higher severity side colli-
sions on the side where the vehicle is impacted,
although they may inflate if the forces in another
type of collision are similar to those of a higher
severity side impact. They are designed to inflate
on the side where the vehicle is impacted. They
may not inflate in certain side collisions. Vehicledamage (or lack of it) is not always an indication
of proper supplemental side air bag operation.
When the supplemental side air bag inflates, a
fairly loud noise may be heard, followed by
release of smoke. This smoke is not harmful and
does not indicate a fire. Care should be taken
not to inhale it, as it may cause irritation and
choking. Those with a history of a breathing
condition should get fresh air promptly.
Supplemental side air bags, along with the use
of seat belts, help to cushion the impact force on
the head and the chest of the front occupants.
They can help save lives and reduce serious
injuries. However, an inflating side air bag may
cause abrasions or other injuries. Supplemental
side air bags do not provide restraint to the lower
body.
The seat belts should be correctly worn and the
driver and passenger seated upright as far as
practical away from the side air bag. Rear seat
passengers should be seated as far away as
practical from the door finishers and side roof
rails. The side air bags inflate quickly in order to
help protect the front occupants. Because of
this, the force of the side air bag inflating can
increase the risk of injury if the occupant is too
close to, or is against, these air bag modules
during inflation. The side air bag will deflate
quickly after the collision is over.
After turning the ignition key to the ON
SSS0165
1-44
Safety — Seats, seat belts and supplemental restraint system


06.4.14/T30-J/V5.0


position, the supplemental air bag warning
light illuminates. The air bag warning light
will turn off after about 7 seconds if the
systems are operational.

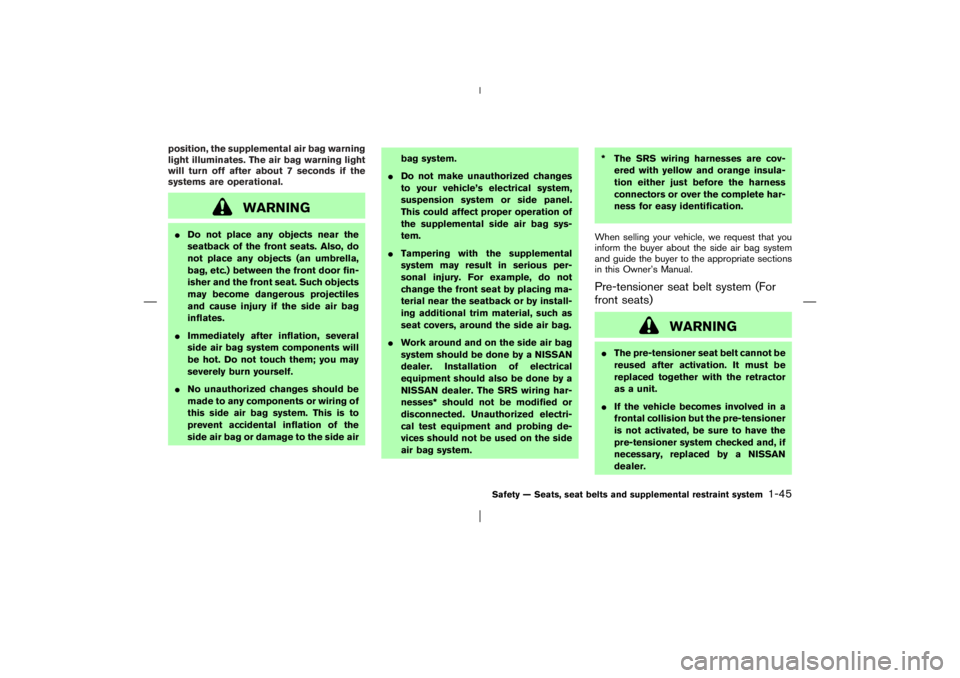

WARNING

Do not place any objects near the
seatback of the front seats. Also, do
not place any objects (an umbrella,
bag, etc.) between the front door fin-
isher and the front seat. Such objects
may become dangerous projectiles
and cause injury if the side air bag
inflates.

Immediately after inflation, several
side air bag system components will
be hot. Do not touch them; you may
severely burn yourself.

No unauthorized changes should be
made to any components or wiring of
this side air bag system. This is to
prevent accidental inflation of the
side air bag or damage to the side airbag system.

Do not make unauthorized changes
to your vehicle’s electrical system,
suspension system or side panel.
This could affect proper operation of
the supplemental side air bag sys-
tem.

Tampering with the supplemental
system may result in serious per-
sonal injury. For example, do not
change the front seat by placing ma-
terial near the seatback or by install-
ing additional trim material, such as
seat covers, around the side air bag.

Work around and on the side air bag
system should be done by a NISSAN
dealer. Installation of electrical
equipment should also be done by a
NISSAN dealer. The SRS wiring har-
nesses* should not be modified or
disconnected. Unauthorized electri-
cal test equipment and probing de-
vices should not be used on the side
air bag system.* The SRS wiring harnesses are cov-
ered with yellow and orange insula-
tion either just before the harness
connectors or over the complete har-
ness for easy identification.
When selling your vehicle, we request that you
inform the buyer about the side air bag system
and guide the buyer to the appropriate sections
in this Owner’s Manual.
Pre-tensioner seat belt system (For
front seats)
WARNING

The pre-tensioner seat belt cannot be
reused after activation. It must be
replaced together with the retractor
as a unit.

If the vehicle becomes involved in a
frontal collision but the pre-tensioner
is not activated, be sure to have the
pre-tensioner system checked and, if
necessary, replaced by a NISSAN
dealer.
Safety — Seats, seat belts and supplemental restraint system
1-45


06.4.14/T30-J/V5.0


No unauthorized changes should be
made to any components or wiring of
the pre-tensioner seat belt system.
This is to prevent accidental activa-
tion of the pre-tensioner seat belt or
damage to the pre-tensioner seat
belt operation. Tampering with the
pre-tensioner seat belt system may
result in serious personal injury.

Work around and on the preten-
sioner seat belt system should be
done by a NISSAN dealer. Installa-
tion of electrical equipment should
also be done by a NISSAN dealer.
Unauthorized electrical test equip-
ment and probing devices should not
be used on the pretensioner seat belt
system.

If you need to dispose of the pre-
tensioner or scrap the vehicle, con-
tact a NISSAN dealer. Correct pre-
tensioner disposal procedures are
set forth in the appropriate NISSAN
Service Manual. Incorrect disposal
procedures could cause personal
injury.The front seat pre-tensioner seat belt system
activates in conjunction with the supplemental
air bag systems. Working with the seat belt
retractor, it helps tighten the seat belt when the
vehicle becomes involved in certain types of
collisions, helping to restrain front seat occu-
pants.
The pre-tensioner is encased with the seat belt’s
retractor. These seat belts are used the same as
conventional seat belts.
When the pre-tensioner seat belt activates,
smoke is released and a loud noise may be
heard. The smoke is not harmful, but care should
be taken not to inhale it as it may cause irritation
and choking. Those with a history of a breathing
condition should get fresh air promptly.
If any abnormality occurs in the pre-tensioner
seat belt system, the supplemental air bag warn-
ing light
will not come on, will flash inter-
mittently or will turn on for 7 seconds and remain
on after the ignition key has been turned to the
ON or START position. In this case, the pre-
tensioner seat belt may not function properly.
They must be checked and repaired. Take your
vehicle to the nearest NISSAN dealer.
When selling your vehicle, we request that you
inform the buyer about the pre-tensioner seat
belt system and guide the buyer to the appro-
priate sections in this Owner’s Manual.
1-46
Safety — Seats, seat belts and supplemental restraint system


06.4.14/T30-J/V5.0


SUPPLEMENTAL AIR BAG
WARNING LABELSWarning labels about the supplemental air bag
system are placed in the vehicle as shown in the
illustration.
SUPPLEMENTAL AIR BAG
WARNING LIGHTThe supplemental air bag warning light, display-
ing
in the instrument panel, monitors the
circuits of the supplemental front air bag,
supplemental side air bag system, and pre-
tensioner seat belt. The circuits monitored by the
air bag warning light are the diagnosis sensor
unit, satellite sensors, front air bag modules, side
air bag modules, and pre-tensioner seat belt and
all related wiring.
After turning the ignition key to the ON position,
the supplemental air bag warning light illumi-
nates. The supplemental air bag warning light
SPA0945B
SPA1097
Safety — Seats, seat belts and supplemental restraint system
1-47


06.4.14/T30-J/V5.0


will turn off after about 7 seconds if the system is
operational.
If any of the following conditions occur, the
supplemental front air bag, supplemental side air
bag system, and pre-tensioner seat belt need
servicing:

The supplemental air bag warning light re-
mains on after approximately 7 seconds.

The supplemental air bag warning light
flashes intermittently.

The supplemental air bag warning light does
not come on at all.
Under these conditions, the supplemental front
air bags, supplemental side air bags, and/or
pre-tensioner seat belt may not operate properly.
They must be checked and repaired. Take your
vehicle to the nearest NISSAN dealer.
WARNING
If the supplemental air bag warning
light is on, it could mean that the
supplemental front air bag, supplemen-
tal side air bag systems and/or pre-
tensioner seat belt will not operate in an
accident. To help avoid injury to yourselfor others, have your vehicle checked by
a NISSAN dealer as soon as possible.
Repair and replacement procedureThe supplemental front air bags, supplemental
side air bags, and pre-tensioner seat belt are
designed to activate on a one-time-only basis.
As a reminder, unless it is damaged, the supple-
mental air bag warning light will remain illumi-
nated after inflation has occurred. Repair and
replacement of these systems should be done
only by a NISSAN dealer.
When maintenance work is required on the
vehicle, the supplemental front air bags, side air
bags, related parts and pre-tensioner seat belt
should be pointed out to the person conducting
the maintenance. The ignition key should always
be in the LOCK position when working under the
hood or inside the vehicle.
WARNING

Once the supplemental front air bag
or side air bag has inflated, the air
bag module will not function again
and must be replaced. Additionally, ifany of the supplemental front air
bags inflate, the activated preten-
sioner seat belt must also be re-
placed. The air bag module and pre-
tensioner seat belt system should be
replaced by a NISSAN dealer. The air
bag modules and pre-tensioner seat
belt system cannot be repaired.

The supplemental front air bag and
side air bag systems and pre-
tensioner seat belt system should be
inspected by a NISSAN dealer if there
is any damage to the front end or
side portion of the vehicle.

If you need to dispose of these
supplemental systems or scrap the
vehicle, contact a NISSAN dealer.
Correct disposal procedures are set
forth in the appropriate NISSAN Ser-
vice Manual. Incorrect disposal pro-
cedures could cause personal injury.
1-48
Safety — Seats, seat belts and supplemental restraint system


06.4.14/T30-J/V5.0


MEMO
Safety — Seats, seat belts and supplemental restraint system
1-49


06.4.14/T30-J/V5.0


MEMO1-50
Safety — Seats, seat belts and supplemental restraint system


06.4.14/T30-J/V5.0


2 Instruments and controlsInstrument panel ................................................................... 2-2
Meters and gauges .............................................................. 2-3
Speedometer and odometer ........................................ 2-4
Tachometer ....................................................................... 2-5
Engine coolant temperature gauge ............................ 2-5
Fuel gauge ........................................................................ 2-6
Warning/indicator lights and audible reminders ........... 2-7
Checking bulbs ............................................................... 2-7
Warning lights ................................................................. 2-7
Indicator lights ............................................................... 2-10
Audible reminders ........................................................ 2-12
Security systems ................................................................ 2-13
Vehicle security system .............................................. 2-13
NISSAN Vehicle Immobilizer System ...................... 2-14
Windshield wiper and washer switch ........................... 2-15
Rear window wiper and washer switch ....................... 2-16
Rear window and outside mirror defroster switch .... 2-17
Headlight and turn signal switch ................................... 2-18
Headlight switch ........................................................... 2-18
Daytime running light system .................................... 2-19
Instrument brightness control ................................... 2-19
Turn signal switch ........................................................ 2-20
Fog light switch (if so equipped) ............................. 2-20
Driving light switch (if so equipped) .............................. 2-20
Hazard warning flasher switch ....................................... 2-21
Horn ....................................................................................... 2-22
Heated seats (if so equipped) ........................................ 2-22SNOW mode switch (if so equipped) ......................... 2-23
Vehicle dynamic control (VDC) off switch
(if so equipped) .................................................................. 2-23
Clock ..................................................................................... 2-24
Adjusting the time ........................................................ 2-24
Power outlet ........................................................................ 2-25
Storage ................................................................................. 2-26
Driver’s box .................................................................... 2-26
Multi box ......................................................................... 2-27
Cup holders ................................................................... 2-28
Glove box ....................................................................... 2-30
Upper glove box ........................................................... 2-30
Console box .................................................................. 2-31
Luggage floor board ........................................................... 2-32
Luggage side box ................................................................ 2-32
Luggage hooks .............................................................. 2-33
Cargo net ....................................................................... 2-33
Tonneau cover (if so equipped) ............................... 2-34
Roof rail ................................................................................ 2-35
Windows .............................................................................. 2-36
Power windows ............................................................ 2-36
Sunroof (if so equipped) .................................................. 2-38
Interior lights ........................................................................ 2-39
Room light ...................................................................... 2-39
Map light ......................................................................... 2-41
Luggage room light ..................................................... 2-41


06.4.14/T30-J/V5.0
