2006 NISSAN X-TRAIL Owners Manual

1. Side ventilator
2. Cup holder
3. Headlight/Turn signal switch/Fog light
switch*
4. Driver air bag/Horn
5. Driver’s box/Power outlet
6. Driver’s side ventilator
7. Wiper and washer switch
8. Center ventilator
9. Meters and gauges
10. Audio system*/Navigation system*/Clock*
11. Hazard warning flasher switch
12. Passenger air bag
13. Driving light switch*
14. Hood release switch
15. Outside mirror remote control
16. Instrument brightness control
17. VDC (Vehicle dynamic control) off switch*
18. Fuse box cover
19. Tilting steering wheel lock lever
20. Cruise control switch
21. Ignition switch
22. 4WD mode switch*/SNOW
mode switch*
SSI0144
INSTRUMENT PANEL2-2
Instruments and controls


06.4.14/T30-J/V5.0


23. Rear window/outside mirror defroster
switch
24. Multi box
25. Heater/air conditioner control
26. Glove box
27. Upper glove box
* If so equipped
1. Tachometer
2. Turn signal indicator/Hazard indicator
3. Speedometer
4. Fuel gauge
5. Engine coolant temperature gauge6. Warning/Indicator lights
7. Odometer (Total/Twin trip)
8. Reset knobfor trip odometer
9. Automatic Transmission (AT) shift position
indicator (if so equipped)
SIC2982
METERS AND GAUGES
Instruments and controls
2-3


06.4.14/T30-J/V5.0


SPEEDOMETER AND ODOMETER
SpeedometerThe speedometer indicates vehicle speed.Odometer/Twin trip odometerThe odometer
1/twin trip odometer
2
are
displayed when the ignition switch is in the ON
position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips.Changing the display:
Push the reset knob
3
to change the trip
odometer display as follows:
TRIP A→TRIP B→CLOCK
→TEM-
PERATURE (Outside air — °C)→TRIP A
Resetting the trip odometer:
Push the reset knob
3
for more than 1 second
to reset the trip odometer to zero.
Outside air temperature displayWhen the outside air temperature is 3°C or
lower, the display blinks to give a warning.
If the outside air temperature becomes 3°C or
lower when the display is in one of the other
modes, the display switches to the outside air
temperature display mode and blinks. If the
outside air temperature becomes above 3°C or
the display mode is not switched for 1 minute, it
returns to the display mode previously set.
Even while the display is blinking, the display
mode can be switched to the one previously set
by pushing the reset knob.
The ambient temperature sensor is located in
front of the radiator. The sensor may be affected
by road or engine heat, wind directions and
other driving conditions. The display may differ
from the actual ambient temperature or thetemperature displayed on various signs or bill-
boards.
Clock displayRefer to “Clock” later in this section for further
details on the clock adjustment.
SIC2395
2-4
Instruments and controls


06.4.14/T30-J/V5.0


TACHOMETERThe tachometer indicates engine speed in revo-
lutions per minute (rpm).
Do not rev engine into red zone
1.
CAUTION
When engine speed approaches the red
zone, shift to a higher gear. Operating
the engine in the red zone may cause
serious engine damage.
ENGINE COOLANT TEMPERATURE
GAUGEThe gauge indicates the engine coolant tem-
perature.
The engine coolant temperature is normal when
the gauge indicates within the range
1.
The engine coolant temperature will vary with the
outside air temperature and driving conditions.
CAUTION
If the gauge indicates engine coolant
temperature over the normal range
1,
stop the vehicle as soon as safely pos-
sible. If the engine is overheated, con-
tinued operation of the vehicle may se-
riously damage the engine. See “If your
vehicle overheats” in the “6. In case of
emergency” section for immediate ac-
tion required.
SIC2271A
SIC2354B
Instruments and controls
2-5


06.4.14/T30-J/V5.0

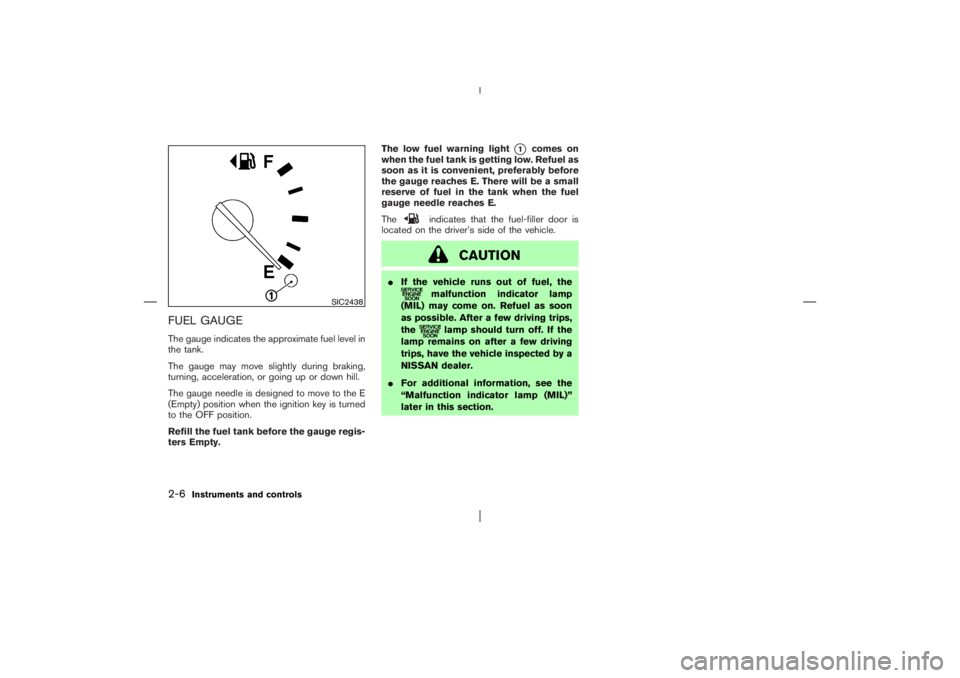

FUEL GAUGEThe gauge indicates the approximate fuel level in
the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hill.
The gauge needle is designed to move to the E
(Empty) position when the ignition key is turned
to the OFF position.
Refill the fuel tank before the gauge regis-
ters Empty.The low fuel warning light
1
comes on
when the fuel tank is getting low. Refuel as
soon as it is convenient, preferably before
the gauge reaches E. There will be a small
reserve of fuel in the tank when the fuel
gauge needle reaches E.
The
indicates that the fuel-filler door is
located on the driver’s side of the vehicle.
CAUTION

If the vehicle runs out of fuel, the
malfunction indicator lamp
(MIL) may come on. Refuel as soon
as possible. After a few driving trips,
the
lamp should turn off. If the
lamp remains on after a few driving
trips, have the vehicle inspected by a
NISSAN dealer.

For additional information, see the
“Malfunction indicator lamp (MIL)”
later in this section.
SIC2438
2-6
Instruments and controls


06.4.14/T30-J/V5.0


Anti-lock brake warning light
Seat belt warning light
High beam indicator light (Blue)
Brake warning light
Supplemental air bag warning light
Malfunction indicator lamp (MIL)
Charge warning light
Cruise main switch indicator light
Overdrive off indicator light (AT models)
Door open warning light
Cruise set indicator light
Slip indicator light (if so equipped)
Engine oil pressure warning light
4WD mode indicator light (AUTO) (4WD
models)
Turn signal/hazard indicator lights
4WD warning light (4WD models)
4WD mode indicator light (LOCK) (4WD
models)
Vehicle dynamic control (VDC) off indica-
tor light (if so equipped)
Low washer fluid warning light
Front fog light indicator light (if so
equipped)
CHECKING BULBSWith all doors closed, apply the parking brake,
fasten the seat belts and turn the ignition switch
to ON without starting the engine. The following
lights will come on:
,
,
,
,
The following lights come on briefly and then go
off:
,
,
,
,
,
,
If any light fails to come on, it may indicate a
burned-out bulb or an open circuit in the elec-trical system. Have the system repaired
promptly.
WARNING LIGHTS
Anti-lock brake warning light
After turning the ignition key to the ON position,
the light will illuminate and then turn off. This
indicates the anti-lock brake system (ABS) is
operational.
If the light comes on while the engine is running,
it may indicate that the anti-lock brake system isnot functioning properly. Have the system
checked by a NISSAN dealer.
If an abnormality occurs in the system, the
anti-lock function will cease but the ordinary
brakes will continue to operate normally. See
“Anti-lock brake system (ABS)” in the “5. Start-
ing and driving” section for further details.
If the light comes on while you are driving,
contact a NISSAN dealer for repair.
WARNING/INDICATOR LIGHTS
AND AUDIBLE REMINDERS
Instruments and controls
2-7


06.4.14/T30-J/V5.0


Brake warning light
This light functions for both the parking brake
and the foot brake systems.
Parking brake indicator:
When the ignition key is in the ON position, the
light comes on when the parking brake is ap-
plied.
Low brake fluid warning light:
The light warns of a low brake fluid level. If the
light comes on while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:
1. Check the brake fluid level. Add brake fluid as
necessary. See “Brake and clutch fluid” in the
“8. Maintenance and do-it-yourself” section.
WARNING

Your brake system may not be work-
ing properly if the warning light is on.
Driving could be dangerous. If you
judge it to be safe, drive carefully to
the nearest service station for re-
pairs. Otherwise, have your vehicle
towed because driving it could bedangerous.

Pressing the brake pedal with the
engine stopped and/or low brake
fluid level may increase your stop-
ping distance and braking will re-
quire greater pedal effort as well as
greater pedal travel.

If the brake fluid level is below the
MINmark on the brake fluid reser-
voir, do not drive until the brake sys-
tem has been checked at a NISSAN
dealer.
2. If the brake fluid level is correct, have the
warning system checked by a NISSAN
dealer. Avoid high speed driving and abrupt
braking.
Anti-lock brake system warning light:
When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the anti-lock brake warning
light illuminate, it may indicate the anti-lock brake
system is not functioning properly. Have the
brake system checked by a NISSAN dealer. See
“Anti-lock brake warning light” earlier in this
section.
Charge warning light
If the light comes on while the engine is running,
it may indicate that the charging system is not
functioning properly. Turn the engine off and
check the alternator belt. If the belt is loose,
broken, missing or if the light remains on, see a
NISSAN dealer immediately.
CAUTION
Do not continue driving if the belt is
loose, broken or missing.
Door open warning light
This light comes on when any of the doors are
not closed securely while the ignition key is ON.
Engine oil pressure warning
light
This light warns of low engine oil pressure. If the
light blinks or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediatelyand call a NISSAN dealer or other
authorized repair shop.
The engine oil pressure warning light is not
designed to indicate a low oil level. Use the
dipstick to check the oil level.See “Engine
2-8
Instruments and controls


06.4.14/T30-J/V5.0


oil” in the “8. Maintenance and do-it-yourself”
section.
CAUTION
Running the engine with the oil pres-
sure warning light on could cause seri-
ous damage to the engine almost imme-
diately. Turn off the engine as soon as it
is safe to do so.
4WD warning light (4WD
models)
The 4WD warning light comes on when the key
switch is turned to ON. It turns off soon after the
engine is started.
If the 4WD system malfunctions or the revolu-
tion, or radius of the front and the rear wheel
differs, the warning light will either remain illumi-
nated or blink. See “Using four-wheel drive
(4WD)” in the “5. Starting and driving” section.
CAUTION

If the warning light comes on while
driving, 4WD mode will change to
2WD mode. Reduce the vehicle speed
and have your vehicle checked by a
NISSAN dealer as soon as possible.

Do not drive on dry hard surface
roads in the LOCK mode.

If the 4WD warning light blinks when
you are driving:
•blinks rapidly (about twice a sec-
ond):
Pull off the road in a safe area, and
idle the engine. The driving mode
will change to 2WD to prevent the
4WD system from malfunctioning.
If the warning light turns off, you
can drive again.
•blinks slowly (about once every 2
seconds):
Pull off the road in a safe area, and
idle the engine. Check that all tire
sizes are the same, tire pressure iscorrect and tires are not worn.
If the warning light is still on after the
above operation, have your vehicle
checked by a NISSAN dealer as soon as
possible.
Low washer fluid warning light
This light comes on when the washer tank fluid is
at a low level. Add washer fluid as necessary.
See “Window washer fluid” in the “8. Mainte-
nance and do-it-yourself” section.
Seat belt warning light
The light and chime remind you to fasten seat
belts. The light illuminates whenever the ignition
key is turned to ON, and will remain illuminated
until the driver’s seat belt is fastened. At the
same time, the chime will sound for about 6
seconds unless the driver’s seat belt is securely
fastened.
See “Seat belts” in the “1. Safety — Seats, seat
belt and supplemental restraint system” section
for precautions on seat belt usage.
Instruments and controls
2-9


06.4.14/T30-J/V5.0
