2006 NISSAN X-TRAIL Owners Manual

In order for the steering wheel to be locked, it
must be turned about 1/6 of a turn clockwise
from the straight up position.
To lock the steering wheel, turn the key to
the LOCK position. Remove the key.
To unlock the steering wheel, insert the
key and turn it gently while rotating the
steering wheel slightly right and left.
WARNING
Never remove or turn the key to the
LOCK position while driving. The steer-
ing wheel will lock. This may cause the
driver to lose control of the vehicle and
could result in serious vehicle damage
and/or personal injury.KEY POSITIONSThe switch includes an anti-theft steering lock
device.
LOCK (Normal parking position) (0)
The ignition key can only be removed when the
switch is in this position.OFF (1)
The engine can be turned off without locking the
steering wheel.
ACC (Accessories) (2)
This position activates electrical accessories
such as the radio when the engine is not running.
ON (Normal operating position) (3)
This position turns on the ignition system and the
electrical accessories.
START (4)
This position activates the starter motor, starting
the engine.
NISSAN VEHICLE IMMOBILIZER
SYSTEMThe Nissan Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered key.
If the engine does not start using a registered
key (for example, when interference is caused by
another registered key, an automated toll road
device or automated payment device on the key
ring), restart the engine using the following
procedures:
1. Leave the ignition switch in the ON position
for approximately 5 seconds.2. Turn the ignition switch to the OFF or LOCK
position and wait approximately 10 seconds.
3. Repeat steps 1 and 2.
4. Restart the engine while holding the device
(which may have caused the interference)
separate from the registered key.
If this procedure allows the engine to start,
NISSAN recommends placing the registered key
on a separate key ring to avoid interference from
other devices.
5-8
Starting and driving


06.4.14/T30-J/V5.0


Make sure the area around the vehicle is
clear.

Maintenance items should be checked peri-
odically, for example, each time you check
engine oil.

Check that all windows and lights are clean.

Visually inspect tires for their appearance and
condition. Also, check tires for proper infla-
tion.

Lock all doors.

Position seat and adjust head restraints.

Adjust inside and outside mirrors.

Fasten seat belts and ask all passengers to
do likewise.

Check the operation of warning lights when
key is turned to the ON (3) position.1. Apply the parking brake.
2.Automatic transmission:
Move the selector lever to P or N. (P is
preferred.)
The starter is designed so that the starter
does not operate unless the selector lever is
in either one of the above positions.
Manual transmission:
Move the shift lever to the N position. De-
press the clutch pedal fully to the floor.
The starter is designed so that it does not
operate unless the clutch pedal is fully de-
pressed.
3. Turn the ignition switch to START (4) to
crank the enginewith your foot off the
accelerator pedal.Release the key when
the engine starts.
If the engine starts, but fails to run, repeat the
above procedure.

If the engine is very hard to start in extremely
cold weather or when restarting, depress the
accelerator pedal a little (approximately 1/3
to the floor) and hold it then crank the engine.
Release the key and the accelerator pedal
when the engine starts.

If the engine is very hard to start because it isflooded, depress the accelerator pedal all the
way to the floor and hold it. Crank the engine
for 5 to 6 seconds. After cranking the engine,
release the accelerator pedal. Crank the en-
ginewith your foot off the accelerator
pedalby turning the ignition key to START.
Release the key when the engine starts. If the
engine starts, but fails to run, repeat the
above procedure.
CAUTION
Do not operate the starter for more than
15 seconds at a time. If the engine does
not start, turn the key off and wait 10
seconds before cranking again, other-
wise the starter could be damaged.
4.Warm-up
Allow the engine to idle for at least 30
seconds after starting. Do not race the en-
gine while warming it up. Drive at moderate
speed for a short distance first, especially in
cold weather.
In cold weather, keep the engine running for
a minimum of2-3minutes before shutting it
off. Starting and stopping the engine over a
BEFORE STARTING THE ENGINE STARTING THE ENGINE
Starting and driving
5-9


06.4.14/T30-J/V5.0

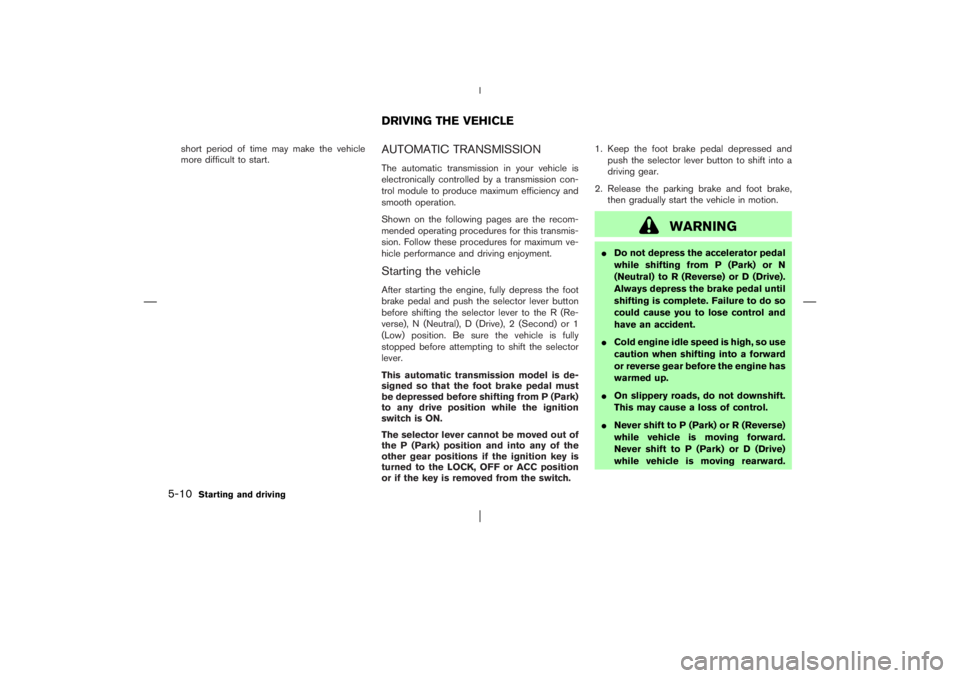

short period of time may make the vehicle
more difficult to start.
AUTOMATIC TRANSMISSIONThe automatic transmission in your vehicle is
electronically controlled by a transmission con-
trol module to produce maximum efficiency and
smooth operation.
Shown on the following pages are the recom-
mended operating procedures for this transmis-
sion. Follow these procedures for maximum ve-
hicle performance and driving enjoyment.Starting the vehicleAfter starting the engine, fully depress the foot
brake pedal and push the selector lever button
before shifting the selector lever to the R (Re-
verse), N (Neutral), D (Drive), 2 (Second) or 1
(Low) position. Be sure the vehicle is fully
stopped before attempting to shift the selector
lever.
This automatic transmission model is de-
signed so that the foot brake pedal must
be depressed before shifting from P (Park)
to any drive position while the ignition
switch is ON.
The selector lever cannot be moved out of
the P (Park) position and into any of the
other gear positions if the ignition key is
turned to the LOCK, OFF or ACC position
or if the key is removed from the switch.1. Keep the foot brake pedal depressed and
push the selector lever button to shift into a
driving gear.
2. Release the parking brake and foot brake,
then gradually start the vehicle in motion.
WARNING

Do not depress the accelerator pedal
while shifting from P (Park) or N
(Neutral) to R (Reverse) or D (Drive).
Always depress the brake pedal until
shifting is complete. Failure to do so
could cause you to lose control and
have an accident.

Cold engine idle speed is high, so use
caution when shifting into a forward
or reverse gear before the engine has
warmed up.

On slippery roads, do not downshift.
This may cause a loss of control.

Never shift to P (Park) or R (Reverse)
while vehicle is moving forward.
Never shift to P (Park) or D (Drive)
while vehicle is moving rearward.
DRIVING THE VEHICLE
5-10
Starting and driving


06.4.14/T30-J/V5.0

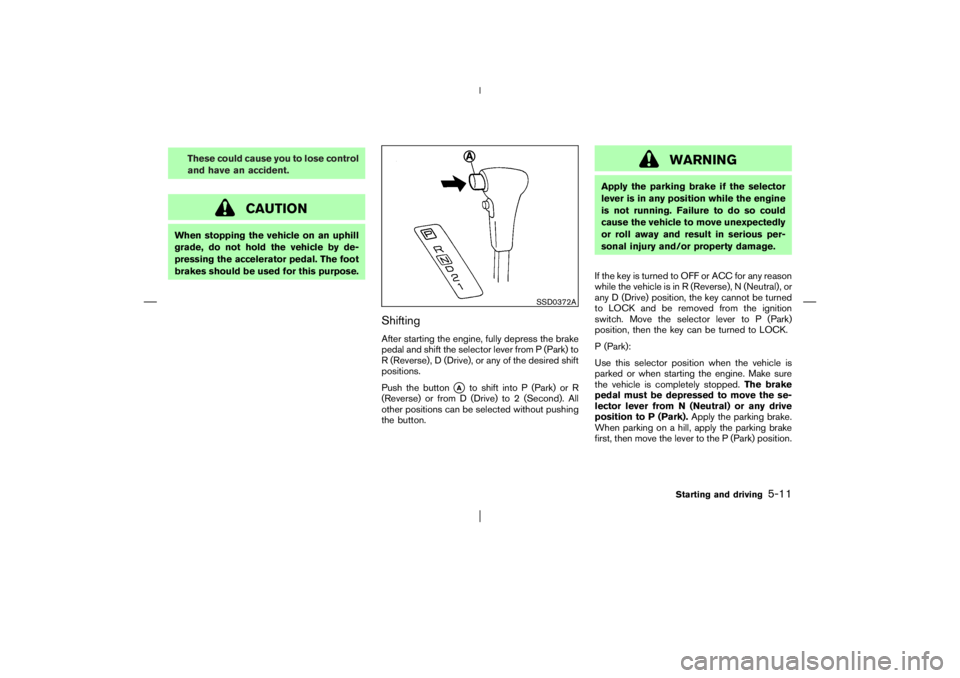

These could cause you to lose control
and have an accident.
CAUTION
When stopping the vehicle on an uphill
grade, do not hold the vehicle by de-
pressing the accelerator pedal. The foot
brakes should be used for this purpose.
ShiftingAfter starting the engine, fully depress the brake
pedal and shift the selector lever from P (Park) to
R (Reverse), D (Drive), or any of the desired shift
positions.
Push the button
A
to shift into P (Park) or R
(Reverse) or from D (Drive) to 2 (Second). All
other positions can be selected without pushing
the button.
WARNING
Apply the parking brake if the selector
lever is in any position while the engine
is not running. Failure to do so could
cause the vehicle to move unexpectedly
or roll away and result in serious per-
sonal injury and/or property damage.
If the key is turned to OFF or ACC for any reason
while the vehicle is in R (Reverse), N (Neutral), or
any D (Drive) position, the key cannot be turned
to LOCK and be removed from the ignition
switch. Move the selector lever to P (Park)
position, then the key can be turned to LOCK.
P (Park):
Use this selector position when the vehicle is
parked or when starting the engine. Make sure
the vehicle is completely stopped.The brake
pedal must be depressed to move the se-
lector lever from N(Neutral) or any drive
position to P (Park).Apply the parking brake.
When parking on a hill, apply the parking brake
first, then move the lever to the P (Park) position.
SSD0372A
Starting and driving
5-11


06.4.14/T30-J/V5.0

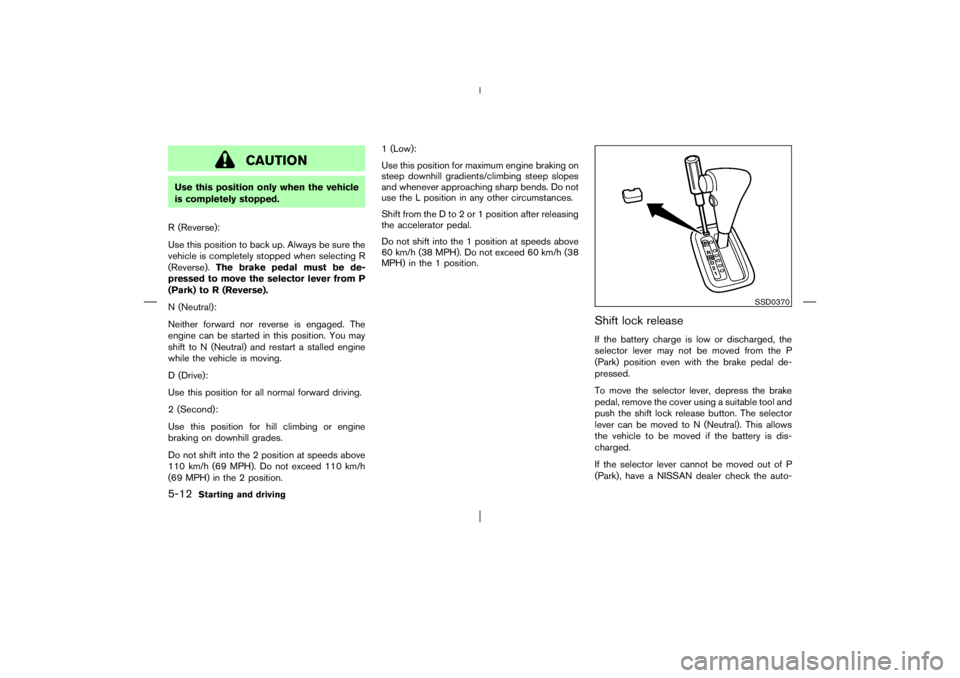

CAUTION
Use this position only when the vehicle
is completely stopped.
R (Reverse):
Use this position to back up. Always be sure the
vehicle is completely stopped when selecting R
(Reverse).The brake pedal must be de-
pressed to move the selector lever from P
(Park) to R (Reverse).
N (Neutral):
Neither forward nor reverse is engaged. The
engine can be started in this position. You may
shift to N (Neutral) and restart a stalled engine
while the vehicle is moving.
D (Drive):
Use this position for all normal forward driving.
2 (Second):
Use this position for hill climbing or engine
braking on downhill grades.
Do not shift into the 2 position at speeds above
110 km/h (69 MPH). Do not exceed 110 km/h
(69 MPH) in the 2 position.1 (Low):
Use this position for maximum engine braking on
steep downhill gradients/climbing steep slopes
and whenever approaching sharp bends. Do not
use the L position in any other circumstances.
Shift from the D to 2 or 1 position after releasing
the accelerator pedal.
Do not shift into the 1 position at speeds above
60 km/h (38 MPH). Do not exceed 60 km/h (38
MPH) in the 1 position.
Shift lock releaseIf the battery charge is low or discharged, the
selector lever may not be moved from the P
(Park) position even with the brake pedal de-
pressed.
To move the selector lever, depress the brake
pedal, remove the cover using a suitable tool and
push the shift lock release button. The selector
lever can be moved to N (Neutral). This allows
the vehicle to be moved if the battery is dis-
charged.
If the selector lever cannot be moved out of P
(Park), have a NISSAN dealer check the auto-
SSD0370
5-12
Starting and driving


06.4.14/T30-J/V5.0


matic transmission as soon as possible.Accelerator downshift
— In D position —For rapid passing or hill climbing, fully depress
the accelerator pedal to the floor. This shifts the
transmission down into lower range, depending
on the vehicle speed.
Overdrive switchEach time your vehicle is started, the transmis-
sion is automatically “reset” to overdrive ON.
ON: With the engine running and the shift
selector lever in the D (Drive) position, the
transmission upshifts into Overdrive as ve-
hicle speed increases.
Overdrive does not engage until the engine
has reached operating temperature.
OFF: For driving up and down long slopes
where engine braking is necessary push
the Overdrive switch once. The O/D OFF
indicator light in the instrument panelcomes on at this time.
When cruising at a low speed or climbing a
gentle slope, you may feel uncomfortable shift
shocks as the transmission shifts into and out of
Overdrive repeatedly. In this case, depress the
Overdrive switch to turn the Overdrive off. The
O/D OFF indicator light in the instrument panel
comes on at this time.
When driving conditions change, depress the
Overdrive switch to turn the Overdrive on.
Remember not to drive at high speeds for ex-
tended periods of time with the Overdrive off.
This reduces fuel economy.
Fail-safeIf the vehicle is driven under extreme con-
ditions, such as excessive wheel spinning
and subsequent hard braking, the Fail-safe
system may be activated. This will occur
even if all electrical circuits are functioning
properly. In this case, turn the ignition key
OFF and wait for 3 seconds. Then turn the
key back to the ONposition. The vehicle
may return to its normal operating condi-
tion. If it does not return to its normal
operating condition have a NISSAN dealer
check the transmission and repair if neces-
sary.
SSD0371
Starting and driving
5-13


06.4.14/T30-J/V5.0


WARNING
When the high fluid temperature protec-
tion mode or fail-safe operation occurs,
vehicle speed may be gradually re-
duced. On highways, the reduced speed
may be lower than other traffic which
could increase the chance of a collision.
Be especially careful when driving. If
necessary, pull to the side of the road at
a safe place and allow the transmission
to return to normal operation, or have it
repaired if necessary.
MANUAL TRANSMISSION
Starting the vehicle1. Depress the clutch pedal to the floor and
move the shift lever to the 1 (Low gear) or R
(Reverse) position.
2. Slowly depress the accelerator pedal, releas-
ing the clutch pedal and parking brake lever
at the same time.ShiftingTo change gears, or when upshifting or down-
shifting, depress the clutch pedal fully, shift into
the appropriate gear, then release the clutchslowly and smoothly.
To ensure smooth gear changes, fully depress
the clutch pedal before operating the shift lever.
If the clutch pedal is not fully depressed before
the transmission is shifted, a gear noise may be
heard. Transmission damage could occur.
Start the vehicle in 1st gear and shift to 2nd, 3rd,
4th and 5th gear in sequence according to the
vehicle speed.
You cannot shift directly from 5th gear into R
(Reverse). First shift into the N (Neutral) position,
then into R.
If it is difficult to move the shift lever into R or 1st,
shift to N, then release the clutch pedal. Fully
depress the clutch pedal again and shift into R
or 1st again.
WARNING

Do not downshift abruptly on slip-
pery roads. This may cause a loss of
control.

Do not over-rev the engine when
shifting to a lower gear. This may
cause a loss of control or engine
damage.
SSD0002
5-14
Starting and driving


06.4.14/T30-J/V5.0

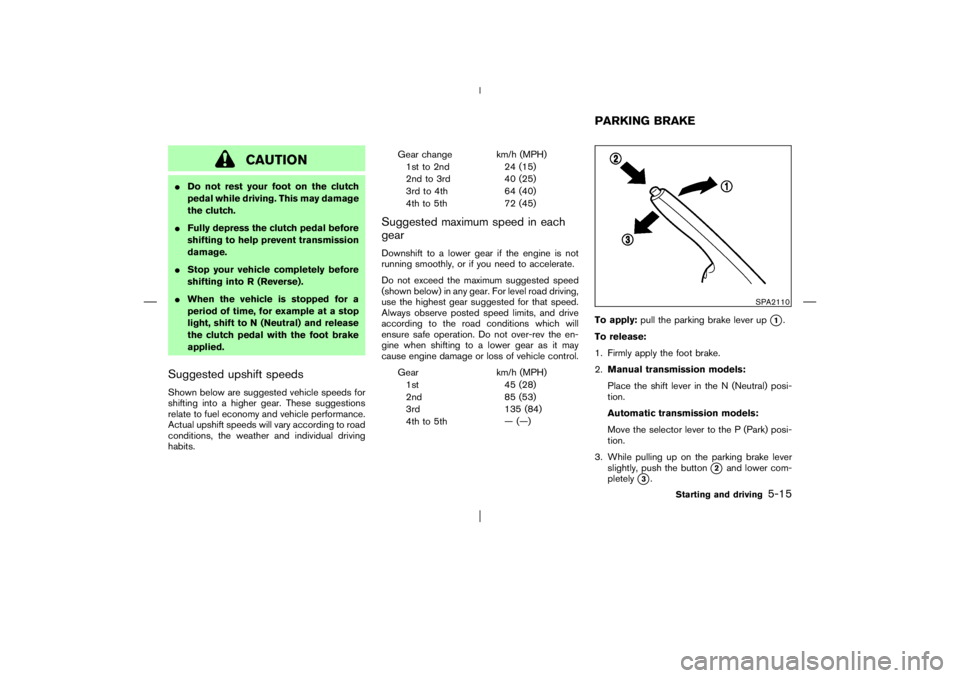

CAUTION

Do not rest your foot on the clutch
pedal while driving. This may damage
the clutch.

Fully depress the clutch pedal before
shifting to help prevent transmission
damage.

Stop your vehicle completely before
shifting into R (Reverse).

When the vehicle is stopped for a
period of time, for example at a stop
light, shift to N(Neutral) and release
the clutch pedal with the foot brake
applied.Suggested upshift speedsShown below are suggested vehicle speeds for
shifting into a higher gear. These suggestions
relate to fuel economy and vehicle performance.
Actual upshift speeds will vary according to road
conditions, the weather and individual driving
habits.Gear change km/h (MPH)
1st to 2nd 24 (15)
2nd to 3rd 40 (25)
3rd to 4th 64 (40)
4th to 5th 72 (45)
Suggested maximum speed in each
gearDownshift to a lower gear if the engine is not
running smoothly, or if you need to accelerate.
Do not exceed the maximum suggested speed
(shown below) in any gear. For level road driving,
use the highest gear suggested for that speed.
Always observe posted speed limits, and drive
according to the road conditions which will
ensure safe operation. Do not over-rev the en-
gine when shifting to a lower gear as it may
cause engine damage or loss of vehicle control.
Gear km/h (MPH)
1st 45 (28)
2nd 85 (53)
3rd 135 (84)
4th to 5th — (—)To apply:pull the parking brake lever up
1.
To release:
1. Firmly apply the foot brake.
2.Manual transmission models:
Place the shift lever in the N (Neutral) posi-
tion.
Automatic transmission models:
Move the selector lever to the P (Park) posi-
tion.
3. While pulling up on the parking brake lever
slightly, push the button
2
and lower com-
pletely
3.
SPA2110
PARKING BRAKE
Starting and driving
5-15


06.4.14/T30-J/V5.0
