2006 NISSAN X-TRAIL Owners Manual

Adjusting tone quality and speaker bal-
ance:
To adjust the audio levels for bass, treble, fader,
and balance, push the AUDIO button
1
and
adjust the level with the SEEK/TRACK button
2. Press the AUDIO button once for BASS(bass), twice for TREB (treble), 3 times for FAD
(fader) and 4 times for BAL (balance). Once the
audio level is set the display will return back to
radio or CD display mode after 7 seconds or the
AUDIO button can be pressed again within 7
seconds to set the next audio level. Pressing the
AUDIO button a fifth time will return the display
back to radio or CD display mode.
Fader adjusts the sound level between the front
and rear speakers, and balance adjusts the
sound level between the right and left speakers.
FM-AM radio operation
FM-AM band select:
Push the
button to change from AM to FM
reception.
The FM stereo indicator, STEREO, illuminates
during FM stereo reception. When the stereo
broadcast signal is weak, the radio automatically
changes from stereo to monaural reception.
SEEK/manual/SCAN
tuning:
When the
button is pushed while the radio
is playing, tuning mode is cycled between:
SEEK tuning→manual tuning→SCAN mode
“TUNE” and “SCAN” are shown in the displayfor each mode. No icon is displayed for SEEK
mode.
WARNING
The radio should not be tuned while
driving so full attention may be given to
vehicle operation.
SEEK tuning
Push the SEEK/TRACK tuning button (
or
) for less than 1.5 seconds. SEEK tuning
begins from low to high frequencies or high to
low frequencies, depending on which button is
pressed, and stops at the next broadcasting
station. If using the
button, once the high-
est broadcasting station is reached, the radio
continues in the SEEK mode at the lowest
broadcasting station. If using the
button,
once the lowest broadcasting station is reached,
the radio continues in the SEEK mode at the
highest broadcasting station.
Manual tuning
Use the
and
buttons for manual
tuning. To move quickly through the channels,
hold either of the tuning buttons down.
SAA0841
4-26
Heater, air conditioner and audio systems


06.4.14/T30-J/V5.0


SCAN tuning
Push and hold the SEEK/TRACK tuning button
(
or
) for more than 1.5 seconds.
SCAN illuminates in the display window, and the
radio station blinks. SCAN tuning begins fromlow to high frequencies or high to low frequen-
cies, depending on which button is pressed.
SCAN tuning stops at each broadcasting station
for 5 seconds. When scanning, SCAN is solid
and the radio station blinks. When temporarily
stopped on a station, SCAN blinks and the
station display is solid. Pushing the button again
during this 5 second period stops SCAN tuning
and the radio remains tuned to that station.
Station memory operations:
Each preset mode (A, B or C) has 6 presets,
capable of storing any combination of AM and
FM stations.
Press the PRESET ABC button to change be-
tween the presets:
A→B→C
The radio displays icon A, B or C to indicate
which set of presets is active.
To store a radio station in a preset:
1. Select the desired preset by pressing PRE-
SET ABC button.
2. Tune to the desired station.
3. Press the desired station select button for
more than 3 seconds. For example, in the
illustrations, ch2 is to be memorized. Theradio mutes when the station select button is
pushed.
4. When the indicator illuminates in the display
and the sound resumes, memorizing is com-
plete.
5. Other station select buttons can be set in the
same manner.
If the battery cable is disconnected, or if the
radio fuse opens, the radio memory is canceled.
In that case, reset the desired stations.
Compact disc (CD) player operationTurn the ignition key to the ACC or ON position,
and carefully insert the compact disc into the
slot with the label side up. The compact disc is
automatically pulled into the slot and starts to
play.
If the radio is already operating, it automatically
turns off and the compact disc begins to play.
CAUTION
Do not force a compact disc into the
slot. This could damage the player.
SAA0842
Heater, air conditioner and audio systems
4-27


06.4.14/T30-J/V5.0


CD button:
When the CD button is pushed with a compact
disc loaded and the radio playing, the radio turns
off and the compact disc starts to play.
Track up/down, FF (Fast
Forward)/REV (Rewind)
buttons:
Track up/down
When the
button is pushed and released
while the compact disc is playing, the selection
following the present one starts to play from the
beginning. Push the
button several times
to skip several selections. Each time the button
is pushed, the CD advances 1 additional selec-
tion. The number appears in the display window.
(When the last selection on the compact disc is
skipped, the first selection is played.)
When the
button is pushed and released,
the selection being played returns to the begin-
ning. Push the
button several times to skip
back several selections. Each time the button is
pushed, the CD moves back 1 selection.
If the play pattern is in MIX mode when the
or
button is pushed the next selec-
tion will be chosen at random.FF (Fast Forward)/REV (Rewind)
When the
or
button is pushed and
held while the compact disc is playing, the
compact disc plays at an increased speed while
fast forwarding or rewinding. When the button is
released, the compact disc returns to normal
play speed.
MENU:
When the
button is pushed while the
compact disc is playing, the play pattern
changes as follows:
RPT:The current selection is repeated.
MIX:Selections are played at random, not
following the sequence on the compact disc.
The same program may be repeated twice. If the
button is pushed in the MIX mode, selec-
tions will be chosen at random.
Blank(no symbol): All selections are played
repeatedly in sequence.
When a new compact disc is inserted, the
play pattern automatically changes to ALL.
CD EJECT button:
When the
button is pushed with a com-
pact disc loaded, the compact disc ejects.
When thebutton is pushed while the
compact disc is playing, the compact disc ejectsand the system turns off.
DISC indicator light:
This light
comes on when a compact disc
is loaded into the player.
4-28
Heater, air conditioner and audio systems


06.4.14/T30-J/V5.0


FM-AM RADIO WITH COMPACT
DISC (CD) PLAYER1. TUNE button
2. AUDIO button3. CD insert slot
4. Display
5. CD eject button
6. REW (Rewind) button7. FF (Fast Forward) button
8. APS REW button
9. RPT (Repeat) button
10. APS FF button
11. Seek/Scan button
12. ON⋅OFF/VOL control knob
13. FM/AM button
14. CD button
15. Station/preset buttons
Audio main operationON⋅OFF/VOL control knob:
Turn the ignition key to the ACC or ON position,
then push the ON⋅OFF/VOL control knob. If you
listen to the radio with the engine not running,
turn the key to the ACC position. The mode
(radio or CD) that was playing immediately be-
fore the system was turned off resumes playing.
When no CD is loaded, the radio comes on.
Pushing the ON⋅OFF/VOL control knobagain
turns the system off.
Turn the ON⋅OFF/VOL control knobto the right
to increase volume or to the left to decrease
volume.
SAA1278
Heater, air conditioner and audio systems
4-29


06.4.14/T30-J/V5.0

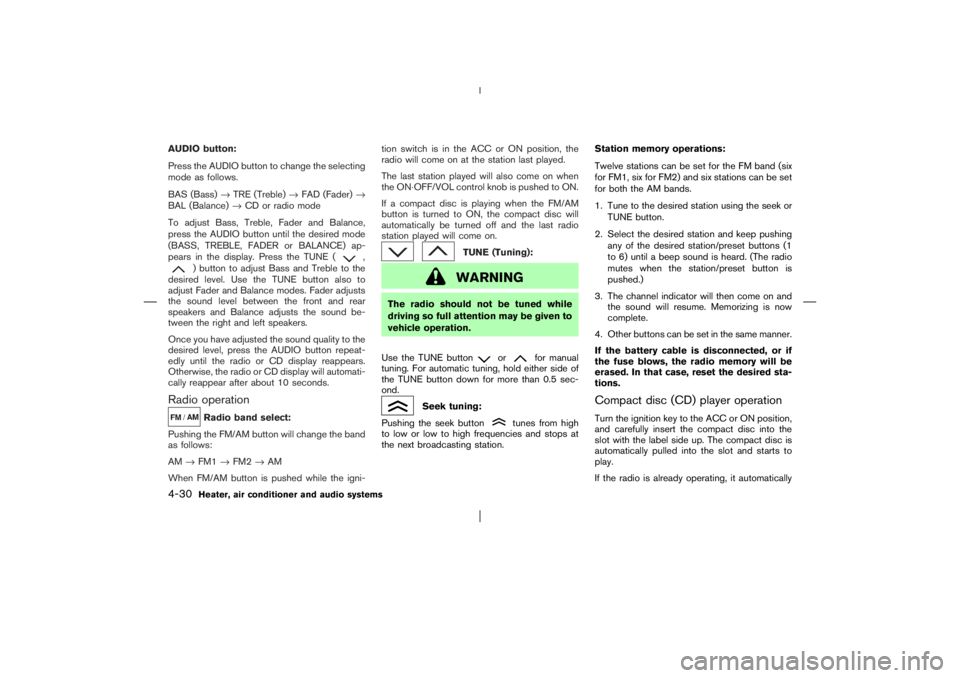

AUDIO button:
Press the AUDIO button to change the selecting
mode as follows.
BAS (Bass)→TRE (Treble)→FAD (Fader)→
BAL (Balance)→CD or radio mode
To adjust Bass, Treble, Fader and Balance,
press the AUDIO button until the desired mode
(BASS, TREBLE, FADER or BALANCE) ap-
pears in the display. Press the TUNE (
,
) button to adjust Bass and Treble to the
desired level. Use the TUNE button also to
adjust Fader and Balance modes. Fader adjusts
the sound level between the front and rear
speakers and Balance adjusts the sound be-
tween the right and left speakers.
Once you have adjusted the sound quality to the
desired level, press the AUDIO button repeat-
edly until the radio or CD display reappears.
Otherwise, the radio or CD display will automati-
cally reappear after about 10 seconds.
Radio operation
Radio band select:
Pushing the FM/AM button will change the band
as follows:
AM→FM1→FM2→AM
When FM/AM button is pushed while the igni-tion switch is in the ACC or ON position, the
radio will come on at the station last played.
The last station played will also come on when
the ON⋅OFF/VOL control knobis pushed to ON.
If a compact disc is playing when the FM/AM
button is turned to ON, the compact disc will
automatically be turned off and the last radio
station played will come on.
TUNE (Tuning):WARNING
The radio should not be tuned while
driving so full attention may be given to
vehicle operation.
Use the TUNE button
or
for manual
tuning. For automatic tuning, hold either side of
the TUNE button down for more than 0.5 sec-
ond.
Seek tuning:
Pushing the seek button
tunes from high
to low or low to high frequencies and stops at
the next broadcasting station.Station memory operations:
Twelve stations can be set for the FM band (six
for FM1, six for FM2) and six stations can be set
for both the AM bands.
1. Tune to the desired station using the seek or
TUNE button.
2. Select the desired station and keep pushing
any of the desired station/preset buttons (1
to 6) until a beep sound is heard. (The radio
mutes when the station/preset button is
pushed.)
3. The channel indicator will then come on and
the sound will resume. Memorizing is now
complete.
4. Other buttons can be set in the same manner.
If the battery cable is disconnected, or if
the fuse blows, the radio memory will be
erased. In that case, reset the desired sta-
tions.
Compact disc (CD) player operationTurn the ignition key to the ACC or ON position,
and carefully insert the compact disc into the
slot with the label side up. The compact disc is
automatically pulled into the slot and starts to
play.
If the radio is already operating, it automatically
4-30
Heater, air conditioner and audio systems


06.4.14/T30-J/V5.0


turns off and the compact disc begins to play.
CAUTION

Do not force a compact disc into the
slot. This could damage the player.

Do not use 8 cm (3.1 in) discs.
CD button:
When the CD button is pushed with a compact
disc loaded and the radio playing, the radio turns
off and the compact disc starts to play.
FF (Fast Forward), REW
(Rewind):
When the
(fast forward) or
(rewind)
button is pushed while the compact disc is
being played, the compact disc will play while
fast forwarding or rewinding. When the button is
released, the compact disc will return to normal
play speed.
APS (Automatic Program
Search) FF, APS REW:
When the(APS FF) button is pushed
while the compact disc is being played, the next
program from the present one will start to play
from its beginning. Push several times to skipthrough programs. The compact disc will ad-
vance the number of times the button is pushed.
(When the last program on the compact disc is
skipped through, the first program will be
played.) When the
(APS REW) button is
pushed, the program being played returns to its
beginning. Push several times to skip back
through programs. The compact disc will go
back the number of times the button is pushed.
Scan tuning:
When the scan tuning button is pushed for less
than 1.5 seconds while the CD is being played,
the beginning of all the CD programs in each
track will be played for 10 seconds in sequence.
Pushing the button again during this 10 second
period will stop scan tuning.
If the scan tuning button is not pushed within 10
seconds, scan tuning moves to the next pro-
gram.REPEAT (RPT):
When the RPT play button is pushed while the
compact disc is being played, the play pattern
can be changed as follows:
The display shows the following symbols.(no mark): ALL RPT (Repeat)
1: 1 TR (Track) RPT
RANDOM: ALL MIX
CD EJECT:
When the CD EJECT button is pushed with the
compact disc loaded, the compact disc will be
ejected.
To eject the disc, push the EJECT button.
When this button is pushed while the compact
disc is being played, the compact disc will come
out and the system will turn off.
If the compact disc comes out and is not
removed, it will be pulled back into the slot
to protect it.
CD INindicator:
CD IN indicator (inserted slot number) appears
on the display when the CD is loaded with the
system on.
Heater, air conditioner and audio systems
4-31


06.4.14/T30-J/V5.0


CD CARE AND CLEANING
Handle a CD by its edges. Never touch the
surface of the disc. Do not bend the disc.

Always place the discs in the storage case
when they are not being used.

To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
Do not use a conventional record cleaner or
alcohol intended for industrial use.

A new disc may be rough on its inner and
outer edges. Remove the rough edges using
the side of a pen or pencil as illustrated.When installing a car phone, CB or ham radio in
your NISSAN, be sure to observe the following
cautions, otherwise the new equipment may
adversely affect the Engine control system and
other electronic parts.
WARNING

A cellular telephone should not be
used while driving so full attention
may be given to vehicle operation.
Some jurisdictions prohibit the use
of cellular telephones while driving.

If you must make a call while your
vehicle is in motion, the hands free
cellular phone operational mode (if
so equipped) is highly recommended.
Exercise extreme caution at all times
so full attention may be given to
vehicle operation.

If a conversation in a moving vehicle
requires you to take notes, pull off
the road to a safe location and stop
your vehicle before doing so.
CAUTION

Keep the antenna as far as possible
away from the electronic control
modules.

Keep the antenna wire more than 20
cm (8 in) away from the electronic
control system harness. Do not route
the antenna wire next to any harness.

Adjust the antenna standing-wave
ratio as recommended by the manu-
facturer.

Connect the ground wire from the CB
radio chassis to the body.

For details, consult a NISSAN dealer.
SAA0451
CAR PHONE OR CB RADIO
4-32
Heater, air conditioner and audio systems


06.4.14/T30-J/V5.0


MEMO
Heater, air conditioner and audio systems
4-33


06.4.14/T30-J/V5.0
