2006 NISSAN X-TRAIL Owners Manual

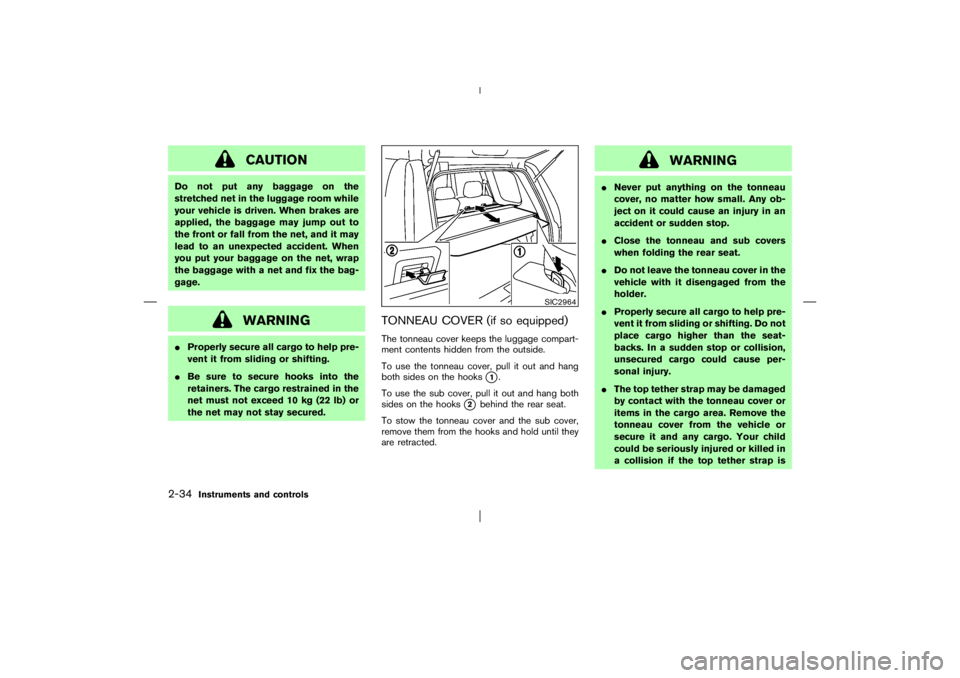

CAUTION
Do not put any baggage on the
stretched net in the luggage room while
your vehicle is driven. When brakes are
applied, the baggage may jump out to
the front or fall from the net, and it may
lead to an unexpected accident. When
you put your baggage on the net, wrap
the baggage with a net and fix the bag-
gage.
WARNING

Properly secure all cargo to help pre-
vent it from sliding or shifting.

Be sure to secure hooks into the
retainers. The cargo restrained in the
net must not exceed 10 kg (22 lb) or
the net may not stay secured.
TONNEAU COVER (if so equipped)The tonneau cover keeps the luggage compart-
ment contents hidden from the outside.
To use the tonneau cover, pull it out and hang
both sides on the hooks
1.
To use the subcover, pull it out and hang both
sides on the hooks
2
behind the rear seat.
To stow the tonneau cover and the subcover,
remove them from the hooks and hold until they
are retracted.
WARNING

Never put anything on the tonneau
cover, no matter how small. Any ob-
ject on it could cause an injury in an
accident or sudden stop.

Close the tonneau and sub covers
when folding the rear seat.

Do not leave the tonneau cover in the
vehicle with it disengaged from the
holder.

Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seat-
backs. In a sudden stop or collision,
unsecured cargo could cause per-
sonal injury.

The top tether strap may be damaged
by contact with the tonneau cover or
items in the cargo area. Remove the
tonneau cover from the vehicle or
secure it and any cargo. Your child
could be seriously injured or killed in
a collision if the top tether strap is
SIC2964
2-34
Instruments and controls


06.4.14/T30-J/V5.0


damaged.Luggage can be carried on the roof by securing
crossbars to the roof rails. Follow all crossbar
manufacturers instructions for installing and use
of the crossbars. The roof rails are designed to
carry loads (luggage plus crossbars) below 100
kg (221 lb). Overloading may cause damage to
the vehicle.
CAUTION

Do not put or hang anything on or
around side pipes or plastic covers.

Do not remove plastic covers except
at the crossbar fixing points
1.

For crossbar installation on roof rails
with driving lights, contact a NISSAN
dealer.
SPA1345B
Roof rail without driving lights
SPA1766A
Roof rail with driving lights
ROOF RAIL
Instruments and controls
2-35


06.4.14/T30-J/V5.0


POWER WINDOWS
WARNING

Make sure that all passengers have
their hands, etc. inside the vehicle
while it is in motion and before clos-
ing the windows. Use the window
lock switch to prevent unexpected
use of the power windows.

Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls
and become trapped in a window.
Unattended children could become
involved in serious accidents.
The power windows operate when the ignition
key is in the ON position.
Main power window switch (driver’s
side)1. Rear left passenger’s side window
2. Driver’s side window
3. Rear right passenger’s side window
4. Front passenger’s side window
5. Window lock button
To open or close the window, push down or pull
up the switch and hold it. The main switch (driver
side switches) will open or close all the win-
dows.
Locking passenger’s windowsWhen the lock button
1
is pushed in, only the
driver side window can be opened or closed.
Push it in again to cancel.
SIC2484A
WINDOWS2-36
Instruments and controls


06.4.14/T30-J/V5.0


Passenger side power window switchThe passenger side switch will open or close
only the corresponding window. To open or
close the window, hold the switch down or up.
Automatic operation (For driver’s
window)To fully open or close the driver’s window,
completely push down or pull up the switch and
release it; it need not be held. The window will
automatically open or close all the way. To stop
the window, just press or lift the switch on the
opposite side.Auto reverse functionIf the control unit detects something caught in
the driver’s window as it moves up, the window
will be immediately lowered.The auto reverse function can be activated when
the driver’s window is closed by automatic op-
eration when the ignition key is in the ON
position.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the window
occurs.
WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the win-
dow.
SIC2311
SIC2486
Instruments and controls
2-37


06.4.14/T30-J/V5.0


Sun shadeOpen or close the sun shade by sliding it
backward or forward
5.
The shade will open automatically when the
sunroof is opened. However, it must be closed
manually.
The sunroof will only operate when the ignition
key is in the ON position.
Sliding the sunroofTo open the roof, keep pressing the switch to
the
side
1.To close the roof, keep pressing the switch to
the
side
2.
Automatic operationTo open the roof automatically, completely press
the switch to the
side
1and release it; it
need not be held. The roof stops just before the
fully opened position. To open the roof com-
pletely, keep pressing the switch again until the
sunroof stops.
To stop the roof, just press the switch to the
side or
side. To fully close the
sunroof, you need to hold the switch.
A light press on the switch will cause the roof to
open or close until the switch is released.
Tilting the sunroofTo tilt up, first close the sunroof, then keep
pushing the
side
3
of the tilt switch. To
tilt down the sunroof, keep pushing the
side
4.
WARNING

In an accident you could be thrown
from the vehicle through an open
sunroof. Always use seat belts andchild restraints.

Do not allow anyone to stand up or
extend any portion of their body out
of the opening while the vehicle is in
motion or while the sunroof is clos-
ing.
CAUTION

Remove water drops, snow, ice or
sand from the sunroof before open-
ing.

Do not place any heavy object on the
sunroof or surrounding area.
SIC2807A
SUNROOF (if so equipped)2-38
Instruments and controls


06.4.14/T30-J/V5.0


If the sunroof does not closeTurn the ignition key off.
1. Remove the luggage floor board. (See “Lug-
gage floor board” earlier in this section.)2. Take out the crank handle
1.
3. Insert the longer side of the crank handle
1
into the hole.

Turn the handle clockwise to close the sun-
roof.

If the sunroof is tilted up, turn the handle
counterclockwise.
Have a NISSAN dealer check and repair the
sunroof.
ROOM LIGHTThe room light has a three-position switch.
When the switch is in the centeror DOOR
position
2, the light will illuminate when a door
(including back door) is opened.
When the switch is in the “ON” position
1, the
light will illuminate.
When the switch is in the “OFF” position
3, the
light will turn off.
Interior light timerThe room light will stay on for about 30 seconds
when:
SIC1716A
SIC2960
Type A
INTERIOR LIGHTS
Instruments and controls
2-39


06.4.14/T30-J/V5.0


The driver’s door is unlocked by the keyfob or
a key while all doors are locked.

The key is removed from the ignition switch
while all doors are closed.

The driver’s door is unlocked while the key is
removed from the ignition switch.

The driver’s door is opened and then closed
while other doors are closed.
The room light will turn off while the 30 second
timer is activated, when:

The driver’s door is locked either with the
keyfob, a key, the door inside lock knob, or
the power door lock switch.
The ignition switch is turned ON.
CAUTION

Turn off the interior lights when you
leave the vehicle.

Do not use for extended periods of
time with the engine stopped. This
could result in a discharged battery.
SIC2963
Type B
SIC2961
Type A
SIC2963
Type B
2-40
Instruments and controls


06.4.14/T30-J/V5.0


MAP LIGHTType A:
To turn on the map light, push the switch in, and
the light illuminates. To turn off, push the switch
again.
CAUTION

Turn off the interior lights when you
leave the vehicle.

Do not use for extended periods of
time with the engine stopped. This
could result in a discharged battery.
Type B:
The map light has a three-position switch.
When the switch is in the “DOOR” position
1,
the light illuminates when a door is opened.
When the map light switch is in the “ON”
position
2, the map light will illuminate.
When the switch is in the “OFF” position
3, the
map light does not illuminate.
LUGGAGE ROOM LIGHTThe luggage room light has a three-position
switch.
When the switch is in the center position
2, the
light will illuminate when a door (including the
back door) is opened.
When the switch is in the “ON” position
1, the
light will illuminate.
When the switch is in the “OFF” position
3, the
light will turn off.
Interior light timerTimer function works the same as the room light.See “Room light” earlier in this section.
CAUTION

Turn off the interior lights when you
leave the vehicle.

Do not use for extended periods of
time with the engine stopped. This
could result in a discharged battery.
SIC2960
Instruments and controls
2-41


06.4.14/T30-J/V5.0
