2006 MERCEDES-BENZ C55AMG Owner's Manual

376 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
.Low beam rightThe right low beam lamp is
malfunctioning.Halogen headlamp:
Replace the bulb as soon as possible.
Bi-Xenon* headlamp:
Visit an authorized Mercedes-Benz
Center as soon as possible.
Parking lamp
left frontThe left front parking lamp is
malfunctioning.Replace the bulb as soon as possible.
Parking lamp
right frontThe right front parking lamp is
malfunctioning.Replace the bulb as soon as possible.
Rear fog lamp
Substit. bulb onThe rear fog lamp is malfunctioning.
A substitute bulb is being used.Replace the bulb as soon as possible.
Switch off lightsHeadlamps have been turned on with the
driver’s door opened and the SmartKey
removed from the starter switch.Switch off the headlamps.
Taillamp left
Substit. bulb on

The left tail lamp is malfunctioning.
A substitute bulb is being used.Replace the bulb as soon as possible.
Taillamp right
Substit. bulb on

The right tail lamp is malfunctioning.
A substitute bulb is being used.Replace the bulb as soon as possible.

377 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
.Turn signal
left frontThe left front turn signal lamp is
malfunctioning.Replace the bulb as soon as possible.
Turn signal
right frontThe right front turn signal lamp is
malfunctioning.Replace the bulb as soon as possible.
Turn signal
left mirrorThe left turn signal in the side mirror is
malfunctioning. This message will only
appear if all light emitting diodes have
stopped working.Visit an authorized Mercedes-Benz
Center as soon as possible.
Turn signal
right mirrorThe right turn signal in the side mirror is
malfunctioning. This message will only
appear if all light emitting diodes have
stopped working.Visit an authorized Mercedes-Benz
Center as soon as possible.
Turn signal
left rear
Substit. bulb on

The left rear turn signal lamp is
malfunctioning.
A substitute bulb is being used.Replace the bulb as soon as possible.
Turn signal
right rear
Substit. bulb on

The right rear turn signal lamp is
malfunctioning.
A substitute bulb is being used.Replace the bulb as soon as possible.

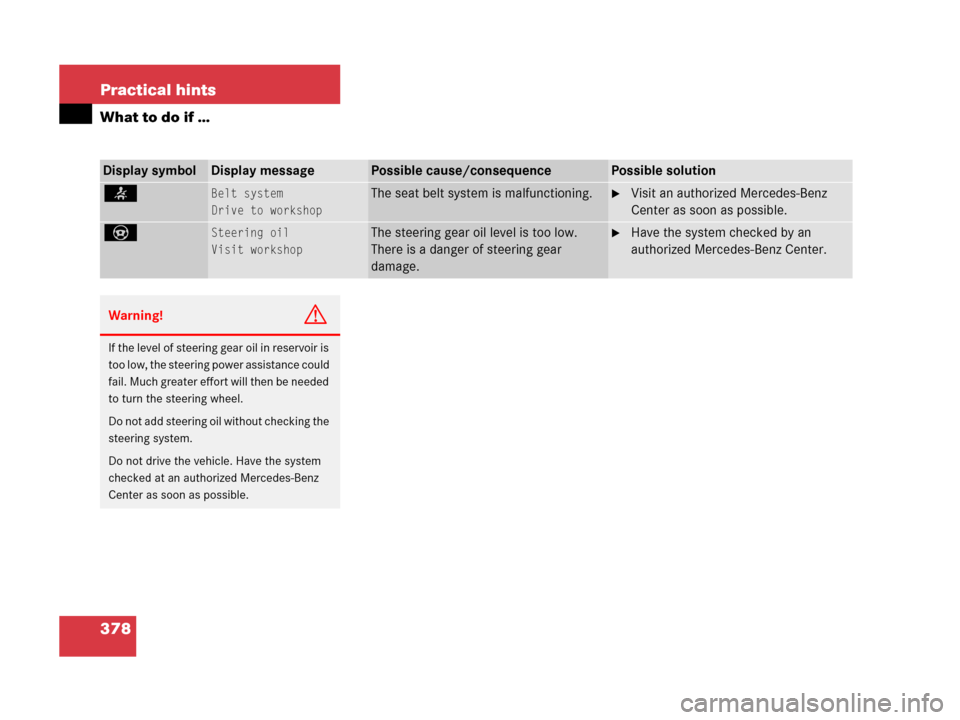

378 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
Drive to workshopThe seat belt system is malfunctioning.Visit an authorized Mercedes-Benz
Center as soon as possible.
_Steering oil
Visit workshopThe steering gear oil level is too low.
There is a danger of steering gear
damage.Have the system checked by an
authorized Mercedes-Benz Center.
Warning!G
If the level of steering gear oil in reservoir is
too low, the steering power assistance could
fail. Much greater effort will then be needed
to turn the steering wheel.
Do not add steering oil without checking the
steering system.
Do not drive the vehicle. Have the system
checked at an authorized Mercedes-Benz
Center as soon as possible.

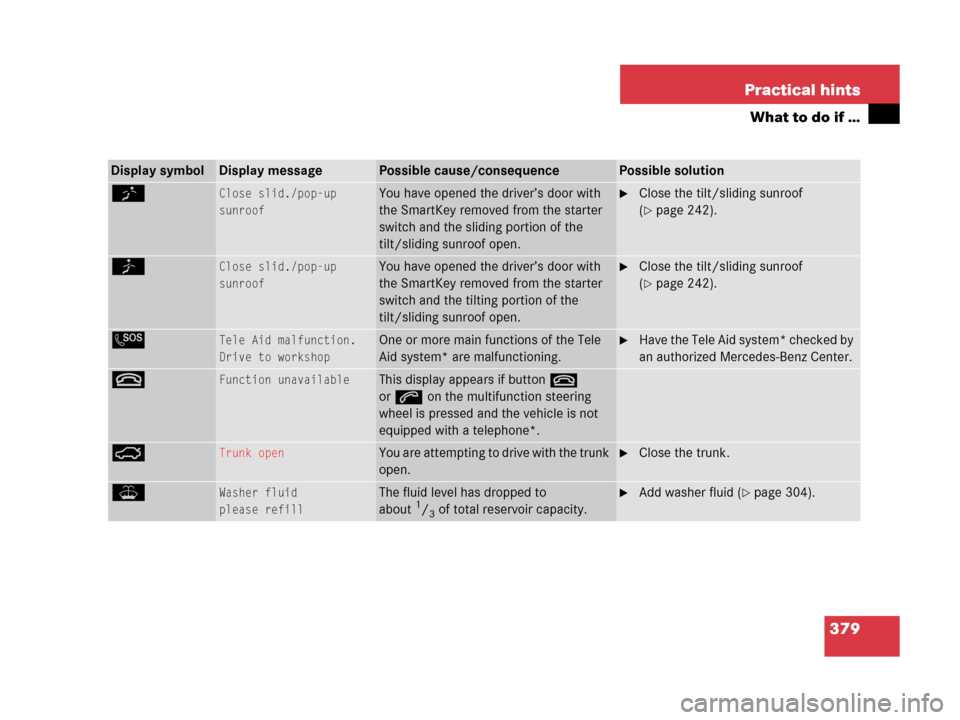

379 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
KClose slid./pop-up
sunroofYou have opened the driver’s door with
the SmartKey removed from the starter
switch and the sliding portion of the
tilt/sliding sunroof open.Close the tilt/sliding sunroof
(
page 242).
JClose slid./pop-up
sunroofYou have opened the driver’s door with
the SmartKey removed from the starter
switch and the tilting portion of the
tilt/sliding sunroof open.Close the tilt/sliding sunroof
(
page 242).
LTele Aid malfunction.
Drive to workshopOne or more main functions of the Tele
Aid system* are malfunctioning.Have the Tele Aid system* checked by
an authorized Mercedes-Benz Center.
tFunction unavailableThis display appears if buttont
ors on the multifunction steering
wheel is pressed and the vehicle is not
equipped with a telephone*.
ÊTrunk openYou are attempting to drive with the trunk
open.Close the trunk.
WWasher fluid
please refillThe fluid level has dropped to
about1/3of total reservoir capacity.
Add washer fluid (page 304).

380 Practical hints
Where will I find ...?
First aid kit
The first aid kit is located in the trunk on
the left side secured by a hook and loop
fastener.
1First aid kit
2Hook and loop fastener
Unfasten hook and loop fastener2.
Remove first aid kit1.
Vehicle tool kit
The vehicle tool kit is located in the storage
compartment underneath the trunk floor.
The following is included:

Towing eye bolt

Wheel wrench

Alignment bolt

Vehicle jack

Spare fuses

Valve extractor

Protective wrap

Collapsible wheel chock

A pair of gloves Removing the vehicle tool kit
Lift up trunk floor cover and engage
trunk floor handle in upper edge of
trunk.
1Spare wheel with collapsible tire
2Vehicle tool kit (under collapsible tire)
3Retaining screw
Loosen retaining screw3 by turning it
counterclockwise.
Remove collapsible tire1.
Remove vehicle tool kit2.
i
Check expiration dates and contents
for completeness at least once a year
and replace missing/expired items.

381 Practical hints
Where will I find ...?
1Vehicle jack
2Collapsible wheel chock and spare
wheel bolts
3Towing eye bolt
4Alignment bolt
5Wheel wrench
6Spare fuses and valve extractor
7Electric air pumpVehicle jackThe vehicle jack is located in the storage
compartment underneath the trunk floor.
Storage position
Turn crank handle in the direction of ar-
row as far as it will go.
Warning!G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use,
especially on hills. Always try to use the jack
on level surface. Make sure the jack arm is
fully seated in the jack take-up bracket.
Always lower the vehicle onto sufficient
capacity jackstands before working under
the vehicle.

382 Practical hints
Where will I find ...?
Turn crank handle clockwise.
Before storing the vehicle jack in its
compartment:

It should be fully collapsed.

The handle must be folded in (storage
position).Setting up the collapsible wheel chock
The collapsible wheel chock serves to
additionally secure the vehicle, e.g. while
changing the wheel.
1Tilt the plate upward
2Fold the lower plate outward
3Insert the plate
Tilt both plates upward1.
Fold the lower plate outward2.
Guide the tabs of the lower plate all the
way into the openings of the base
plate3.

383 Practical hints
Where will I find ...?
Spare wheel
The spare wheel with collapsible tire is lo-
cated in the storage compartment under-
neath the trunk floor.
Lift up trunk floor cover and engage
trunk floor handle in upper edge of
trunk.
1Spare wheel with collapsible tire
2Vehicle tool kit (under collapsible tire)
3Retaining screwRemoving the spare wheel
Loosen retaining screw3 by turning it
counterclockwise.
Remove spare wheel1.
Storing the spare wheel
If you wish to store the spare wheel after
use, carry out the following steps.
Otherwise the spare wheel will not fit the
storage compartment.
Unscrew the valve cap from the valve
of the collapsible tire.
Take the valve extractor from the
vehicle tool kit (
page 381).
Unscrew the valve insert from the valve
and allow the air to escape.
Screw the valve insert back into the
valve.
Screw the valve cap back on the valve.
Pull the protective wrap provided with
the vehicle tool kit over the spare
wheel.
Store the spare wheel and the valve ex-
tractor in the storage compartment un-
derneath the trunk floor.
!
Make sure the spare wheel is dry when
storing it.
i
It may take a few minutes for the col-
lapsible tire to deflate completely.
