Pierce the protective wrap with
retaining screw3.
Secure the spare wheel by turning re-
taining screw3 clockwise.In case of a flat tire, you may temporarily
use the spare wheel with collapsible tire
when observing the following restrictions:
Do not exceed a vehicle speed of
50 mph (80 km/h).
Drive to the nearest tire repair facility
to have the flat tire repaired or
replaced as appropriate.
Do not operate vehicle with more than
one spare wheel mounted.
For more information, see “Rims and Tires”
(
page 429).
!
To prevent damage, always disengage
trunk floor handle from upper edge of
trunk and lower trunk floor before
closing the trunk.
Warning!G
The dimensions of the spare wheel with
collapsible tire are different from those of
the road wheels. As a result, the vehicle han-
dling characteristics change when driving
with a spare wheel mounted.
The spare wheel with collapsible tire should
only be used temporarily, and should be re-
placed with a regular road wheel as quickly
as possible.
Page 386 of 473
385 Practical hints
Where will I find ...?
Spare wheel bolts
1Wheel bolt for light alloy rims
2Wheel bolt for spare wheel (located in
trunk with spare wheel)!
Wheel bolts2 must be used when
mounting the spare wheel. The use of
any wheel bolts other than wheel
bolts2 for the spare wheel will physi-
cally damage the vehicle’s brakes.
Warning!G
Make sure to use the original length wheel
bolts when remounting the original wheel
after it has been repaired.
Page 387 of 473
386 Practical hints
Unlocking/locking in an emergency
Unlocking the vehicle
If you are unable to unlock the vehicle with
the SmartKey, open the driver’s door and
the trunk using the mechanical key. Removing the mechanical key
1Mechanical key locking tab
2Mechanical key
Move locking tab1 in direction of
arrow.
Slide mechanical key2 out of the
housing.Unlocking the driver’s door
1Unlocking

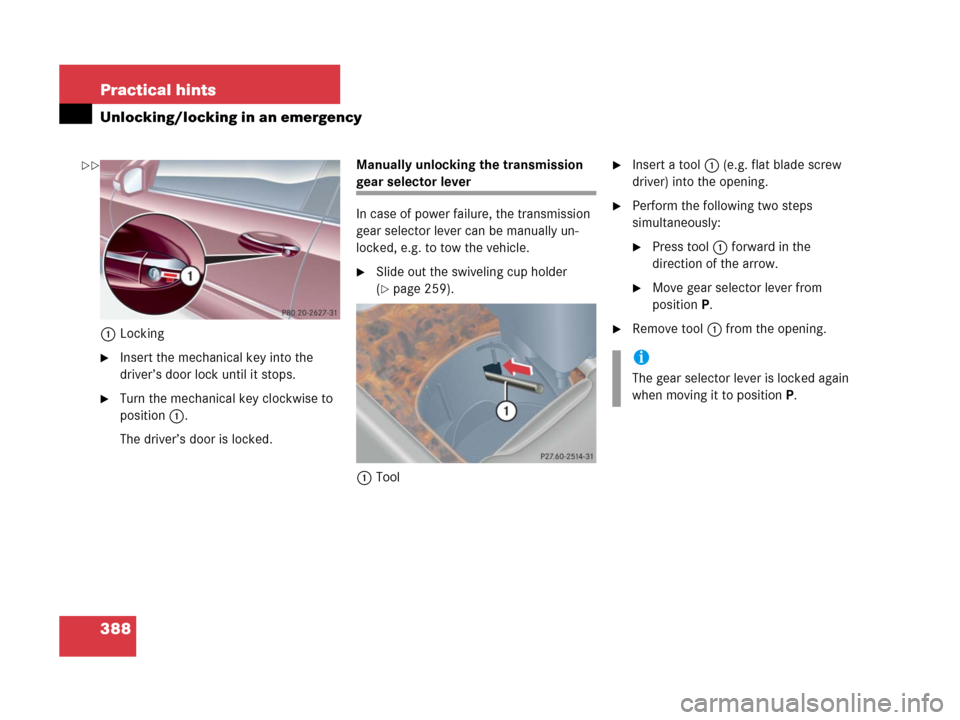

Insert the mechanical key into the
driver’s door lock until it stops.
Turn the mechanical key counterclock-
wise to position1.
The driver’s door is unlocked.
i
Unlocking and opening the driver’s
door and/or the trunk with the me-
chanical key will trigger the anti-theft
alarm system*.
To cancel the alarm, do one of the
following:
Press buttonŒ or‹ on the
SmartKey.
Insert the SmartKey in the starter
switch.
Page 388 of 473

387 Practical hints
Unlocking/locking in an emergency
Unlocking and opening the trunk
A minimum height clearance of 5.71 ft
(1.74 m) is required to open the trunk lid.

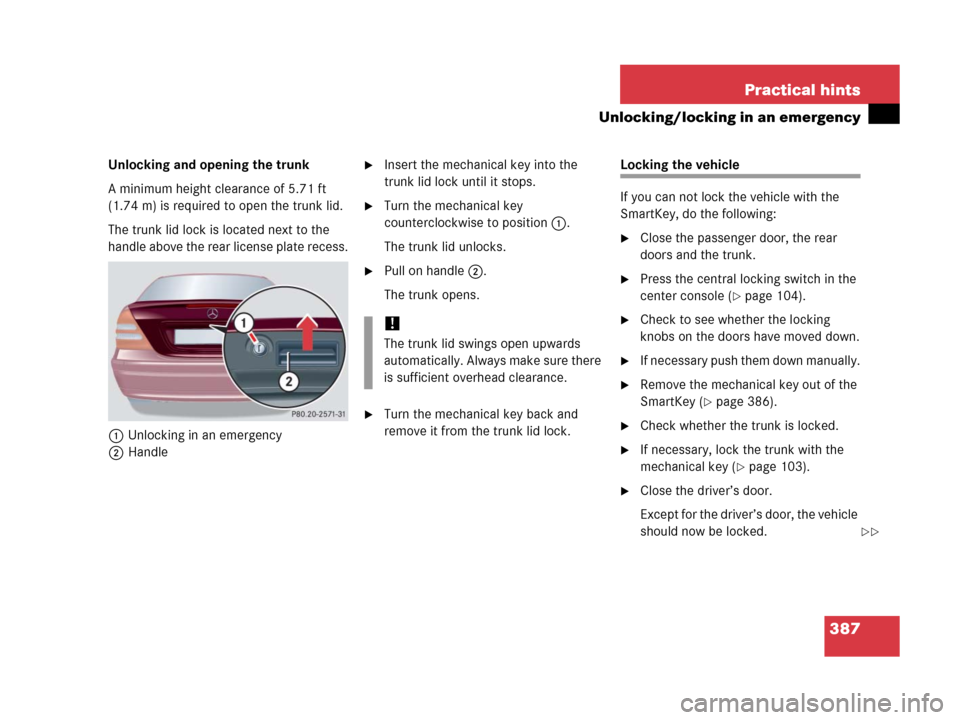

The trunk lid lock is located next to the
handle above the rear license plate recess.
1Unlocking in an emergency
2HandleInsert the mechanical key into the
trunk lid lock until it stops.
Turn the mechanical key
counterclockwise to position1.
The trunk lid unlocks.
Pull on handle2.
The trunk opens.
Turn the mechanical key back and
remove it from the trunk lid lock.
Locking the vehicle
If you can not lock the vehicle with the
SmartKey, do the following:
Close the passenger door, the rear
doors and the trunk.
Press the central locking switch in the
center console (
page 104).
Check to see whether the locking
knobs on the doors have moved down.
If necessary push them down manually.
Remove the mechanical key out of the
SmartKey (
page 386).
Check whether the trunk is locked.
If necessary, lock the trunk with the
mechanical key (
page 103).
Close the driver’s door.
Except for the driver’s door, the vehicle
should now be locked.
!
The trunk lid swings open upwards
automatically. Always make sure there
is sufficient overhead clearance.
Page 389 of 473
388 Practical hints
Unlocking/locking in an emergency
1Locking
Insert the mechanical key into the
driver’s door lock until it stops.
Turn the mechanical key clockwise to
position1.
The driver’s door is locked.Manually unlocking the transmission
gear selector lever
In case of power failure, the transmission
gear selector lever can be manually un-
locked, e.g. to tow the vehicle.
Slide out the swiveling cup holder
(
page 259).
1Tool
Insert a tool1 (e.g. flat blade screw
driver) into the opening.
Perform the following two steps
simultaneously:
Press tool1 forward in the
direction of the arrow.
Move gear selector lever from
positionP.
Remove tool1 from the opening.
i
The gear selector lever is locked again
when moving it to positionP.
Page 390 of 473
389 Practical hints
Opening/closing in an emergency
Opening/closing in an emergency
Power tilt/sliding sunroof
You can open or close the tilt/sliding
sunroof manually should an electrical
malfunction occur.

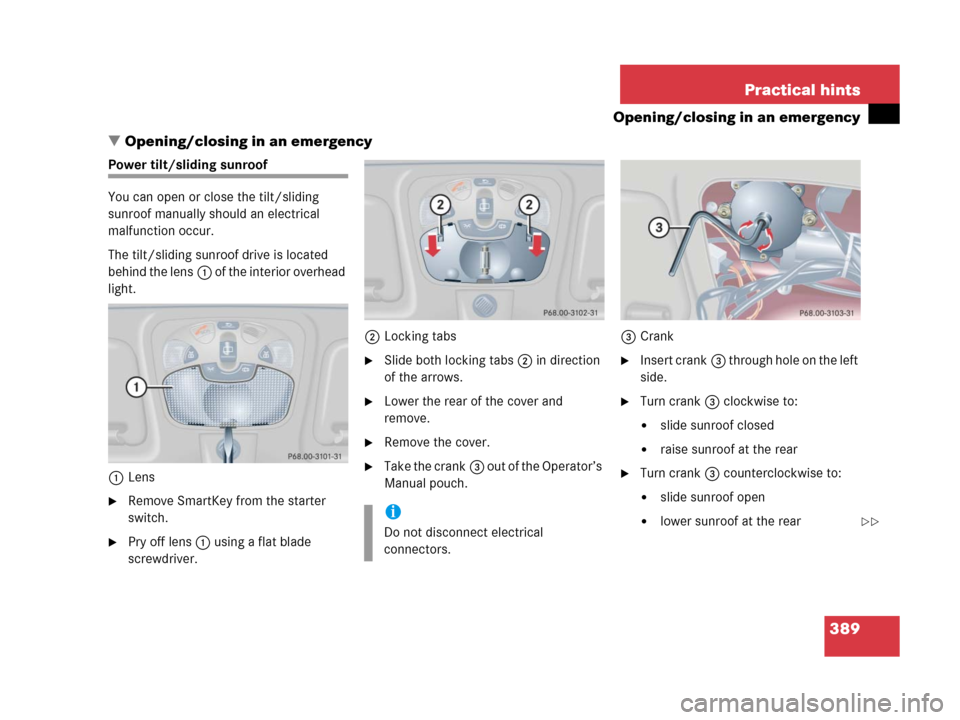

The tilt/sliding sunroof drive is located
behind the lens1 of the interior overhead
light.
1Lens
Remove SmartKey from the starter
switch.
Pry off lens1 using a flat blade
screwdriver.2Locking tabs
Slide both locking tabs2 in direction
of the arrows.
Lower the rear of the cover and
remove.
Remove the cover.
Take the crank3 out of the Operator’s
Manual pouch.3Crank
Insert crank3 through hole on the left
side.
Turn crank3 clockwise to:
slide sunroof closed
raise sunroof at the rear
Turn crank3 counterclockwise to:
slide sunroof open
lower sunroof at the reari
Do not disconnect electrical
connectors.
Page 391 of 473
390 Practical hints
Opening/closing in an emergency
i
Turn crank3 slowly and smoothly.
The tilt/sliding sunroof must be
synchronized after being operated
manually (
page 244).
Page 392 of 473

391 Practical hints
Resetting activated head restraints
Resetting activated head restraints
Resetting activated head restraints
If the active head restraints have been trig-
gered in a rear-end collision, the active
head restraints must be reset. Otherwise,
the active head restraint cannot offer any
additional protection in the event of anoth-
er rear-end collision.
Take the reset tool out of the
Mercedes-Benz vehicle literature
pouch.

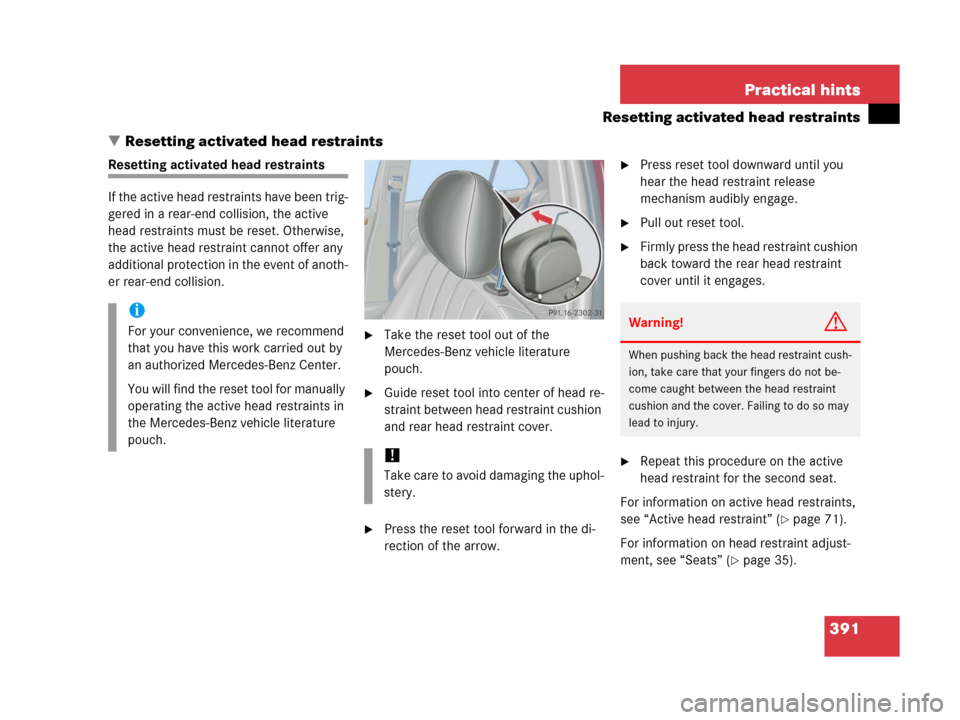

Guide reset tool into center of head re-
straint between head restraint cushion
and rear head restraint cover.
Press the reset tool forward in the di-
rection of the arrow.
Press reset tool downward until you
hear the head restraint release
mechanism audibly engage.
Pull out reset tool.
Firmly press the head restraint cushion
back toward the rear head restraint
cover until it engages.
Repeat this procedure on the active
head restraint for the second seat.
For information on active head restraints,
see “Active head restraint” (
page 71).
For information on head restraint adjust-
ment, see “Seats” (
page 35).
i
For your convenience, we recommend
that you have this work carried out by
an authorized Mercedes-Benz Center.
You will find the reset tool for manually
operating the active head restraints in
the Mercedes-Benz vehicle literature
pouch.
!
Take care to avoid damaging the uphol-
stery.
Warning!G
When pushing back the head restraint cush-
ion, take care that your fingers do not be-
come caught between the head restraint
cushion and the cover. Failing to do so may
lead to injury.
