2006 MERCEDES-BENZ C55AMG Owner's Manual

64 Safety and Security
Occupant safety
Safety guidelines for the seat belt,
emergency tensioning device and
air bag In cases of other frontal impacts,
angled impacts, roll-overs, other side
impacts, rear collisions, or other acci-
dents, the air bags will not be activat-
ed. The driver and passengers will then
be protected by the fastened seat
belts.
We caution you not to rely on the
presence of the air bags in order to
avoid wearing your seat belt.
Your vehicle was originally equipped
with air bags that are designed to acti-
vate in certain impacts exceeding a
preset threshold to reduce the poten-
tial and severity of injury. It is important
to your safety and that of your passen-
gers that you replace deployed air bags
and repair any malfunctioning air bags
to make sure that the vehicle will con-
tinue to provide supplemental crash
protection for occupants.
Warning!G

Damaged seat belts or belts that were
highly stressed in an accident must be
replaced and their anchoring points
must also be checked. Only use belts in-
stalled or supplied by an authorized
Mercedes-Benz Center.

Air bags and emergency tensioning
devices (ETDs) are designed to function
on a one-time-only basis. An air bag or
ETD that was activated must be
replaced.

No modifications of any kind may be
made to any components or wiring of
the SRS. This includes changing or re-
moving any component or part of the
SRS, the installation of additional trim
material, badges, etc. over the steering
wheel hub, passenger front air bag
cover, outboard sides of the front seat
backrests, door trim panels, or door
frame trims, and installation of addition-
al electrical/electronic equipment on or
near SRS components and wiring. Keep
area between air bags and occupants
free from objects (e.g. packages, purs-
es, umbrellas, etc.).

Do not pass belts over sharp edges.
They could tear.

Do not make any modification that could
change the effectiveness of the belts.

Do not bleach or dye seat belts as this
may severely weaken them. In a crash
they may not be able to provide ade-
quate protection.

65 Safety and Security
Occupant safety
When you sell your vehicle we strongly
urge you to give notice to the subsequent
owner that it is equipped with an SRS by
alerting them to the applicable section in
the Operator’s Manual.Front air bags
1Driver’s air bag
2Passenger front air bag
Driver and front passenger air bags are
deployed

in the event of a frontal impact

if impact exceeds a preset deployment
threshold

independently of the front side impact
air bags and/or rear side impact
air bags*

Do not hang items such as coat hangers
from the coat hooks or handles over the
door. These items may turn into projec-
tiles and cause head and other injuries
when curtain air bag is deployed.

Never place your feet on the instrument
panel, dashboard, or on the seat. Always
keep both feet on the floor in front of the
seat.

Air bag system components will be hot
after an air bag has inflated. Do not
touch.

In addition, improper repair work on the
SRS creates a risk of rendering the SRS
inoperative or causing unintended
air bag deployment. Work on the SRS
must therefore only be performed by
qualified technicians. Contact an autho-
rized Mercedes-Benz Center.

For your protection and the protection
of others, when scrapping the air bag
unit or emergency tensioning device,
our safety instructions must be fol-
lowed. These instructions are available
from your authorized Mercedes-Benz
Center.

Given the considerable deployment
speed, required inflation volume, and
the textile structure of the air bags,
there is the possibility of abrasions or
other, potentially more serious injuries
resulting from air bag deployment.

66 Safety and Security
Occupant safety
The air bags will not deploy in impacts
which do not exceed the system’s
deployment thresholds. You will then be
protected by the fastened seat belts.
The passenger front air bag will only be
deployed if:

the front passenger seat is occupied

the56 indicator lamp in the
center console is not lit (
page 75)

the impact exceeds a preset
deployment thresholdFront side impact air bags, rear side im-
pact air bags*, window curtain air bags
The window curtain air bags1 fill up the
area between the A and C pillars (see
arrows).
1Window curtain air bag
2Front side impact air bags
3Rear side impact air bags*The front side impact air bags, rear side
impact air bags* and window curtain
air bags are deployed:

on the impacted side of the vehicle

in impacts exceeding a preset
deployment threshold

independently of the front air bags
The front passenger side impact air bag
will only deploy if the system senses that
the front passenger seat is occupied.
The front side impact air bags, rear side
impact air bags* and window curtain
air bags are not deployed in impacts which
do not exceed the system’s deployment
threshold.
!
Do not place objects heavier than
20 lbs (9 kg) on the front passenger
seat. This could cause the front or side
impact air bag on the front passenger
side to deploy in a crash which exceeds
the system’s deployment threshold.

67 Safety and Security
Occupant safety
Seat belts
The use of seat belts and infant and child
restraint systems is required by law in all
50 states, the District of Columbia, the
U.S. territories and all Canadian provinces.
Even where this is not the case, all vehicle
occupants should have their seat belts fas-
tened whenever the vehicle is in motion.
For more information on seat belts, see
“Fastening the seat belt” (
page 42).
i
For information on infants and children
traveling with you in the vehicle and
restraint systems for infants and
children, see “Children in the vehicle”
(
page 72).
Warning!G
Always fasten your seat belt before driving
off. Always make sure your passengers are
properly restrained, even those sitting in the
rear and pregnant women.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passengers should
always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are properly wearing
your seat belt. Air bags can only protect as
they are designed if the occupants are prop-
erly wearing their seat belts.
Warning!G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a nearly upright position and the
belt is properly positioned on the body.
Warning!G
Never let more people ride in the vehicle
than there are seat belts available. Be sure
everyone riding in the vehicle is correctly
restrained with a separate seat belt. Never
use a seat belt for more than one person at
a time.

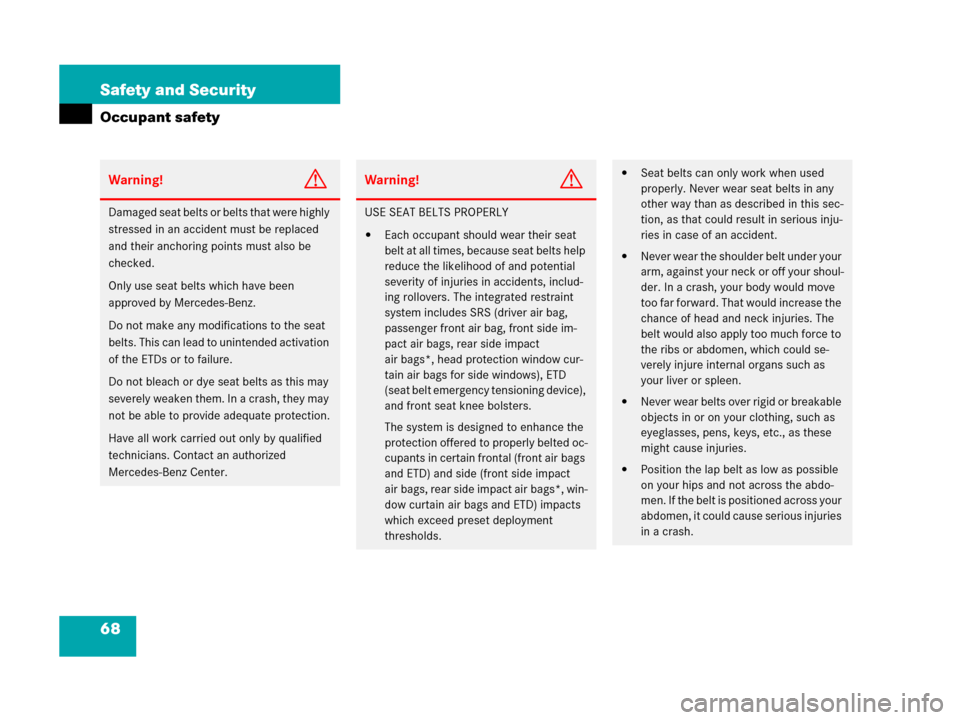

68 Safety and Security
Occupant safety
Warning!G
Damaged seat belts or belts that were highly
stressed in an accident must be replaced
and their anchoring points must also be
checked.
Only use seat belts which have been
approved by Mercedes-Benz.
Do not make any modifications to the seat
belts. This can lead to unintended activation
of the ETDs or to failure.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash, they may
not be able to provide adequate protection.
Have all work carried out only by qualified
technicians. Contact an authorized
Mercedes-Benz Center.
Warning!G
USE SEAT BELTS PROPERLY

Each occupant should wear their seat
belt at all times, because seat belts help
reduce the likelihood of and potential
severity of injuries in accidents, includ-
ing rollovers. The integrated restraint
system includes SRS (driver air bag,
passenger front air bag, front side im-
pact air bags, rear side impact
air bags*, head protection window cur-
tain air bags for side windows), ETD
(seat belt emergency tensioning device),
and front seat knee bolsters.
The system is designed to enhance the
protection offered to properly belted oc-
cupants in certain frontal (front air bags
and ETD) and side (front side impact
air bags, rear side impact air bags*, win-
dow curtain air bags and ETD) impacts
which exceed preset deployment
thresholds.

Seat belts can only work when used
properly. Never wear seat belts in any
other way than as described in this sec-
tion, as that could result in serious inju-
ries in case of an accident.

Never wear the shoulder belt under your
arm, against your neck or off your shoul-
der. In a crash, your body would move
too far forward. That would increase the
chance of head and neck injuries. The
belt would also apply too much force to
the ribs or abdomen, which could se-
verely injure internal organs such as
your liver or spleen.

Never wear belts over rigid or breakable
objects in or on your clothing, such as
eyeglasses, pens, keys, etc., as these
might cause injuries.

Position the lap belt as low as possible
on your hips and not across the abdo-
men. If the belt is positioned across your
abdomen, it could cause serious injuries
in a crash.

69 Safety and Security
Occupant safety
Depending on vehicle production date,
your vehicle is equipped with either a seat
belt reminder system or an enhanced seat
belt reminder system as follows:
Seat belt reminder system
When the engine is started the seat belt
telltale < illuminates for a maximum of
6 seconds and a warning chime sounds to
remind you and your passengers to fasten
your seat belts.
For more information on the seat belt
telltale <, see “Practical hints”
(
page 355).Enhanced seat belt reminder system
When the engine is started the seat belt
telltale< illuminates for a maximum of
6 seconds and a warning chime sounds to
remind you and your passengers to fasten
your seat belts.
If after these 6 seconds the driver’s or the
front passenger’s seat belt (with the front
passenger seat occupied and with all
doors closed) are not fastened,

and the vehicle speed does not exceed
15 mph (25 km/h), the seat belt tell-
tale < remains illuminated for as
long as either the driver’s or front pas-
senger’s seat belt is not fastened.

Never use a seat belt for more than one
person at a time. Do not fasten a seat
belt around a person and another per-
son or other objects.

Belts should not be worn twisted. In a
crash, you wouldn’t have the full width
of the belt to manage impact forces. The
twisted belt against your body could
cause injuries.

Pregnant women should also use a
lap-shoulder belt. The lap belt portion
should be positioned as low as possible
on the hips to avoid any possible pres-
sure on the abdomen.

Never place your feet on the instrument
panel, dashboard or on the seat. Always
keep both feet on the floor in front of the
seat.

70 Safety and Security
Occupant safety

and the vehicle speed exceeds 15 mph
(25 km/h), the seat belt telltale <
starts flashing and a warning chime
sounds with increasing intensity until
both the driver’s and front passenger’s
seat belt are fastened, or for a maxi-
mum of 60 seconds from the time the
vehicle speed exceeded 15 mph
(25 km/h) if either the driver’s or front
passenger’s seat belt remains unfas-
tened.
If the driver’s or front passenger’s seat
belt remains unfastened after 60 sec-
onds, the seat belt telltale< stops
flashing and the warning chime stops
sounding. The seat belt telltale <
then continues to be illuminated for as
long as either the driver’s or front pas-
senger’s seat belt are not fastened.
The seat belt telltale < will only go out
if both the driver and front passenger’s
seat belt (with the front passenger seat oc-
cupied) are fastened, or the vehicle is
standing still and a front door is opened. For more information on the seat belt
telltale<, see “Practical hints”
(
page 355).
Emergency tensioning device (ETD),
seat belt force limiter
The seat belts for the front and rear outer
seats are equipped with emergency
tensioning devices and belt force limiters.
The ETD is designed to activate in the
following cases:

in frontal or rear-end impacts
exceeding a preset severity level.

if the restraint systems are operational
and functioning correctly.
See 1indicator lamp (
page 60).In an impact, emergency tensioning
devices remove slack from the belts in
such a way that the seat belts fit more
snugly against the body. Belt force limiters
reduce the force exerted by the seat belts
on occupants during a crash.
i
The ETDs for the front seats will only
activate if the respective front seat belt
is fastened (latch plate properly
inserted into buckle).
The ETDs for the rear outer seats will
activate with or without the respective
seat belt fastened.
Warning!G
An emergency tensioning device (ETD) that
was activated must be replaced.
When scrapping the emergency tensioning
device, our safety instructions must be
followed. These are available at your
authorized Mercedes-Benz Center.

71 Safety and Security
Occupant safety
Active head restraint
The active head restraints are intended to
offer the driver and front passenger in-
creased protection from head and neck in-
jury. In the event of a rear-end collision,
the active head restraints on the driver’s
and front passenger’s seats are designed
to move forward in the direction of travel,
providing the head with increased support
earlier on in the collision sequence. The ac-
tive head restraints move forward whether
the seat is occupied or not.
For information on resetting the activated
active head restraints, see “Resetting acti-
vated head restraints” (
page 391).You cannot remove the active head re-
straints on the driver’s and passenger’s
seats.
For removal of the active head restraints
we recommend that you contact an autho-
rized Mercedes-Benz Center.
!
Do not place objects heavier than
20 lbs (9 kg) on the front passenger
seat. This could cause the front or side
impact air bag on the front passenger
side and, with the seat belt fastened to
secure the object, the ETD to deploy in
a crash which exceeds the system’s de-
ployment threshold.
Warning!G
Do not attach any objects (e.g. hangers) to
the head restraint posts. Otherwise, the ac-
tive head restraints may not be able to func-
tion properly or offer the intended degree of
protection in the event of an accident.
Warning!G
Only use seat- or head restraint covers
which have been tested and approved by
Mercedes-Benz for your vehicle model.
Using other seat- or head restraint covers
may interfere with or prevent the activation
of the active head restraints. Contact your
authorized Mercedes-Benz Center for avail-
ability.
