2006 MERCEDES-BENZ C55AMG Owner's Manual

368 Practical hints
What to do if …
During severe operating conditions and
stop-and-go city traffic, the coolant tem-
perature may rise close to 248°F (120°C).
Display symbolDisplay messagePossible cause/consequencePossible solution
•Coolant
Stop, engine off!The coolant is too hot. Stop the vehicle in a safe location and
turn off the engine.
Only start the engine again after the
message disappears. You could
otherwise damage the engine.
Warning!G
Driving when your engine is badly over-
heated can cause some fluids which may
have leaked into the engine compartment to
catch fire. You could be seriously burned.
Steam from an overheated engine can cause
serious burns and can occur just by opening
the hood. Stay away from the engine if you
see or hear steam coming from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until the
engine has cooled down.
!
The engine should not be operated with
the coolant temperature above 248°F
(120°C). Doing so may cause serious
engine damage which is not covered by
the Mercedes-Benz Limited Warranty.

369 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
•Coolant
Stop, engine off!The poly-V-belt could be broken.Stop the vehicle in a safe location and
immediately turn off the engine.
Check the poly-V-belt.
If it is broken:
Do not continue to drive. Otherwise the engine
will overheat due to an inoperative water pump
which may result in damage to the engine. Notify
an authorized Mercedes-Benz Center.
If it is intact:
Do not continue to drive the vehicle with this
message displayed. Doing so could result in seri-
ous engine damage that is not covered by the
Mercedes-Benz Limited Warranty.
Observe the coolant temperature gauge in the in-
strument cluster (
page 24).
Drive immediately to the nearest authorized Mer-
cedes-Benz Center.
Coolant
Visit workshopThe cooling fan for the coolant is
malfunctioning.Observe the coolant temperature gauge in the in-
strument cluster (
page 24).
Have the fan replaced as soon as possible.

370 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
ÑCruise contr.
Drive to workshopCruise control is malfunctioning.Visit an authorized Mercedes-Benz
Center.
GDisplay malfunction
Visit workshopThe instrument cluster display is
malfunctioning.Continue driving with added caution.
Visit an authorized Mercedes-Benz
Center as soon as possible.
The displays for several systems have
malfunctioned. Some systems them-
selves may also have malfunctioned.Have the electronic systems checked
by an authorized Mercedes-Benz
Center.
±Display malfunction
Visit workshopCertain electronic systems are unable to
relay information to the control system.
The following systems may have failed:

Coolant temperature display

Tachometer

Cruise control display
Have the electronic systems checked
by an authorized Mercedes-Benz
Center.
JDoors openYou are attempting to drive with one or
more doors open.Close the doors.

371 Practical hints
What to do if …
Display symbolDisplay messagesPossible cause/consequencePossible solution
NUSA only:
At next gas station
add 1.0 qt engine oil
Canada only:
At next gas station
add 1.0 l engine oil
The engine oil level is too low.Add engine oil (page 300) and check
the engine oil level (
page 299).
Engine oil level
Stop, engine off!There is no oil in the engine. There is a
danger of engine damage.Carefully bring the vehicle to a halt as
soon as possible.
Turn off the engine.
Add engine oil (page 300) and check
the engine oil level (
page 299).
Engine oil level
Reduce oil levelYou have added too much engine oil.
There is a risk of damaging the engine or
the catalytic converter.Have oil siphoned or drained off.
Observe all legal requirements with
respect to its disposal.
Change engine oil
Visit workshopIt may be that there is water in the engine
oil.Have the engine oil checked.

372 Practical hints
What to do if …
When the message At next gas station
add 1.0 qt engine oil
(Canada: 1.0 l)
appears while the engine is running and at
operating temperature, the engine oil level
has dropped to approximately the mini-
mum level.When this occurs, the warning will first
come on intermittently and then stay on if
the oil level drops further.
Visually check for oil leaks. If no obvious oil
leaks are noted, drive to the nearest
service station where the engine oil should
be topped to the required level with an
approved oil specified in the Factory
Approved Service Products pamphlet.
Display symbolDisplay messagesPossible cause/consequencePossible solution
NEngine oil level
Visit workshopThe engine oil has dropped to a critical
level.Check the engine oil level
(
page 299) and add oil as required
(
page 300).
If you must add engine oil frequently,
have the engine checked for possible
leaks.
Oil sensor malfunction
Visit workshopThe measuring system is malfunctioning.Have the measuring system checked
by an authorized Mercedes-Benz
Center.
!
The engine oil level warnings should
not be ignored. Extended driving with
the symbol displayed could result in
serious engine damage that is not
covered by the Mercedes-Benz Limited
Warranty.

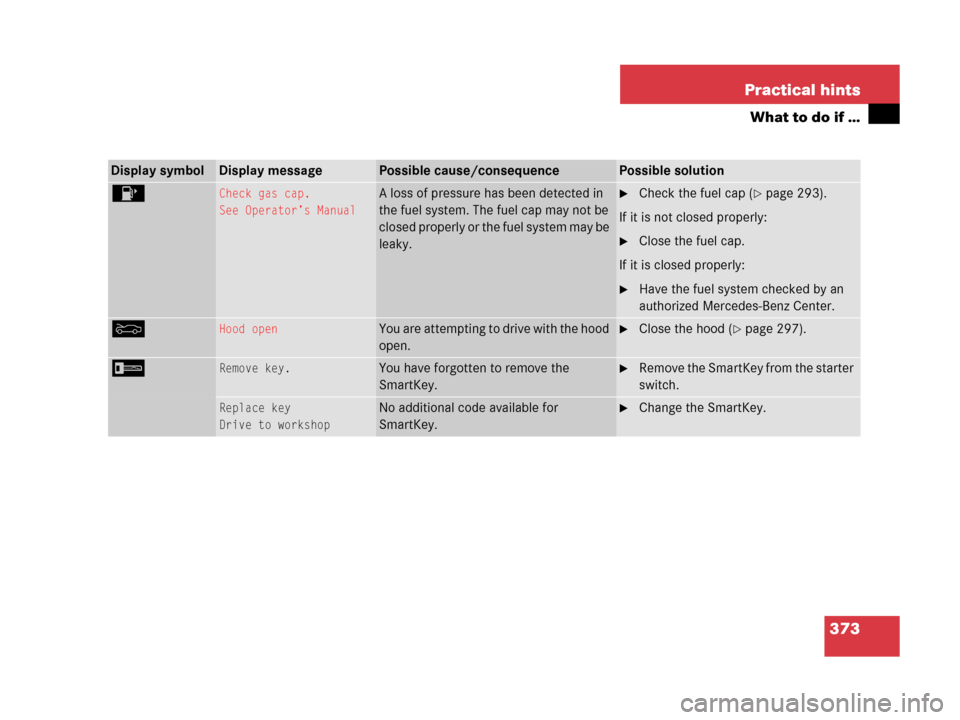

373 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
4Check gas cap.
See Operator’s ManualA loss of pressure has been detected in
the fuel system. The fuel cap may not be
closed properly or the fuel system may be
leaky.Check the fuel cap (page 293).
If it is not closed properly:
Close the fuel cap.
If it is closed properly:
Have the fuel system checked by an
authorized Mercedes-Benz Center.
YHood openYou are attempting to drive with the hood
open.Close the hood (page 297).
IRemove key.You have forgotten to remove the
SmartKey.Remove the SmartKey from the starter
switch.
Replace key
Drive to workshopNo additional code available for
SmartKey.Change the SmartKey.

374 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
.3rd brake lampThe high mounted brake lamp is
malfunctioning. This message will only
appear if all light emitting diodes have
stopped working.Visit an authorized Mercedes-Benz
Center as soon as possible.
Backup lamp, leftThe left backup lamp is malfunctioning.Replace the bulb as soon as possible.
Backup lamp, rightThe right backup lamp is malfunctioning.Replace the bulb as soon as possible.
Brake lamp
Drive to workshopBrake lamp illumination is delayed or
lamp is permanently on.Visit an authorized Mercedes-Benz
Center as soon as possible.
Brake lamp leftThe left brake lamp is malfunctioning.Replace the bulb as soon as possible.
Brake lamp rightThe right brake lamp is malfunctioning.Replace the bulb as soon as possible.
Display malfunction
Visit workshop.The display for the lamps or the system is
malfunctioning.Visit an authorized Mercedes-Benz
Center as soon as possible.
Front foglamp leftThe left front fog lamp is malfunctioning.Visit an authorized Mercedes-Benz
Center as soon as possible.
Front foglamp rightThe right front fog lamp is malfunctioning.Visit an authorized Mercedes-Benz
Center as soon as possible.
Front left
side marker lampThe left front side marker lamp is
malfunctioning.Visit an authorized Mercedes-Benz
Center as soon as possible.
Front right
sider marker lampThe right front side marker lamp is
malfunctioning.Visit an authorized Mercedes-Benz
Center as soon as possible.

375 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
.High beam leftThe left high beam lamp is
malfunctioning.Replace the bulb as soon as possible.
High beam rightThe right high beam lamp is
malfunctioning.Replace the bulb as soon as possible.
License plate lamp,
leftThe left license plate lamp is
malfunctioning.Replace the bulb as soon as possible.
License plate lamp,
rightThe right license plate lamp is
malfunctioning.Replace the bulb as soon as possible.
Light sensor
Drive to workshopThe light sensor is malfunctioning.
The headlamps switch on automatically.In the control system, set lamp
operation to manual (
page 144).
Switch on the headlamps using the
exterior lamp switch (
page 114).
Visit an authorized Mercedes-Benz
Center as soon as possible.
Low beam leftThe left low beam lamp is malfunctioning.Halogen headlamp:
Replace the bulb as soon as possible.
Bi-Xenon* headlamp:
Visit an authorized Mercedes-Benz
Center as soon as possible.
