2006 MERCEDES-BENZ C55AMG Owner's Manual

416 Practical hints
Jump starting
The battery is located in the engine
compartment on the right hand side. The
terminals for jump starting are located in
front of the battery.
Make sure the two vehicles do not
touch.
Turn off all electrical consumers.
Apply parking brake.
Shift gear selector lever to positionP.
Open the hood (page 297).
Flip up cover positive under hood
terminal2 in front of the filter box
(
page 411).1Positive terminal of charged battery
2Positive under hood terminal in front of
discharged battery
3Negative under hood terminal in front
of discharged battery
4Negative terminal of charged battery
Connect positive terminal1 of the
charged battery with positive under
hood terminal2 in front of the filter
box with the jumper cables. Clamp ca-
ble to charged battery1 first.
Start engine of the vehicle with the
charged battery and run at idle speed.
Connect negative terminal4 of the
charged battery with negative under
hood terminal3 in front of the filter
box with the jumper cables. Clamp ca-
ble to charged battery4 first.
Start the engine of the disabled
vehicle.
You can now again turn on the electrical
consumers. Do not turn on the lights under
any circumstances.
Remove the jumper cables first from
negative terminals3 and4 and then
from positive terminals2 and1.
You can now turn on the lights.
Have the battery checked at the near-
est authorized Mercedes-Benz Center.
Warning!G
Keep flames or sparks away from battery.
Do not smoke.
Observe all safety instructions and precau-
tions when handling automotive batteries
(
page 303).
!
Never invert the terminal connections!

417 Practical hints
Towing the vehicle
Towing the vehicle
Mercedes-Benz recommends that the
vehicle be transported with all wheels off
the ground using flatbed or appropriate
wheel lift/dolly equipment. This method is
preferable to other types of towing.When circumstances do not permit the
recommended towing methods, the
vehicle may be towed with all wheels on
the ground or front wheels raised only so
far as necessary to have the vehicle moved
to a safe location where the recommended
towing methods can be employed.
!
Do not tow-start the vehicle.
!
Use flatbed or wheel lift/dolly equip-
ment with the SmartKey in the starter
switch turned to position0.
Do not tow with sling-type equipment.
Towing with sling-type equipment over
bumpy roads will damage radiator and
supports.
To prevent damage during transport,
do not tie down vehicle by its chassis or
suspension parts.
Switch off the tow-away alarm*
(
page 90) and deactivate the auto-
matic central locking (
page 147).
!
If the vehicle is towed with the front
axle raised, the engine must be shut off
(SmartKey in starter switch position0
or1). Otherwise the ESP
® will immedi-
ately be engaged and will apply the rear
wheel brakes.
When towing the vehicle with all wheels
on the ground, the gear selector lever
must be in positionN and the
SmartKey must be in starter switch
position2.
When towing the vehicle with all wheels
on the ground or the front axle raised,
the vehicle may be towed only for
distances up to 30 miles (50 km) and
at a speed not to exceed 30 mph
(50 km/h).
!
To be certain to avoid a possibility of
damage to the drivetrain, however, we
recommend the drive shaft be discon-
nected at the rear axle drive flange for
any towing beyond a short tow to a
nearby garage.

418 Practical hints
Towing the vehicle
Warning!G
If circumstances require towing the vehicle
with all wheels on the ground, always tow
with a tow bar if:

the engine will not run

there is a malfunction in the power
supply or in the vehicle’s electrical
system
as that will be necessary to adequately
control the towed vehicle.
Prior to towing the vehicle with all wheels on
the ground, make sure the SmartKey is in
starter switch position2.
If the SmartKey is left in starter switch
position0 for an extended period of time, it
can no longer be turned in the switch. In this
case, the steering is locked. To unlock,
remove SmartKey from starter switch and
reinsert.
i
To signal turns while being towed with
the hazard warning flasher in use,
switch on the ignition and activate the
combination switch for the left or right
turn signal in the usual manner – only
the selected turn signal will operate.
Upon canceling the turn signal, the
hazard warning flasher will operate
again.
Warning!G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the ve-
hicle. Adapt your driving accordingly.
!
When towing the vehicle with all wheels
on the ground, please note the
following:
With the automatic central locking
activated and the SmartKey in starter
switch position2, the vehicle doors
lock if the left front wheel as well as the
right rear wheel are turning at vehicle
speeds of approx. 9 mph (15 km/h) or
more.
Switch off the tow-away alarm*
(
page 90).
To prevent the vehicle doors from
locking, deactivate the automatic
central locking (
page 147).
Towing of the vehicle should only be
done using the properly installed
towing eye bolt. Never attach tow
cable, tow rope or tow rod to vehicle
chassis, frame or suspension parts.

419 Practical hints
Towing the vehicle
Installing towing eye bolt

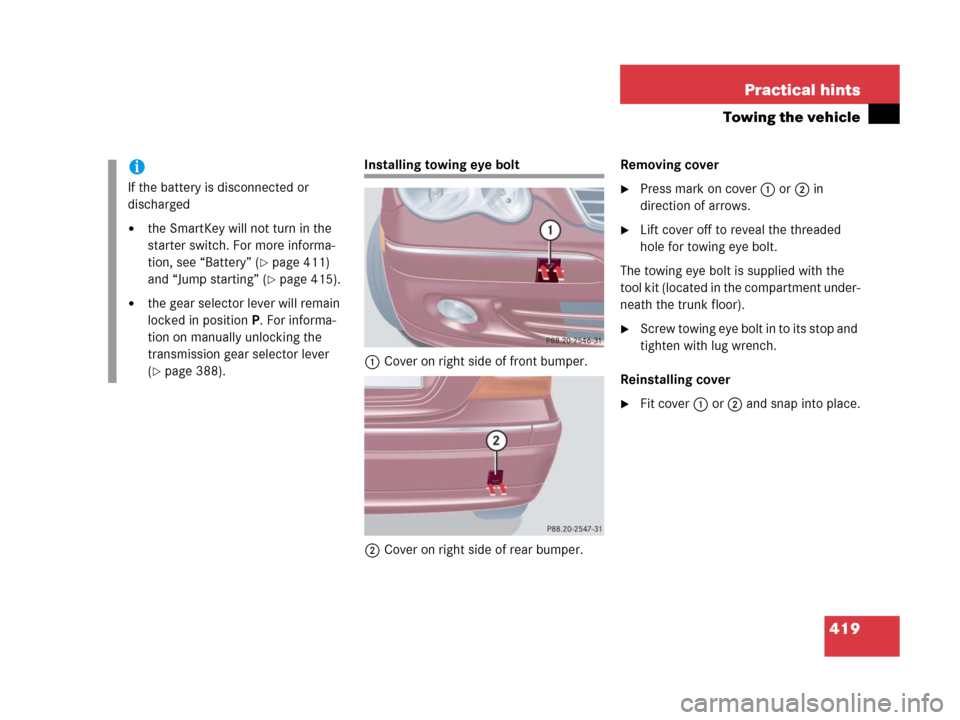

1Cover on right side of front bumper.
2Cover on right side of rear bumper.Removing cover
Press mark on cover1 or2 in
direction of arrows.
Lift cover off to reveal the threaded
hole for towing eye bolt.
The towing eye bolt is supplied with the
tool kit (located in the compartment under-
neath the trunk floor).
Screw towing eye bolt in to its stop and
tighten with lug wrench.
Reinstalling cover
Fit cover1 or2 and snap into place.
i
If the battery is disconnected or
discharged

the SmartKey will not turn in the
starter switch. For more informa-
tion, see “Battery” (
page 411)
and “Jump starting” (
page 415).

the gear selector lever will remain
locked in positionP. For informa-
tion on manually unlocking the
transmission gear selector lever
(
page 388).

420 Practical hints
Fuses
Fuses are designed to protect the electri-
cal circuits in your vehicle from a short cir-
cuit. If a fuse is blown, the component(s)
and systems secured by that fuse will stop
operating.
The following aids are available to help you
replace fuses (
page 420):

Fuse chart

Spare fuses

Fuse extractor
The electrical fuses are located in different
fuse boxes:

Main fuse box in passenger
compartment (
page 421)

Fuse box in engine compartment
(
page 421)

Fuse box in trunk (page 422)
Aids for replacing fuses
Fuse chart
The fuse chart is located in the main fuse
box in the passenger compartment
(
page 421). The amperages of the fuses
are also given there.
Spare fuses
Spare fuses are located in the vehicle tool
kit in the trunk (
page 380).
Fuse extractor
The fuse extractor is located in the fuse
box cover in the trunk (
page 422).
Warning!G
Only use fuses approved by Mercedes-Benz
with the specified amperage for the system
in question. Using other fuses may cause an
overload leading to a fire, and/or cause
damage to electrical components and/or
systems.
!
Never attempt to repair or bridge a
blown fuse. Have the cause determined
and remedied by an authorized
Mercedes-Benz Center.
!
Keep the fuse boxes free by contamina-
tion and wetness. Otherwise, electrical
parts or systems could be damaged.

421 Practical hints
Fuses
Main fuse box in passenger
compartment
The main fuse box is located in the passen-
ger compartment on the driver’s side of
the cockpit.
1Main fuse box cover
Opening fuse box
Open the driver’s door.
Pull fuse box cover1 open with a
screw driver or similar tool (see arrow).
Remove fuse box cover1 rearward.Closing fuse box
Attach fuse box cover1 in the front.
Fold fuse box cover1 in until it
engages.
Fuse box in engine compartment
The fuse box is located in the engine
compartment on the driver’s side.
1Cover
2Screws
3RetainerRemoving cover
Twist screws2
90° counterclockwise.
Lift the rear of cover1.
Slide out retainer3 and remove
cover1 by pulling towards front.
Opening fuse box
4Fuse box cover
5Clamps
With a dry cloth, remove any moisture
from the fuse box.
Release clamps5.
Remove fuse box cover4.

422 Practical hints
Fuses
Closing fuse box
Make sure that the sealing rubber is
properly positioned.
Press fuse box cover4 down and
secure with clamps5.
Installing cover
Insert cover1 sideways into
retainer3.
Twist screws2 90° clockwise.
Fuse box in trunk
The fuse box is located in the trunk behind
the left-hand trim panel.
1Trim panel
2Fuse extractor
3Fuse box coverOpening fuse box
Pull away trim panel1.
Remove fuse box cover3.
Closing fuse box
Insert fuse box cover3.
Insert trim panel1.
