2006 MERCEDES-BENZ C55AMG Owner's Manual

24 At a glance

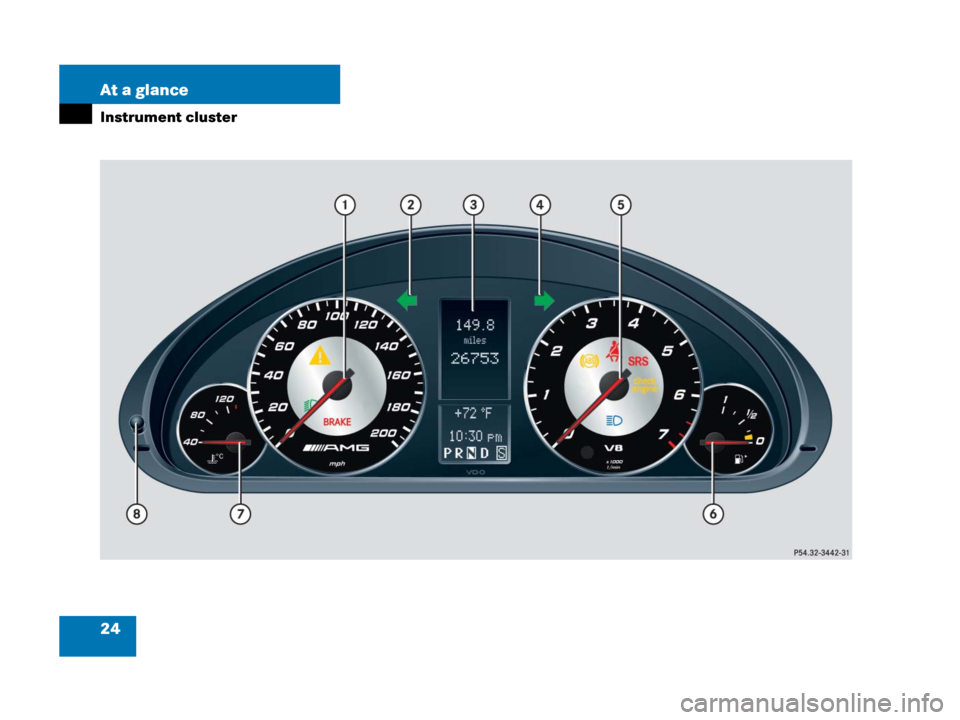

Instrument cluster

25 At a glance
Instrument cluster
ItemPage
1Speedometer with:
vElectronic Stability
Program (ESP®)
warning lamp
84,
354
;Brake warning lamp,
USA only46, 54,
351
3Brake warning lamp,
Canada only46, 54,
351
BLow beam headlamp
indicator lamp48,
114
2LLeft turn signal
indicator lamp49
3Multifunction display
with:125

Trip odometer123

Main odometer125

Gear selector lever
position45,
125,
157
ItemPage

Program mode161

Status indicator (outside
temperature/digital
speedometer124,
139

Digital clock125
4KRight turn signal
indicator lamp49
5Tachometer with:124
-Antilock Brake
System (ABS)
indicator lamp82,
350
úEngine malfunction
indicator lamp,
USA only352,
353
±Engine malfunction
indicator lamp,
Canada only352,
353
1Supplemental
Restraint System
(SRS) indicator lamp60,
356
ItemPage
355
AHigh beam headlamp
indicator lamp49,
118
6Fuel gauge with:
Fuel reserve warning lamp354
4The arrow indicates
that the fuel filler cap
is on the rear
right-hand side.
7Coolant temperature gauge123
8Button for:122

Resetting trip odometer123

Resetting all settings135

Instrument cluster
illumination122

26 At a glance
Multifunction steering wheel
ItemPage
1Multifunction display125
Operating control system126
2Telephone*:
Press button
sto take a call
to dial a call
tto end a call
to reject an incoming
call
3Selecting the submenu or
setting the volume:
Press button
æup/to increase
çdown/to decrease
ItemPage
4Menu systems:
Press button
èfor next menu
ÿfor previous menu
5Moving within a menu:
Press button
jfor next display
kfor previous display

27 At a glance
Center console
Center console
Upper partItemPage
1Seat heating, driver’s side110
2Rear window sunshade
switch*172
3ESP® control switch84
4Hazard warning flasher
switch – switching on/off119
5Central locking switch104
Central unlocking switch104
6Switch for folding back rear
seat head restraints108
7Tow-away alarm switch*
(if equipped)90
Anti-theft alarm system
indicator lamp*89
ItemPage
8Seat heating, passenger
side110
9Front passenger front
air bag off indicator lamp75,
357
aAudio system,197
or
COMAND* (see separate
operating instructions)
bClimate control174
Automatic climate control*
(Canada only)184
Rear window defroster173

28 At a glance
Center console
Lower partItemPage
1Ashtray260
Cigarette lighter262
2Gear selector lever for
automatic transmission45,
157
3Cup holder258
4Armrest257
5Program mode selector
switch for automatic
transmission161

29 At a glance

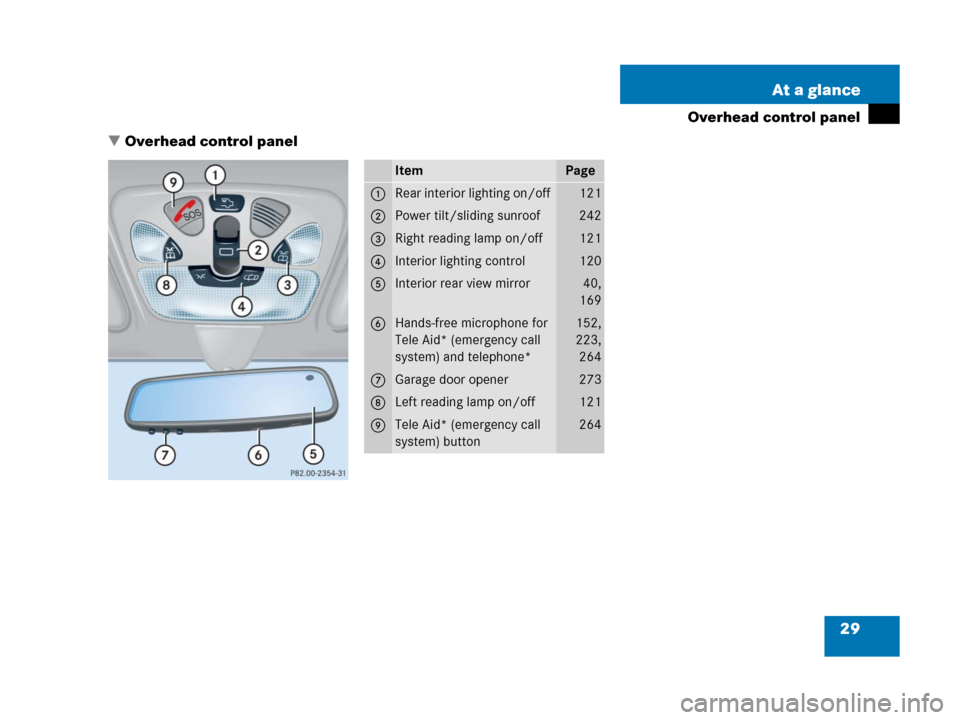

Overhead control panel
Overhead control panel
ItemPage
1Rear interior lighting on/off 121
2Power tilt/sliding sunroof242
3Right reading lamp on/off121
4Interior lighting control120
5Interior rear view mirror40,
169
6Hands-free microphone for
Tele Aid* (emergency call
system) and telephone*152,
223,
264
7Garage door opener273
8Left reading lamp on/off121
9Tele Aid* (emergency call
system) button264

30 At a glance
Door control panel
ItemPage
1Inside door handle99
2Memory function (for
storing seat, exterior mirror
and steering wheel settings)111
3Switches for seat
adjustment35,
106
4Switches for
opening/closing front door
windows238
5Rear door window override
switch80
6Switches for
opening/closing rear door
windows238
7Remote trunk lid switch100

31 Getting started
Unlocking
Adjusting
Driving
Parking and locking
