2006 MERCEDES-BENZ C55AMG Owner's Manual

104 Controls in detail
Locking and unlocking
Locking and unlocking from the inside
You can lock or unlock the doors and the
trunk from inside using the central locking
or unlocking switch. This can be useful, for
example, if you want to lock the vehicle
before starting to drive.
You cannot lock or unlock the fuel filler flap
with the central locking or unlocking
switch.The switches are located in the center
console.
1Central locking switch
2Central unlocking switch
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.
i
You can open a locked door from the
inside. Open door only when conditions
are safe to do so.
If the vehicle was previously centrally
locked using the SmartKey, it will not
unlock using the central unlocking
switch2.
If the vehicle was previously locked
with the central locking switch1

while in the selective remote con-
trol mode, only the door opened
from the inside is unlocked.

while in the global remote control
mode, the complete vehicle is
unlocked when a door is opened
from the inside.

105 Controls in detail
Locking and unlocking
Locking
Press central locking switch1.
If all doors are closed, the vehicle
locks.
Unlocking
Press central unlocking switch2.
The vehicle unlocks.

106 Controls in detail
Seats
For information on seat adjustment, see
“Adjusting” (
page 35).
Front seat active head restraintsYou cannot remove the active head re-
straints on the driver’s and passenger’s
seat.
For removal of the active head restraints
we recommend that you contact an autho-
rized Mercedes-Benz Center.
For information on head restraint
adjustment, see “Seats” (
page 35).
For information on active head restraints,
see “Active head restraint” (
page 71).
Rear seat head restraints
Warning!G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint so that the head re-
straint supports the back of the head at eye
level. This will reduce the potential for injury
to the head and neck in the event of an ac-
cident or similar situation.
Do not drive the vehicle without the seat
head restraints. Head restraints are
intended to help reduce injuries during an
accident.
i
Adjust the head restraint in such a way
that it is as close to the head as
possible.
Warning!G
For safety reasons, always drive with the
rear head restraints in the upright position
when the rear seats are occupied.
Keep the area around head restraints clear
of articles (e.g. clothing) to not obstruct the
folding operation of the head restraints.

107 Controls in detail
Seats
Head restraint height (rear outer seats)
1Release button
Raising
Manually adjust the height of the head
restraint by pulling it upward.
If the head restraint is fully retracted,
push release button1 and pull the
head restraint out.
Lowering
To lower the head restraint, push
release button1 and push down on
the head restraint.Folding head restraints back with
release button
The rear seat head restraints can be folded
backward for increased visibility.
1Release button
Push release button1.
The head restraint will fold backward.
i
Adjust the head restraint in such a way
that it is as close to the head as
possible.
Warning!G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint so that the head re-
straint supports the back of the head at eye
level. This will reduce the potential for injury
to the head and neck in the event of an ac-
cident or similar situation.
Do not drive the vehicle without the seat
head restraints. Head restraints are
intended to help reduce injuries during an
accident.
i
You can also fold the rear outer seat
head restraints back using the switch
in the center console (
page 108).

108 Controls in detail
Seats
Folding head restraints back with
switch in the center console
1Switch for rear seat head restraints
Start the engine (page 45).
Press switch1.
The rear seat head restraints will fold
backward.Placing head restraints upright
Pull the head restraint forward until it
locks into position.Head restraint tilt (rear outer seats)
Two different head restraint angle
positions are available:
Press the release button (page 107)
and tilt the head restraint to the
desired position.
Removing and installing rear seat head
restraints (rear outer seats)
Warning!G
Make sure the head restraints engage when
placing them upright. Otherwise their
protective function cannot be assured.
i
Adjust the head restraint in such a way
that it is as close to the head as
possible.
i
The rear center seat head restraint
cannot be removed.

109 Controls in detail
Seats
1Release button
Removing rear seat head restraints
Fold back head restraint (page 107).
Pull head restraint to its highest
position.
Push release button1 and pull out
head restraint.
Installing rear seat head restraints
Insert head restraint and push it down
until it engages.
Push button1 and adjust head
restraint to desired position.
Lumbar support*
The curvature of the driver’s seat can be
adjusted to help enhance lower back sup-
port and seating comfort.
1Adjustment lever
Move adjustment lever1 in direction
of arrows until you have reached a
comfortable seating position.
Warning!G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint so that the head re-
straint supports the back of the head at eye
level. This will reduce the potential for injury
to the head and neck in the event of an ac-
cident or similar situation.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an acci-
dent.
Do not interchange head restraints from
front and rear seat.

110 Controls in detail
Seats

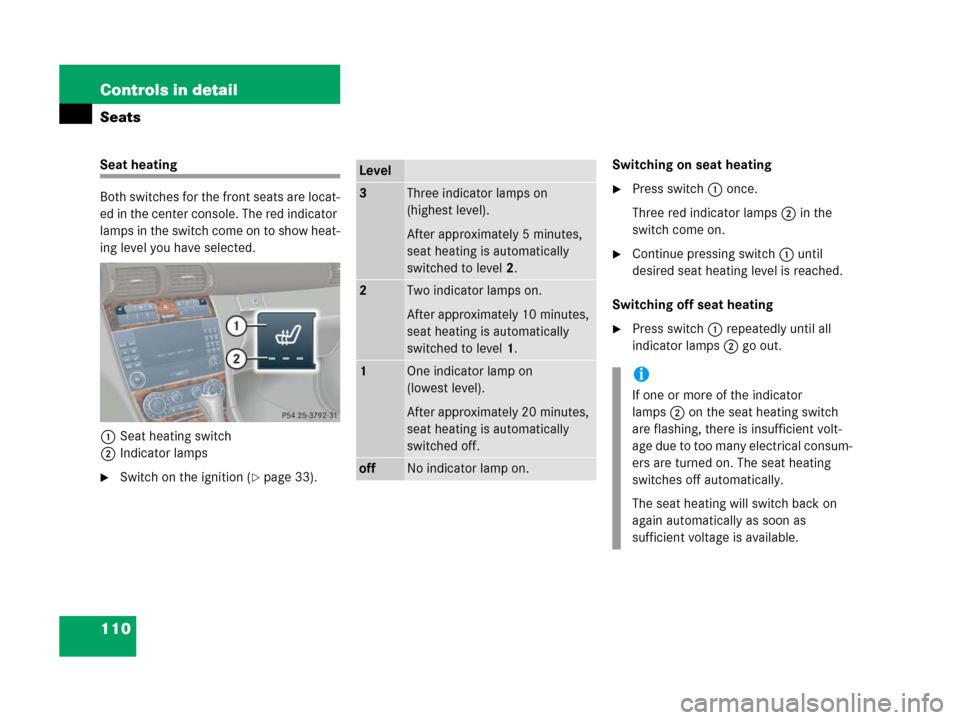

Seat heating
Both switches for the front seats are locat-
ed in the center console. The red indicator
lamps in the switch come on to show heat-
ing level you have selected.
1Seat heating switch
2Indicator lamps
Switch on the ignition (page 33).Switching on seat heating
Press switch1 once.
Three red indicator lamps2 in the
switch come on.
Continue pressing switch1 until
desired seat heating level is reached.
Switching off seat heating
Press switch1 repeatedly until all
indicator lamps2 go out.
Level
3Three indicator lamps on
(highest level).
After approximately 5 minutes,
seat heating is automatically
switched to level2.
2Two indicator lamps on.
After approximately 10 minutes,
seat heating is automatically
switched to level1.
1One indicator lamp on
(lowest level).
After approximately 20 minutes,
seat heating is automatically
switched off.
offNo indicator lamp on.
i
If one or more of the indicator
lamps2 on the seat heating switch
are flashing, there is insufficient volt-
age due to too many electrical consum-
ers are turned on. The seat heating
switches off automatically.
The seat heating will switch back on
again automatically as soon as
sufficient voltage is available.

111 Controls in detail
Memory function
Memory function
Prior to operating the vehicle, the driver
should check and adjust the seat height,
seat position fore and aft, and seat back-
rest angle if necessary, to ensure adequate
control, reach and comfort. The head re-
straint should also be adjusted for proper
height. See also the section on air bags
(
page 61) for proper seat positioning.
In addition, adjust the steering wheel to
ensure adequate control, reach, operation
and comfort. Both the interior and exterior
rear view mirrors should be adjusted for
adequate rear vision.
Fasten seat belts. Infants and small chil-
dren should be seated in a properly se-
cured restraint system that complies with
U.S. Federal Motor Vehicle Safety
Standards 213 and 225 and Canadian Mo-
tor Vehicle Safety Standards 213
and 210.2.With the memory function you can store up
to three different settings.
The following settings are stored for the
driver’s seat when using the buttons on the
driver’s door:

Driver’s seat, backrest and head
restraint position

Steering wheel position

Exterior rear view mirrorsThe following settings are stored for the
front passenger seat when using the but-
tons (if so equipped depending on vehicle
equipment configuration) on the passen-
ger door:

Front passenger seat, backrest and
head restraint position
Warning!G
Do not activate the memory function while
driving. Activating the memory function
while driving could cause the driver to lose
control of the vehicle.
