192 Controls in detail
Automatic climate control* (Canada only)
Deactivating
Press button, (page 185) again.
The indicator lamp on the button goes
out.Warning!G
Never operate the side windows and the
tilt/sliding sunroof if there is the possibility
of anyone being harmed by the closing
procedure.
In the event that the closing procedure
causes potential danger, the closing of the
side windows can be immediately halted by
pressing or pulling the respective window
switch. The closing of the tilt/sliding
sunroof can be immediately halted by
moving the tilt/sliding sunroof switch in the
overhead control panel in any direction.
The closing of the side windows and
tilt/sliding sunroof can be reversed by again
pressing and holding the button,.
i
Press and hold button, for approx.
2 seconds. The side windows and
tilt/sliding sunroof will close. You can
release button, once the closing
procedure has begun. The windows
and tilt/sliding sunroof continue clos-
ing until they are fully closed.
i
The air recirculation mode is deactivat-
ed automatically:

after 5 minutes if the outside tem-
perature is below
approximately 5°C (41°F)

after 5 minutes if the air condition-
ing is turned off

after 30 minutes if the outside tem-
perature is above approximately
5°C (41°F)

193 Controls in detail
Automatic climate control* (Canada only)
Charcoal filter
An activated charcoal filter markedly
reduces bad odors and removes pollutants
from air entering the passenger compart-
ment. The charcoal filter can be activated
or deactivated.
The system switches automatically to the
air recirculation mode, if the

charcoal filter is switched on

carbon monoxide (CO) or nitrogen
oxide (NO
X) concentration of the out-
side air increases beyond a predeter-
mined levelActivating
Press buttone (page 185).
The indicator lamp on the button
comes on.
i
Press and hold button, for approx.
2 seconds. The side windows and or
tilt/sliding sunroof will return to their
previous position. You can release
button, once the opening proce-
dure has begun. The windows and
tilt/sliding sunroof continue opening
until they have reached their previous
position.
A window or tilt/sliding sunroof will
only return to its previous position if it
has not been moved to another posi-
tion using the respective window
switch or tilt/sliding sunroof switch af-
ter it was closed with button,.
A window or tilt/sliding sunroof that
was moved will remain in its current po-
sition if button, i s u se d to re -ope n
the remaining windows or tilt/sliding
sunroof.
i
The automatic air recirculation mode
does not function if theA/C mode is
deactivated (indicator lamp on
button9 not lit), or if the
outside temperature has fallen
below 5°C (41°F).
i
The activated charcoal filter should be
switched off when windows fog up on
the inside, or if the passenger compart-
ment needs to be quickly heated or
cooled down.
i
The activated charcoal filter should be
switched off when windows fog up on
the inside, or if the passenger compart-
ment needs to be quickly heated or
cooled down.

194 Controls in detail
Automatic climate control* (Canada only)
Deactivating
Press buttone (page 185).
The indicator lamp on the button goes
out.
Air conditioning
The cooling function, only operational
when the engine is running, cools the vehi-
cle interior down to the selected tempera-
ture. The cooling function also
dehumidifies the air in the vehicle interior,
thus preventing the windows from fogging
up.
Warning!G
Never operate the side windows and the
tilt/sliding sunroof if there is the possibility
of anyone being harmed by the closing pro-
cedure.
In the event that the closing procedure
causes potential danger, the closing of the
side windows can be immediately halted by
pressing or pulling the respective window
switch. The closing of the tilt/sliding
sunroof can be immediately halted by
moving the tilt/sliding sunroof switch in the
overhead control panel in any direction.
The closing of the side windows and
tilt/sliding sunroof can be reversed by again
pressing and holding the buttone.
i
Press and hold buttone for approx.
2 seconds. The side windows and or
tilt/sliding sunroof will return to their
previous position. You can release
buttone once the opening proce-
dure has begun. The windows and
tilt/sliding sunroof continue opening
until they have reached their previous
position.
A window or tilt/sliding sunroof will
only return to its previous position if it
has not been moved to another posi-
tion using the respective window
switch or tilt/sliding sunroof switch af-
ter it was closed with buttone. A
window or tilt/sliding sunroof that was
moved will remain in its current posi-
tion if buttone is used to re-open
the remaining windows or tilt/sliding
sunroof.
i
Condensation may drip out from under-
neath the vehicle. This is normal and
not an indication of a malfunction.
Warning!G
If you turn off the cooling function, the
vehicle will not be cooled when weather
conditions are warm. The windows can fog
up more quickly. Window fogging may
impair visibility and endanger you and
others.

195 Controls in detail
Automatic climate control* (Canada only)
Deactivating
It is possible to deactivate the air condi-
tioning (cooling) function of the automatic
climate control system. The air in the
vehicle will then no longer be cooled or
dehumidified.
Press button9 (page 185).
The indicator lamp on the button goes
out.
The cooling function switches off after
a short delay.
Activating
Moist air can fog up the windows. You can
dehumidify the air with the air condi-
tioning.
Press button9 (page 185) again.
The indicator lamp on the button
comes on.The air conditioning uses the refrigerant
R134a. This refrigerant is free of CFCs
which are harmful to the ozone layer.
Residual heat and ventilation
With the engine switched off, it is possible
to continue to heat or ventilate the interior
for up to 30 minutes. This feature makes
use of the residual heat produced by the
engine.Activating
Switch off the ignition (page 33).
Press button9 (page 185).
The indicator lamp on the button
comes on.
!
If the air conditioning cannot be turned
on again, this indicates that the air
conditioning is losing refrigerant. The
compressor has turned itself off.
Have the air conditioning checked at
the nearest authorized Mercedes-Benz
Center.
i
How long the system will provide
heating depends on

the coolant temperature

the temperature set by the operator
The blower will run at speed setting 1
regardless of the air distribution
control setting.

196 Controls in detail
Automatic climate control* (Canada only)
Deactivating
Press button9 (page 185).
The indicator lamp on the button goes
out.
The residual heat is automatically turned
off:

when the ignition is switched on

after about 30 minutes

if the battery voltage drops
Rear passenger compartment
adjustable air vents
The air conditioning for the rear passenger
compartment is controlled via the auto-
matic climate control panel (
page 185).The air vents for the rear passenger
compartment are located in the rear
center console.
1Left center air vent
2Thumbwheel for air volume control for
center air vents
3Right center air ventAdjusting air distribution
Push the slide for the left center
vent1 or right center vent3 to the
left, right, up, or down.
The air flow is directed in the
corresponding direction.
Adjusting air volume
Turn thumbwheel2 up or down.
The air volume is increased or
decreased.
i
The temperature at the center air vents
for the rear passenger
compartment1 and3 i s t h e s a m e a s
at the dashboard center air vents.
i
For draft-free ventilation, push
slides1 and3 upward.

197 Controls in detail
Audio system
Audio system
Audio and telephone, operation
These instructions are intended to help
you become familiar with your
Mercedes-Benz audio system. They con-
tain useful tips and a detailed description
of the user functions.Operating safety
Warning!G
In order to avoid distraction which could
lead to an accident, the driver should enter
system settings with the vehicle at a
standstill and operate the system only when
road and traffic conditions permit. Always
pay full attention to traffic conditions first
before operating system controls while
driving.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your car is
covering a distance of 44 feet
(approximately 14 m) every second.
Warning!G
Any alterations made to electronic
components can cause malfunctions.
The radio, amplifier, CD changer*, satellite
radio* and telephone* are interconnected.
When one of the components is not opera-
tional or has not been removed/replaced
properly, the function of other components
may be impaired.
This condition might seriously impair the
operating safety of your vehicle.
We recommend that you have any service
work on electronic components carried out
by an authorized Mercedes-Benz Center.

198 Controls in detail
Audio system

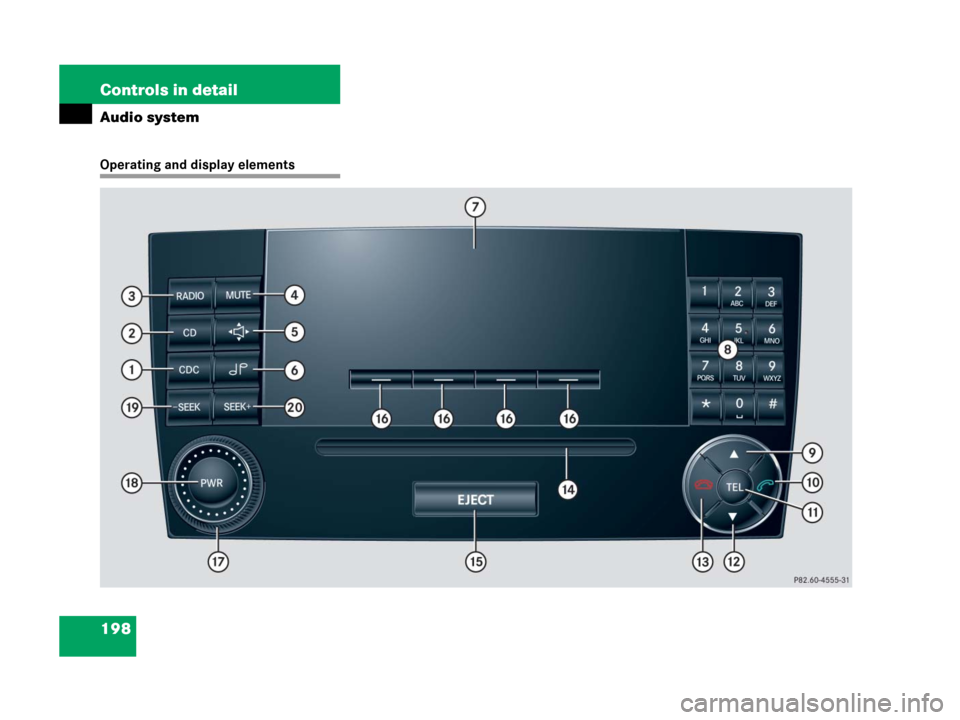

Operating and display elements

199 Controls in detail
Audio system
ItemPage
1CD changer mode selector
AUX mode selector214
205
2Single CD mode selector 218
3Radio mode selector
4Mute function (radio)208
Pause (CD)222
5Volume distribution203
6Sound settings201
7Display
8Alphanumeric keypad
ItemPage
9Speed dialing memory
(telephone) in descending
order
aAccepting a call
(telephone)227
bTelephone mode selector223
cSpeed dialing memory
(telephone) in ascending
order224
dTerminating a call
(telephone)228
eCD slot
fCD ejection218
ItemPage
gSoft keys200
hVolume201
jSwitching on/off200
kManual tuning/seek tuning
(radio)207
Track search, reverse (CD)221
lManual tuning/seek tuning
(radio)207
Track search,
fast forward (CD)221
