2006 MERCEDES-BENZ C55AMG child seat

Contents
Safety and Security........................... 59
Occupant safety................................... 60
Air bags .......................................... 61
Seat belts ....................................... 67
Active head restraint ...................... 71
Children in the vehicle .................... 72
Blocking of rear door window
operation ........................................ 80
Panic alarm* ........................................ 81
Activating ....................................... 81
Deactivating ................................... 81
Driving safety systems ......................... 82
ABS ................................................ 82
BAS ................................................ 84
ESP
®............................................... 84
Anti-theft systems................................ 88
Immobilizer..................................... 88
Anti-theft alarm system* ................ 88
Tow-away alarm* ........................... 90
Controls in detail............................... 93
Locking and unlocking ......................... 94
SmartKey ....................................... 94
Opening the doors from
the inside ....................................... 99
Opening the trunk .......................... 99
Closing the trunk.......................... 101
Trunk emergency release ............. 102
Valet locking ................................ 103
Automatic central locking ............ 103
Locking and unlocking from
the inside ..................................... 104
Seats ................................................. 106
Front seat active head restraints . 106
Rear seat head restraints ............. 106
Lumbar support*.......................... 109
Seat heating ................................. 110
Memory function ............................... 111
Storing positions into memory ..... 112
Recalling positions from memory . 112
Storing exterior rear view mirror
parking position ........................... 113Lighting ............................................. 114
Exterior lamp switch .................... 114
Combination switch ..................... 118
Hazard warning flasher ................ 119
Interior lighting ............................ 120
Door entry lamps ......................... 121
Trunk lamp ................................... 121
Instrument cluster ............................. 122
Instrument cluster illumination .... 122
Coolant temperature gauge ......... 123
Trip odometer .............................. 123
Tachometer .................................. 124
Outside temperature indicator ..... 124
Control system .................................. 125
Multifunction display.................... 125
Multifunction steering wheel........ 126
Menus .......................................... 128
Standard display menu ................ 130
AUDIO menu ................................ 131
NAV* menu .................................. 134
Vehicle status message memory
menu............................................ 134
Settings menu .............................. 135
Trip computer menu..................... 150
TEL menu* ................................... 152

33 Getting started
Unlocking
Starter switch positions SmartKey
Starter switch
0For removing SmartKey
The steering is locked when the
SmartKey is removed from the starter
switch.
1Power supply for some electrical
consumers, such as seat adjustment2Ignition (power supply for all electrical
consumers) and driving position.
All lamps (except low beam headlamp
indicator lamp, high beam headlamp in-
dicator lamp, and turn signal indicator
lamps unless activated) in the instru-
ment cluster come on. If a lamp in the
instrument cluster fails to come on
when the ignition is switched on, have
it checked and replaced if necessary. If
a lamp in the instrument cluster re-
mains on after starting the engine or
comes on while driving, refer to “Lamps
in instrument cluster” (page 350).
3Starting position
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.

35 Getting started
Adjusting
Adjusting
Seats
The seats can be adjusted electrically.
For more information, see “Seats”
(
page 106).
Warning!G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.
Warning!G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
back in an excessively reclined position as
this can be dangerous. You could slide un-
der the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
fatal injuries. The seat back and seat belts
provide the best restraint when the wearer
is in a nearly upright position and belts are
properly positioned on the body. Your seat
must be adjusted so that you can correctly
fasten your seat belt (
page 42).
Never place hands under the seat or near
any moving parts while a seat is being
adjusted.
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle.
Even with the SmartKey removed from the
starter switch, the power seats* can be
operated when the respective door is open.
Therefore, do not leave children unattended
in the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury.

36 Getting started
Adjusting
Power seat adjustment
The seat adjustment switches are located
on the respective front door.
1Head restraint height
2Seat height
3Seat cushion tilt
4Seat fore and aft adjustment
5Seat backrest tilt
Switch on the ignition (page 33).
or
Open the respective door.
Seat fore and aft adjustment
Press switch forward or backward in
direction of arrow4.
Adjust seat to a comfortable seating
position that still allows you to reach
the accelerator/brake pedal safely.
The position should be as far rearward
as possible, consistent with ability to
properly operate controls.
Warning!G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriate infant, or toddler restraint, or
booster seat recommended for the size and
weight of the child. For additional
information, see “Children in the vehicle”
(
page 72).
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle
and/or the child is not properly secured in
the child restraint.
!
When moving the seats, make sure
there are no items in the footwell or
behind the seat. Otherwise you could
damage the seats.
i
The memory function (page 111) lets
you store the settings for the power
seat, the steering wheel adjustment
and the exterior rear view mirrors.

38 Getting started
Adjusting
Steering wheel Steering wheel adjustment, electrical
The lever for the electrical steering wheel
adjustment is located on the lower left of
the steering column.
1Adjusting steering column, in or out
2Adjusting steering column, up or down
Switch on the ignition (page 33).
or
Open the driver’s door.Adjusting steering column in or out
Move the lever in direction of
arrows1 until a comfortable steering
wheel position is reached with your
arms slightly bent at the elbow.
Adjusting steering column up or down
Move the lever in direction of
arrows2.
Make sure your legs can move freely
and that all the displays (including mal-
function and indicator lamps) on the in-
strument cluster are clearly visible.
Warning!G
Do not adjust the steering wheel while
driving. Adjusting the steering wheel while
driving, or driving without the steering wheel
adjustment feature locked could cause the
driver to lose control of the vehicle.
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle.
Even with the SmartKey removed from the
starter switch, the electrical steering wheel
adjustment feature* can be operated when
the driver’s door is open. Therefore, do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
i
The memory function (page 111) lets
you store the settings for the power
seat, the steering wheel adjustment
and the exterior rear view mirrors.

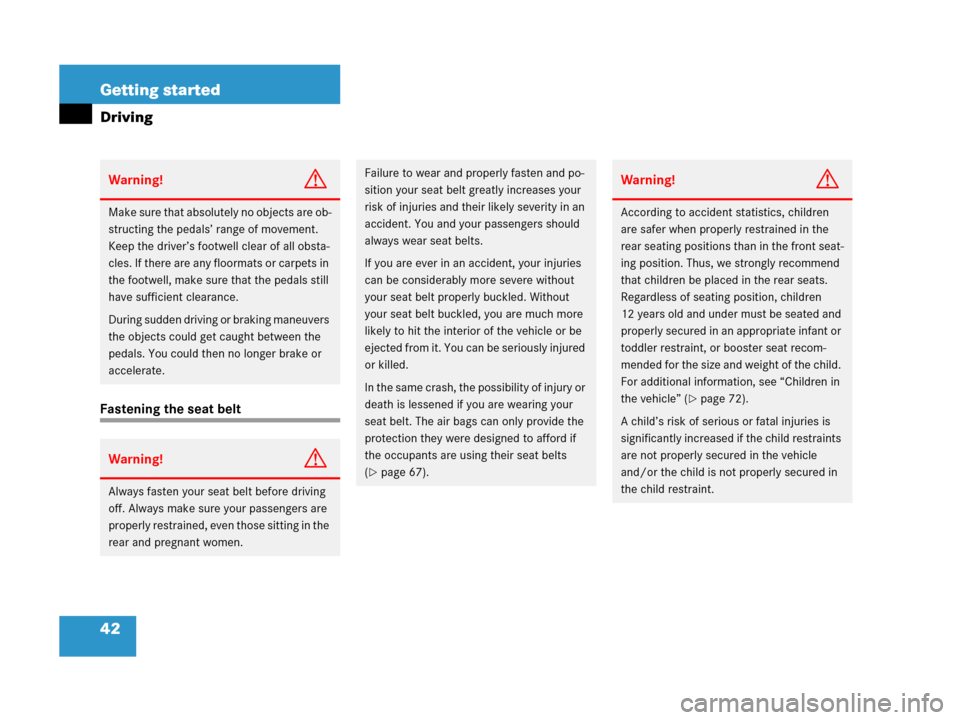

42 Getting started
Driving
Fastening the seat belt
Warning!G
Make sure that absolutely no objects are ob-
structing the pedals’ range of movement.
Keep the driver’s footwell clear of all obsta-
cles. If there are any floormats or carpets in
the footwell, make sure that the pedals still
have sufficient clearance.
During sudden driving or braking maneuvers
the objects could get caught between the
pedals. You could then no longer brake or
accelerate.
Warning!G
Always fasten your seat belt before driving
off. Always make sure your passengers are
properly restrained, even those sitting in the
rear and pregnant women.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passengers should
always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are wearing your
seat belt. The air bags can only provide the
protection they were designed to afford if
the occupants are using their seat belts
(
page 67).
Warning!G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats.
Regardless of seating position, children
12 years old and under must be seated and
properly secured in an appropriate infant or
toddler restraint, or booster seat recom-
mended for the size and weight of the child.
For additional information, see “Children in
the vehicle” (
page 72).
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle
and/or the child is not properly secured in
the child restraint.

44 Getting started
Driving
Belt outlet height adjustment
1Release button
Press release button1 and move the
seat belt height adjuster upward or
downward.Proper use of seat belts

Do not twist the seat belt when fasten-
ing.

Adjust seat belt so that the shoulder
portion is located as close as possible
to the middle of the shoulder (it should
not touch the neck). Never pass the
shoulder portion of the belt under your
arm. For this purpose, you can adjust
the height of the belt outlet.

Position the lap belt as low as possible
on your hips (over hip joint) and not
across the abdomen.

Place the seat backrest in a nearly
upright position.

Never use a seat belt for more than one
person at a time.

Do not fasten a seat belt around a
person and another object at the same
time.

W he n us ing a s ea t b el t to s ec ure i nfa nt
or toddler restraints or children in
booster seats, always follow the child
seat manufacturer’s instructions.

Check your seat belt during travel to
make sure that it is properly posi-
tioned.

Make sure that the seat belt is always
fitted snugly. Take special care of this
when wearing loose clothing.

56 Getting started
Parking and locking
Turning off engine
Place the gear selector lever in
positionP.
Turn the SmartKey in the starter switch
to position0.
Remove the SmartKey from the starter
switch.
The immobilizer is activated.
Releasing seat belts
Press the seat belt release button
(
page 43).
Allow the retractor to completely
rewind the seat belt by guiding the
latch plate.
Locking
i
Always set the parking brake in addi-
tion to shifting to positionP.
On slopes, turn the front wheels
towards the road curb.
i
The SmartKey can only be removed
from the starter switch with the gear
selector lever in positionP.
!
M a k e s u r e t h e s e a t b e l t r e t r a c t s f u l l y s o
that the seat belt and/or latch plate
cannot get caught or pinched in the
door or in the seat mechanism. This
can damage the seat belt and impair
the effectiveness of the seat belt,
and/or cause damage to the door
and/or door trim panel. Such damage
is not covered by the Mercedes-Benz
Limited Warranty.
Damaged seat belts must be replaced.
Contact an authorized Mercedes-Benz
Center.
Warning!G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.
