OCCUPANT RESTRAINT SYSTEMS
180
In the following cases, contact your Lexus dealer as soon as
possible:
The SRS front airbags have been inflated.
 The front of the vehicle (shaded in the illustration) was
involved in an accident that was not severe enough to cause
the SRS front airbags to inflate.
The pad section of the steering wheel, dashboard, lower
portion of instrument or front passenger airbag cover
(shaded in the illustration) is scratched, cracked, or
otherwise damaged.
NOTICE
Do not disconnect the battery cables before contacting
your Lexus dealer.

OCCUPANT RESTRAINT SYSTEMS
181
SRS SIDE AIRBAGS AND CURTAINSHIELD AIRBAGS
1Curtain shield airbag2Side airbag
The SRS (Supplemental Restraint System) side airbags
and curtain shield airbags are designed to provide further
protection for the driver, front passenger and rear
outboard passengers in addition to the primary safety
protection provided by the seat belts. In response to a severe side impact, the SRS side airbags and
curtain shield airbags work with the seat belts to help reduce
injury by inflating. The SRS side airbags help reduce injuries
mainly to the driver’s or front passenger’s torso and the SRS
curtain shield airbags help reduce injuries mainly to the
driver’s,
front passenger’s or rear outboard passenger’s head.
The SRS side airbag on the passenger seat will not activate if
there is no passenger sitting in the front passenger seat.
However, the side airbag on the passenger seat may deploy if
luggage is put in the seat, or the seat belt is buckled up
regardless of the presence of the occupant in the seat. (As for
the front passenger occupa nt classification system, see “Front
passenger occupant classification system” on page 193.)
Roll sensing function:
In response to a vehicle rollover, the curtain shield airbags on
both sides work with the seat belts to help reduce injury by
inflating. The curtain sh ield airbags help reduce injuries mainly
to the driver’s, front passenger’s or rear passenger’s head and
help prevent them from being thrown out of the vehicle.
The SRS curtain shield airbag on the passenger side is
activated even with no passenger in the front seat or rear
outboard seat.
The SRS curtain shield airbags may activate even when the
side airbags are not activated.
Always wear your seat belt properly.

OCCUPANT RESTRAINT SYSTEMS
182

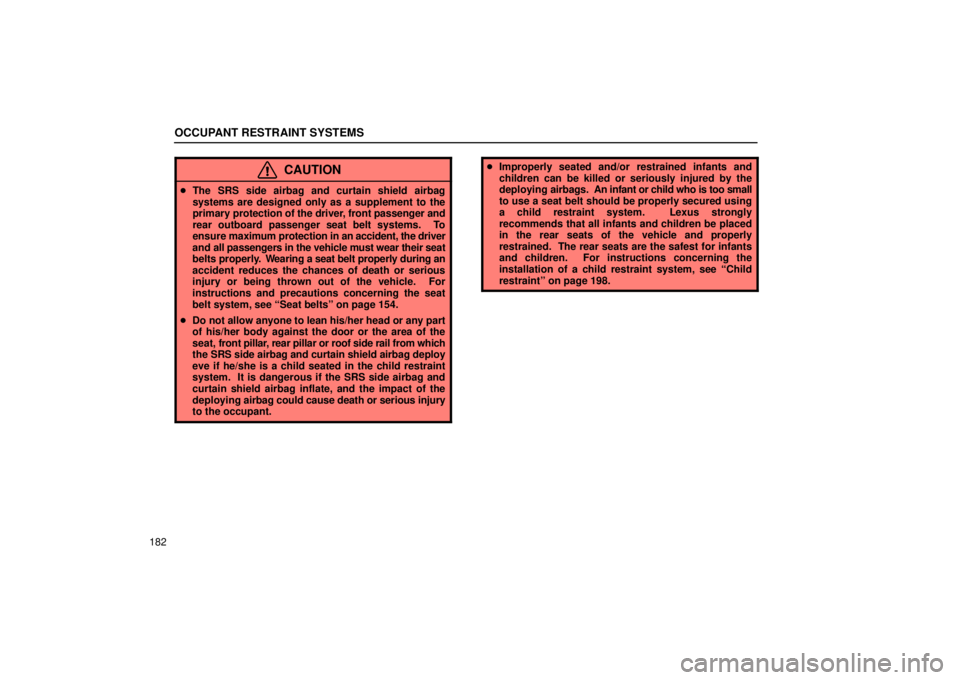

CAUTION
The SRS side airbag and curtain shield airbag
systems are designed only as a supplement to the
primary protection of the driver, front passenger and
rear outboard passenger seat belt systems. To
ensure maximum protection in an accident, the driver
and all passengers in the vehicle must wear their seat
belts properly. Wearing a seat belt properly during an
accident reduces the chances of death or serious
injury or being thrown out of the vehicle. For
instructions and precautions concerning the seat
belt system, see “Seat belts” on page 154.
 Do not allow anyone to lean his/her head or any part
of his/her body against the door or the area of the
seat, front pillar, rear pillar or roof side rail from which
the SRS side airbag and curtain shield airbag deploy
eve if he/she is a child seated in the child restraint
system. It is dangerous if the SRS side airbag and
curtain shield airbag inflate, and the impact of the
deploying airbag could cause death or serious injury
to the occupant.
 Improperly seated and/or restrained infants and
children can be killed or seriously injured by the
deploying airbags. An infant or child who is too small
to use a seat belt should be properly secured using
a child restraint system. Lexus strongly
recommends that all infants and children be placed
in the rear seats of the vehicle and properly
restrained. The rear seats are the safest for infants
and children. For instructions concerning the
installation of a child restraint system, see “Child
restraint” on page 198.

OCCUPANT RESTRAINT SYSTEMS
183

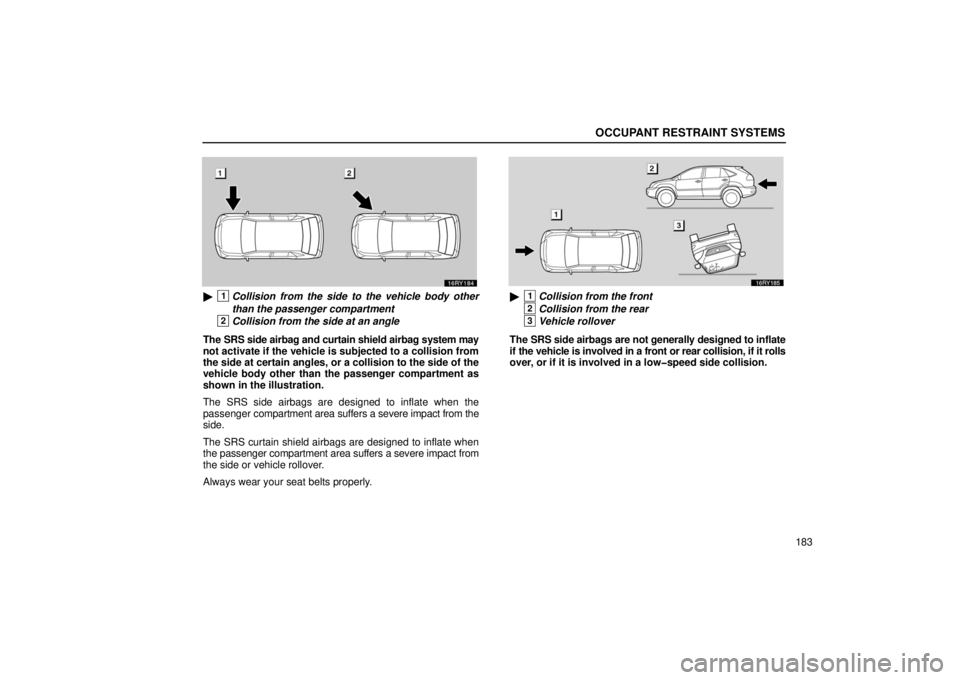

1Collision from the side to the vehicle body other
than the passenger compartment
2Collision from the side at an angle
The SRS side airbag and curtain shield airbag system may
not activate if the vehicle is subjected to a collision from
the side at certain angles, or a collision to the side of the
vehicle body other than the passenger compartment as
shown in the illustration.
The SRS side airbags are designed to inflate when the
passenger compartment area suffers a severe impact from the
side.
The SRS curtain shield airbags are designed to inflate when
the passenger compartment area suffers a severe impact from
the side or vehicle rollover.
Always wear your seat belts properly.
1Collision from the front
2Collision from the rear
3Vehicle rollover
The SRS side airbags are not generally designed to inflate
if the vehicle is involved in a front or rear collision, if it rolls
over, or if it is involved in a lowspeed side collision.

OCCUPANT RESTRAINT SYSTEMS
184
1The angle of vehicle tipup is marginal
2Skidding vehicle hitting a curb stone
The SRS curtain shield airbags may inflate if the angle of
vehicle tipup is marginal or if the skidding vehicle’s tires
hit a curb stone laterally as shown in the illustration.
1Collision from the front
2Collision from the rear
3Pitching end over end
The SRS curtain shield airbags are not designed to inflate
if the vehicle is involved in a front or rear collision, if it
pitches end over end, or if it is involved in a lowspeed
side collision.

OCCUPANT RESTRAINT SYSTEMS
185
1Hitting a curb, edge of pavement or hard surface
2Falling into or jumping over a deep hole
3Landing hard or vehicle falling
The SRS side and curtain shield airbags may inflate if a
serious impact occurs to the underside of your vehicle.
Some examples are shown in the illustration.

OCCUPANT RESTRAINT SYSTEMS
186
1Curtain shield airbag modules (airbag and inflater)
2Side airbag modules (airbag and inflator)
3Front passenger occupant classification system
(ECU and sensors)
4“AIRBAG ON” and “AIRBAG OFF” indicator lights
5SRS warning light
6Curtain shield airbag sensor assemblies
7Side and curtain shield airbag sensor assemblies
8Airbag sensor assembly
9Front passenger’s seat belt buckle switch
The SRS side airbag and curtain shield airbag system consists
mainly of the above components, and their locations are shown
in the illustration.
The SRS side airbag and curtain shield airbag system is
controlled by the airbag sensor assembly. The airbag sensor
assembly consists of a safing sensor and airbag sensor.
In a severe side impact, the side and curtain shield airbag
sensor and/or the curtain shield airbag sensor trigger(s) the
side airbag inflators and/or the curtain shield airbag inflators.
At this time a chemical reaction in the inflators quickly fills the
airbags with non −toxic gas to help restrain the lateral motion
of the occupants.
In a vehicle rollover, the airbag sensor assembly triggers the
curtain shield airbag inflator. At this time, a chemical reaction
in the inflators quickly fills the airbags with non −toxic gas to
help restrain the lateral motion of the occupants. When the airbags inflate, they produce a fairly loud noise and
release some smoke and residue along with non
−toxic gas.
This does not indicate a fire. This smoke may remain inside the
vehicle for some time, and may cause some minor irritation to
the eyes, skin or breathing. Be sure to wash off any residue as
soon as possible to prevent any potential skin irritation with
soap and water. If you can safely exit from the vehicle, you
should do so immediately.
Deployment of the airbags happens in a fraction of a second,
so the airbags must inflate with considerable force. While the
system is designed to reduce se rious injuries, it may also
cause minor burns or abrasions and swelling.
Front seats as well as parts of the front and rear pillars, and roof
side rail may be hot for several minutes, but the airbags
themselves will not be hot. The airbags are designed to inflate
only once.
CAUTION
SRS side airbags and curtain shield airbags inflate with
considerable force. To reduce the possibility of death
or serious injury when they inflate, the driver, front
passenger and rear outboard passengers must:
 Wear their seat belts properly.
 Remain properly seated with their backs upright and
against the seats at all times.

OCCUPANT RESTRAINT SYSTEMS
187
Do not allow anyone to lean against the door when
the vehicle is in use, since the side airbag and curtain
shield airbag could inflate with considerable speed
and force. Otherwise, he/she may be killed or
seriously injured. Special care should be taken
especially when you have a small child in the vehicle.
 Sit up straight and well back in the seat, distributing
your weight evenly in the seat. Do not apply
excessive weight to the outer side of the seats with a
side airbag and to the front pillar, rear pillar and roof
side rail with a curtain shield airbag.Do not get allow anyone to get his/her head closer to
the area where the side airbag and curtain shield
airbag inflate, since these airbags could inflate with
considerable speed and force. Otherwise, he/she
may be killed or seriously injured. Special care
should be taken especially when you have a small
child in the vehicle.
 Do not allow anyone to kneel on the passenger seat,
facing the passenger’s side door, since the side
airbag and curtain shield airbag could inflate with
considerable speed and force. Otherwise, he/she
may be killed or seriously injured. Special care
should be taken especially when you have a small
child in the vehicle.
