2006 LEXUS RX330 child seat

IMPORTANT INFORMATION ABOUT YOUR LEXUS
iii
IMPORTANT INFORMATIONABOUT YOUR LEXUS
Occupant restraint systems
Lexus encourages you and your family to take the time to read
Section 1 −6 of this Owner’s Manual carefully. In terms of
helping you understand how you can receive the maximum
benefit of the occupant restraint systems this vehicle provides,
Section 1 −6 of this Owner’s Manual is the most important
Section for you and your family to read.
Section 1 −6 describes the function and operation concerning
seats, seat belts, SRS airbags and child restraint systems of
this vehicle and some potential hazards you should be aware
of. These systems work together along with the overall
structure of this vehicle in order to provide occupant restraint
in the event of a crash. The effect of each system is enhanced
when it is used properly and together with other systems. No
single occupant restraint system can, by itself, provide you or
your family with the equal level of restraint which these
systems can provide when used together. That is why it is
important for you and your family to understand the purpose
and proper use of each of these systems and how they relate
to each other. The purpose of all occupant
restraint systems is to help reduce
the possibility of death or serious injury in the event of a
collision. None of these systems, either individually or
together, can ensure that there is no injury in the event of
collision. However, the more you know about these systems
and how to use them properly, the greater your chances
become of surviving an acci dent without death or serious
injury.
Seat belts provide the primary restraint to all occupants of the
vehicle, and every occupant of the vehicle should wear seat
belts properly at all times. Children should always be secured
in child restraint systems that are appropriate for their age and
size. SRS (Supplemental Restraint System) airbags are, as
their names imply, designed to work with, and be supplemental
to, seat belts and are not substitutes for them. SRS airbags
can be very effective in reducing the risk of head, chest and
knee injuries by preventing contact of the head, chest and knee
with interior portions of the vehicle.
In order to be effective, the SRS airbags must deploy with
tremendous speed. The rapid deployment of the SRS airbags
makes the SRS airbags themselves potential sources of
serious injury if an occupant is too close to an airbag, or if an
object or some part of his or her body has been placed between
the occupant and the airbag at the time of deployment. This
is just one example of how the instructions in Section 1 −6 of
this Owner’s Manual will help ensure proper use of the
occupant restraint systems, and increase the safety they can
provide to you and your family in the event of an accident.
Lexus recommends you to read the provisions in Section 1− 6
carefully and refer to them as needed during your time of
ownership of this vehicle.

KEYS AND DOORS
28
Locking with inside lock button
1Lock2 Unlock
Push the button forward to lock and pull the button
backward to unlock.
The front doors can be opened by pulling the inside handles
even if the lock buttons are in the locked position.
CAUTION
Do not pull the inside handle of the front doors while
driving. The doors will open and an accident may occur.
Lexus strongly recommends that all children be placed
in the rear seat of the vehicle.
Closing the door with the lock button pushed in will also lock the
door. Be careful not to lock your keys in the vehicle. Doors
cannot be locked when either front door is open and the key is
in the ignition.
If the vehicle is subjected to a severe frontal, rear or side impact
with the ignition switch turned to the “ON” position, all the side
doors and back door will unlock automatically after a few
seconds.
CAUTION
Before driving, make sure the doors are closed and
locked, especially when small children are in the
vehicle. Along with the proper use of seat belts, locking
the doors helps prevent the driver and passengers from
being thrown out from the vehicle in an accident. It also
helps prevent the doors from being opened
unintentionally.

SWITCHES
68To turn off
the seat heater, turn the knob counterclockwise until
it stops.
Push the knob into the recessed position when not in use.
CAUTION
Occupants must use caution when operating the seat
heater because they may experience minor burns even
at low temperatures. Use extra caution for;
 Babies, small children, elderly persons, sick persons
or persons with physical disabilities
 Persons who have sensitive skin
 Persons who are exhausted
 Persons who have taken alcohol or drugs which
induce sleep (sleeping drug, cold remedy, etc.).
To prevent the seat from overheating, do not use the
seat heater with a blanket, cushion, or other insulating
objects which cover the seat.
NOTICE
 Do not put unevenly weighted obje cts on the seat and
do not stick sharp objects (needles, nails, etc.) into
the seat.
 When cleaning the seats, do not use organic
substances (paint thinner, benzine, alcohol,
gasoline, etc.). They may damage the heater and seat
surface.
 To prevent the battery from being discharged, turn
the switch off when the engine is not running.

SECTION 1 – 6
139
INSTRUMENTS AND CONTROLS
Occupant restraint systems
Seats140
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . .
Front seats 140
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Rear seats 148
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Armrests 151
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Head restraints 152
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Seat belts 154
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
SRS driver airbags and front passenger airbag 170
. . . . . . . . . . . . . . .
SRS side airbags and curtain shield airbags 181
. . . . . . . . . . . . . . . . .
Front passenger occupant classification system 193
. . . . . . . . . . . . . .
Child restraint 198
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Driving position memory system 224
. . . . . . . . . . . . . . . . . . . . . . . . . . .

OCCUPANT RESTRAINT SYSTEMS
154
SEAT BELTS
Seat belt precautions
Lexus strongly urges that the driver and passengers in the
vehicle be properly restrained at all times with the seat belts
provided. Failure to do so could increase the chance of injury
and/or the severity of injury in accidents.
The seat belts provided for your vehicle are designed for
people of adult size, large enough to properly wear them.
Child. Use a child restraint system appropriate for the child
until the child becomes large enough to properly wear the
vehicle’s seat belts. See “Child restraint” on page 198 for
details.
If a child is too large for a child restraint system, the child should
sit in the rear seat and must be restrained using the vehicle’s
seat belt. According to accident statistics, the child is safer
when properly restrained in the rear seat than in the front seat.If a child must sit in the front seat, the seat belts should be worn
properly. If an accident occurs and the seat belts are not worn
properly,
the force of the rapid inflation of the airbag may cause
death or serious injury to the child.
Do not allow any children to stand up or kneel on either rear or
front seats. An unrestrained child could suffer serious injury or
death during emergency braking or a collision. Also, do not let
the child sit on your lap. Holding a child in your arms does not
provide sufficient restraint.
Pregnant woman. Lexus recommends the use of a seat belt.
Ask your doctor for specific recommendations. The lap belt
should be worn securely and as low as possible over the hips
and not on the waist.
Injured person. Lexus recommends the use of a seat belt.
Depending on the injury, first check with your doctor for specific
recommendations.

OCCUPANT RESTRAINT SYSTEMS
155

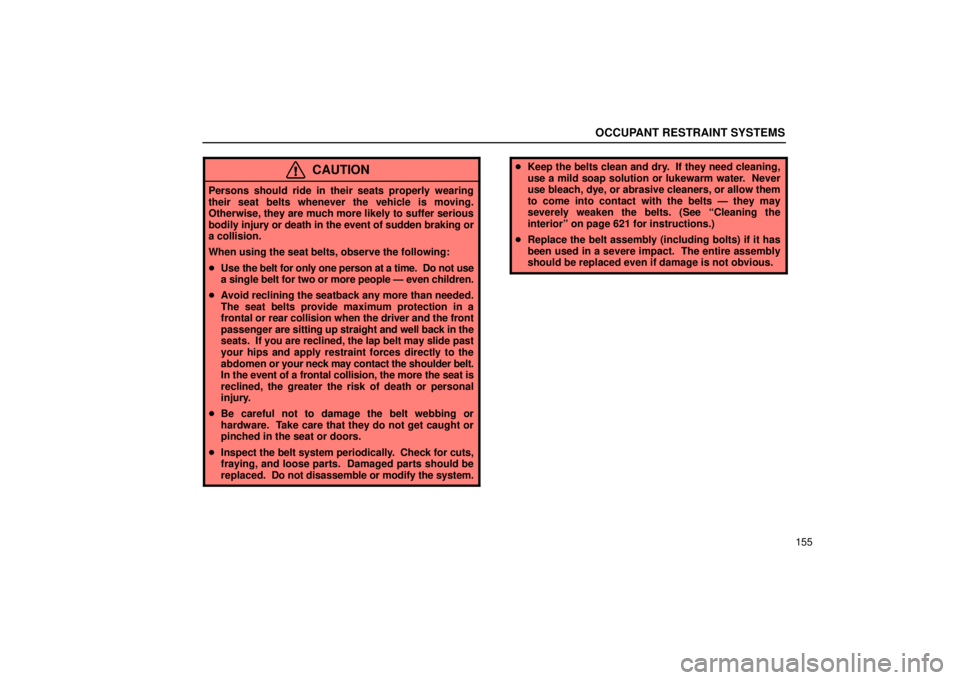

CAUTION
Persons should ride in their seats properly wearing
their seat belts whenever the vehicle is moving.
Otherwise, they are much more likely to suffer serious
bodily injury or death in the event of sudden braking or
a collision.
When using the seat belts, observe the following:
Use the belt for only one person at a time. Do not use
a single belt for two or more people — even children.
 Avoid reclining the seatback any more than needed.
The seat belts provide maximum protection in a
frontal or rear collision when the driver and the front
passenger are sitting up straight and well back in the
seats. If you are reclined, the lap belt may slide past
your hips and apply restraint forces directly to the
abdomen or your neck may contact the shoulder belt.
In the event of a frontal collision, the more the seat is
reclined, the greater the risk of death or personal
injury.
 Be careful not to damage the belt webbing or
hardware. Take care that they do not get caught or
pinched in the seat or doors.
 Inspect the belt system periodically. Check for cuts,
fraying, and loose parts. Damaged parts should be
replaced. Do not disassemble or modify the system.
 Keep the belts clean and dry. If they need cleaning,
use a mild soap solution or lukewarm water. Never
use bleach, dye, or abrasive cleaners, or allow them
to come into contact with the belts — they may
severely weaken the belts. (See “Cleaning the
interior” on page 621 for instructions.)
 Replace the belt assembly (including bolts) if it has
been used in a severe impact. The entire assembly
should be replaced even if damage is not obvious.

OCCUPANT RESTRAINT SYSTEMS
156
Fastening front and rear seat belts
Adjust the seat as needed and sit up straight and well back
in the seat. To fasten your belt, pull it out of the retractor
and insert the tab into the buckle.
You will hear a click when the tab locks into the buckle.
The seat belt length automatically adjusts to your size and the
seat position.
The retractor will lock the belt during a sudden stop or on
impact. It also may lock if you lean forward too quickly. A slow,
easy motion will allow the belt to extend, and you can move
around freely. When a rear passenger’s seat belt is
completely extended and
is then retracted even slightly, the belt is locked in that position
and cannot be extended. This feature is used to hold the child
restraint system securely. (For details, see “Child restraint” on
page 198.) To free the belt again, fully retract the belt and then
pull the belt out once more.
If the seat belt cannot be pulled out of the retractor, firmly pull
the belt and release it. You will then be able to smoothly pull
the belt out of the retractor.
CAUTION
 After inserting the tab, make sure the tab and buckle
are locked and that the belt is not twisted.
 Do not insert coins, clips, etc. in the buckle as this
may prevent you from properly latching the tab and
buckle.
 If the seat belt does not function normally,
immediately contact your Lexus dealer. Do not use
the seat until the seat belt is fixed, because it cannot
protect an adult occupant or your child from death or
serious injury.

OCCUPANT RESTRAINT SYSTEMS
159

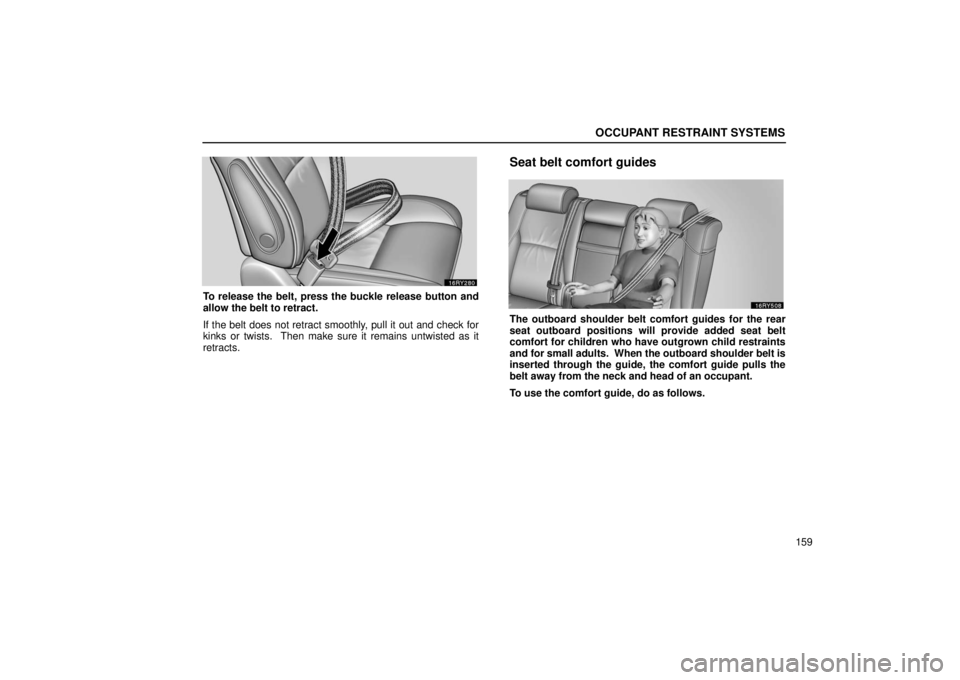

To release the belt, press the buckle release button and
allow the belt to retract.
If the belt does not retract smoothly, pull it out and check for
kinks or twists. Then make sure it remains untwisted as it
retracts.
Seat belt comfort guides
The outboard shoulder belt comfort guides for the rear
seat outboard positions will provide added seat belt
comfort for children who have outgrown child restraints
and for small adults. When the outboard shoulder belt is
inserted through the guide, the comfort guide pulls the
belt away from the neck and head of an occupant.
To use the comfort guide, do as follows.
