2006 LEXUS RX330 Owners Manual

OCCUPANT RESTRAINT SYSTEMS
204
CAUTION
After inserting the tab, make sure the tab and buckle
are locked and that the lap and shoulder portions of
the belt are not twisted.
 Do not insert coins, clips, etc. in the buckle as this
may prevent your child from properly latching the tab
and buckle.
 If the seat belt does not function normally, it cannot
protect your child from death or serious injury.
Contact your Lexus dealer immediately. Do not
install the child restraint system on the seat until the
seat belt is fixed.
2. Fully extend the shoulder belt to put it in the lock mode.
When the belt is then retracted even slightly, it cannot be
extended.
To hold the infant seat securely, make sure the belt is in the lock
mode before letting the belt retract.

OCCUPANT RESTRAINT SYSTEMS
205
3. While pressing the infant seat firmly against the seat
cushion and seatback, let the shoulder belt retract as far as it
will go to hold the infant seat securely.
CAUTION
Push and pull the child restraint system in different
directions to be sure it is secure. Follow all the
installation instructions provided by its manufacturer.

OCCUPANT RESTRAINT SYSTEMS
206
4. To remove the infant seat, press the buckle release button
and allow the belt to retract completely. The belt will move
freely again and be ready to work for an adult or older child
passenger.(B) Convertible seat installation
A convertible seat must be used in forwardfacing or
rearfacing
position depending on the age and size of the
child. When installing, follow the manufacturer’s
instructions about the appropriate age and size of the
child as well as directions for installing the child restraint
system.
Install the child restraint system on the front passenger seat
only when it is unavoidable. Your vehicle is equipped with a
front passenger occupant classification system. In order to
activate the occupant classification system correctly, install the
forward−facing child restraint system on the front passenger
seat in the following order:
1. Turn the ignition key to the “ON” position.
2. Move the front passenger seat to the rearward position.
3. Put the child restraint system on the front passenger seat
without putting your weight on the front passenger seat.
4. Insert the seat belt tab into the seat belt buckle.

OCCUPANT RESTRAINT SYSTEMS
207
5. Fully extend the shoulder belt to put it in the lock mode.
When the belt is then retracted even slightly, it cannot be
extended. To hold the seat securely, make sure the belt is in
the lock mode before letting the belt retract.
6. While pressing the convertible seat firmly against the seat
cushion and seatback, let the shoulder belt retract as far as it
will go to hold the convertible seat securely.
CAUTION
Push and pull the child restraint system in different
directions to be sure it is secure. Follow all the
installation instructions provided by its manufacturer.
7. Put a child on the child restraint system and secure the child,
complying with the instructions provided by the child restraint
system manufacturer.
The “AIRBAG OFF” indicator light is illuminated when the
ignition
key is “ON” and the child is in the child restraint system
after following these procedures. The “AIRBAG OFF” indicator
light indicates the SRS front passenger airbag and side airbag
on the passenger side will not deploy. If the “AIRBAG ON”
indicator light is illuminated, remove the child restraint system
and reinstall it with the ignition key in the “ACC” or “LOCK”
position. If the indicator light is not illuminated when the ignition
key is turned to the “ON” position, then the SRS front
passenger airbag and side airbag on the passenger side may
deploy in an accident. Do not drive the vehicle in this condition.
Remove the child restraint system and contact your Lexus
dealer.
CAUTION
When it is unavoidable to install the forwardfacing
child restraint system on the front passenger seat,
install the child restraint system on the front passenger
seat in the proper order. Otherwise, the front passenger
occupant classification system can not detect the
presence of the child restraint system and the front
passenger airbag and side airbag on the front
passenger seat could deploy.

OCCUPANT RESTRAINT SYSTEMS
208
Never install a rearfacing child restraint system on
the front passenger seat even if the “AIRBAG OFF”
indicator light is illuminated. In the event of an
accident the force of the rapid inflation of the front
passenger airbag can cause death or serious injury
to the child if the rearfacing child restraint system is
installed on the front passenger seat. Move seat fully back
A forwardfacing child restraint system should be
allowed to be installed on the front passenger seat
only when it is unavoidable. Always move the seat as
far back as possible even if the “AIRBAG OFF”
indicator light is illuminated, because the front
passenger airbag inflate with considerable speed
and force. Otherwise, the child may be killed or
seriously injured.

OCCUPANT RESTRAINT SYSTEMS
209
On vehicles with side airbags and curtain shield
airbags, do not allow the child to lean his/her head or
any part of his/her body against the door or the area
of the seat, front or rear pillar, or roof side rail from
which the side airbags or curtain shield airbags
deploy even if the child is seated in the child restraint
system. It is dangerous if the side airbag and/or
curtain shield airbag inflate, and the impact could
cause death or serious injury to the child.
 If the driver’s seat position does not allow sufficient
space for safe installation, install the child restraint
system on the rear right seat. Child restraint system
installed on the rear seat should not contact the front
seatbacks.

OCCUPANT RESTRAINT SYSTEMS
210
1Same position2Same angle
When installing a child restraint system in the rear
center position, adjust both seat cushions to the
same position and align both seatbacks at the same
angle. Otherwise, the child restraint system cannot
be securely restrained and this may cause death or
serious injuries in a collision.
1. Run the lap and shoulder belt through or around the
convertible seat following the instructions provided by its
manufacturer and insert the tab into the buckle taking care not
to twist the belt. Keep the lap portion of the belt tight.

OCCUPANT RESTRAINT SYSTEMS
211

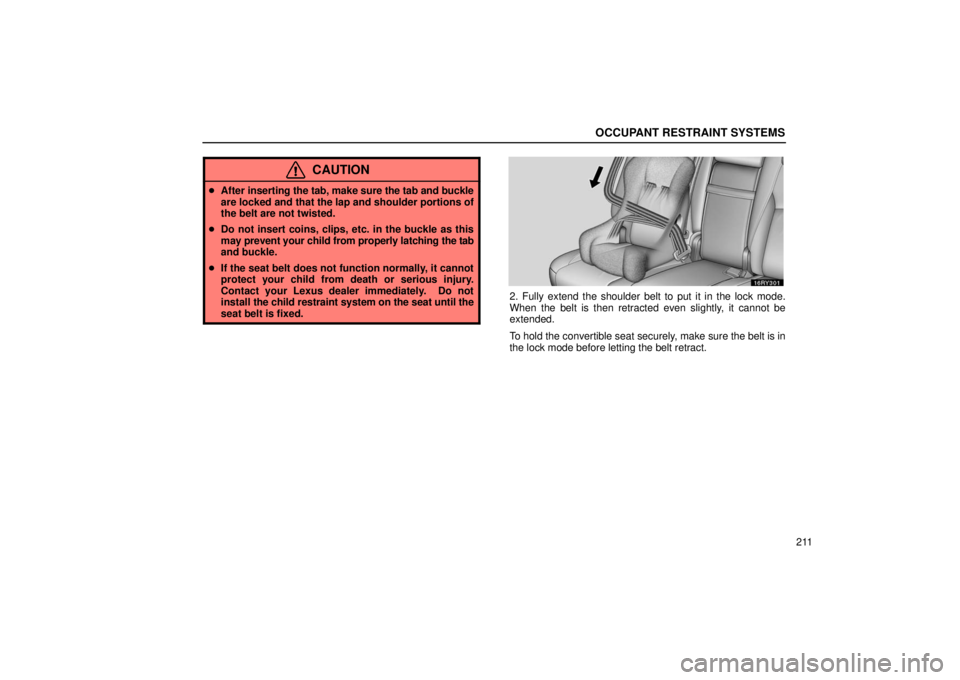

CAUTION
After inserting the tab, make sure the tab and buckle
are locked and that the lap and shoulder portions of
the belt are not twisted.
 Do not insert coins, clips, etc. in the buckle as this
may prevent your child from properly latching the tab
and buckle.
 If the seat belt does not function normally, it cannot
protect your child from death or serious injury.
Contact your Lexus dealer immediately. Do not
install the child restraint system on the seat until the
seat belt is fixed.
2. Fully extend the shoulder belt to put it in the lock mode.
When the belt is then retracted even slightly, it cannot be
extended.
To hold the convertible seat securely, make sure the belt is in
the lock mode before letting the belt retract.
