TRAILER TOWING
Your vehicle is designed primarily as a passenger−and−load
carrying vehicle. T owing a trailer will have an adverse ef fect on
handling, performance, braking, durability and driving
economy (fuel consumption, etc.). Y our safety and satisfaction
depend on the proper use of correct equipment and cautious
driving habits. For your safety and the safety of others, you
must not overload your vehicle or trailer. Lexus warranties do
not apply to damage or malfunction caused by towing a trailer
for commercial purposes. Ask your local Lexus dealer for
further details before towing.
CAUTION
Vehicles with electronically modulated air suspension:
When disconnecting a trailer, put the vehicle height in
the “LO” mode and push the height control switch to
turn off the electronically modulated air suspension.
Otherwise, the vehicle height may be changed in the
automatic leveling function, resulting in unexpected
accident. For details see “Electronically modulated air
suspension” on page 437.
NOTICE
When towing a trailer, be sure to consult your Lexus
dealer for further information on additional
requirements such as a towing kit, etc.

DRIVING TIPS
477
Weight limits
Before towing, make sure the total trailer weight, gross
vehicle weight, gross axle weight and trailer tongue load
are all within the limits.
The total trailer weight and tongue load can be measured with
platform scales found at a highway weighing station, building
supply company, trucking company, junk yard, etc.
Certification label
CAUTION
The total trailer weight (trailer weight plus its cargo
load) must not exceed the following. Exceeding this
weight is dangerous. Without towing package 907 kg (2000 lb.)
With towing package 1588 kg (3500 lb.)
 If towing a trailer and cargo weighing over 907 kg
(2000 lb.), Lexus recommends to use a sway control
device with sufficient capacity. The gross
combination weight (sum of your vehicle weight plus
its load and the total trailer weight) must not exceed
the following. Without towing package 3286 kg (7245 lb.)
With towing package 3966 kg (8745 lb.)
 Trailer hitch assemblies have different weight
capacities established by the hitch manufacturer.
Even though the vehicle may be physically capable of
towing a higher weight, the operator must determine
the maximum weight rating of the particular hitch
assembly and never exceed the maximum weight
rating specified for the trailer hitch. Exceeding the
maximum weight rating set by the trailer hitch
manufacturer can cause an accident resulting in
serious personal injuries.

DRIVING TIPS
478
The gross vehicle weight must not exceed the Gross
Vehicle Weight Rating (GVWR) indicated on the
Certification Label. The gross vehicle weight is the
sum weight of the unloaded vehicle, driver,
passengers, luggage, hitch and trailer tongue load.
It also includes the weight of any special equipment
installed on your vehicle.
 The load on either the front or rear axle resulting from
distribution of the gross vehicle weight on both axles
must not exceed the Gross Axle Weight Rating
(GAWR) listed on the Certification Label.
 Total trailer weight Tongue load
The trailer cargo load should be distributed so that
the tongue load is 9 to 11% of the total trailer weight,
not exceeding the maximum of the following.
Without towing package 90 kg (200 lb.)
With towing package 158 kg (350 lb.)
 Never load the trailer with more weight in the back
than in the front. About 60% of the trailer load should
be in the front half of the trailer and the remaining 40%
in the rear.
Tongue load
Total trailer weight
100 = 9 to 11%

DRIVING TIPS
479

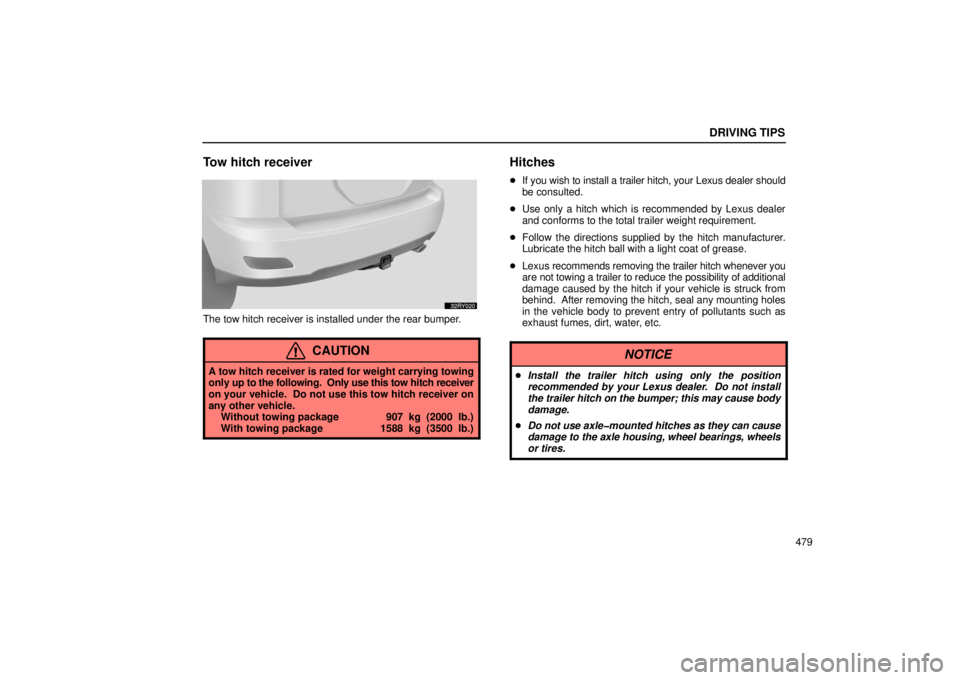

Tow hitch receiver
The tow hitch receiver is installed under the rear bumper.
CAUTION
A tow hitch receiver is rated for weight carrying towing
only up to the following. Only use this tow hitch receiver
on your vehicle. Do not use this tow hitch receiver on
any other vehicle. Without towing package 907 kg (2000 lb.)
With towing package 1588 kg (3500 lb.)
Hitches
If you wish to install a trailer hitch, your Lexus dealer should
be consulted.
 Use only a hitch which is recommended by Lexus dealer
and conforms to the total trailer weight requirement.
 Follow the directions supplied by the hitch manufacturer.
Lubricate the hitch ball with a light coat of grease.
 Lexus recommends removing the trailer hitch whenever you
are not towing a trailer to reduce the possibility of additional
damage caused by the hitch if your vehicle is struck from
behind. After removing the hitch, seal any mounting holes
in the vehicle body to prevent entry of pollutants such as
exhaust fumes, dirt, water, etc.
NOTICE
 Install the trailer hitch using only the position
recommended by your Lexus dealer. Do not install
the trailer hitch on the bumper; this may cause body
damage.
 Do not use axlemounted hitches as they can cause
damage to the axle housing, wheel bearings, wheels
or tires.

DRIVING TIPS
480
Trailer ball
Follow these easy steps to properly determine the correct
trailer ball for your application:
1. Determine the correct trailer ball size for the trailer coupler.
Most couplers are stamped with the required trailer ball size.
The sizes you will most likely find stamped on the coupler are:
Trailer class
Typical Trailer Ball SizeIII 2 in.
II 2 in.
I 1 7/8 in.
2. Select the appropriate trailer ball to match or exceed the
gross trailer weight rating of the trailer. The trailer ball load
rating should be printed on the top of the ball.
1Trailer ball load rating
2Ball diameter
3Shank length
4Shank diameter
3. When mounted in the ball mount, the threaded ball shank
must protrude beyond the bottom of the lock washer and nut
at least 2 threads. The trailer ball shank must be matched to
the ball mount hole diameter size.
NOTICE
Only use a ball mount attachment specified for Lexus
RX330.

DRIVING TIPS
481

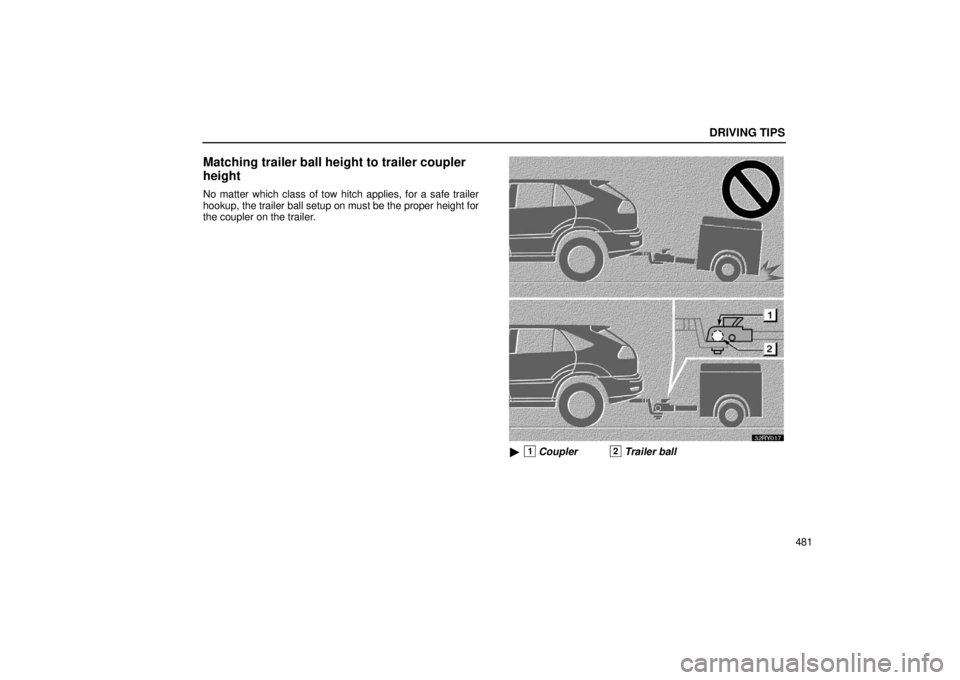

Matching trailer ball height to trailer coupler
height
No matter which class of tow hitch applies, for a safe trailer
hookup, the trailer ball setup on must be the proper height for
the coupler on the trailer.
1Coupler2Trailer ball

DRIVING TIPS
482
Brakes and safety chains
Lexus recommends trailers with brakes that conform to
any applicable federal and state/provincial regulations.
 A safety chain must always be used between the towing
vehicle and the trailer. Leave sufficient slack in the
chain for turns. The chain should cross under the
trailer tongue to prevent the tongue from dropping to
the ground in case it becomes damaged or separated.
For correct safety chain procedures, follow the hitch or
trailer manufacturer’s recommendations.
CAUTION
 If the total trailer weight exceeds 450 kg (1000 lb.),
trailer brakes are required.
 Never tap into your vehicle’s hydraulic system as it
will lower its braking effectiveness.
 Never tow a trailer without using a safety chain
securely attached to both the trailer and the vehicle.
If damage occurs to the coupling unit or hitch ball,
there is possible danger of the trailer wandering over
into another lane.
Tires
Ensure that your vehicle’s tires are properly inflated. Adjust
the tire pressure to the recommended cold tire pressure
indicated below:
Tire pressure, kPa (kgf/cm
2 or bar, psi)
Front 210 (2.1, 30) Rear 210 (2.1, 30)
 The trailer tires should be inflated to the pressure
recommended by the trailer manufacturer in respect to the
total trailer weight.

DRIVING TIPS
483
Trailer lights
 Socket for trailer lights
Your vehicle is equipped with a wire harness stored in the rear
end underbody. Models with tow hitch receiver are fitted with
a socket for trailer lights under the rear bumper. Use either of
them to connect and operate the trailer lights. However, the
trailer lights must comply with federal, state/provincial and
local regulations. See your local recreational vehicle dealer or
rental agency for the correct type of wiring and relays for your
trailer. Check for correct operation of the turn signals and stop
lights each time you hitch up. Direct splicing may damage your
vehicle’s electrical system and cause a malfunction of your
lights.
Breakin schedule
 Lexus recommends that you do not tow a trailer with a new
vehicle or a vehicle with any new power train component
(engine, transmission, differential, wheel bearing, etc.) for
the first 800 km (500 miles) of driving.
Maintenance
 If you tow a trailer, your vehicle will require more frequent
maintenance due to the additional load. For this
information, please refer to the scheduled maintenance
information in the “Owner’s Manual Supplement /
Scheduled Maintenance”.
 Retighten all fixing bolts of the towing ball and bracket after
approximately 1000 km (600 miles) of trailer driving.
Connecting a trailer (models with
electronically modulated air suspension)
Stop your vehicle and a trailer in line and perform the following:
1. Put the electronically modulated air suspension in the “LO”
mode. Turn the ignition switch off or push the height control
switch to turn off the electronically modulated air suspension.
2. Connect a trailer.
3. Turn the ignition switch on or push the height control switch
to turn on the electronically modulated air suspension. Select
the “N” (normal) mode with the height select switch.
