2006 LEXUS RX330 Owners Manual

AUDIO
332
The “DVD Hint!” screen appears when the DVD mode is
first selected after you turn the ignition key to the “ACC”
or “ON” position.
Push the “OK” switch when you read the message.(d) DVD player operation switches
The DVD player can be operated with the remote control
buttons directly.

AUDIO
333
1Remote control button
2DVD player unit
The player can also be operated with the switches on the
screen.
To operate the switches on the screen, select the switch by the
joy stick and push the “ENT” button. You cannot select the
switches on the screen by touching them directly.
When the switch is selected by the joy stick, the outline of the
switch changes to blue. Push the “ENT” button, and the switch
will be highlighted in green. (e) Turning the operation switches on and off1Remote control button
2DVD player unit
To turn on the operation switches, push the “CURSOR”
button on the remote control.

AUDIO
334

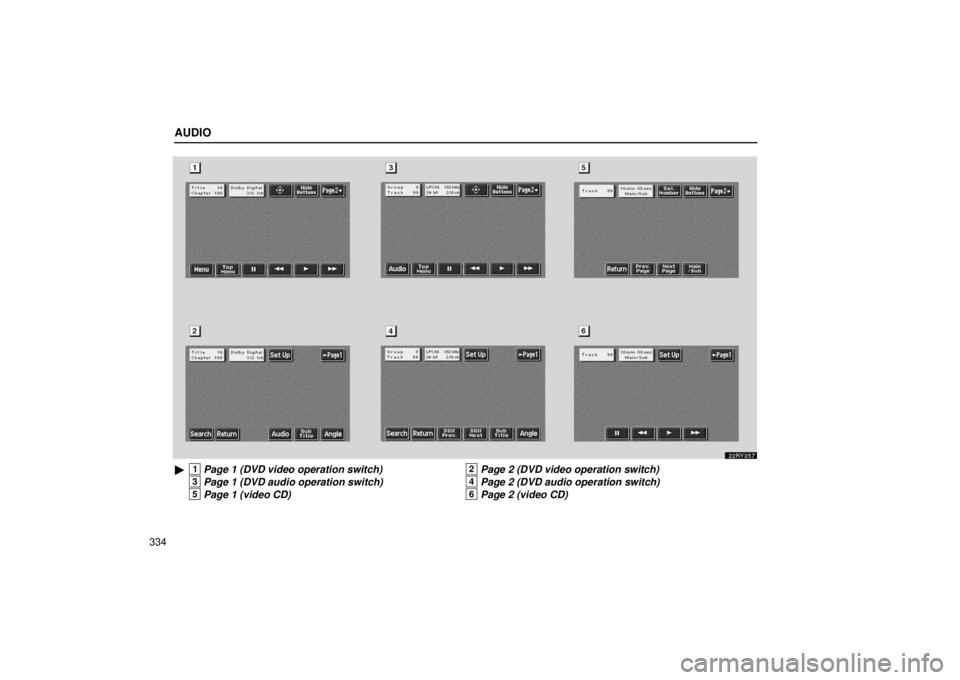

1Page 1 (DVD video operation switch)2Page 2 (DVD video operation switch)
3Page 1 (DVD audio operation switch)4Page 2 (DVD audio operation switch)
5Page 1 (video CD)6Page 2 (video CD)

AUDIO
335
There are operation switches on the “Page 1” and “Page
2” screens.
To change the screen, push the “Page 1” or “Page 2”
switch on the screen.

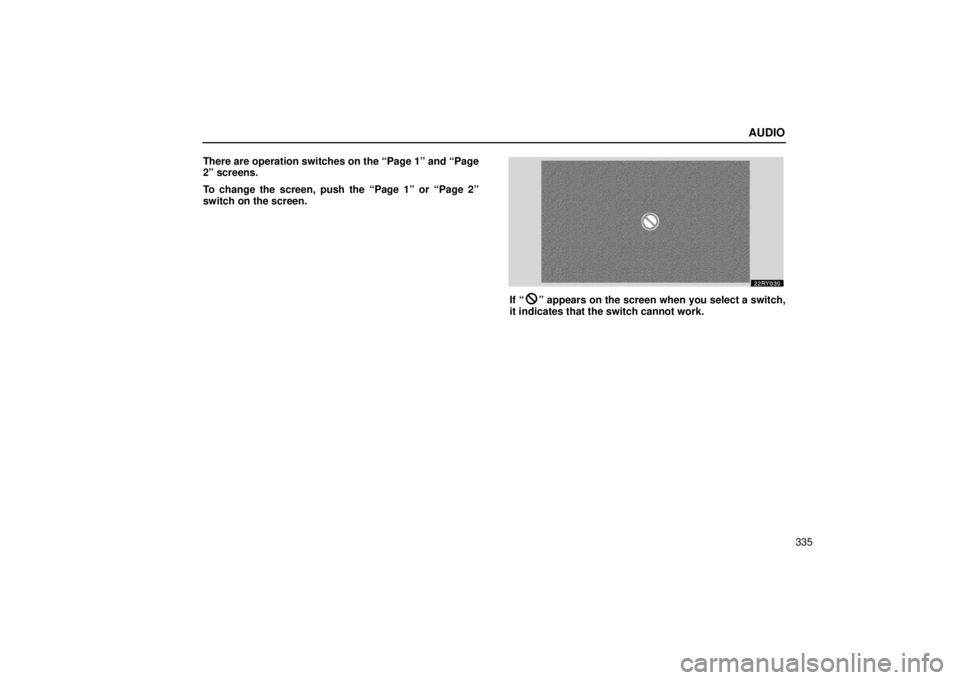

If “” appears on the screen when you select a switch,
it indicates that the switch cannot work.

AUDIO
336
1Screen switch2Remote control button
3DVD player unit
To turn off the switches on the screen, push the
“CURSOR” button once again or push the “Hide Buttons”
on the screen.

AUDIO
337
DVD video/DVD audio player operation
NOTE: The playback condition of some DVD discs may be
determined by a DVD software producer . This DVD player
plays a disc as the software producer intended. So, some
functions may not work properly. Be sure to read the
instruction manual for the DVD disc separately provided.
For the detailed information about DVD video discs, see
“DVD video disc information” on page 366.
Precautions for DVD video discs
When recording on a DVD video, DVD audio, video CD or
audio tracks may not record in some cases while the menu is
displayed. As audio will not play in this case, verify that the
video tracks are playing and then activate playback.
When playback of a disc is completed:
 If an audio CD is playing, the first track starts.
 If a DVD video, DVD audio or video CD is playing, playback
will stop or the menu screen will be displayed.
The title/chapter number and playback time display may not
appear while playing back certain DVD video discs.CAUTION
Conversational speech on some DVDs is recorded at a
low volume to emphasize the impact of sound effects.
If you adjust the volume assuming that the
conversations represent the maximum volume level
available for the DVD, you may be startled by louder
sound effects or when you change to a different audio
source. Loud sounds may have a significant impact on
the human body or pose a driving hazard. Keep this in
mind when you adjust the volume.

AUDIO

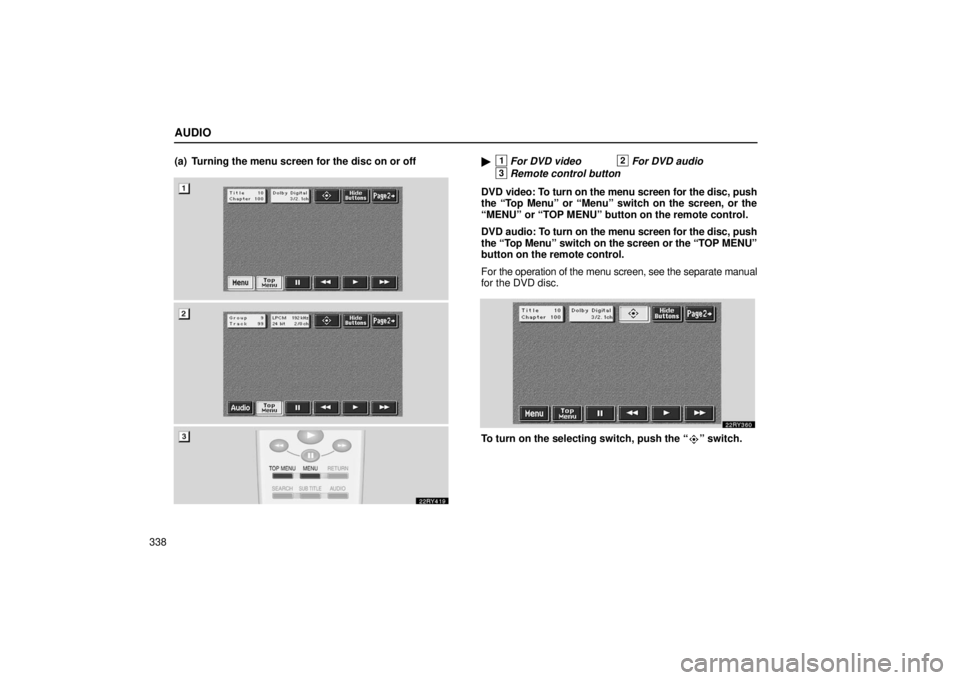

338(a) Turning the menu screen for the disc on or off
1For DVD video2For DVD audio
3Remote control button
DVD video: To turn on the menu screen for the disc, push
the “Top Menu” or “Menu” switch on the screen, or the
“MENU” or “TOP MENU” button on the remote control.
DVD audio: To turn on the menu screen for the disc, push
the “Top Menu” switch on the screen or the “TOP MENU”
button on the remote control.
For the operation of the menu screen, see the separate manual
for the DVD disc.
To turn on the selecting switch, push the “” switch.

AUDIO
339
1Selecting switch on screen
2Selecting switch off screen
To select the menu for the disc, push the “
”, “”, “” or
“
” switches on the screen. Push the “Enter” switch to
select the menu for the disc.
You can also select the menu for the disc by the joy stick
and the “ENT” button on the remote control when the
control switches are not indicated on the screen.
Push the “Move Buttons” on the screen, and the switches (“
”,
“
”, “”, “”, “Enter” and “Move buttons” switches) will move
up and down.
To turn off the switch, push the “OFF” switch on the screen. To
turn on the switch again, push the “ON” switch on the screen.
To return to the previous screen, push the “Back” switch on the
screen. (b) Operating the “
”, “
”, “ ” and “ ”
switches/buttons
