2006 LEXUS RX330 Owners Manual

INTERIOR EQUIPMENT
11 6
CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop, always keep the auxiliary box closed
while driving.
AUXILIARY BOX AND GROCERYBAG HOOKS
To use the auxiliary box, open it as shown above.

INTERIOR EQUIPMENT
11 7
This auxiliary box is equipped with grocery bag hooks.
These hooks are designed for hanging things like grocery
bags.
CAUTION
When not using the grocery bag hooks — To reduce the
chance of injury in case of an accident or a sudden stop,
always keep the auxiliary box closed while driving.
NOTICE
To prevent damage to the hooks, do not hang any object
heavier than 2 kg (4 lb.) on them.
LUGGAGE COVER

INTERIOR EQUIPMENT
11 8To use the luggage cover:
1Attach the front hooks of the luggage cover to the head
restraints.
2Pull out the rear luggage cover and hook it onto the
anchors.
CAUTION
Do not place anything on the luggage cover. Such items
may be thrown about and possibly injure people in the
vehicle during sudden braking or a collision.
Automatic retract function
The rear luggage cover is retracted automatically when
the back door is opened.

INTERIOR EQUIPMENT
11 9

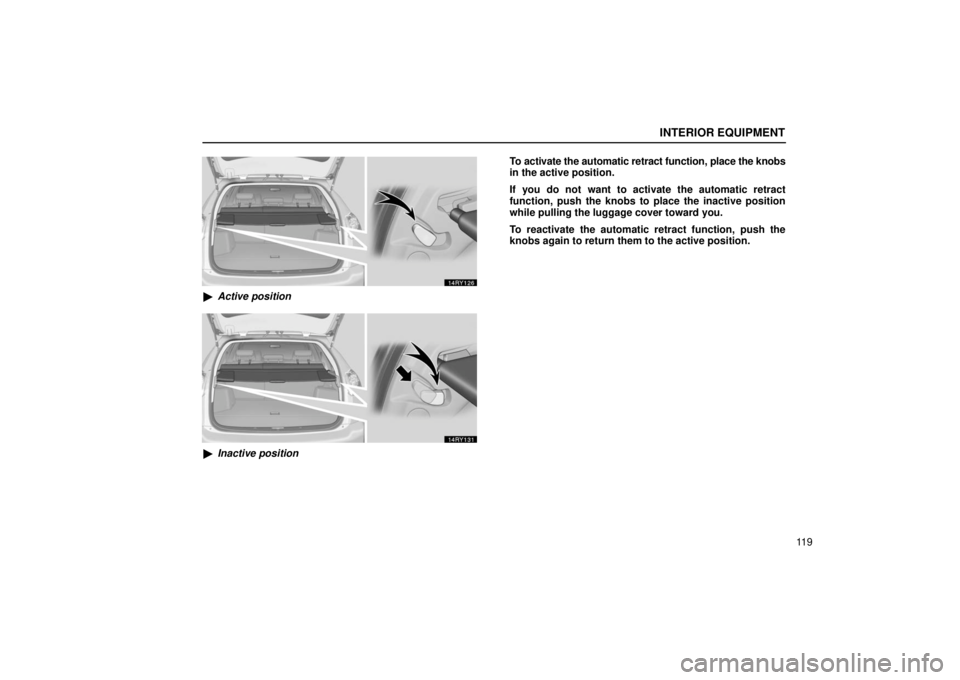

Active position
Inactive position To activate the automatic retract function, place the knobs
in the active position.
If you do not want to activate the automatic retract
function, push the knobs to place the inactive position
while pulling the luggage cover toward you.
To reactivate the automatic retract function, push the
knobs again to return them to the active position.

INTERIOR EQUIPMENT
120

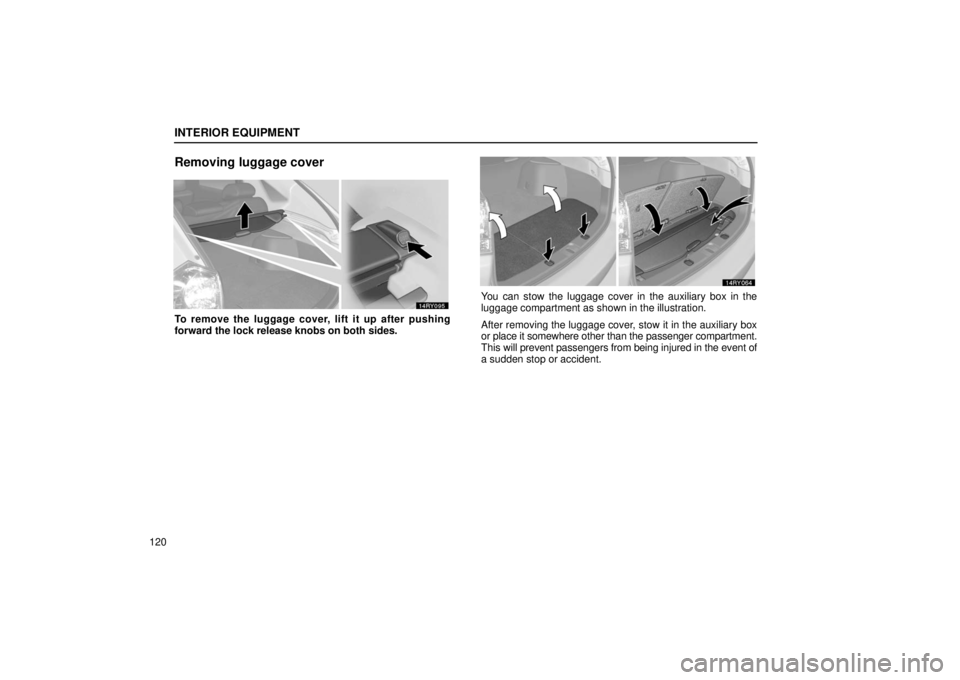

Removing luggage cover
To remove the luggage cover, lift it up after pushing
forward the lock release knobs on both sides.
You can stow the luggage cover in the auxiliary box in the
luggage compartment as shown in the illustration.
After removing the luggage cover, stow it in the auxiliary box
or place it somewhere other than the passenger compartment.
This will prevent passengers from being injured in the event of
a sudden stop or accident.

INTERIOR EQUIPMENT
121

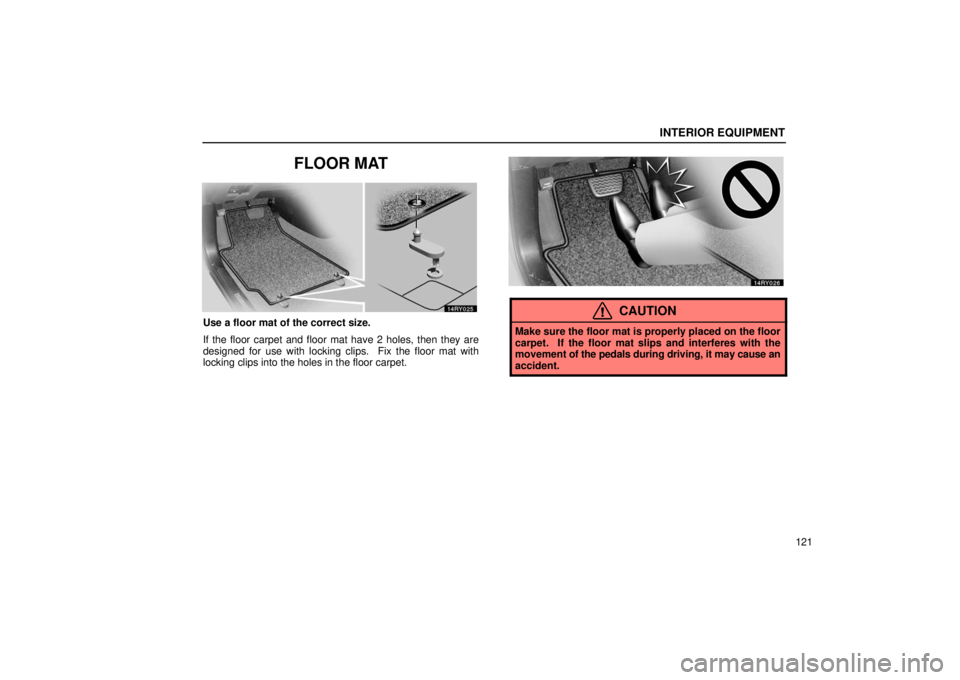

FLOOR MAT
Use a floor mat of the correct size.
If the floor carpet and floor mat have 2 holes, then they are
designed for use with locking clips. Fix the floor mat with
locking clips into the holes in the floor carpet.CAUTION
Make sure the floor mat is properly placed on the floor
carpet. If the floor mat slips and interferes with the
movement of the pedals during driving, it may cause an
accident.

INTERIOR EQUIPMENT
122

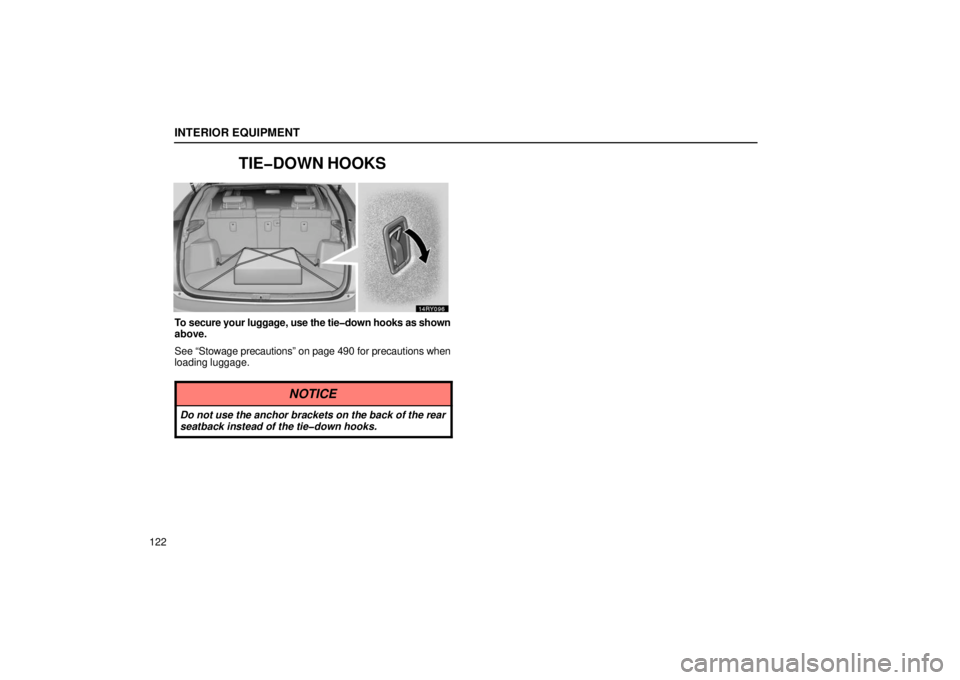

TIEDOWN HOOKS
To secure your luggage, use the tiedown hooks as shown
above.
See “Stowage precautions” on page 490 for precautions when
loading luggage.
NOTICE
Do not use the anchor brackets on the back of the rear
seatback instead of the tiedown hooks.

SECTION 1 – 5
123
INSTRUMENTS AND CONTROLS
Exterior equipment
Hood124
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . .
Fuel tank cap 125
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Moon roof (normal type) 128
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Moon roof (multi −panel type) 132
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Roof luggage carrier 136
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
