2006 LEXUS RX330 Owners Manual

IN CASE OF AN EMERGENCY
500B: If no steam is coming from your engine:
Leave the engine running and turn off the air conditioning.
Check the following.

Is the cooling fan operating?
 Is the coolant in the acceptable range?
 Is the engine drive belt O.K.?
CAUTION
When the engine is running, keep hands and clothing
away from the moving fan and engine drive belt.
 Do not attempt to remove the radiator cap when the
engine and radiator are hot. Serious injury could
result from scalding hot fluid and steam blown out
under pressure.
If the cooling fan is not operating or the coolant is not in the
acceptable range, turn off the engine and call your Lexus
dealer.
If both conditions are O.K., after the engine coolant
temperature has cooled to normal, continue driving your
vehicle.
If the engine coolant temperature does not cool down, or your
vehicle overheats again, have it checked as soon as possible
by your Lexus dealer.
IF YOU HAVE A FLAT TIRE
1. Reduce your speed gradually, keeping a straight
line. Move cautiously off the road to a safe place
— well away from the traffic. Avoid stopping on the
center divider of a highway. Park on a level spot with
firm ground.
2. Stop the engine and turn on your emergency
flashers.
3. F i r m l y s e t t h e p a r k i n g b r a k e a n d p u t t h e
transmission in “P”.
4. Have everyone get out of the vehicle on the side
away from traffic.
5. Read the following instructions thoroughly.

IN CASE OF AN EMERGENCY
501
CAUTION
When jacking, be sure to observe the following
to reduce the possibility of personal injury:
Follow jacking instructions.
 Do not put any part of your body under a
vehicle supported by a jack. Otherwise,
personal injury may occur.
 Do not start or run the engine while your
vehicle is supported by the jack.
 Stop the vehicle on a level firm ground, firmly
set the parking brake and put the
transmission in “P”. Block the wheel
diagonally opposite to the one being changed
if necessary.
Make sure to set the jack properly in the jack
point. Raising the vehicle with jack
improperly positioned will damage the vehicle
or may allow the vehicle to fall off the jack
and cause personal injury.
 Never get under the vehicle when the vehicle
is supported by the jack alone.
 Use the jack only for lifting your vehicle
during wheel changing.
 Do not raise the vehicle with someone in the
vehicle.
 When raising the vehicle, do not place any
objects on top of or underneath the jack.
 Raise the vehicle only high enough to remove
and change the tire.
 Vehicles with electronically modulated air
suspension: When jacking up, be sure to turn
off the height control and stop the engine.
Otherwise, the vehicle height may change in
the automatic leveling function, resulting in
an unexpected accident. For details, see
page 446.

IN CASE OF AN EMERGENCY
502
NOTICE
Do not continue driving with a deflated tire.
Driving even a short distance can damage a tire
and wheel beyond repair.
Access to spare tire
1Jack
2Adapter socket (for removing a spare tire)
3Wrench
4Towing eyelet
5Jack handle
6Tool bag
7Spare tire
1. Get the tool, jack, wrench, adapter socket (for
removing a spare tire) and spare tire.
To prepare yourself for an emergency, you should
familiarize yourself with the use of the jack and each
tool, and their storage locations.

IN CASE OF AN EMERGENCY
503
To get the required tools:
1Pull up the front deck board.
2Hold the front deck board by the supporting rod.
Make sure the board is secured and does not fall
down.
When closing the board, replace the supporting rod
also in its original position as shown.

IN CASE OF AN EMERGENCY
504
To remove the jack, unhook the tightening strap.
To store the jack, make sure it is securely held by
the tightening strap.1Joint
2When removing the jack, turn the joint by hand
in the “contract” direction until the jack is free.
3When storing, turn the joint by hand in the
“expand” direction until the jack is firmly
secured to prevent it from flying forward during
a collision or sudden braking.

IN CASE OF AN EMERGENCY
505

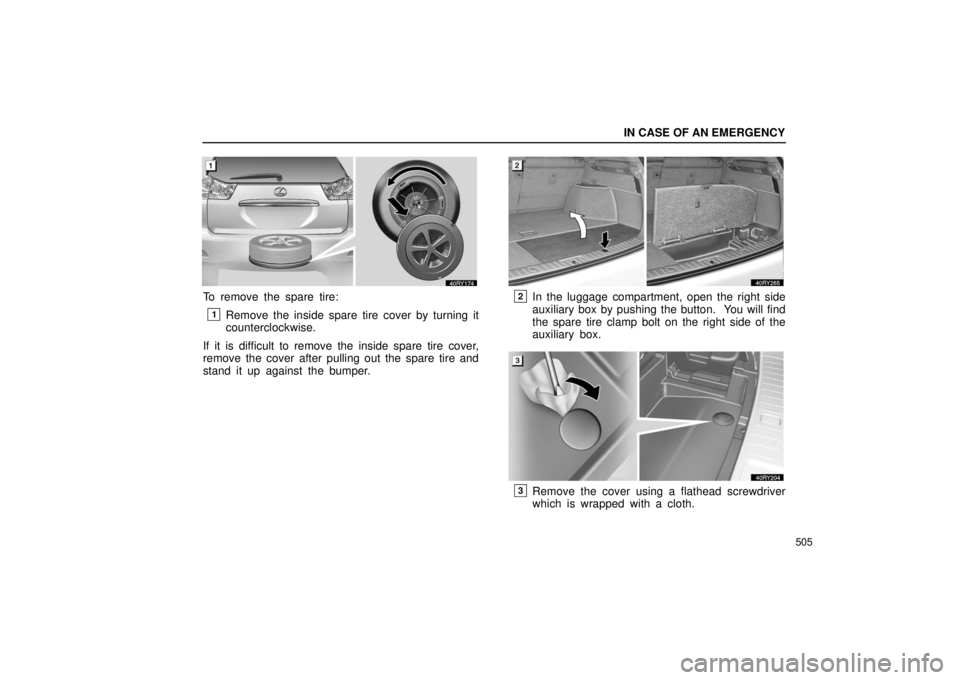

To remove the spare tire:
1Remove the inside spare tire cover by turning it
counterclockwise.
If it is difficult to remove the inside spare tire cover,
remove the cover after pulling out the spare tire and
stand it up against the bumper.
2In the luggage compartment, open the right side
auxiliary box by pushing the button. You will find
the spare tire clamp bolt on the right side of the
auxiliary box.
3Remove the cover using a flathead screwdriver
which is wrapped with a cloth.

IN CASE OF AN EMERGENCY
506

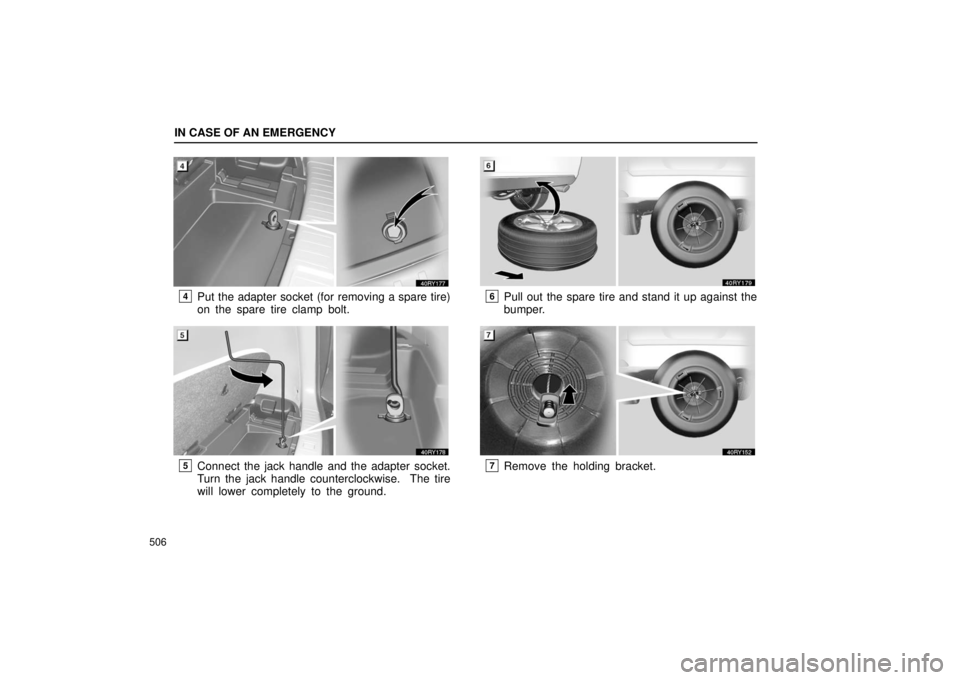

4Put the adapter socket (for removing a spare tire)
on the spare tire clamp bolt.
5Connect the jack handle and the adapter socket.
Turn the jack handle counterclockwise. The tire
will lower completely to the ground.
6Pull out the spare tire and stand it up against the
bumper.
7Remove the holding bracket.

IN CASE OF AN EMERGENCY
507

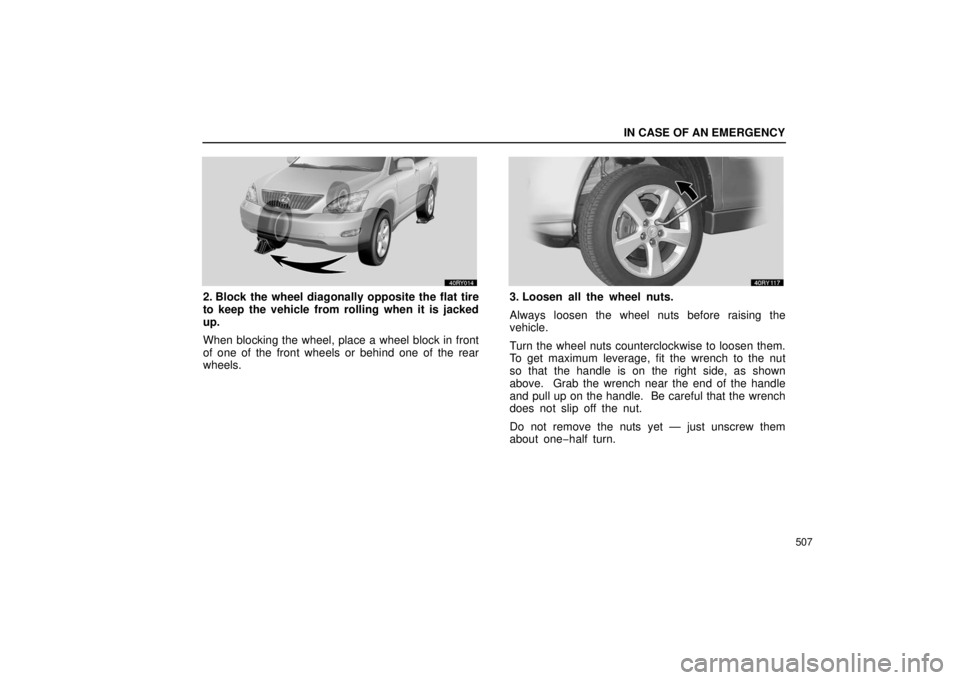

2. Block the wheel diagonally opposite the flat tire
to keep the vehicle from rolling when it is jacked
up.
When blocking the wheel, place a wheel block in front
of one of the front wheels or behind one of the rear
wheels.3. Loosen all the wheel nuts.
Always loosen the wheel nuts before raising the
vehicle.
Turn the wheel nuts counterclockwise to loosen them.
To get maximum leverage, fit the wrench to the nut
so that the handle is on the right side, as shown
above. Grab the wrench near the end of the handle
and pull up on the handle. Be careful that the wrench
does not slip off the nut.
Do not remove the nuts yet — just unscrew them
about one−half turn.
