IN CASE OF AN EMERGENCY
516TOWING PRECAUTIONS:
Use a safety chain system for all towing, and abide by the
state/provincial and local laws. The wheels and axle on the
ground must be in good condition. If they are damaged, use
a towing dolly.
CAUTION
Vehicles with electronically modulated air suspension:
When
your vehicle is towed, put the vehicle height in the
“N” (normal) mode and push the height control switch
to turn off the electronically modulated air suspension.
Otherwise, the vehicle height may be changed in the
automatic leveling function, resulting in an unexpected
accident. For details, see “Electronically modulated air
suspension” on page 437.
(a) Towing with a wheel lift type truck
 From front
 Twowheel drive models
Release the parking brake.
NOTICE
When lifting wheels, take care to ensure adequate
ground clearance for towing at the opposite end of the
raised vehicle. Otherwise, the bumper and/or
underbody of the towed vehicle will be damaged during
towing.

IN CASE OF AN EMERGENCY
517
Fourwheel drive models
Use a towing dolly under the rear wheels.
NOTICE
Never tow from the front with rear wheels on the ground,
as this may cause serious damage to the transmission.
 From rear
Use a towing dolly under the front wheels.
NOTICE
Never tow from the rear with front wheels on the ground,
as this may cause serious damage to the transmission.

IN CASE OF AN EMERGENCY
518
(b) Using a flat bed truck
Tie down points
 A Front  B Rear
If your Lexus is transported by a flat bed, it should be tied
down at locations A and B as shown above.

IN CASE OF AN EMERGENCY
519
Rear emergency towing eyelets
NOTICE
Do not use the rear emergency towing eyelets.
Tie down angle
If you use chains or wires to tie down your vehicle, the
angles shaded black must be at 45.

IN CASE OF AN EMERGENCY
520
(c) Towing with a sling type truck
NOTICE
Do not tow with a sling type truck, either from the front
or rear. This may cause body damage.
(d) Emergency towing
If towing is necessary, we recommend you to have it done
by your Lexus dealer or a commercial tow truck service.
If towing service is not available in an emergency, your
vehicle may be temporarily towed by a cable or chain
secured to the emergency towing eyelet on the front of the
vehicle. Use extreme caution when towing the vehicle.
To install the front towing eyelet, see “(e) Installing front towing
eyelet” on page 523.

IN CASE OF AN EMERGENCY
521
NOTICE
Only use specified towing eyelet; otherwise your
vehicle may be damaged.
 Never tow a vehicle from the rear with four wheels on
the ground. This may cause serious damage to the
transmission.
A driver must be in the vehicle to steer it and operate the
brakes.
Towing in this manner may be done only on hard −surfaced
roads for a short distance and at low speeds. Also, the wheels,
axles, drive train, steering and brakes must all be in good
condition.
CAUTION
Use extreme caution when towing the vehicle. Avoid
sudden starts or erratic driving maneuvers which would
place excessive stress on the emergency towing eyelet
and towing cable or chain. The eyelet and towing cable
or chain may break and cause serious injury or damage.
NOTICE
Use only a cable or chain specifically intended for use
in towing vehicles. Securely fasten the cable or chain
to the towing eyelet provided.
Before towing, release the parking brake and put the
transmission in “N”. The ignition key must be in “ACC” (engine
off) or “ON” (engine running).
CAUTION
If the engine is not running, the power assist for the
brakes and steering will not work so steering and
braking will be much harder than usual.

IN CASE OF AN EMERGENCY
522Emergency towing eyelet precautions:

Before emergency towing, check that the eyelet is not
broken or damaged and that the installation bolts are not
loose.
 Fasten the towing cable or chain securely to the eyelet.
 Do not jerk the eyelet. Apply steady and even force.
 To avoid damaging the eyelet, do not pull from the side or at
a vertical angle. Always pull straight ahead.
CAUTION
If the emergency towing eyelet is used to get out when
your vehicle becomes stuck in the mud, sand or other
condition from which the vehicle cannot be driven out
under its own power, make sure to observe the
precautions mentioned below. Otherwise, excessive
stress will be put on the eyelet and the towing cable or
chain may break, causing serious injury or damage.
If the towing vehicle can hardly move, do not forcibly
continue the towing. Contact your Lexus dealer or a
commercial tow truck service for assistance.
Tow the vehicle as straight ahead as possible.
 Keep away from the vehicle during towing.
Tips for towing a stuck vehicle:
The following methods are effective to use when your
vehicle is stuck in the mud, sand or other condition from
which the vehicle cannot be driven out under its own
power. Use extreme caution when towing the vehicle. In
addition, keep away from the vehicles and towing cable or
chain when towing.
 Remove the sand and soil in the front and the back of the
tires.
 Place stones or wood under the tires.

IN CASE OF AN EMERGENCY
523

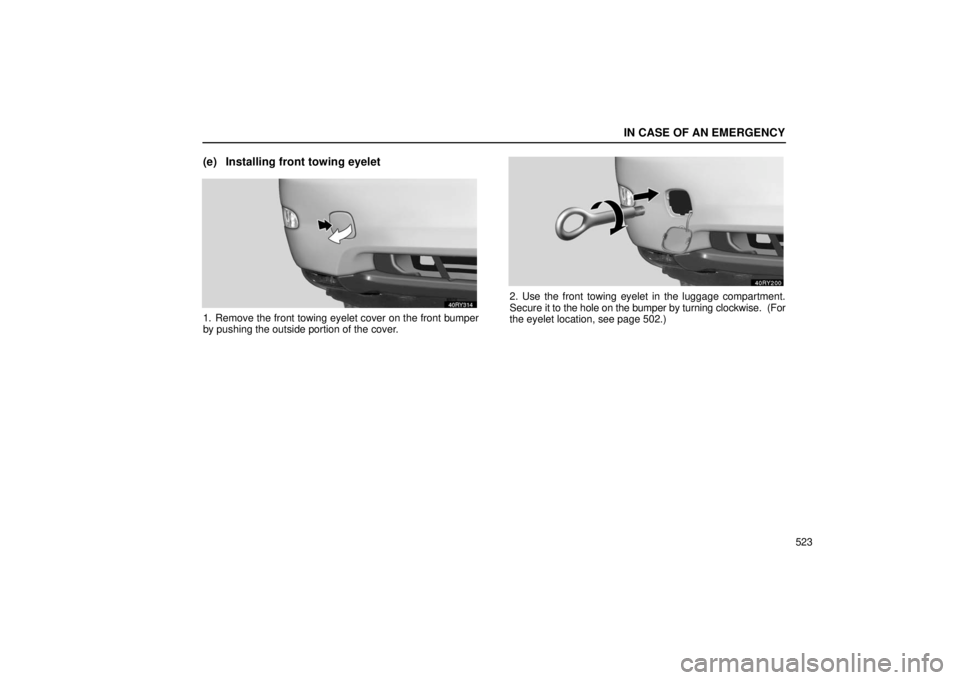

(e) Installing front towing eyelet
1. Remove the front towing eyelet cover on the front bumper
by pushing the outside portion of the cover.
2. Use the front towing eyelet in the luggage compartment.
Secure it to the hole on the bumper by turning clockwise. (For
the eyelet location, see page 502.)
