2006 LEXUS RX330 Owners Manual

INTERIOR EQUIPMENT
108
3. Simultaneously press and hold the hand−held garage
transmitter button along with the selected HomeLink button.
Do not release the buttons until step 4 has been completed.
4. When the indicator light on the HomeLink
 changes from a
slow to a rapid flash after 20 seconds, you can release both
buttons.
5. Test the operation of the HomeLink by pressing the newly
programmed button. If programming a garage door opener,
check to see if the garage door opens and closes.
If the garage door does not operate, identify if your garage
transmitter is of the “Rolling Code” type. Press and hold the
programmed HomeLink
 button. The garage door has the
rolling code feature if the indicator light (on the HomeLink)
flashes rapidly and then remains lit after 2 seconds. If your
garage transmitter is the “Rolling Code” type, proceed to the
heading “Programming a rolling code system”.
6. Repeat steps 2 through 5 for each remaining HomeLink

button to program another device.

INTERIOR EQUIPMENT
109
Programming a rolling code system
If your device is “Rolling Code” equipped, it is necessary
to follow steps 1 through 4 under the heading
“Programming the HomeLink
” before proceeding with
the steps listed below.
1. Locate the “training” button on the ceiling mounted garage
door opener motor. The exact location and color of the button
may vary by brand of garage door opener . Refer to the owner’s
guide supplied by the garage door opener manufacturer for the
location of this “training” button.
2. Press the “training” button on the ceiling mounted garage
door opener motor.
Following this step, you have 30 seconds in which to initiate
step 3 below.
3. Press and release the vehicle’s programmed HomeLink

button twice. The garage door may open. If the door does
open, the programming process is complete. If the door does
not open, press and release the button a third time. This third
press and release will complete the programming process by
opening the garage door. The ceiling mounted garage door opener motor should now
recognize the HomeLink
 unit and be able to activate the
garage door up/down.
4. Repeat steps 1 through 3 for each remaining HomeLink

button to program another rolling code system.
Programming an entrance gate/programming
all devices in the Canadian market
1. Decide which of the 3 HomeLink buttons you want to
program.
2. Place your hand −held gate/device transmitter 25 to 75 mm
(1 to 3 in.) away from the surface of the HomeLink
.
Keep the indicator light on the HomeLink
 in view while
programming.
3. Press and hold the selected HomeLink
 button.

INTERIOR EQUIPMENT
11 04. Continuously press and release (cycle) the hand
−held
gate/device transmitter button every two seconds until step 5
is complete.
5. When the indicator light on the HomeLink
 changes from a
slow to a rapid flash after 20 seconds, you can release both
buttons.
6. Test the operation of the HomeLink
 by pressing the newly
programmed button. Check to see if the gate/device operates
correctly.
7. Repeat steps 1 through 6 for each remaining HomeLink

button to program another device.
Programming other devices
To program other devices such as home security systems,
home door locks or lighting, contact your authorized Lexus
dealer for assistance.
Reprogramming a button
Individual HomeLink buttons cannot be erased, however, to
reprogram a single button, follow the procedure “Programming
the HomeLink
”.
(b) Operating the HomeLink
To operate the HomeLink, press the appropriate HomeLink
button to activate the programmed device. The HomeLink
indicator light should come on. The HomeLink continues to
send the signal for up to 20 seconds as long as the button is
pressed.
(c) Erasing the entire HomeLink memory (all
three programs)
To erase all previously programmed codes at one time, press
and hold down the 2 outside buttons for 20 seconds until the
indicator light flashes.
If you sell your vehicle, be sure to erase the programs stored
in the HomeLink
 memory.

INTERIOR EQUIPMENT
111
CAUTION
When programming the HomeLink Universal
Transceiver, you may be operating a garage door or
other device. Make sure people and objects are out
of the way of the garage door or other device to
prevent potential harm or damage.
 Do not use this HomeLink
 Universal Transceiver
with any garage door opener that lacks the safety
stop and reverse feature as required by federal safety
standards. (This includes any garage door opener
model manufactured before April 1, 1982.) A garage
door opener which cannot detect an object (signaling
the door to stop and reverse), does not meet current
federal safety standards. Using a garage door
opener without these features increases risk of
serious injury or death.
This device complies with Part 15 of the FCC Rules
and with RSS −210 of the IC Rules. Operation is
subject to the following two conditions: (1) This
device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
WARNING: This transmitter has been tested and
complies with FCC and IC rules. Changes or
modifications not expressly approved by the
party responsible for compliance could void the
user’s authority to operate the device.

INTERIOR EQUIPMENT
11 2
CUPHOLDERS
Front
Instrument panel
To use the cupholder, push in the cupholder portion
located on the instrument panel.
The cupholder is designed for holding cups or drink −cans
securely.
 Front part of the rear console box
To use the cupholder, push the cupholder lid.
The cupholder is designed for holding cups or drink −cans
securely.
The cupholder can be adjusted to the size of the cups by
altering the arm position.
The cupholder light comes on when the tail lights are turned on.

INTERIOR EQUIPMENT
11 3

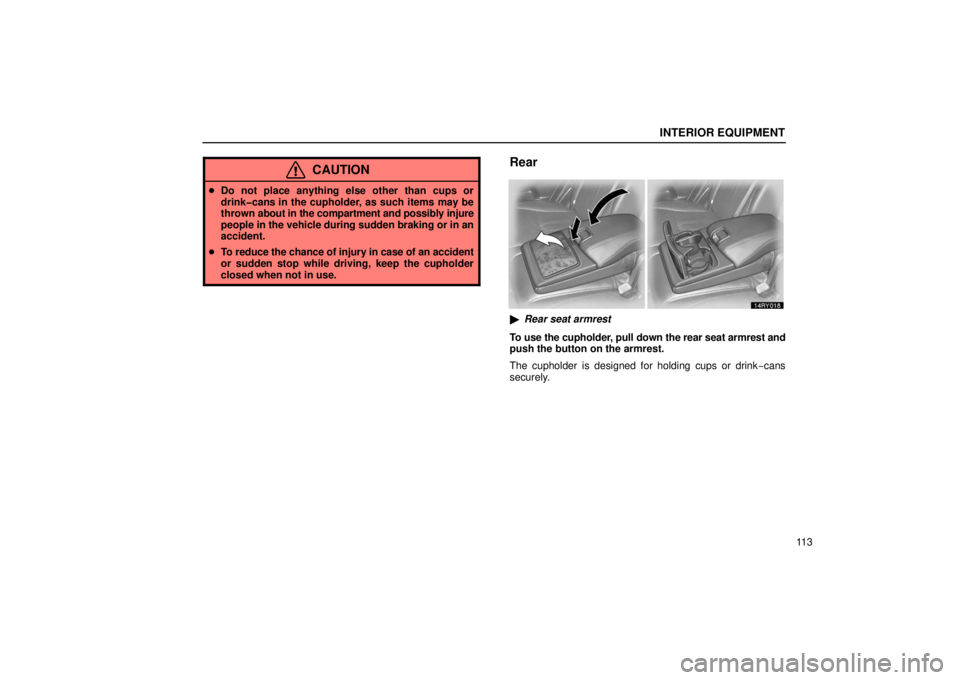

CAUTION
Do not place anything else other than cups or
drinkcans in the cupholder, as such items may be
thrown about in the compartment and possibly injure
people in the vehicle during sudden braking or in an
accident.
 To reduce the chance of injury in case of an accident
or sudden stop while driving, keep the cupholder
closed when not in use.
Rear
 Rear seat armrest
To use the cupholder, pull down the rear seat armrest and
push the button on the armrest.
The cupholder is designed for holding cups or drink −cans
securely.

INTERIOR EQUIPMENT
11 4

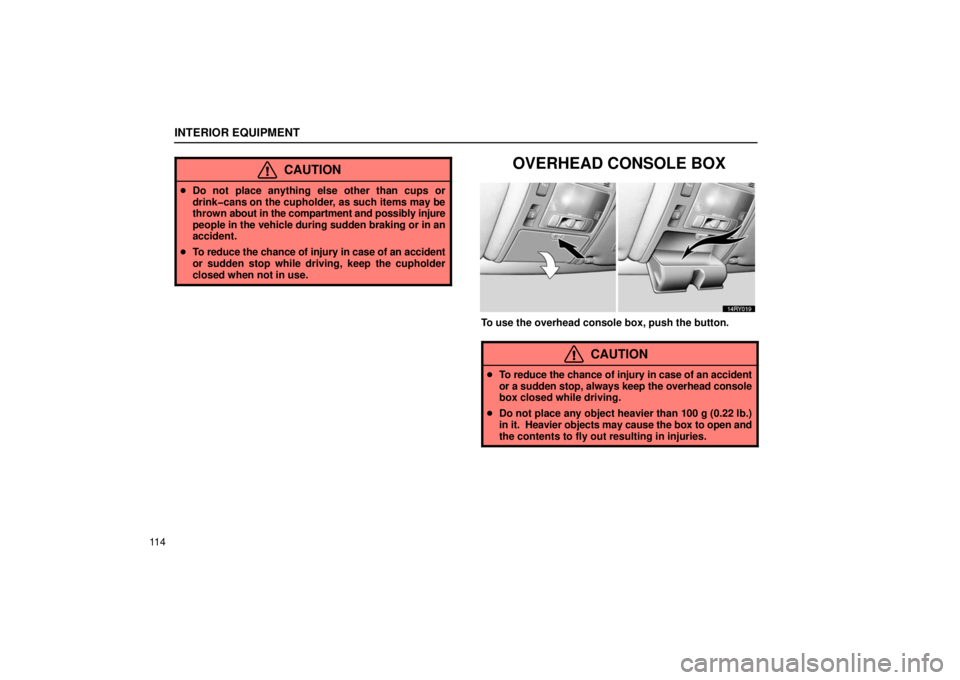

CAUTION
Do not place anything else other than cups or
drinkcans on the cupholder, as such items may be
thrown about in the compartment and possibly injure
people in the vehicle during sudden braking or in an
accident.
 To reduce the chance of injury in case of an accident
or sudden stop while driving, keep the cupholder
closed when not in use.
OVERHEAD CONSOLE BOX
To use the overhead console box, push the button.
CAUTION
To reduce the chance of injury in case of an accident
or a sudden stop, always keep the overhead console
box closed while driving.
 Do not place any object heavier than 100 g (0.22 lb.)
in it. Heavier objects may cause the box to open and
the contents to fly out resulting in injuries.

INTERIOR EQUIPMENT
11 5

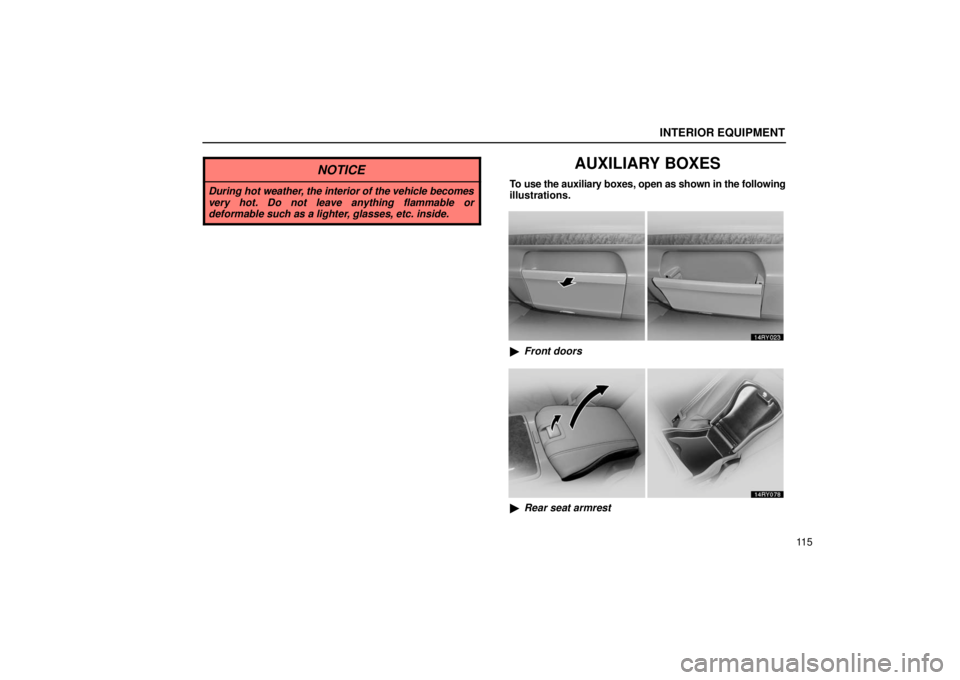

NOTICE
During hot weather, the interior of the vehicle becomes
very hot. Do not leave anything flammable or
deformable such as a lighter, glasses, etc. inside.
AUXILIARY BOXES
To use the auxiliary boxes, open as shown in the following
illustrations.
 Front doors
Rear seat armrest
