2006 LEXUS RX330 Owners Manual

OCCUPANT RESTRAINT SYSTEMS
156
Fastening front and rear seat belts
Adjust the seat as needed and sit up straight and well back
in the seat. To fasten your belt, pull it out of the retractor
and insert the tab into the buckle.
You will hear a click when the tab locks into the buckle.
The seat belt length automatically adjusts to your size and the
seat position.
The retractor will lock the belt during a sudden stop or on
impact. It also may lock if you lean forward too quickly. A slow,
easy motion will allow the belt to extend, and you can move
around freely. When a rear passenger’s seat belt is
completely extended and
is then retracted even slightly, the belt is locked in that position
and cannot be extended. This feature is used to hold the child
restraint system securely. (For details, see “Child restraint” on
page 198.) To free the belt again, fully retract the belt and then
pull the belt out once more.
If the seat belt cannot be pulled out of the retractor, firmly pull
the belt and release it. You will then be able to smoothly pull
the belt out of the retractor.
CAUTION
 After inserting the tab, make sure the tab and buckle
are locked and that the belt is not twisted.
 Do not insert coins, clips, etc. in the buckle as this
may prevent you from properly latching the tab and
buckle.
 If the seat belt does not function normally,
immediately contact your Lexus dealer. Do not use
the seat until the seat belt is fixed, because it cannot
protect an adult occupant or your child from death or
serious injury.

OCCUPANT RESTRAINT SYSTEMS
157
Adjust the position of the lap and shoulder belts.
1Position the lap belt as low as possible on your hips — not
on your waist.
2Adjust it to a snug fit by pulling the shoulder portion
upward through the latch plate.
CAUTION
 Both highpositioned lap belts and loosefitting
belts could cause serious injuries due to sliding
under the lap belt during a collision or other
unintended event. Keep the lap belt positioned as
low on hips as possible.
 Do not place the shoulder belt under your arm.

OCCUPANT RESTRAINT SYSTEMS
158

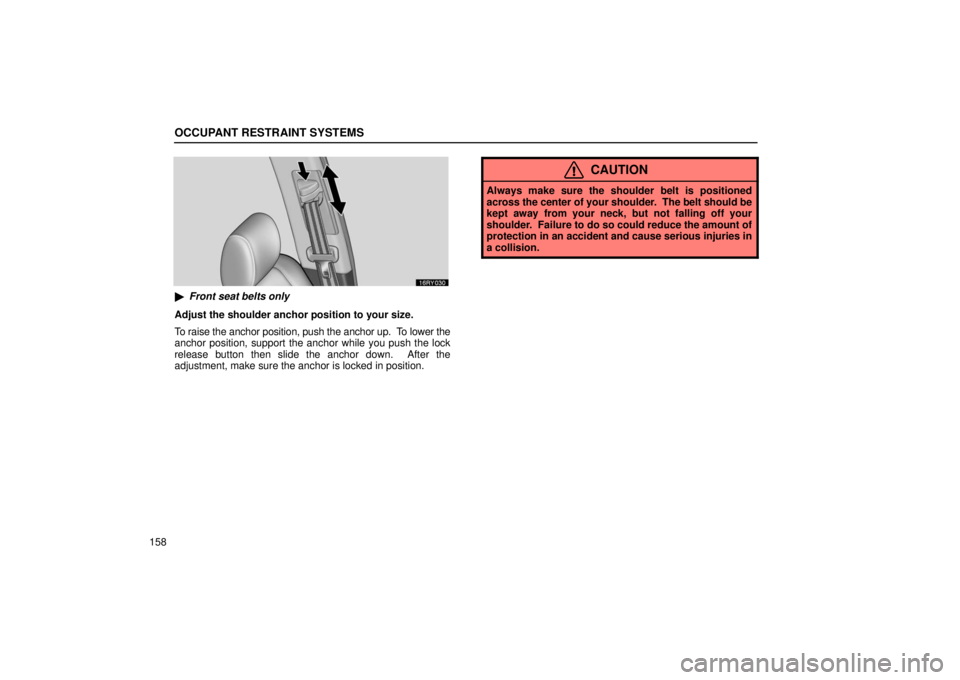

Front seat belts only
Adjust the shoulder anchor position to your size.
To raise the anchor position, push the anchor up. To lower the
anchor position, support the anchor while you push the lock
release button then slide the anchor down. After the
adjustment, make sure the anchor is locked in position.
CAUTION
Always make sure the shoulder belt is positioned
across the center of your shoulder . The belt should be
kept away from your neck, but not falling off your
shoulder. Failure to do so could reduce the amount of
protection in an accident and cause serious injuries in
a collision.

OCCUPANT RESTRAINT SYSTEMS
159
To release the belt, press the buckle release button and
allow the belt to retract.
If the belt does not retract smoothly, pull it out and check for
kinks or twists. Then make sure it remains untwisted as it
retracts.
Seat belt comfort guides
The outboard shoulder belt comfort guides for the rear
seat outboard positions will provide added seat belt
comfort for children who have outgrown child restraints
and for small adults. When the outboard shoulder belt is
inserted through the guide, the comfort guide pulls the
belt away from the neck and head of an occupant.
To use the comfort guide, do as follows.

OCCUPANT RESTRAINT SYSTEMS
160

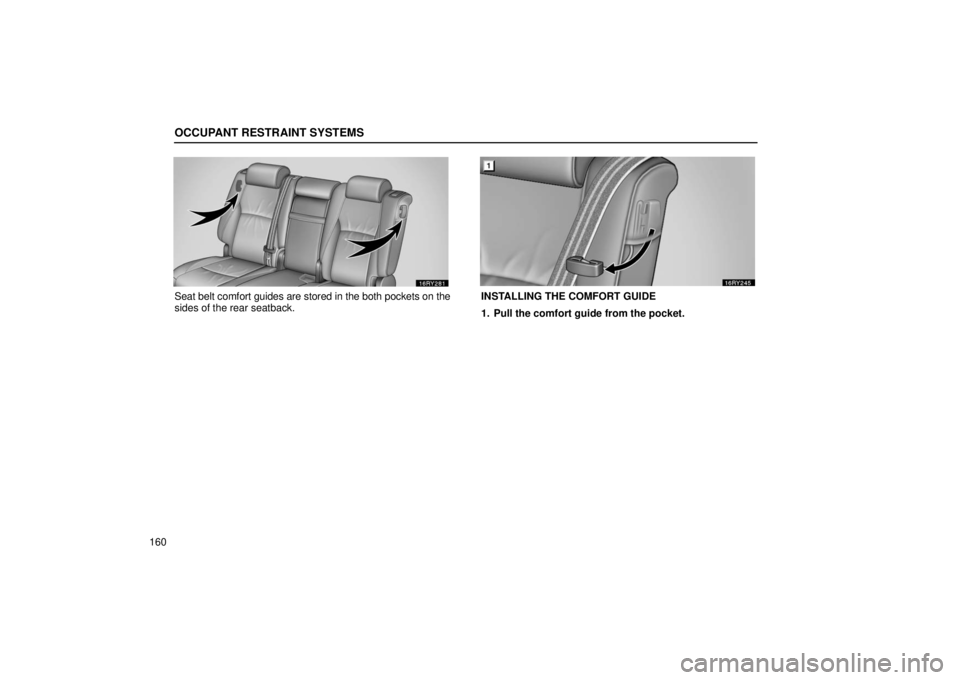

Seat belt comfort guides are stored in the both pockets on the
sides of the rear seatback.INSTALLING THE COMFORT GUIDE
1. Pull the comfort guide from the pocket.

OCCUPANT RESTRAINT SYSTEMS
161

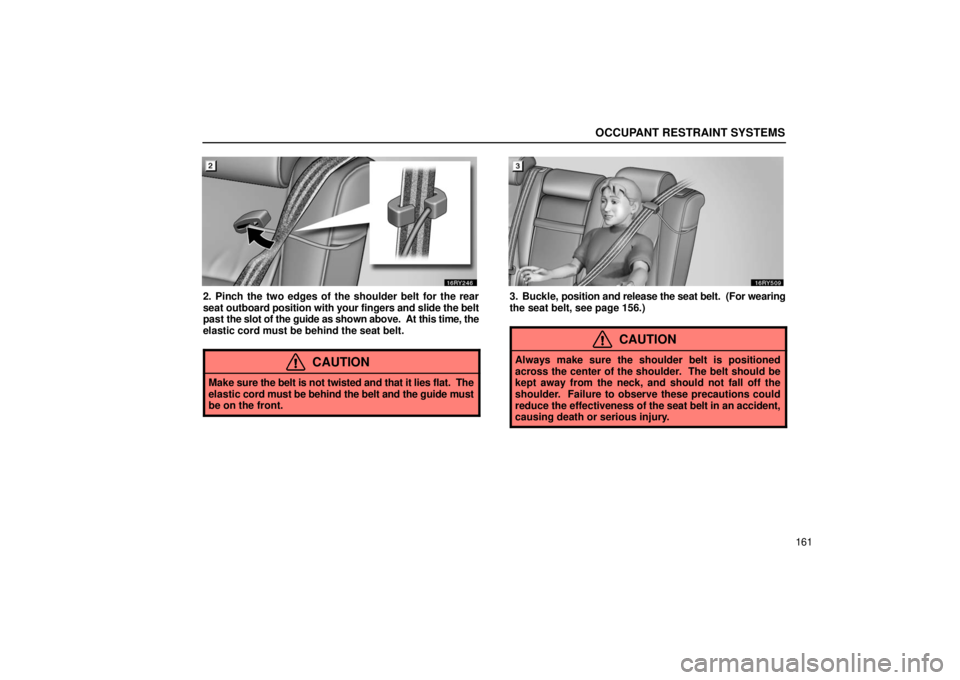

2. Pinch the two edges of the shoulder belt for the rear
seat outboard position with your fingers and slide the belt
past the slot of the guide as shown above. At this time, the
elastic cord must be behind the seat belt.
CAUTION
Make sure the belt is not twisted and that it lies flat. The
elastic cord must be behind the belt and the guide must
be on the front.
3. Buckle, position and release the seat belt. (For wearing
the seat belt, see page 156.)
CAUTION
Always make sure the shoulder belt is positioned
across the center of the shoulder. The belt should be
kept away from the neck, and should not fall off the
shoulder. Failure to observe these precautions could
reduce the effectiveness of the seat belt in an accident,
causing death or serious injury.

OCCUPANT RESTRAINT SYSTEMS
162
REMOVING AND STORING THE COMFORT GUIDE
Pinch the two edges of the seat belt together so that you
can slide them out of the guide. Store the guide with the
elastic cord into the pocket.
CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop while driving, remove and store the
comfort guide in its pocket when it is not in use.
Seat belt extender
If your seat belts cannot be fastened securely because they are
not long enough, a personalized seat belt extender is available
from your Lexus dealer free of charge.
Please contact your local Lexus dealer so that the dealer can
order the proper required length for the extender. Bring the
heaviest coat you expect to wear for proper measurement and
selection of length. Additional ordering information is available
at your Lexus dealer.

OCCUPANT RESTRAINT SYSTEMS
163

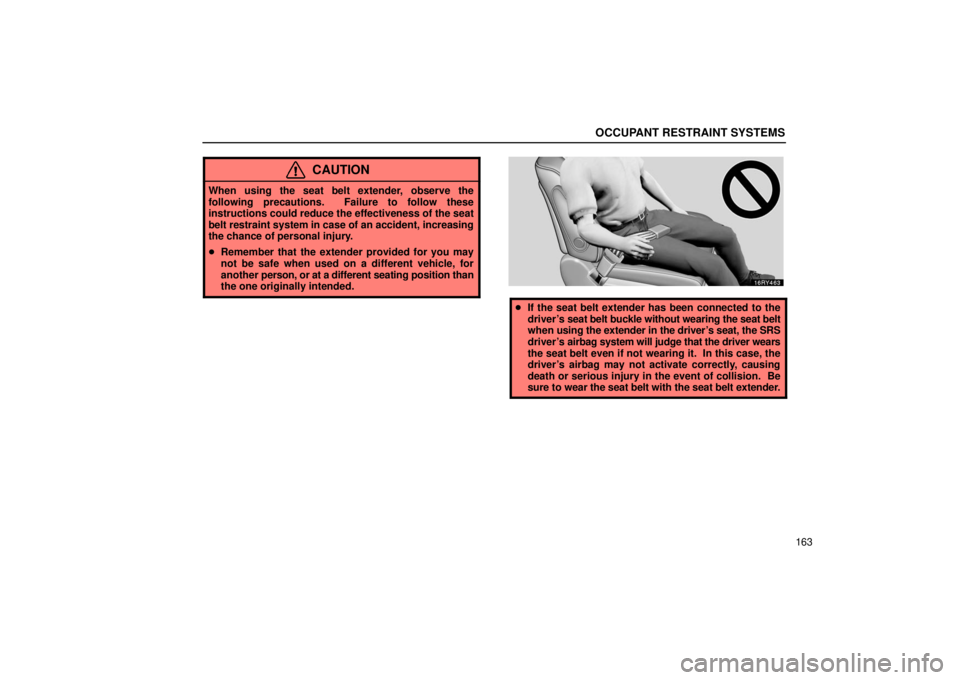

CAUTION
When using the seat belt extender, observe the
following precautions. Failure to follow these
instructions could reduce the effectiveness of the seat
belt restraint system in case of an accident, increasing
the chance of personal injury.
Remember that the extender provided for you may
not be safe when used on a different vehicle, for
another person, or at a different seating position than
the one originally intended.
 If the seat belt extender has been connected to the
driver’s seat belt buckle without wearing the seat belt
when using the extender in the driver’s seat, the SRS
driver’s airbag system will judge that the driver wears
the seat belt even if not wearing it. In this case, the
driver’s airbag may not activate correctly, causing
death or serious injury in the event of collision. Be
sure to wear the seat belt with the seat belt extender.
