PICTORIAL INDEX
xvii
INSTRUMENT CLUSTER (vehicles sold in Canada)

For detailed information, refer to the description given in each Section\
.
PICTORIAL INDEX
xviiiPage
1Tachometer
72
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2Rear light failure warning light 82
. . . . . . . . . . . . . . . . .
3Driver’s seat belt reminder light 77
. . . . . . . . . . . . . . . .
4SRS warning light 77
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5Automatic headlight leveling system
warning light 84 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6Adaptive frontlighting system off
indicator light 51 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7Charging system warning light 78
. . . . . . . . . . . . . . . . .
8Low engine oil pressure warning light 78
. . . . . . . . . .
9Malfunction indicator lamp 80
. . . . . . . . . . . . . . . . . . . .
10Headlight high beam indicator light 52
. . . . . . . . . . . .
11Low washer fluid warning light 83
. . . . . . . . . . . . . . . . .
12Automatic transmission fluid temperature
warning light 83 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13Antilock brake system warning light 81
. . . . . . . . . . .
14Brake system warning light 76
. . . . . . . . . . . . . . . . . . . .
15Automatic transmission
indicator lights 389, 398 . . . . . . . . . . . . . . . . . . . . . . . . .
16Fuel gauge 70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17Low fuel level warning light 84
. . . . . . . . . . . . . . . . . . . .
18Engine coolant temperature gauge 71
. . . . . . . . . . . . . Page
19Low tire pressure warning light
84
. . . . . . . . . . . . . . . .
20Slip indicator light 450, 453, 456
. . . . . . . . . . . . . . . . . .
21Snow mode indicator light 397, 408
. . . . . . . . . . . . . . .
22Traction control system off
indicator light 451 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23Vehicle stability control system
warning light 83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
24Tail light indicator light 48
. . . . . . . . . . . . . . . . . . . . . . . .
25Turn signal indicator lights 52
. . . . . . . . . . . . . . . . . . . .
26Dynamic laser cruise control master
warning light 431 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27Odometer and trip meter 73
. . . . . . . . . . . . . . . . . . . . . .
28Dynamic laser cruise control display 416
. . . . . . . . .
29Conventional cruise control mode
indicator light 433 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30Cruise control indicator light 412
. . . . . . . . . . . . . . . .
31Ready mode indicator light 423
. . . . . . . . . . . . . . . . . .
32Easy access mode indicator light 444
. . . . . . . . . . . .
33Height control “OFF” indicator light 446
. . . . . . . . . .
34Height control indicator lights 441
. . . . . . . . . . . . . . .
35Open door warning light 82
. . . . . . . . . . . . . . . . . . . . . . .

PICTORIAL INDEX
xix

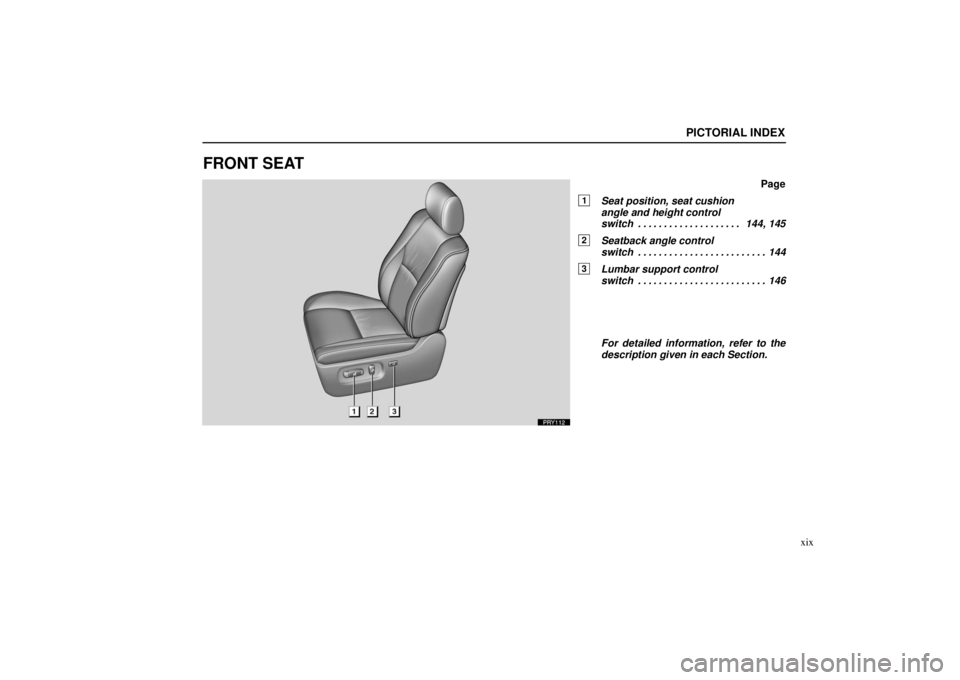

FRONT SEAT
Page
1Seat position, seat cushion
angle and height control
switch 144, 145. . . . . . . . . . . . . . . . . . . .
2Seatback angle control
switch 144. . . . . . . . . . . . . . . . . . . . . . . . .
3Lumbar support control
switch 146. . . . . . . . . . . . . . . . . . . . . . . . .
For detailed information, refer to the
description given in each Section.

PICTORIAL INDEX
xx
STEERING WHEEL AND COLUMN
Page
1Headlight, turn signal and
fog light switches 48, 52, 53. . . . . . . .
2Audio remote control
switches 304. . . . . . . . . . . . . . . . . . . . . . .
3Distance switch 416
. . . . . . . . . . . . . . . .
4Speech command button (See the
separate “Navigation System
Owner’s Manual”.)
5Telephone button (See the separate
“Navigation System Owner’s
Manual”.)
6Wiper and washer switches 53, 59 . .
7Cruise control switch 412, 416. . . . . .
8Tilt steering lock release
lever or tilt and telescopic
steering control switch 228, 229 . . . .
For detailed information, refer to the
description given in each Section.

PICTORIAL INDEX
xxi
EXTERIOR VIEW
Page
1Rear window defogger61
. . . . . . . . . . .
2Back door 32, 35
. . . . . . . . . . . . . . . . . .
3Fuel filler door 125
. . . . . . . . . . . . . . . . .
4Moon roof 128, 132
. . . . . . . . . . . . . . . .
5Wiper and washer 53, 609
. . . . . . . . . .
6Outside rear view mirror 230 . . . . . . . .
7Side door 27
. . . . . . . . . . . . . . . . . . . . . . .
8Tire and wheel 570
. . . . . . . . . . . . . . . . .
9Headlights 48, 611
. . . . . . . . . . . . . . . . . .
10Hood 124
. . . . . . . . . . . . . . . . . . . . . . . . . .
For detailed information, refer to the
description given in each Section.

BASIC OPERATION
1
QUICK REFERENCE
Quick reference
Driver’s seat2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Steering wheel (tilt type) 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering wheel (tilt and telescopic type) 3
. . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission (standard type) 4
. . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission (multi −mode type) 6
. . . . . . . . . . . . . . . . . . . . .
Headlight and turn signal switch 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiper and washer switch 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BRY069
(c/0)

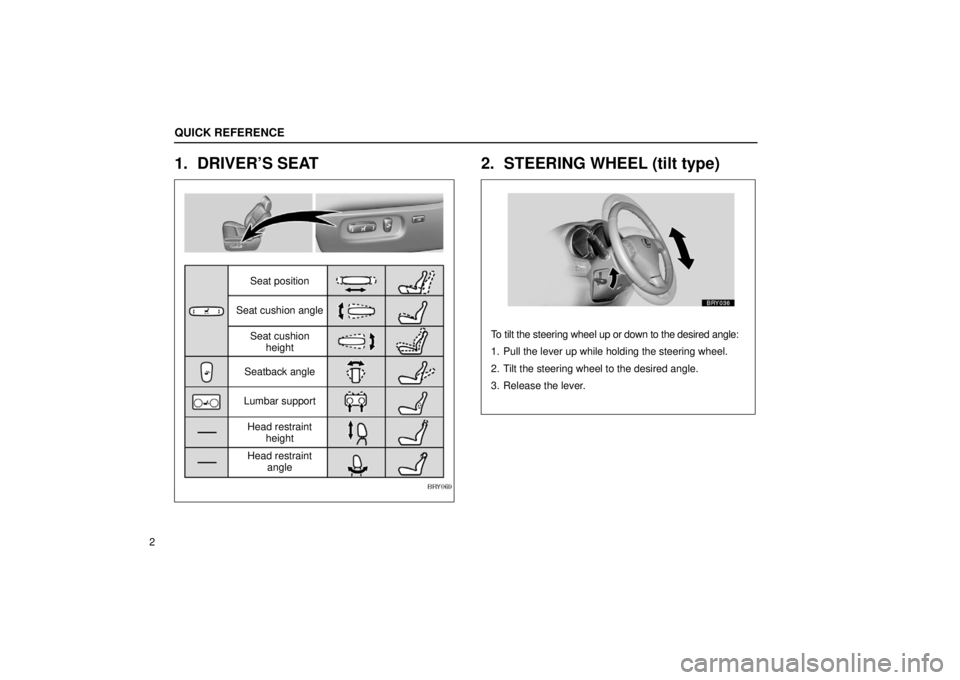

Seat position
Head restraintangle
Head restraint
height
Lumbar support
Seatback angle Seat cushion
height
Seat cushion angle BRY036
To tilt the steering wheel up or
down to the desired angle:
1. Pull the lever up while holding the steering wheel.
2. Tilt the steering wheel to the desired angle.
3. Release the lever.
QUICK REFERENCE
2
1. DRIVER’S SEAT 2. STEERING WHEEL (tilt type)

BRY091
(7.2/7)
TILT OPERATION
To tilt the steering wheel up or down to the desired angle,
push the control switch in the required direction and
release the button when the steering wheel reaches the
desired angle.
BRY092
(7.2/7)
TELESCOPIC OPERATION
To move the steering wheel to the desired position, push
the control switch away from you or pull it toward you until
the steering wheel reaches the desired position.
QUICK REFERENCE
3
2. STEERING WHEEL (tilt and telescopic type)
