2006 LEXUS RX330 Owners Manual

AUDIO
308The illumination of the screen is automatically turned off when
the display is closed. However, the rear seat entertainment
system is not turned off.
CAUTION
To reduce the chance of injury in case of an accident or
sudden stop while driving, close the display when it is
not in use.
NOTICE

The screen should be cleaned with a dry soft cloth.
If the screen is pushed by hand or wiped with a hard
cloth, the surface of the screen may be scratched.
 Benzene or alkaline solutions may damage the
coated surface of the screen.
 To prevent the battery from being discharged, do not
turn on the rear seat entertainment system longer
than necessary when the engine is not running.
Rear seat entertainment system remote
control
The rear seat entertainment system can be operated with
the rear seat entertainment system remote control and the
switches on the DVD player. The system cannot be
operated by touching the switches on the screen directly.
CAUTION
Do not disassemble or modify the remote control. It
may cause an accident, fire or electric shock.
NOTICE
Keep the remote control away from direct sunlight, high
heat and high humidity. These conditions could cause
the case to deform or the battery to explode or leak.

AUDIO
309
(a) Before using the remote control (for new vehicle
owners)
A battery is already set in the remote control with an
insulating sheet, which prevents the battery from being
discharged.
Before using the remote control, remove the
insulating sheet according to the following procedure.

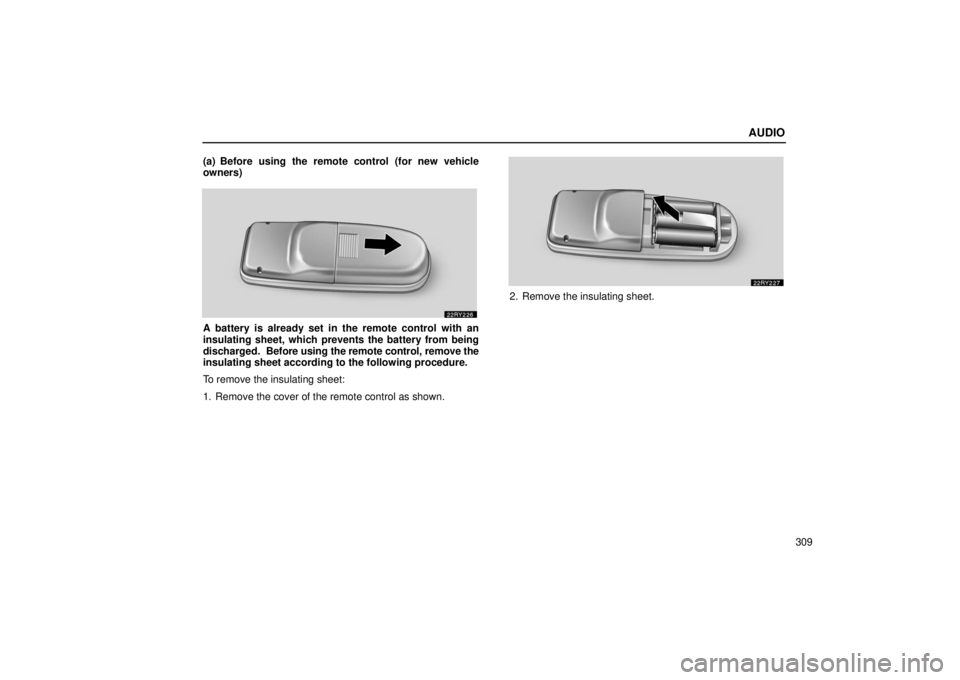

To remove the insulating sheet:
1. Remove the cover of the remote control as shown.
2. Remove the insulating sheet.

AUDIO
310(b) Using the remote control
To use the rear seat entertainment system remote control,
direct
the signal output portion of the remote control to the
signal reception portion of the rear seat entertainment
system display.
The remote control does not operate properly when the signal
reception portion of the display is exposed to direct sunlight.
Block the display from direct sunlight.
CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop while driving, stow the remote control in
the console box or front seatback pocket when it is not
in use.

AUDIO
311
NOTICE
Observe the followings, otherwise the remote control
may be damaged.
Do not drop or strongly knock the remote control
against hard objects.
 Do not sit on or place heavy objects on the remote
control.
 Do not leave the remote control exposed to high
temperatures (such as on the instrument panel) for a
long time, otherwise the remote control may be
damaged.
(c) Locating the remote control
If you lose sight of the remote control, push and hold the
“CURSOR (REMOTE)” button on the DVD player unit until you
hear a beep. A buzzer sounds from the remote control to let you
know where it is.
To stop the buzzer, push any button of the remote control.
If the remote control is located close to something that blocks
the signal, such as some kind of metal, the remote control may
not receive the signal and the buzzer may not sound.

AUDIO
312
FCC InformationCaution: Any changes or modifications in
construction of this device which are not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
FCC Label Information This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, Including interference that may cause
undesired operation.Quick reference for your remote control
 With navigation system

AUDIO
313
Without navigation system

AUDIO
314
1“DVD” button: Turn on the DVD mode.
2“SOURCE” button: Turn on the rear seat
entertainment system and selects the mode.
3“INFO” button: Indicate the “Information Menu”
screen. (See the separate “Navigation System
Owner’s Manual”.)
4“MENU” button: Indicate the “Menu” screen when the
navigation system is operated. (See the separate
“Navigation System Owner’s Manual”.)
5“OFF” button: Turn off the rear seat entertainment
system.
6Joy stick: Select a control switch, mode switch on the
screen or the menu for the disc.
7“ENT” button: Input the selected switch or the
selected menu for the disc.
8“DISC/CH/PROG” button: Skip directly to a desired
preset station, disc, track or chapter.
9“  ” button: Fast forwards a screen when the DVD
player is operated.
10“RETURN” button: Skip to the predetermined scene
for the disc.
11“MENU” button: Indicate the menu screen for DVD
video when the DVD player is operated.
12“AUDIO” button: Indicate the changing audio screen
when the DVD player is operated.
13“SUB TITLE” button: Indicate the changing subtitle
screen when the DVD player is operated.
14“DISPLAY” button: Adjust the color, tone, contrast
and brightness of the screen.
15“SET UP” button: Indicate the initial set up screen
when the DVD player is operated.
16“ANGLE” button: Select the angle of the screen when
the DVD player is operated.
17“SEARCH” button: Indicate the title search screen
when the DVD player is operated.
18“TOP MENU” button: Indicate the title selection
screen for DVD video when the DVD player is operated.
19“” button: Pause a screen when the DVD player is
operated.
20“  ” button: Reverse a screen when the DVD player
is operated.
21“  ” button: Play a screen when the DVD player is
operated.
22“TUNE/TRACK” button: Operate the front audio
system or select the track/chapter when the DVD
player is operated.
23“CURSOR” button: Indicates the control switches on
the screen when the DVD player is operated.
24“MAP” button: Indicate the map screen when the
navigation system is operated. (See the separate
“Navigation System Owner’s Manual”.)
25“DEST” button: Indicate the “Destination” screen
when the navigation system is operated. (See the
separate “Navigation System Owner’s Manual”.)
26“VIDEO” button: Turn on the video mode when your
personal audio device is connected.

AUDIO
315
Buttons on the DVD player unit
The rear seat entertainment system can be operate with the
switches on the DVD player.
1“” (eject) switch: Use this switch to eject the disc
from the DVD player.
2“SOURCE” switch: Push this switch to turn on the rear
seat entertainment system.
To change the audio mode, turn on the system and push the
source switch until the mode you desire is displayed. If a tape
or disc is not inserted, the “TAPE”, “CD” and “DVD” modes are
skipped.
3“TUNE/TRACK” switch: Use this switch to tune or seek
(radio mode), fast forward or rewind (“TAPE” mode),
select a desired track (“CD” mode) or select a desired
chapter/track (“DVD” mode).
Radio mode: Use this switch to tune or seek.
 To tune, repeatedly push this switch briefly until your desired
station is found.
 To seek, push and hold this switch until you hear a beep.
The radio will begin seeking up or down the band for a
station, and will stop on reception.
TAPE mode: Use this switch to fast forward or rewind a tape,
or for automatic program selection.
 To skip forward or rewind using automatic program
selection, push this switch briefly. By using automatic
program selection, you can skip up to 9 programs at a time.
For details, see page 276 or 296.
 To fast forward or rewind the tape, push and hold this switch
until you hear a beep. To stop fast forwarding or rewinding,
push and hold the same side of the switch until you hear a
beep.
