2006 LEXUS RX330 Owners Manual

AUDIO
380

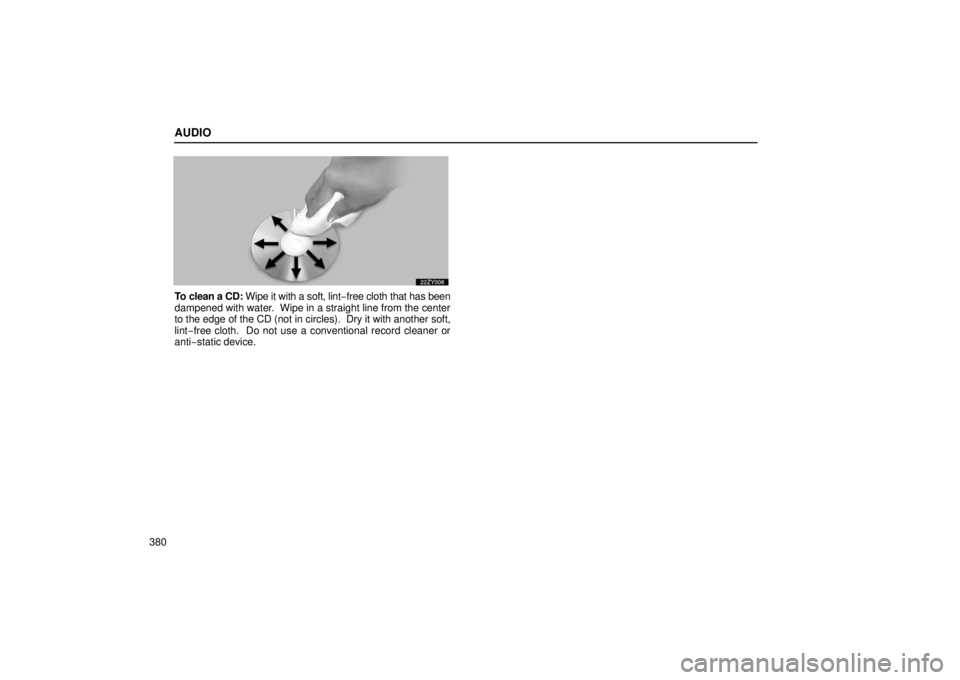

To clean a CD: Wipe it with a soft, lint−free cloth that has been
dampened with water. Wipe in a straight line from the center
to the edge of the CD (not in circles). Dry it with another soft,
lint−free cloth. Do not use a conventional record cleaner or
anti−static device.

SECTION 3 – 1
381
STARTING AND DRIVING
Starting and driving
Three−way catalytic converters382
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine exhaust caution 384
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Before starting the engine 385
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch 385
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Parking brake 387
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
How to start the engine 388
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission (standard type) 389
. . . . . . . . . . . . . . . . . . . . .
Automatic transmission (multi −mode type) 398
. . . . . . . . . . . . . . . . . . .
Rear view monitor system 408
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cruise control 412
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Dynamic laser cruise control 416
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electronically modulated air suspension 437
. . . . . . . . . . . . . . . . . . . . .
Traction control system (two− wheel drive models) 449
. . . . . . . . . . . .
Traction control system (four −wheel drive models) 453
. . . . . . . . . . . .
Vehicle stability control system 455
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake system 458
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Tire pressure warning system 462
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake pad wear limit indicators 465
. . . . . . . . . . . . . . . . . . . . . . . . . . . .

STARTING AND DRIVING
382
THREEWAY CATALYTICCONVERTERS
Threeway catalytic converters are emission control
devices installed in the exhaust system.
It looks somewhat like a muffler, but its purpose is to reduce
pollutants in the exhaust gas.
CAUTION
Keep people and combustible materials away from
the exhaust pipe while the engine is running. The
exhaust gas is very hot.
 Do not idle or park your vehicle over anything that
might burn easily such as grass, leaves, paper or
rags.

STARTING AND DRIVING
383
NOTICE
A large amount of unburned gases flowing into the
threeway catalytic converter may cause it to overheat
and create a fire hazard. To prevent this and other
damage, observe the following precautions:
 Use only unleaded gasoline.
 Do not drive with an extremely low fuel level; running
out of fuel could cause the engine to misfire, creating
an excessive load on the threeway catalytic
converter.
 Do not allow the engine to run at idle speed for more
than 20 minutes.
 Avoid racing the engine.
 Do not pushstart or pullstart your vehicle.
 Do not turn off the ignition while the vehicle is
moving.
 Keep your engine in good running order.
Malfunctions in the engine electrical system,
electronic ignition system or fuel system could cause
an extremely high threeway catalytic converter
temperature.
 If the engine becomes difficult to start or stalls
frequently, take your vehicle in for a checkup as
soon as possible. Remember, your Lexus dealer
knows your vehicle and its threeway catalytic
converter system best.
 To ensure that the threeway catalytic converter and
the entire emission control system operate properly,
your vehicle must receive the periodic inspections
required by the Lexus Maintenance Schedule. For
scheduled maintenance information, refer to the
“Owner’s Manual Supplement / Scheduled
Maintenance”.

STARTING AND DRIVING
384
ENGINE EXHAUST CAUTION
CAUTION
Avoid inhaling the engine exhaust. It contains
carbon monoxide, which is a colorless and odorless
gas. It can cause unconsciousness or even death.
 Make sure the exhaust system has no holes or loose
connections. The system should be checked from
time to time. If you hit something, or notice a change
in the sound of the exhaust, have the system checked
immediately.
 Do not run the engine in a garage or enclosed area
except for the time needed to drive the vehicle in or
out. The exhaust gases cannot escape, making this
a particularly dangerous situation.
 Do not remain for a long time in a parked vehicle with
the engine running. If it is unavoidable, however, do
so only in an unconfined area and adjust the heating
or cooling system to force outside air into the vehicle.
 Keep the back door closed while driving. An open or
unsealed back door may cause exhaust gases to be
drawn into the vehicle.
 To allow proper operation of your vehicle’s
ventilation system, keep the inlet grilles in front of the
windshield clear of snow, leaves, or other
obstructions.
 If you smell exhaust fumes in the vehicle, drive with
the windows open and the back door closed. Have
the cause immediately located and corrected.

STARTING AND DRIVING
385
BEFORE STARTING THE ENGINE
1. Check the area around the vehicle before entering it.
2. Adjust seat position, seatback angle, seat cushion height,
seat cushion angle, head restraint height and steering wheel
angle.
3. Adjust the inside and outside rear view mirrors.
4. Lock all doors.
5. Fasten seat belts.
Remember to check that the service reminder indicators
function when turning the key to “ON”, and check the fuel
gauge to see that you have sufficient fuel.
IGNITION SWITCH
“START” — Starter motor on. The key will return to the
“ON” position when released.
For starting tips, see page 388.
“ON” — Engine on and all accessories on.
This is the normal driving position.
NOTICE
Do not leave the key in the “ON” position if the engine
is not running. The battery will discharge and the
electronic ignition system could be damaged.

STARTING AND DRIVING
386“ACC” — Accessories such as the radio operate, but the
engine is off.
If you leave the key in the “ACC” or “LOCK” position and open
the driver’s door, a buzzer will remind you to remove the key.
“LOCK” —
Engine is off and the steering wheel is locked.
The ignition key can be removed only at this position.
You must push in the key to turn it from “ACC” to the “LOCK”
position. The selector lever must be put in the “P” position
before turning the key to the “LOCK” position.
Once you remove the key, the engine immobilizer system is
automatically set. See “Engine immobilizer system” on page
16.
When starting the engine, the key may seem stuck at the
“LOCK” position. To free it, first be sure the key is pushed all
the way in, and then rock the steering wheel slightly while
turning the key gently.
If, in an emergency, you must turn the engine off while the
vehicle is moving, turn the key only to “ACC”.
If is not a malfunction if the needles on all meters and gauges
move slightly when the key is turned tp the “ACC”, “ON” or
“START” position.

STARTING AND DRIVING
387

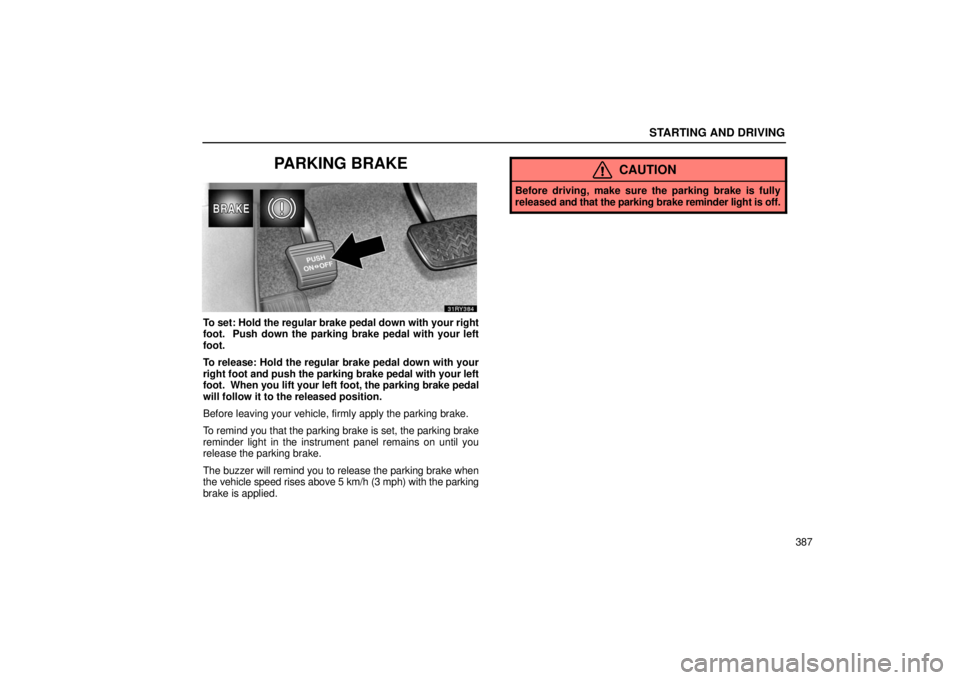

PARKING BRAKE
To set: Hold the regular brake pedal down with your right
foot. Push down the parking brake pedal with your left
foot.
To release: Hold the regular brake pedal down with your
right foot and push the parking brake pedal with your left
foot. When you lift your left foot, the parking brake pedal
will follow it to the released position.
Before leaving your vehicle, firmly apply the parking brake.
To remind you that the parking brake is set, the parking brake
reminder light in the instrument panel remains on until you
release the parking brake.
The buzzer will remind you to release the parking brake when
the vehicle speed rises above 5 km/h (3 mph) with the parking
brake is applied.
CAUTION
Before driving, make sure the parking brake is fully
released and that the parking brake reminder light is off.
