2003 MERCEDES-BENZ CLK320 COUPE Owner's Manual

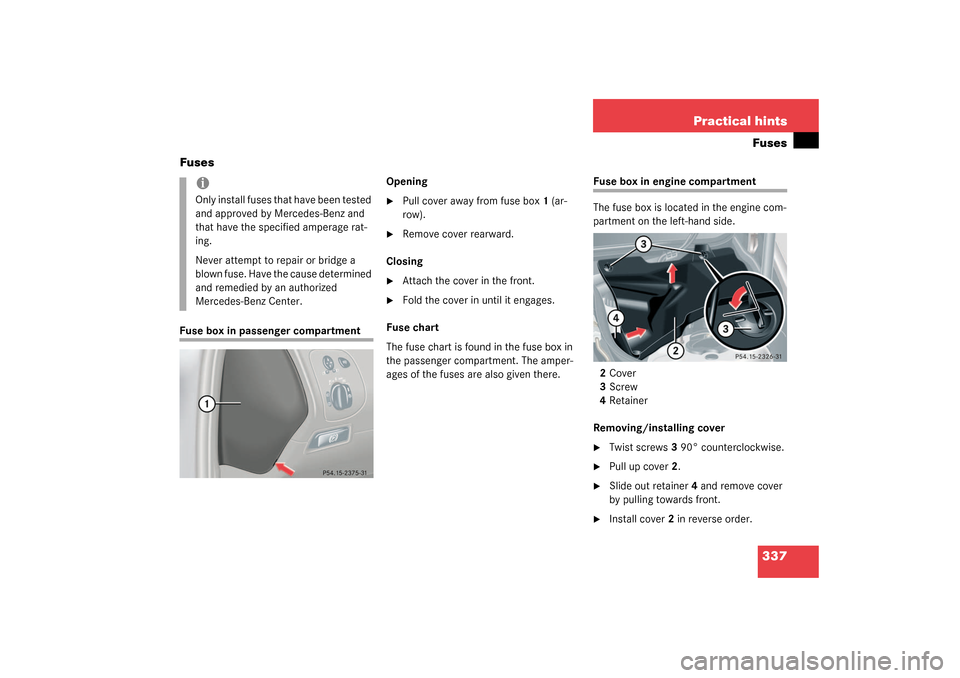

337 Practical hintsFuses
Fuses
Fuse box in passenger compartmentOpening

Pull cover away from fuse box1 (ar-
row).

Remove cover rearward.
Closing

Attach the cover in the front.

Fold the cover in until it engages.
Fuse chart
The fuse chart is found in the fuse box in
the passenger compartment. The amper-
ages of the fuses are also given there.
Fuse box in engine compartment
The fuse box is located in the engine com-
partment on the left-hand side.
2Cover
3Screw
4Retainer
Removing/installing cover
Twist screws3 90° counterclockwise.

Pull up cover2.

Slide out retainer4 and remove cover
by pulling towards front.

Install cover2 in reverse order.
iOnly install fuses that have been tested
and approved by Mercedes-Benz and
that have the specified amperage rat-
ing.
Never attempt to repair or bridge a
blown fuse. Have the cause determined
and remedied by an authorized
Mercedes-Benz Center.

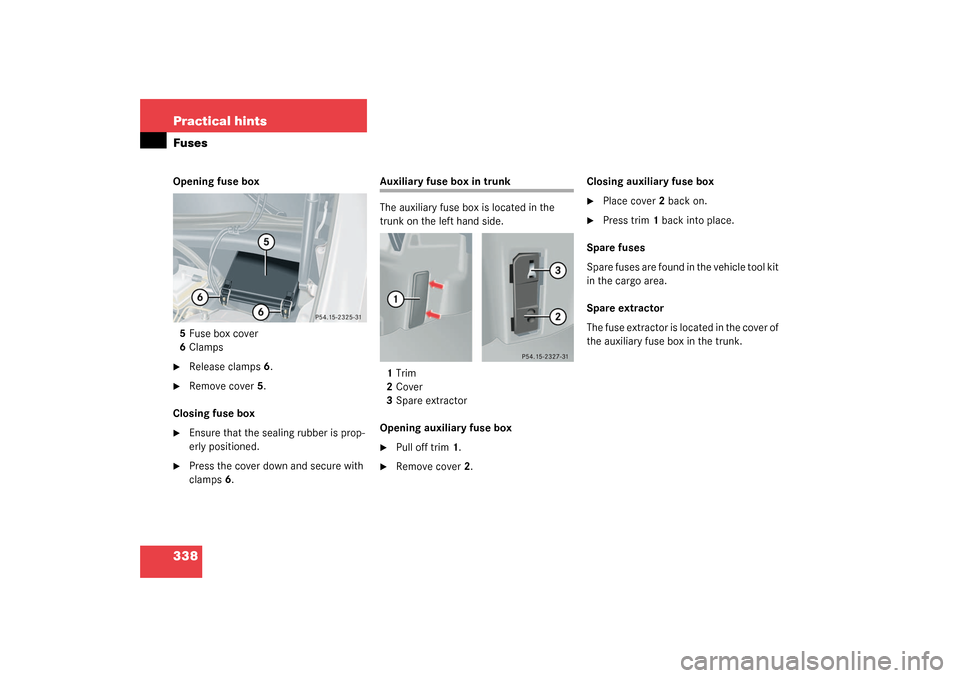

338 Practical hintsFusesOpening fuse box
5Fuse box cover
6Clamps
Release clamps6.

Remove cover5.
Closing fuse box

Ensure that the sealing rubber is prop-
erly positioned.

Press the cover down and secure with
clamps6.
Auxiliary fuse box in trunk
The auxiliary fuse box is located in the
trunk on the left hand side.
1Trim
2Cover
3Spare extractor
Opening auxiliary fuse box
Pull off trim1.

Remove cover2.Closing auxiliary fuse box

Place cover 2 back on.

Press trim1 back into place.
Spare fuses
Spare fuses are found in the vehicle tool kit
in the cargo area.
Spare extractor
The fuse extractor is located in the cover of
the auxiliary fuse box in the trunk.

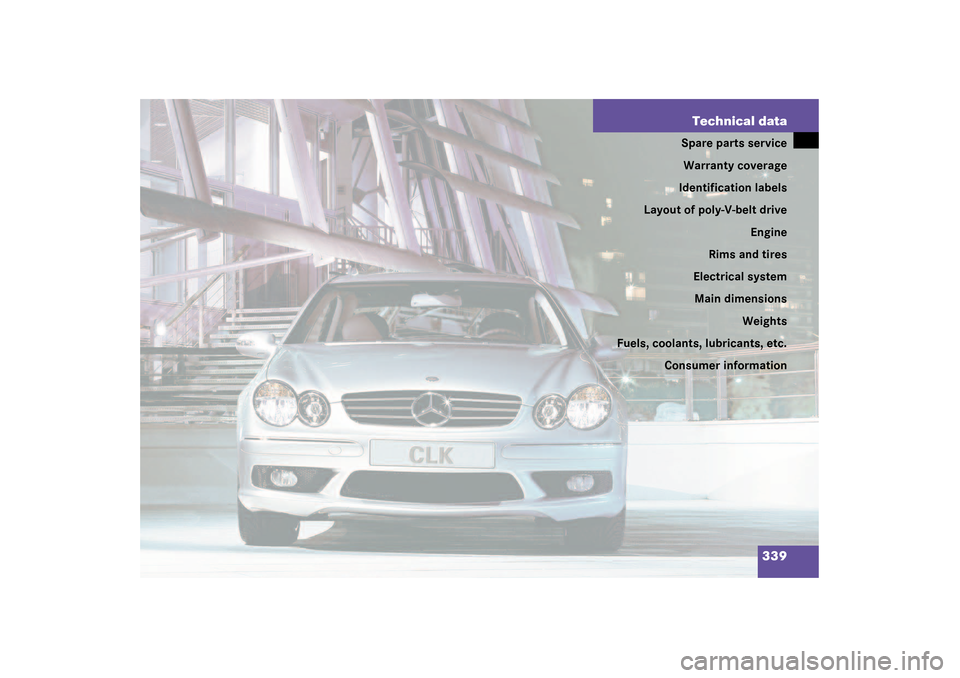

339 Technical data
Spare parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and tires
Electrical system
Main dimensions
Weights
Fuels, coolants, lubricants, etc.
Consumer information

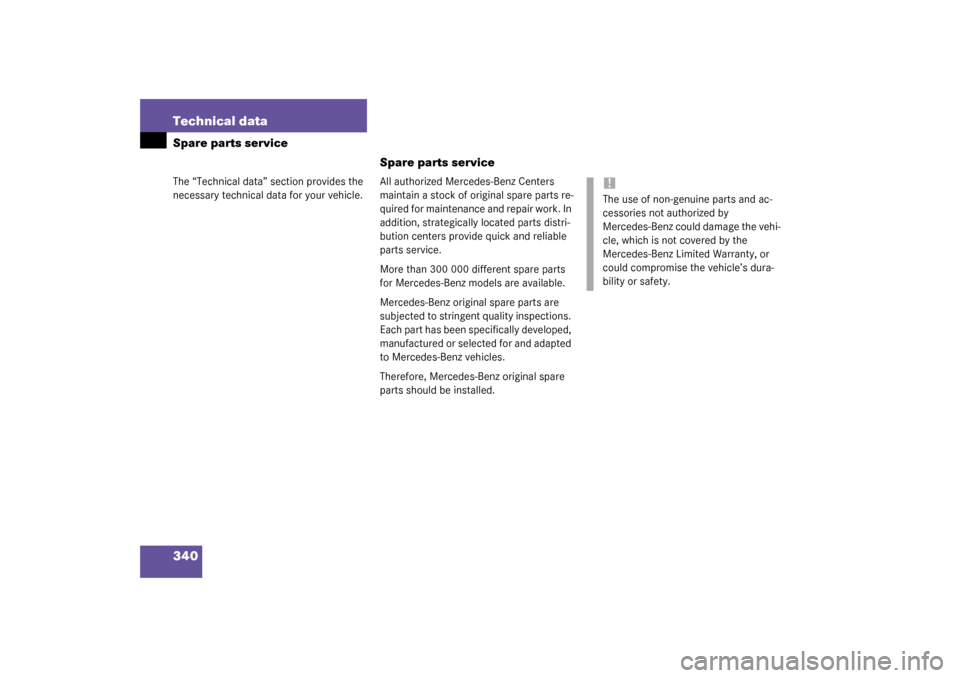

340 Technical dataSpare parts serviceThe “Technical data” section provides the
necessary technical data for your vehicle.
Spare parts serviceAll authorized Mercedes-Benz Centers
maintain a stock of original spare parts re-
quired for maintenance and repair work. In
addition, strategically located parts distri-
bution centers provide quick and reliable
parts service.
More than 300 000 different spare parts
for Mercedes-Benz models are available.
Mercedes-Benz original spare parts are
subjected to stringent quality inspections.
Each part has been specifically developed,
manufactured or selected for and adapted
to Mercedes-Benz vehicles.
Therefore, Mercedes-Benz original spare
parts should be installed.
!The use of non-genuine parts and ac-
cessories not authorized by
Mercedes-Benz could damage the vehi-
cle, which is not covered by the
Mercedes-Benz Limited Warranty, or
could compromise the vehicle’s dura-
bility or safety.

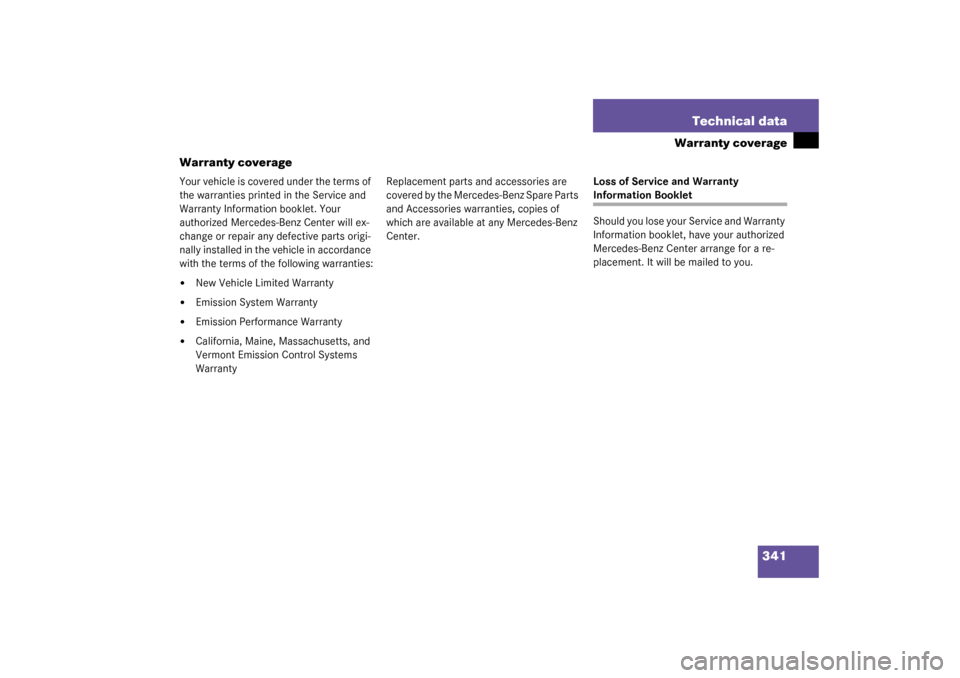

341 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the warranties printed in the Service and
Warranty Information booklet. Your
authorized Mercedes-Benz Center will ex-
change or repair any defective parts origi-
nally installed in the vehicle in accordance
with the terms of the following warranties:

New Vehicle Limited Warranty


Emission System Warranty


Emission Performance Warranty


California, Maine, Massachusetts, and
Vermont Emission Control Systems
WarrantyReplacement parts and accessories are
covered by the Mercedes-Benz Spare Parts
and Accessories warranties, copies of
which are available at any Mercedes-Benz
Center.Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have your authorized
Mercedes-Benz Center arrange for a re-
placement. It will be mailed to you.

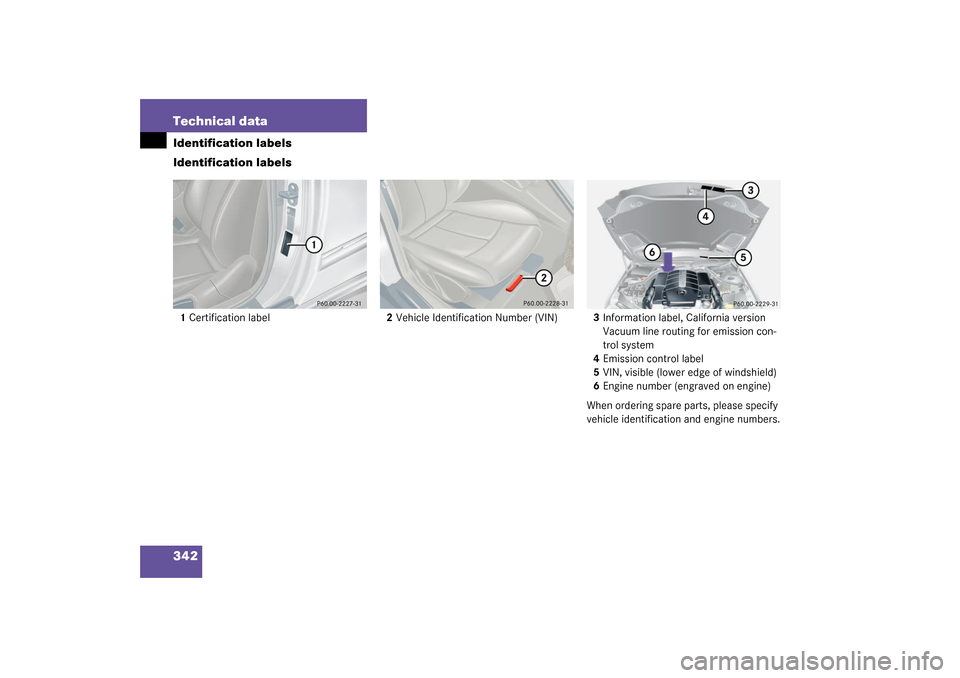

342 Technical dataIdentification labels
Identification labels1Certification label2Vehicle Identification Number (VIN)3Information label, California version
Vacuum line routing for emission con-
trol system
4Emission control label
5VIN, visible (lower edge of windshield)
6Engine number (engraved on engine)
When ordering spare parts, please specify
vehicle identification and engine numbers.

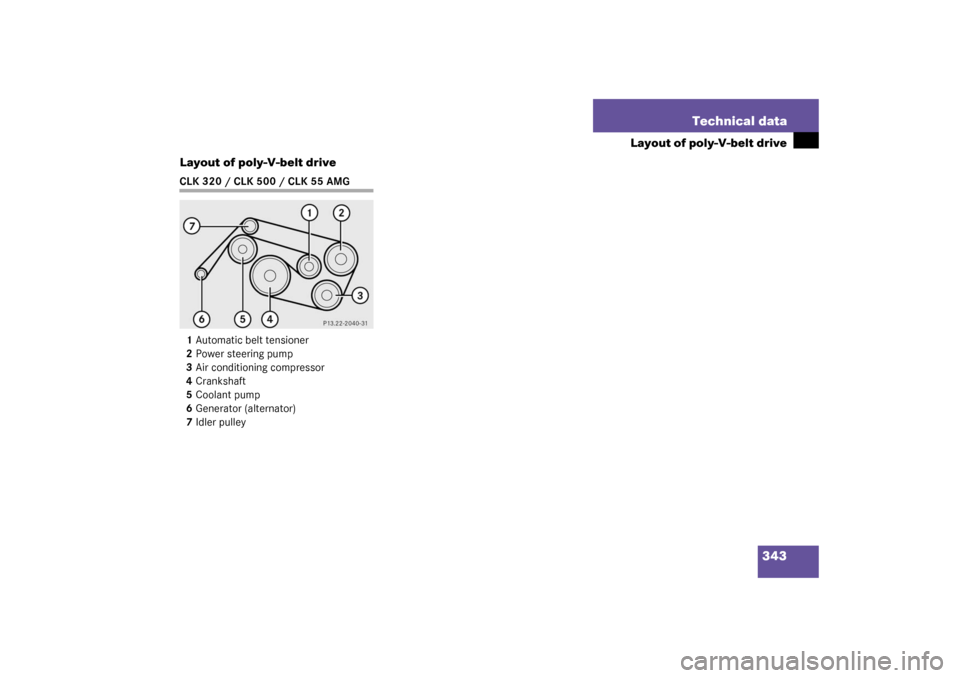

343 Technical data
Layout of poly-V-belt drive
Layout of poly-V-belt drive
CLK 320 / CLK 500 / CLK 55 AMG
1Automatic belt tensioner
2Power steering pump
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley

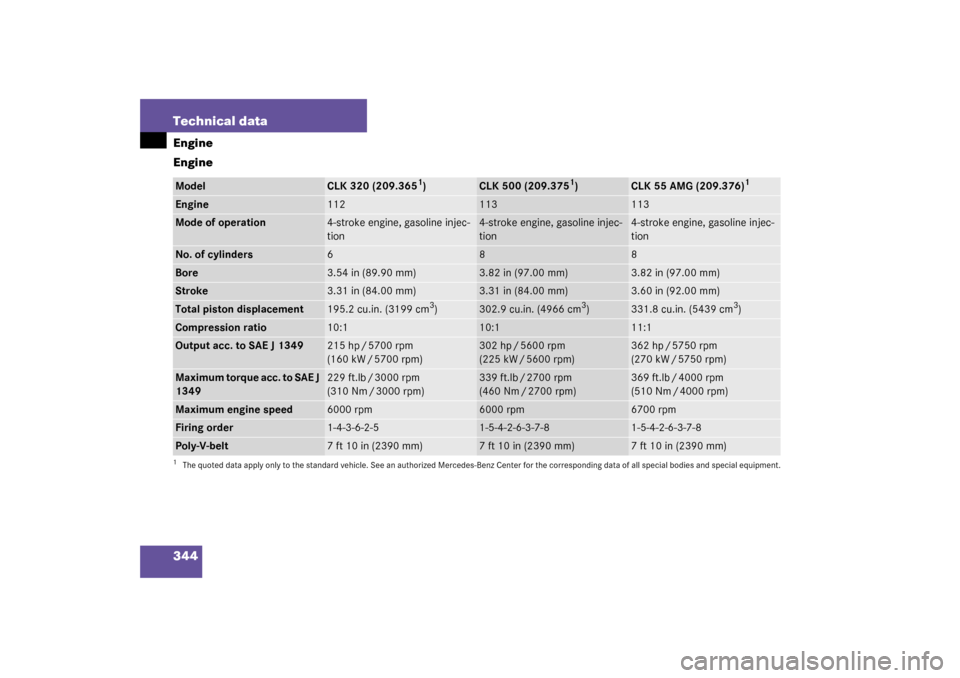

344 Technical dataEngine
EngineModel
CLK 320 (209.365
1)
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
CLK 500 (209.375
1)
CLK 55 AMG (209.376)
1
Engine
112
113
113
Mode of operation
4-stroke engine, gasoline injec-
tion
4-stroke engine, gasoline injec-
tion
4-stroke engine, gasoline injec-
tion
No. of cylinders
6
8
8
Bore
3.54 in (89.90 mm)
3.82 in (97.00 mm)
3.82 in (97.00 mm)
Stroke
3.31 in (84.00 mm)
3.31 in (84.00 mm)
3.60 in (92.00 mm)
Total piston displacement
195.2 cu.in. (3199 cm
3)
302.9cu.in. (4966cm
3)
331.8 cu.in. (5439 cm
3)
Compression ratio
10:1
10:1
11:1
Output acc. to SAE J 1349
215 hp / 5700 rpm
(160 kW / 5700 rpm)
302hp/5600rpm
(225 kW / 5600 rpm)
362 hp / 5750 rpm
(270 kW / 5750 rpm)
Maximum torque acc. to SAE J
1349
229ft.lb/3000rpm
(310 Nm / 3000 rpm)
339 ft.lb / 2700 rpm
(460 Nm / 2700 rpm)
369ft.lb/4000rpm
(510 Nm / 4000 rpm)
Maximum engine speed
6000 rpm
6000 rpm
6700 rpm
Firing order
1-4-3-6-2-5
1-5-4-2-6-3-7-8
1-5-4-2-6-3-7-8
Poly-V-belt
7ft 10in (2390mm)
7 ft 10 in (2390 mm)
7ft 10in (2390mm)
