2003 MERCEDES-BENZ CLK320 COUPE Owner's Manual

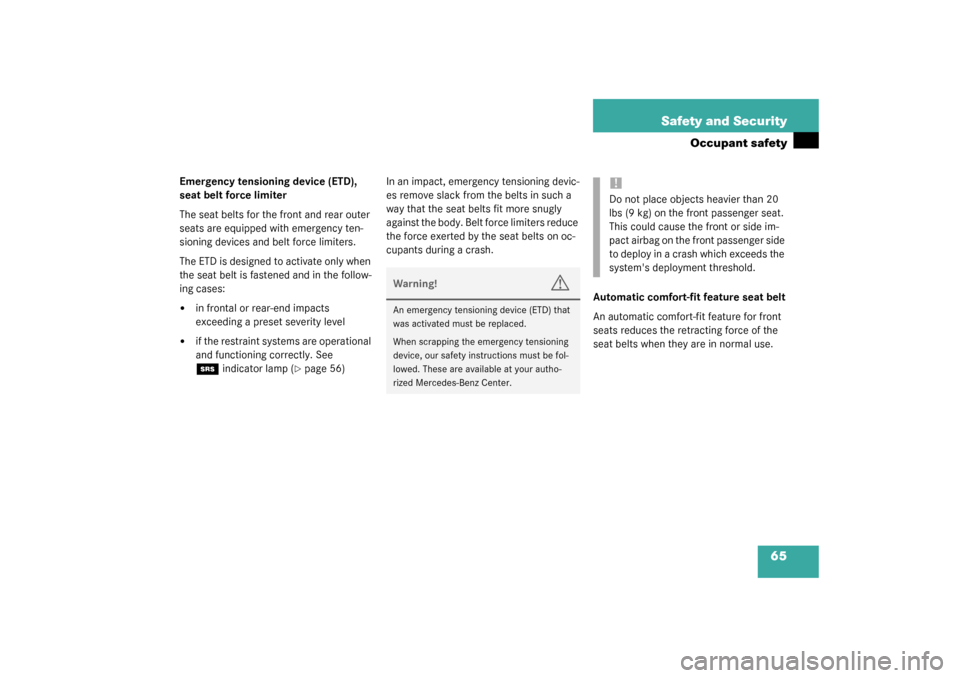

65 Safety and Security
Occupant safety
Emergency tensioning device (ETD),
seat belt force limiter
The seat belts for the front and rear outer
seats are equipped with emergency ten-
sioning devices and belt force limiters.
The ETD is designed to activate only when
the seat belt is fastened and in the follow-
ing cases:

in frontal or rear-end impacts
exceeding a preset severity level


if the restraint systems are operational
and functioning correctly. See 1
indicator lamp (
page 56)In an impact, emergency tensioning devic-
es remove slack from the belts in such a
way that the seat belts fit more snugly
against the body. Belt force limiters reduce
the force exerted by the seat belts on oc-
cupants during a crash.
Automatic comfort-fit feature seat belt
An automatic comfort-fit feature for front
seats reduces the retracting force of the
seat belts when they are in normal use.
Warning!
G
An emergency tensioning device (ETD) that
was activated must be replaced.
When scrapping the emergency tensioning
device, our safety instructions must be fol-
lowed. These are available at your autho-
rized Mercedes-Benz Center.
!Do not place objects heavier than 20
lbs (9 kg) on the front passenger seat.
This could cause the front or side im-
pact airbag on the front passenger side
to deploy in a crash which exceeds the
system's deployment threshold.

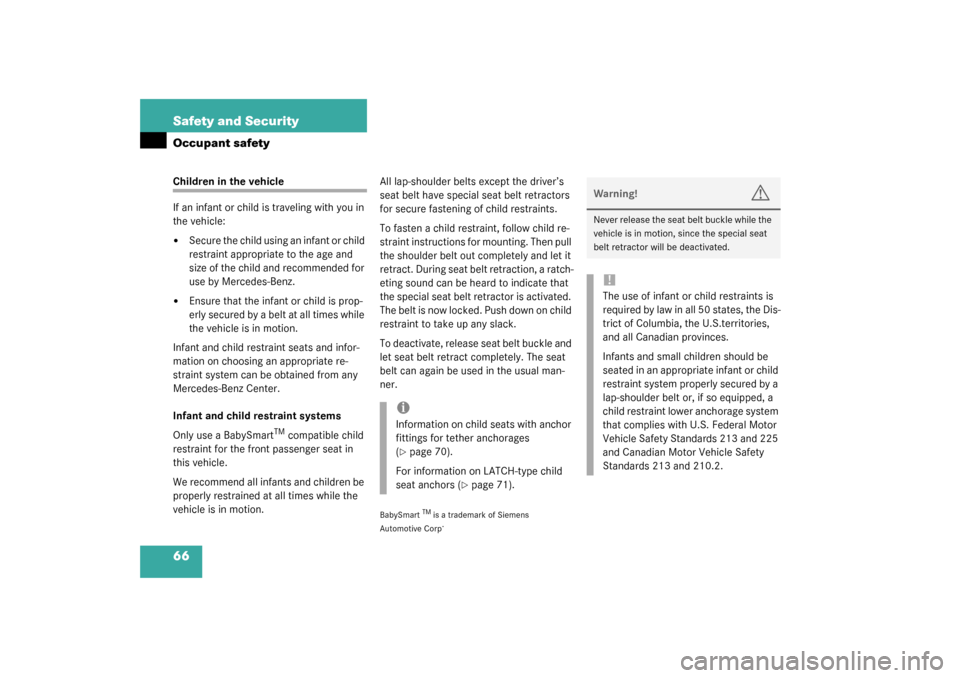

66 Safety and SecurityOccupant safetyChildren in the vehicle
If an infant or child is traveling with you in
the vehicle:

Secure the child using an infant or child
restraint appropriate to the age and
size of the child and recommended for
use by Mercedes-Benz.


Ensure that the infant or child is prop-
erly secured by a belt at all times while
the vehicle is in motion.
Infant and child restraint seats and infor-
mation on choosing an appropriate re-
straint system can be obtained from any
Mercedes-Benz Center.
Infant and child restraint systems
Only use a BabySmart
TM compatible child
restraint for the front passenger seat in
this vehicle.
We recommend all infants and children be
properly restrained at all times while the
vehicle is in motion.All lap-shoulder belts except the driver’s
seat belt have special seat belt retractors
for secure fastening of child restraints.
To fasten a child restraint, follow child re-
straint instructions for mounting. Then pull
the shoulder belt out completely and let it
retract. During seat belt retraction, a ratch-
eting sound can be heard to indicate that
the special seat belt retractor is activated.
The belt is now locked. Push down on child
restraint to take up any slack.
To deactivate, release seat belt buckle and
let seat belt retract completely. The seat
belt can again be used in the usual man-
ner.
BabySmart
TM is a trademark of Siemens
Automotive Corp.
iInformation on child seats with anchor
fittings for tether anchorages
(page 70).
For information on LATCH-type child
seat anchors (
page 71).
Warning!
G
Never release the seat belt buckle while the
vehicle is in motion, since the special seat
belt retractor will be deactivated.!The use of infant or child restraints is
required by law in all 50 states, the Dis-
trict of Columbia, the U.S.territories,
and all Canadian provinces.
Infants and small children should be
seated in an appropriate infant or child
restraint system properly secured by a
lap-shoulder belt or, if so equipped, a
child restraint lower anchorage system
that complies with U.S. Federal Motor
Vehicle Safety Standards 213 and 225
and Canadian Motor Vehicle Safety
Standards 213 and 210.2.

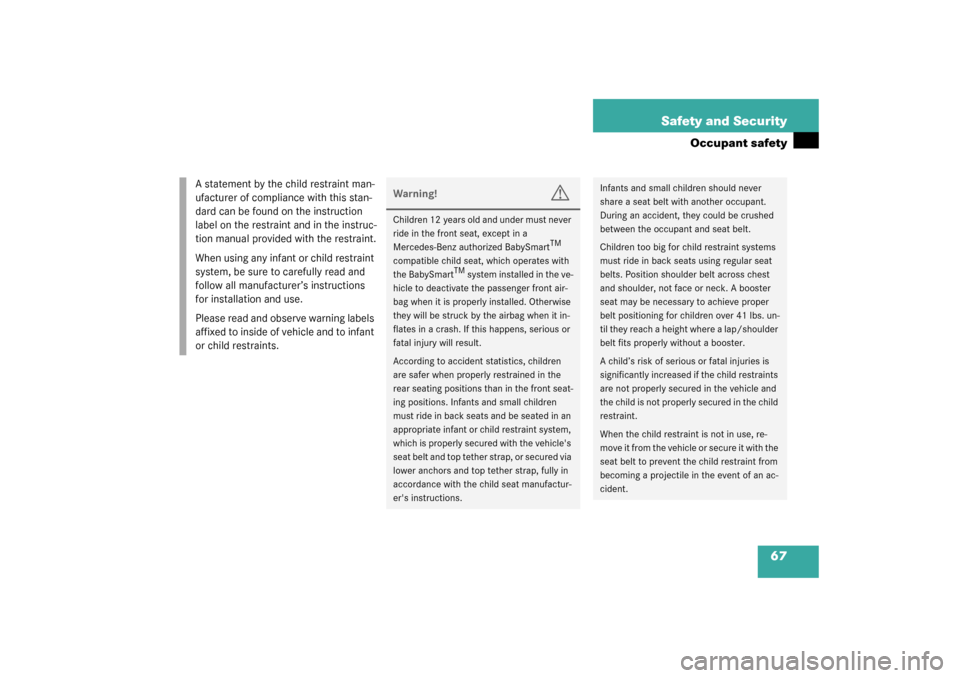

67 Safety and Security
Occupant safety
A statement by the child restraint man-
ufacturer of compliance with this stan-
dard can be found on the instruction
label on the restraint and in the instruc-
tion manual provided with the restraint.
When using any infant or child restraint
system, be sure to carefully read and
follow all manufacturer’s instructions
for installation and use.
Please read and observe warning labels
affixed to inside of vehicle and to infant
or child restraints.
Warning!
G
Children 12 years old and under must never
ride in the front seat, except in a
Mercedes-Benz authorized BabySmart
TM
compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger front air-
bag when it is properly installed. Otherwise
they will be struck by the airbag when it in-
flates in a crash. If this happens, serious or
fatal injury will result.
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing positions. Infants and small children
must ride in back seats and be seated in an
appropriate infant or child restraint system,
which is properly secured with the vehicle's
seat belt and top tether strap, or secured via
lower anchors and top tether strap, fully in
accordance with the child seat manufactur-
er's instructions.
Infants and small children should never
share a seat belt with another occupant.
During an accident, they could be crushed
between the occupant and seat belt.
Children too big for child restraint systems
must ride in back seats using regular seat
belts. Position shoulder belt across chest
and shoulder, not face or neck. A booster
seat may be necessary to achieve proper
belt positioning for children over 41 lbs. un-
til they reach a height where a lap/shoulder
belt fits properly without a booster.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
When the child restraint is not in use, re-
move it from the vehicle or secure it with the
seat belt to prevent the child restraint from
becoming a projectile in the event of an ac-
cident.

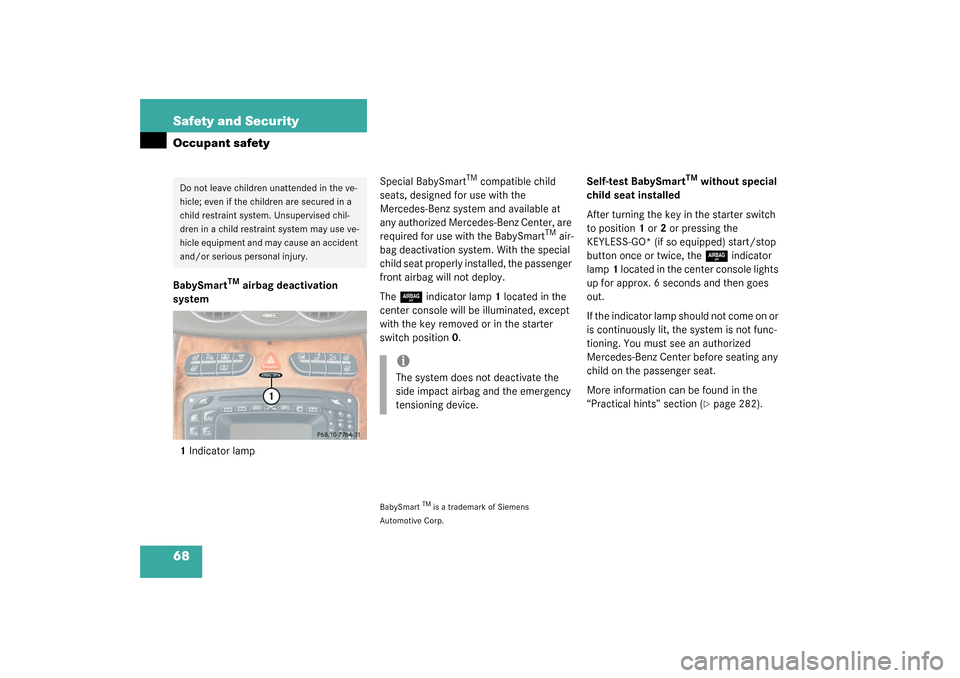

68 Safety and SecurityOccupant safetyBabySmart
TM
airbag deactivation
system
1Indicator lampSpecial BabySmart
TM compatible child
seats, designed for use with the
Mercedes-Benz system and available at
any authorized Mercedes-Benz Center, are
required for use with the BabySmart
TM air-
bag deactivation system. With the special
child seat properly installed, the passenger
front airbag will not deploy.
The
7
indicator lamp1 located in the
center console will be illuminated, except
with the key removed or in the starter
switch position0.
BabySmart
TM is a trademark of Siemens
Automotive Corp.
Self-test BabySmart
TM
without special
child seat installed
After turning the key in the starter switch
to position1 or2 or pressing the
KEYLESS-GO* (if so equipped) start/stop
button once or twice, the 7
indicator
lamp1 located in the center console lights
up for approx. 6 seconds and then goes
out.
If the indicator lamp should not come on or
is continuously lit, the system is not func-
tioning. You must see an authorized
Mercedes-Benz Center before seating any
child on the passenger seat.
More information can be found in the
“Practical hints” section (
page 282).
Do not leave children unattended in the ve-
hicle; even if the children are secured in a
child restraint system. Unsupervised chil-
dren in a child restraint system may use ve-
hicle equipment and may cause an accident
and/or serious personal injury.
iThe system does not deactivate the
side impact airbag and the emergency
tensioning device.

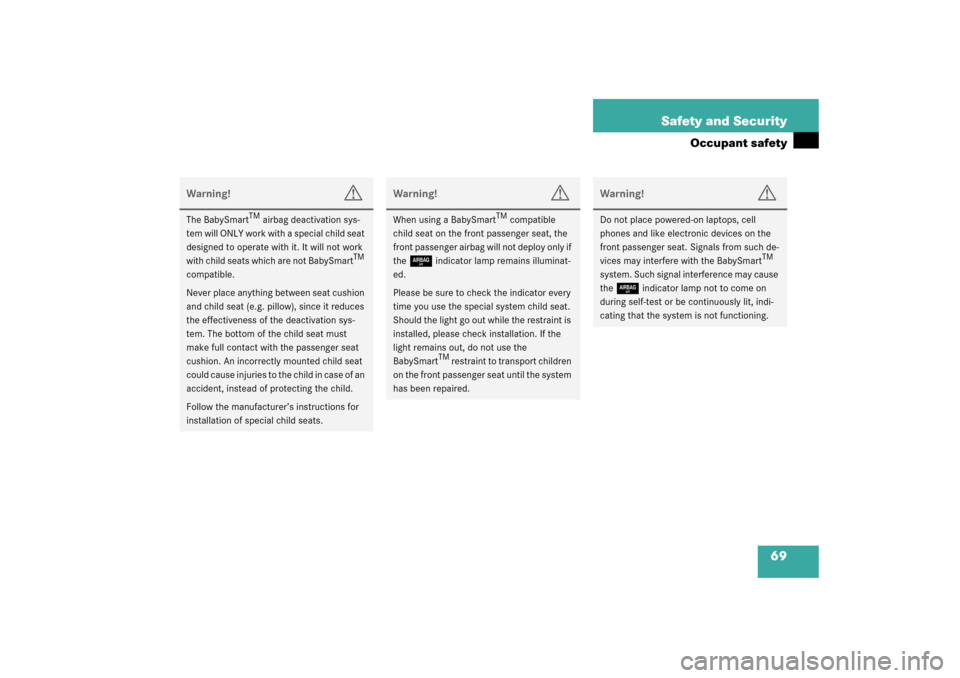

69 Safety and Security
Occupant safety
Warning!
G
The BabySmart
TM airbag deactivation sys-
tem will ONLY work with a special child seat
designed to operate with it. It will not work
with child seats which are not BabySmart
TM
compatible.
Never place anything between seat cushion
and child seat (e.g. pillow), since it reduces
the effectiveness of the deactivation sys-
tem. The bottom of the child seat must
make full contact with the passenger seat
cushion. An incorrectly mounted child seat
could cause injuries to the child in case of an
accident, instead of protecting the child.
Follow the manufacturer’s instructions for
installation of special child seats.
Warning!
G
When using a BabySmart
TM compatible
child seat on the front passenger seat, the
front passenger airbag will not deploy only if
the
7
indicator lamp remains illuminat-
ed.
Please be sure to check the indicator every
time you use the special system child seat.
Should the light go out while the restraint is
installed, please check installation. If the
light remains out, do not use the
BabySmartTM restraint to transport children
on the front passenger seat until the system
has been repaired.
Warning!
G
Do not place powered-on laptops, cell
phones and like electronic devices on the
front passenger seat. Signals from such de-
vices may interfere with the BabySmart
TM
system. Such signal interference may cause
the
7
indicator lamp not to come on
during self-test or be continuously lit, indi-
cating that the system is not functioning.

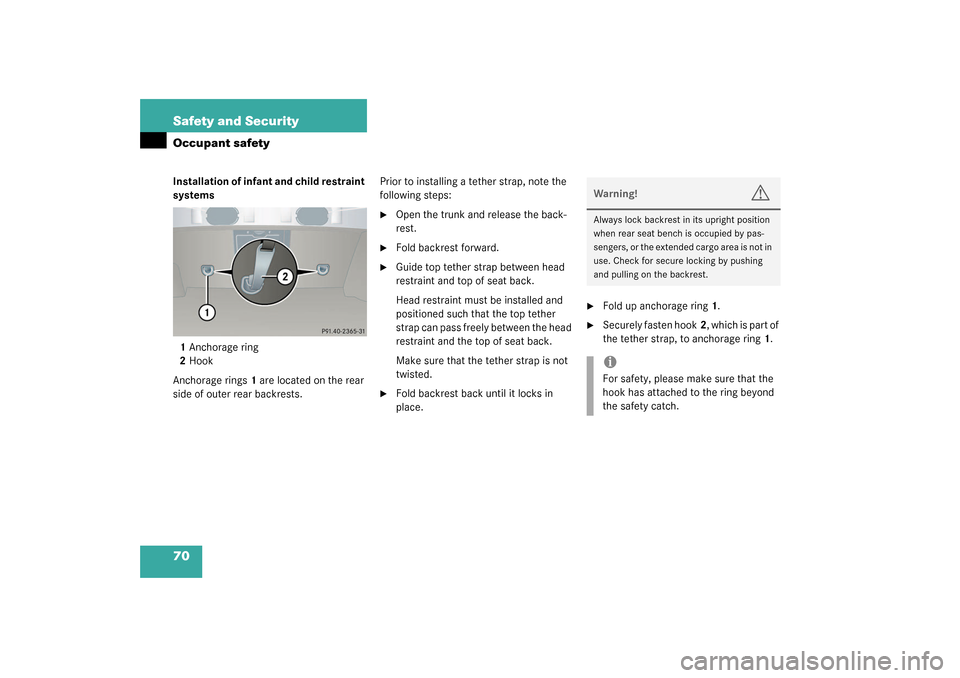

70 Safety and SecurityOccupant safetyInstallation of infant and child restraint
systems
1Anchorage ring
2Hook
Anchorage rings1 are located on the rear
side of outer rear backrests.Prior to installing a tether strap, note the
following steps:

Open the trunk and release the back-
rest.

Fold backrest forward.

Guide top tether strap between head
restraint and top of seat back.
Head restraint must be installed and
positioned such that the top tether
strap can pass freely between the head
restraint and the top of seat back.
Make sure that the tether strap is not
twisted.

Fold backrest back until it locks in
place.

Fold up anchorage ring1.

Securely fasten hook2, which is part of
the tether strap, to anchorage ring1.Warning!
G
Always lock backrest in its upright position
when rear seat bench is occupied by pas-
sengers, or the extended cargo area is not in
use. Check for secure locking by pushing
and pulling on the backrest.iFor safety, please make sure that the
hook has attached to the ring beyond
the safety catch.

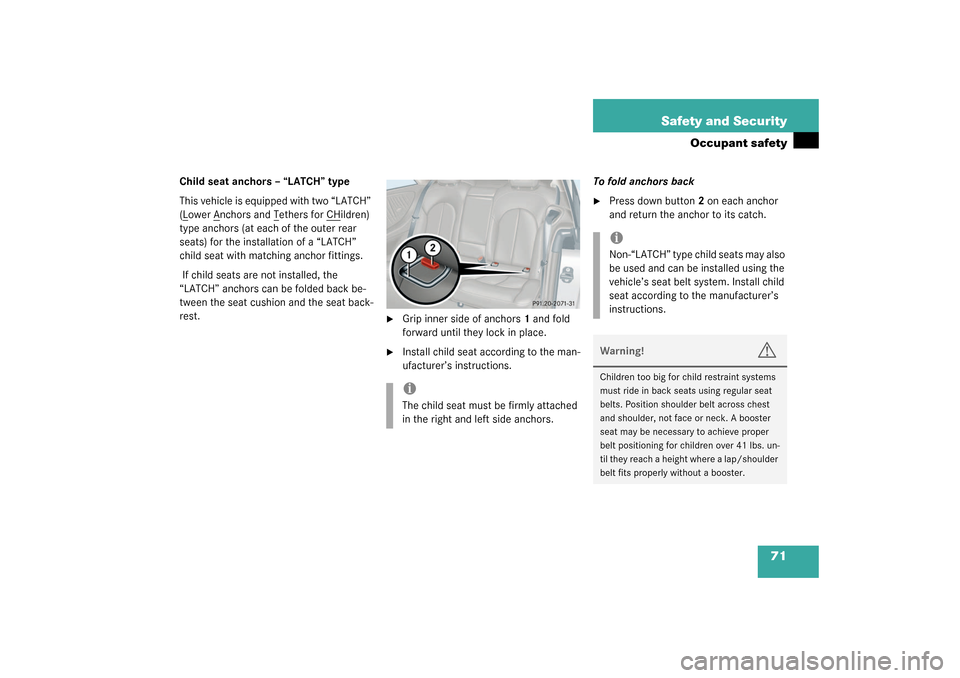

71 Safety and Security
Occupant safety
Child seat anchors – “LATCH” type
This vehicle is equipped with two “LATCH”
(Lower A
nchors and T
ethers for CH
ildren)
type anchors (at each of the outer rear
seats) for the installation of a “LATCH”
child seat with matching anchor fittings.
If child seats are not installed, the
“LATCH” anchors can be folded back be-
tween the seat cushion and the seat back-
rest.

Grip inner side of anchors1 and fold
forward until they lock in place.

Install child seat according to the man-
ufacturer’s instructions.To fold anchors back

Press down button2 on each anchor
and return the anchor to its catch.
iThe child seat must be firmly attached
in the right and left side anchors.
iNon-“LATCH” type child seats may also
be used and can be installed using the
vehicle’s seat belt system. Install child
seat according to the manufacturer’s
instructions.Warning!
G
Children too big for child restraint systems
must ride in back seats using regular seat
belts. Position shoulder belt across chest
and shoulder, not face or neck. A booster
seat may be necessary to achieve proper
belt positioning for children over 41 lbs. un-
til they reach a height where a lap/shoulder
belt fits properly without a booster.

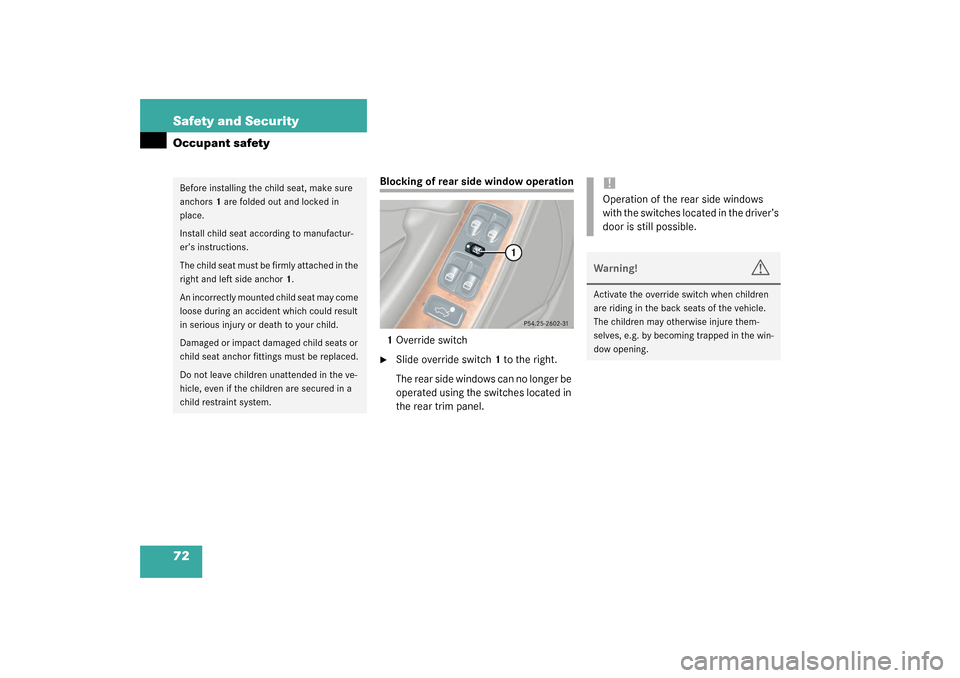

72 Safety and SecurityOccupant safety
Blocking of rear side window operation
1Override switch
Slide override switch 1 to the right.
The rear side windows can no longer be
operated using the switches located in
the rear trim panel.
Before installing the child seat, make sure
anchors1 are folded out and locked in
place.
Install child seat according to manufactur-
er’s instructions.
T h e c h i l d s e a t m u s t b e f i r m l y a t t a c h e d i n t h e
right and left side anchor1.
An incorrectly mounted child seat may come
loose during an accident which could result
in serious injury or death to your child.
Damaged or impact damaged child seats or
child seat anchor fittings must be replaced.
Do not leave children unattended in the ve-
hicle, even if the children are secured in a
child restraint system.
!Operation of the rear side windows
with the switches located in the driver’s
door is still possible.Warning!
G
Activate the override switch when children
are riding in the back seats of the vehicle.
The children may otherwise injure them-
selves, e.g. by becoming trapped in the win-
dow opening.
