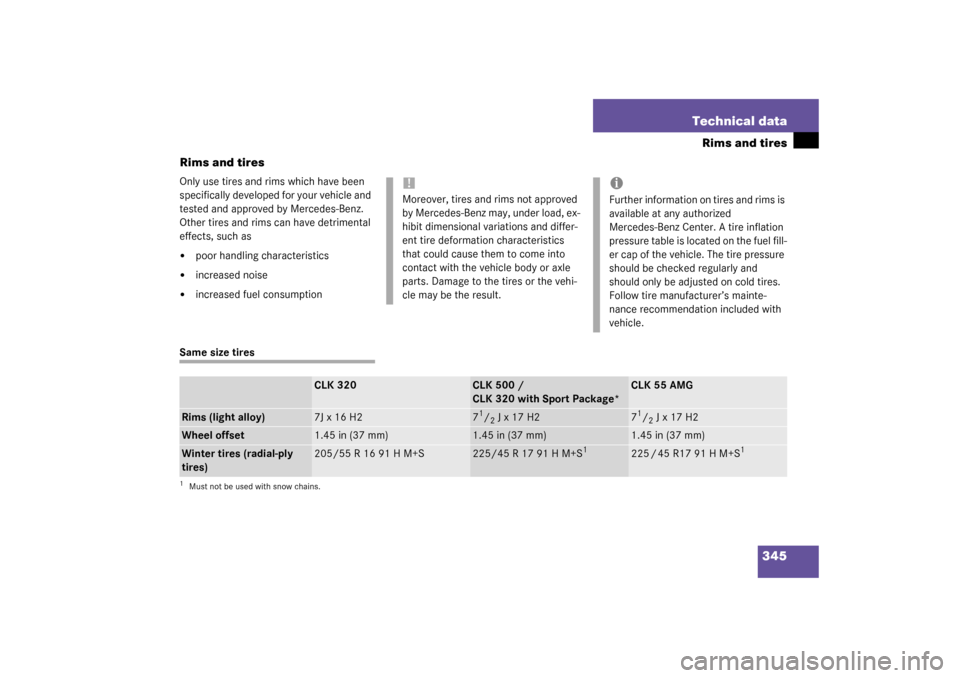

345 Technical data
Rims and tires
Rims and tires
Only use tires and rims which have been
specifically developed for your vehicle and
tested and approved by Mercedes-Benz.
Other tires and rims can have detrimental
effects, such as

poor handling characteristics


increased noise


increased fuel consumption
Same size tires
!Moreover, tires and rims not approved
by Mercedes-Benz may, under load, ex-
hibit dimensional variations and differ-
ent tire deformation characteristics
that could cause them to come into
contact with the vehicle body or axle
parts. Damage to the tires or the vehi-
cle may be the result.
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A tire inflation
pressure table is located on the fuel fill-
er cap of the vehicle. The tire pressure
should be checked regularly and
should only be adjusted on cold tires.
Follow tire manufacturer’s mainte-
nance recommendation included with
vehicle.
CLK 320
CLK 500 /
CLK 320 with Sport Package*
CLK 55 AMG
Rims (light alloy)
7J x 16 H2
71/2 J x 17 H2
71/2 Jx17H2
Wheel offset
1.45 in (37 mm)
1.45 in (37 mm)
1.45 in (37 mm)
Winter tires (radial-ply
tires)
205/55 R 16 91 H M+S
225/45 R 17 91 H M+S
1
1Must not be used with snow chains.
225 / 45 R17 91 H M+S
1

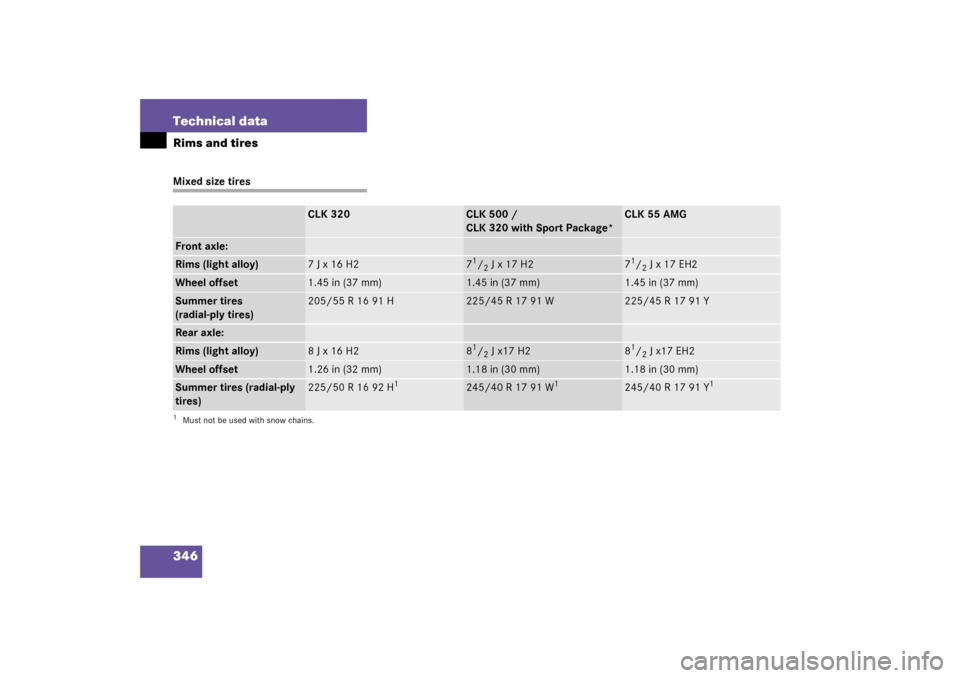

346 Technical dataRims and tiresMixed size tires
CLK 320
CLK 500 /
CLK 320 with Sport Package*
CLK 55 AMG
Front axle:Rims (light alloy)
7 J x 16 H2
71/2 J x 17 H2
71/2 J x 17 EH2
Wheel offset
1.45 in (37 mm)
1.45 in (37 mm)
1.45 in (37 mm)
Summer tires
(radial-ply tires)
205/55 R 16 91 H
225/45 R 17 91 W
225/45 R 17 91 Y
Rear axle:Rims (light alloy)
8 J x 16 H2
81/2 J x17 H2
81/2 J x17 EH2
Wheel offset
1.26 in (32 mm)
1.18 in (30 mm)
1.18 in (30 mm)
Summer tires (radial-ply
tires)
225/50 R 16 92 H
1
245/40 R 17 91 W
1
1Must not be used with snow chains.
245/40 R 17 91 Y
1

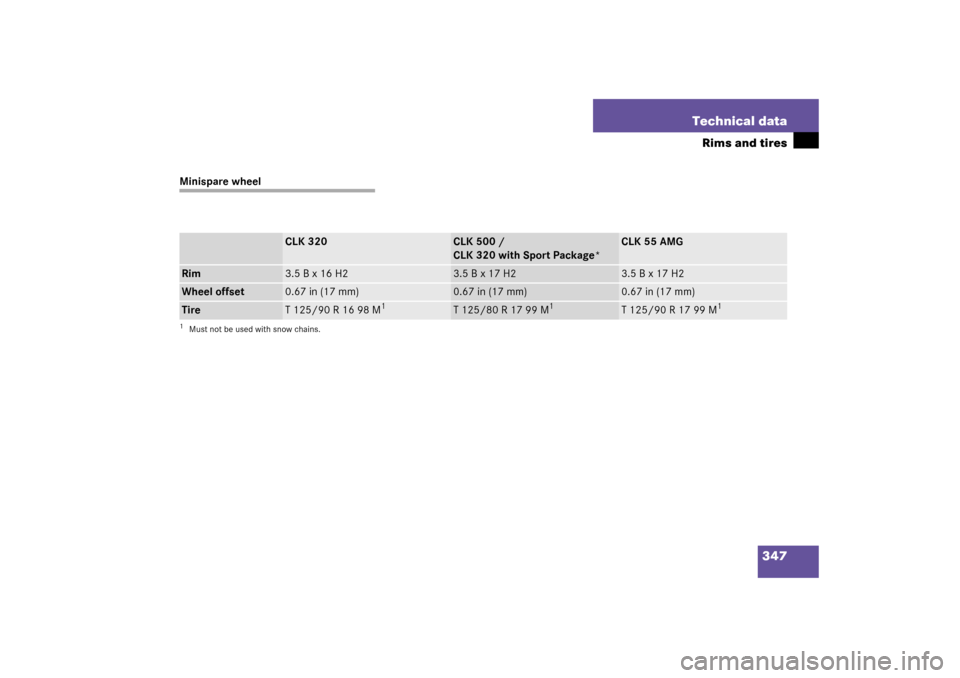

347 Technical data
Rims and tires
Minispare wheel
CLK 320
CLK 500 /
CLK 320 with Sport Package*
CLK 55 AMG
Rim
3.5 B x 16 H2
3.5 B x 17 H2
3.5 B x 17 H2
Wheel offset
0.67 in (17 mm)
0.67 in (17 mm)
0.67 in (17 mm)
Tire
T 125/90 R 16 98 M
1
1Must not be used with snow chains.
T 125/80 R 17 99 M
1
T 125/90 R 17 99 M
1

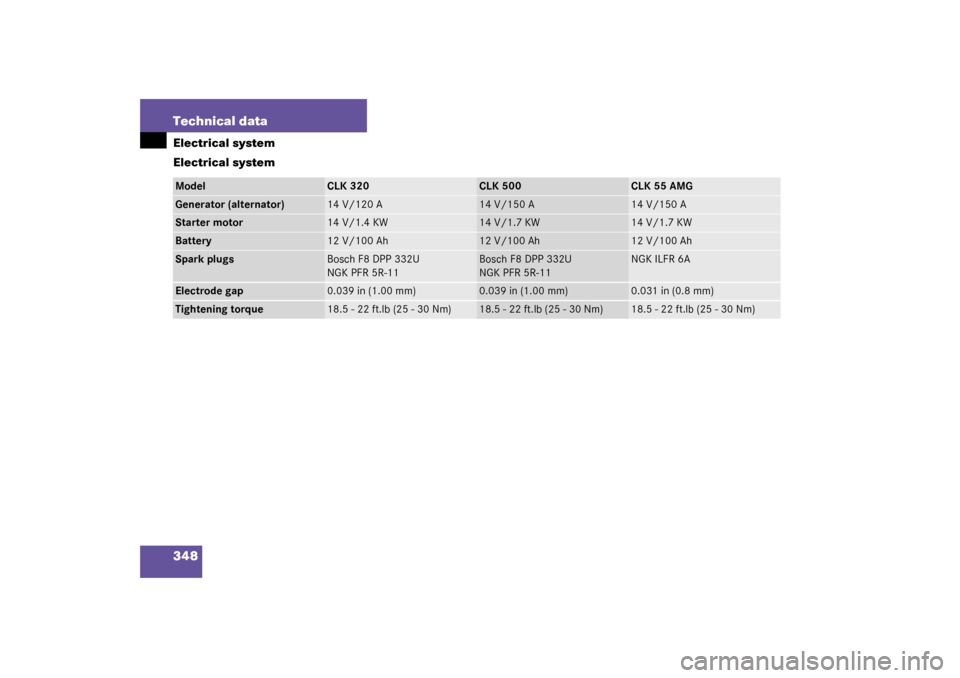

348 Technical dataElectrical system
Electrical systemModel
CLK 320
CLK 500
CLK 55 AMG
Generator (alternator)
14 V/120 A
14 V/150 A
14 V/150 A
Starter motor
14 V/1.4 KW
14 V/1.7 KW
14 V/1.7 KW
Battery
12 V/100 Ah
12 V/100 Ah
12 V/100 Ah
Spark plugs
Bosch F8 DPP 332U
NGK PFR 5R-11
Bosch F8 DPP 332U
NGK PFR 5R-11
NGK ILFR 6A
Electrode gap
0.039 in (1.00 mm)
0.039 in (1.00 mm)
0.031 in (0.8 mm)
Tightening torque
18.5 - 22 ft.lb (25 - 30 Nm)
18.5 - 22 ft.lb (25 - 30 Nm)
18.5 - 22 ft.lb (25 - 30 Nm)

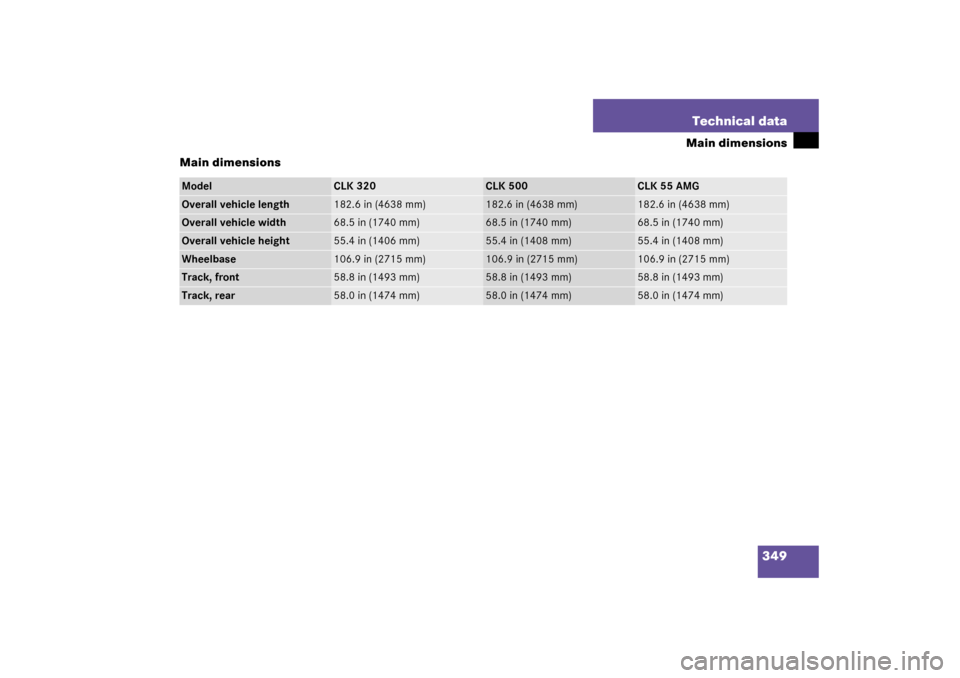

349 Technical data
Main dimensions
Main dimensions
Model
CLK 320
CLK 500
CLK 55 AMG
Overall vehicle length
182.6 in (4638 mm)
182.6 in (4638 mm)
182.6 in (4638 mm)
Overall vehicle width
68.5 in (1740 mm)
68.5 in (1740 mm)
68.5 in (1740 mm)
Overall vehicle height
55.4 in (1406 mm)
55.4 in (1408 mm)
55.4 in (1408 mm)
Wheelbase
106.9 in (2715 mm)
106.9 in (2715 mm)
106.9 in (2715 mm)
Track, front
58.8 in (1493 mm)
58.8 in (1493 mm)
58.8 in (1493 mm)
Track, rear
58.0 in (1474 mm)
58.0 in (1474 mm)
58.0 in (1474 mm)

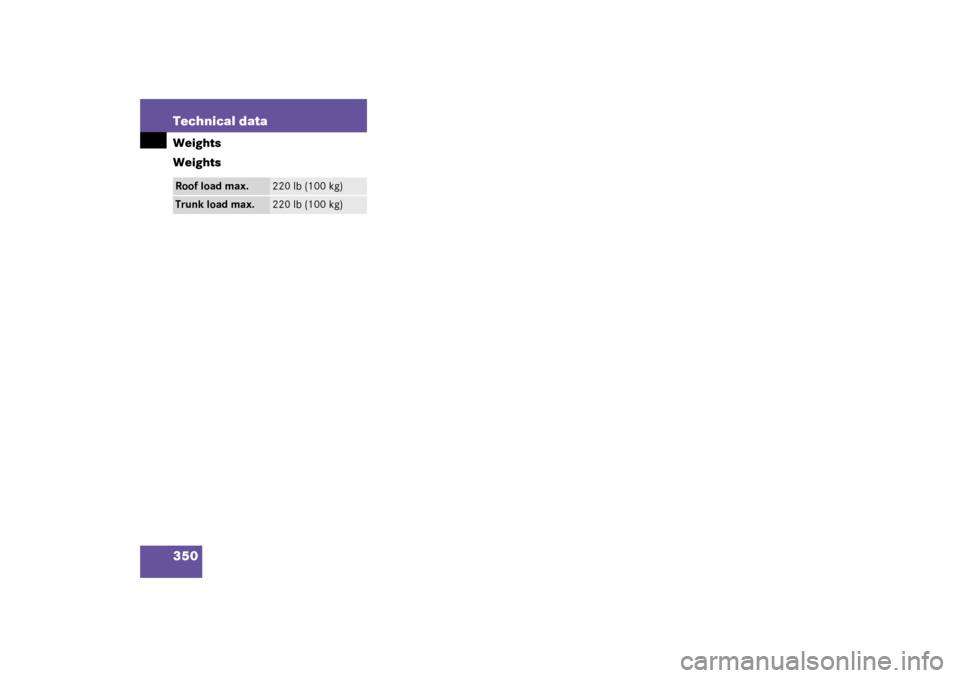

350 Technical dataWeights
WeightsRoof load max.
220 lb (100 kg)
Trunk load max.
220 lb (100 kg)

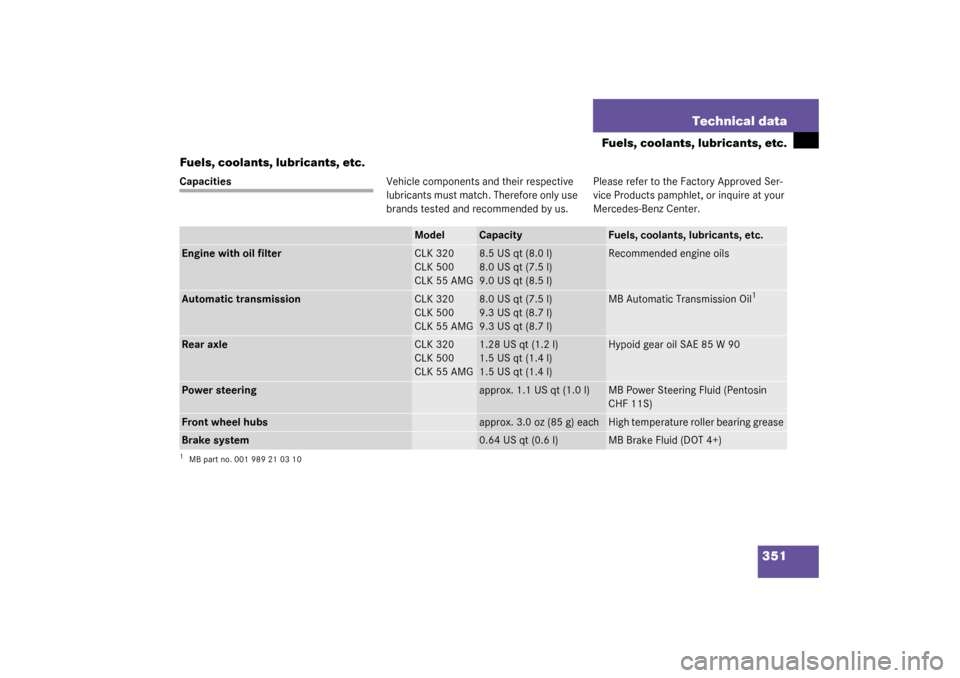

351 Technical data
Fuels, coolants, lubricants, etc.
Fuels, coolants, lubricants, etc.
CapacitiesVehicle components and their respective
lubricants must match. Therefore only use
brands tested and recommended by us.Please refer to the Factory Approved Ser-
vice Products pamphlet, or inquire at your
Mercedes-Benz Center.
Model
Capacity
Fuels, coolants, lubricants, etc.
Engine with oil filter
CLK 320
CLK 500
CLK 55 AMG
8.5 US qt (8.0 l)
8.0 US qt (7.5 l)
9.0 US qt (8.5 l)
Recommended engine oils
Automatic transmission
CLK 320
CLK 500
CLK 55 AMG
8.0 US qt (7.5 l)
9.3 US qt (8.7 l)
9.3 US qt (8.7 l)
MB Automatic Transmission Oil
1
1MB part no. 001 989 21 03 10Rear axle
CLK 320
CLK 500
CLK 55 AMG
1.28 US qt (1.2 l)
1.5 US qt (1.4 l)
1.5 US qt (1.4 l)
Hypoid gear oil SAE 85 W 90
Power steering
approx. 1.1 US qt (1.0 l)
MB Power Steering Fluid (Pentosin
CHF 11S)
Front wheel hubs
approx. 3.0 oz (85 g) each
High temperature roller bearing grease
Brake system
0.64 US qt (0.6 l)
MB Brake Fluid (DOT 4+)

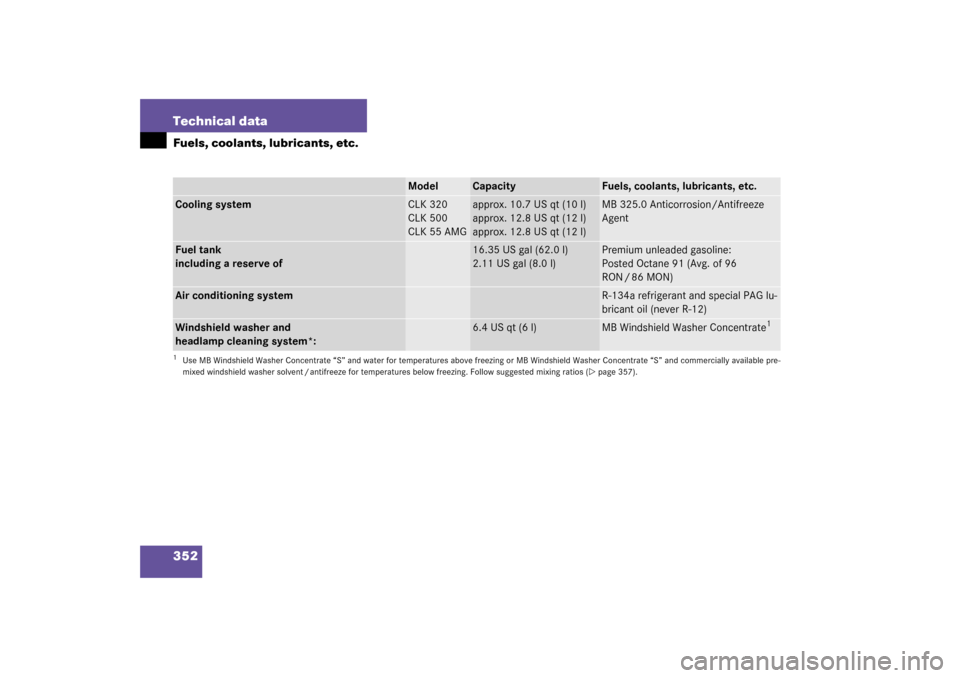

352 Technical dataFuels, coolants, lubricants, etc.
Model
Capacity
Fuels, coolants, lubricants, etc.
Cooling system
CLK 320
CLK 500
CLK 55 AMG
approx. 10.7 US qt (10 l)
approx. 12.8 US qt (12 l)
approx. 12.8 US qt (12 l)
MB 325.0 Anticorrosion/Antifreeze
Agent
Fuel tank
including a reserve of
16.35 US gal (62.0 l)
2.11 US gal (8.0 l)
Premium unleaded gasoline:
Posted Octane 91 (Avg. of 96
RON / 86 MON)
Air conditioning system
R-134a refrigerant and special PAG lu-
bricant oil (never R-12)
Windshield washer and
headlamp cleaning system*:
6.4 US qt (6 l)
MB Windshield Washer Concentrate
1
1Use MB Windshield Washer Concentrate “S” and water for temperatures above freezing or MB Windshield Washer Concentrate “S” and commercially available pre-
mixed windshield washer solvent / antifreeze for temperatures below freezing. Follow suggested mixing ratios (
page 357).
