2003 MERCEDES-BENZ CLK320 COUPE Owner's Manual

25 At a glance

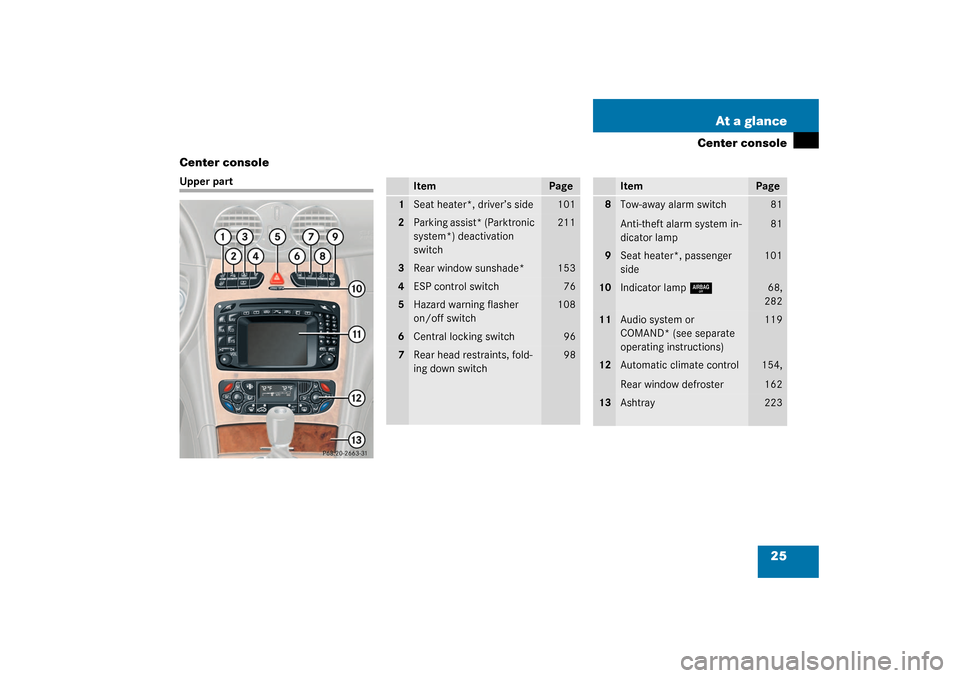

Center console
Center console
Upper part
Item
Page
1
Seat heater*, driver’s side
101
2
Parking assist* (Parktronic
system*) deactivation
switch
211
3
Rear window sunshade*
153
4
ESP control switch
76
5
Hazard warning flasher
on/off switch
108
6
Central locking switch
96
7
Rear head restraints, fold-
ing down switch
98
Item
Page
8
Tow-away alarm switch
Anti-theft alarm system in-
dicator lamp
81
81
9
Seat heater*, passenger
side
101
10
Indicator lamp
7
68,
282
11
Audio system or
COMAND* (see separate
operating instructions)
119
12
Automatic climate control
Rear window defroster
154,
162
13
Ashtray
223

26 At a glanceCenter consoleLower part
Item
Page
1
KEYLESS-GO* start/stop
button
33
2
Storage compartment
221
3
Thumbwheel for setting
distance in Distronic*
203
4
Distance warning func-
tion* on/off switch
204
Item
Page
5
Program mode selector for
automatic transmission
145,
147
6
Selector lever for
automatic transmission
141

27 At a glance

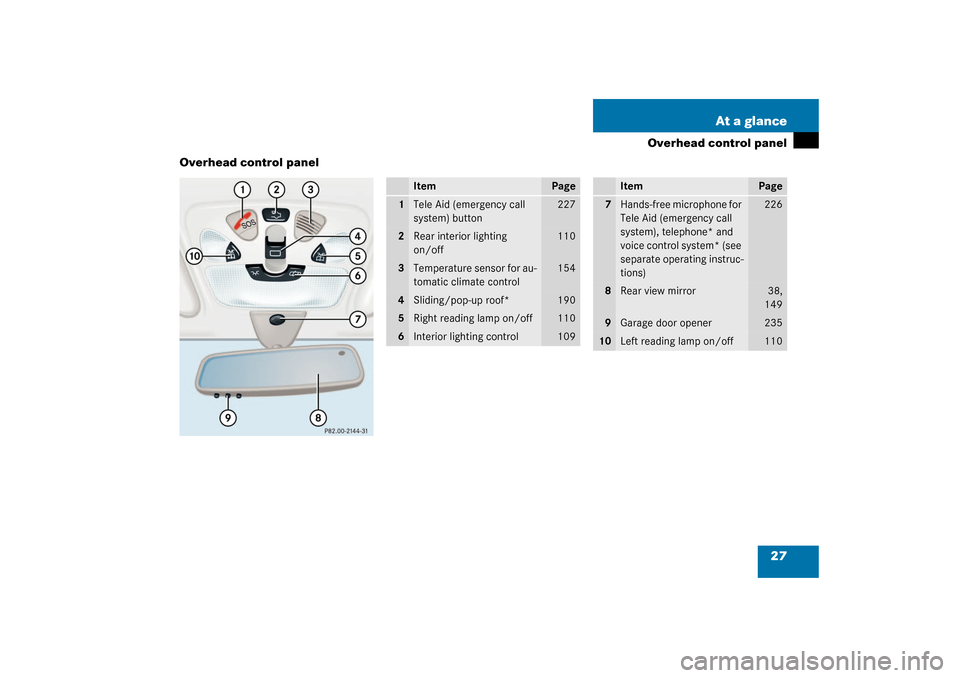

Overhead control panel
Overhead control panel
Item
Page
1
Tele Aid (emergency call
system) button
227
2
Rear interior lighting
on/off
110
3
Temperature sensor for au-
tomatic climate control
154
4
Sliding/pop-up roof*
190
5
Right reading lamp on/off
110
6
Interior lighting control
109
Item
Page
7
Hands-free microphone for
Tele Aid (emergency call
system), telephone* and
voice control system* (see
separate operating instruc-
tions)
226
8
Rear view mirror
38,
149
9
Garage door opener
235
10
Left reading lamp on/off
110

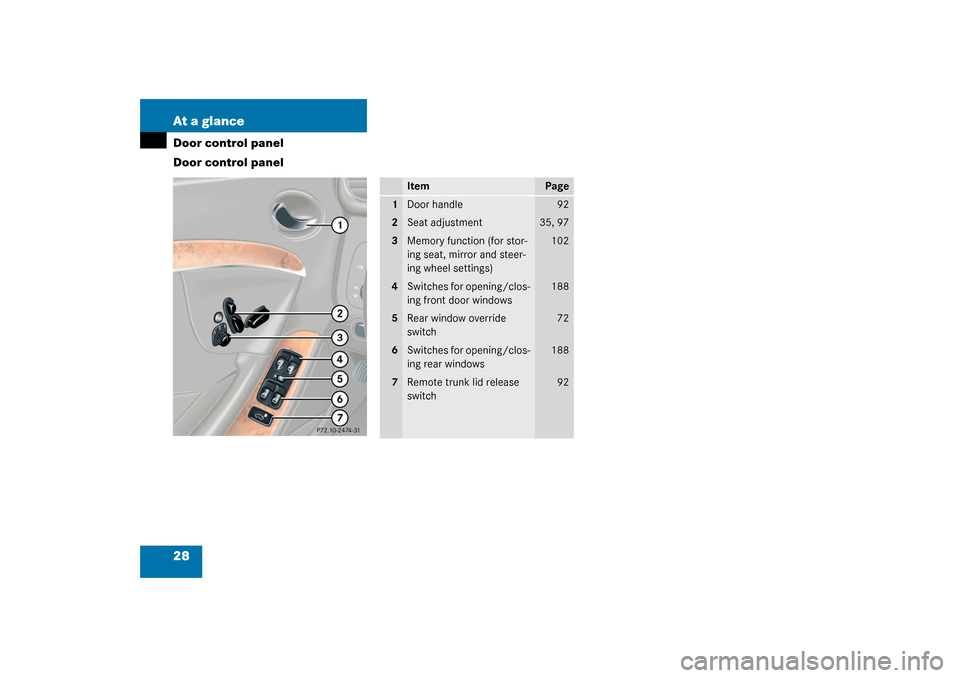

28 At a glanceDoor control panel
Door control panel
Item
Page
1
Door handle
92
2
Seat adjustment
35, 97
3
Memory function (for stor-
ing seat, mirror and steer-
ing wheel settings)
102
4
Switches for opening/clos-
ing front door windows
188
5
Rear window override
switch
72
6
Switches for opening/clos-
ing rear windows
188
7
Remote trunk lid release
switch
92

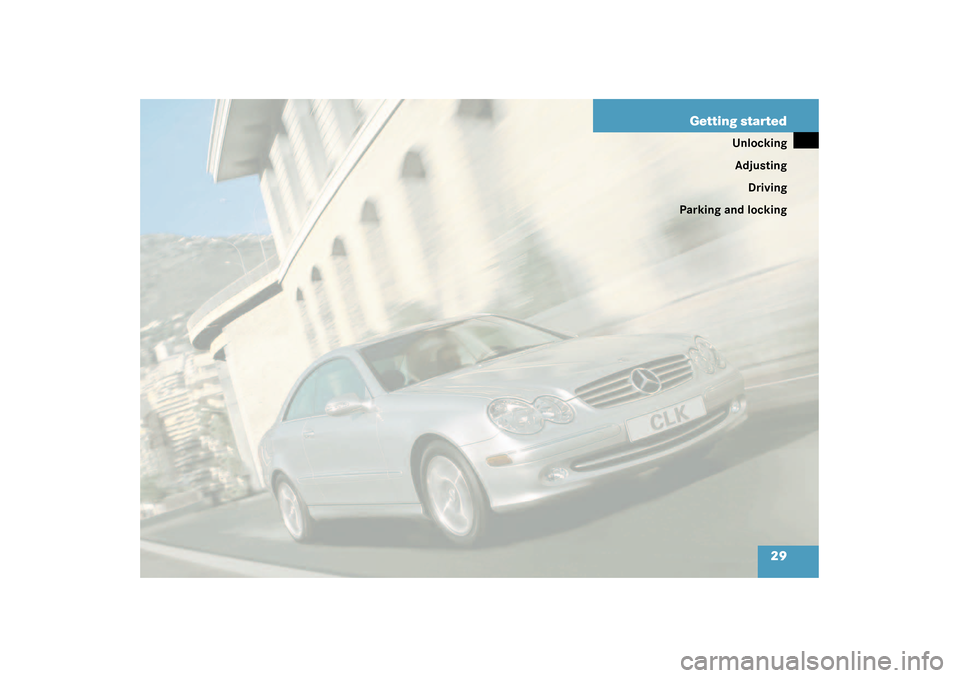

29 Getting started
Unlocking
Adjusting
Driving
Parking and locking

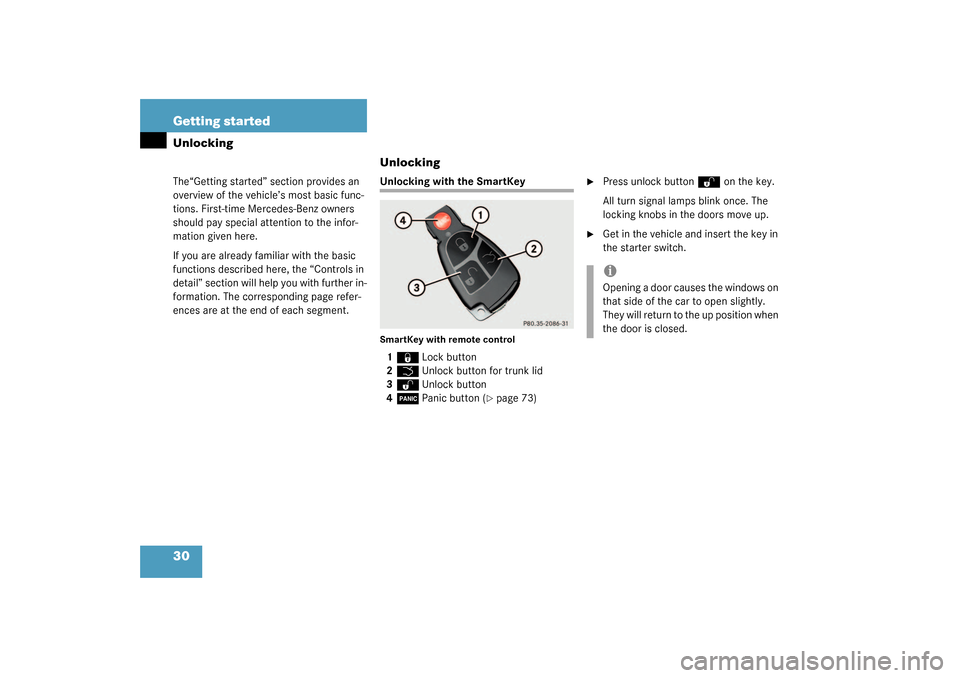

30 Getting startedUnlockingThe“Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will help you with further in-
formation. The corresponding page refer-
ences are at the end of each segment.
UnlockingUnlocking with the SmartKeySmartKey with remote control 1‹
Lock button
2
Š
Unlock button for trunk lid
3
Œ
Unlock button
4
Â
Panic button (
page 73)

Press unlock button
Œ
on the key.
All turn signal lamps blink once. The
locking knobs in the doors move up.

Get in the vehicle and insert the key in
the starter switch.iOpening a door causes the windows on
that side of the car to open slightly.
They will return to the up position when
the door is closed.

31 Getting started
Unlocking

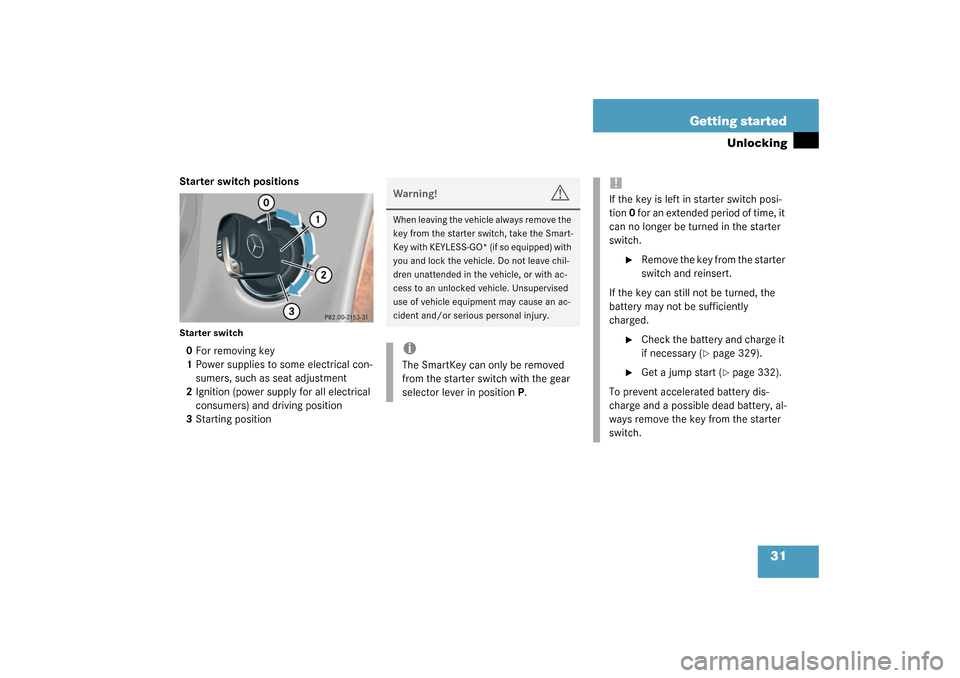

Starter switch positionsStarter switch0For removing key
1Power supplies to some electrical con-
sumers, such as seat adjustment
2Ignition (power supply for all electrical
consumers) and driving position
3Starting position
Warning!
G
When leaving the vehicle always remove the
key from the starter switch, take the Smart-
Key with KEYLESS-GO* (if so equipped) with
you and lock the vehicle. Do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle. Unsupervised
use of vehicle equipment may cause an ac-
cident and/or serious personal injury.iThe SmartKey can only be removed
from the starter switch with the gear
selector lever in position P.
!If the key is left in starter switch posi-
tion 0 for an extended period of time, it
can no longer be turned in the starter
switch.

Remove the key from the starter
switch and reinsert.
If the key can still not be turned, the
battery may not be sufficiently
charged.

Check the battery and charge it
if necessary (
page 329).

Get a jump start (
page 332).
To prevent accelerated battery dis-
charge and a possible dead battery, al-
ways remove the key from the starter
switch.

32 Getting startedUnlockingUnlocking with KEYLESS-GO*
Your vehicle comes supplied with two
SmartKeys with remote controls and a re-
movable mechanical key. The locking tabs
for the mechanical key portion of the two
keys are a different color to help distin-
guish each key unit.
The function of the SmartKey overrules the
KEYLESS-GO function.
If you have the KEYLESS-GO function, your
vehicle checks whether the SmartKey with
KEYLESS-GO is valid when you grasp the
door handle. If your key is valid, the doors
will unlock, and you can open them.

Grasp the door handle.
The turn signal lamps blink once. The
locking knobs on the doors move up.
Pressing the KEYLESS-GO start/stop but-
ton on the selector lever corresponds to
turning the key to the various starter
switch positions.iTo unlock the vehicle, the SmartKey
with KEYLESS-GO must be outside the
vehicle, no further than approx. 3 feet
(1 meter) away from the door.
Warning!
G
When leaving the vehicle, always take the
key and the SmartKey with KEYLESS-GO
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.
