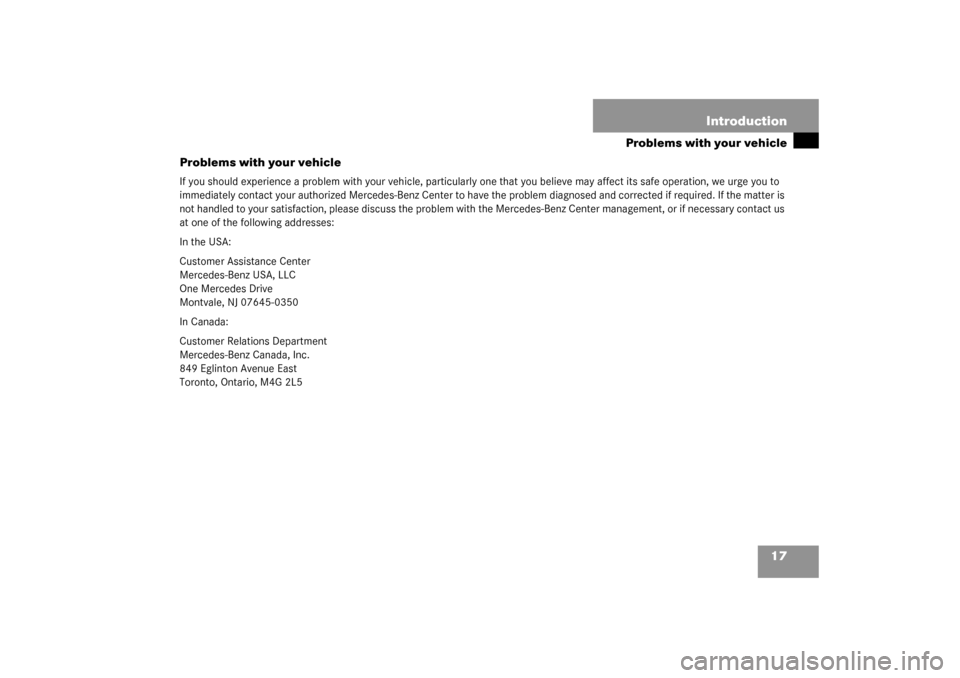

17 Introduction
Problems with your vehicle
Problems with your vehicle
If you should experience a problem with your vehicle, particularly one that you believe may affect its safe operation, we urge you to
immediately contact your authorized Mercedes-Benz Center to have the problem diagnosed and corrected if required. If the matter is
not handled to your satisfaction, please discuss the problem with the Mercedes-Benz Center management, or if necessary contact us
at one of the following addresses:
In the USA:
Customer Assistance Center
Mercedes-Benz USA, LLC
One Mercedes Drive
Montvale, NJ 07645-0350
In Canada:
Customer Relations Department
Mercedes-Benz Canada, Inc.
849 Eglinton Avenue East
Toronto, Ontario, M4G 2L5

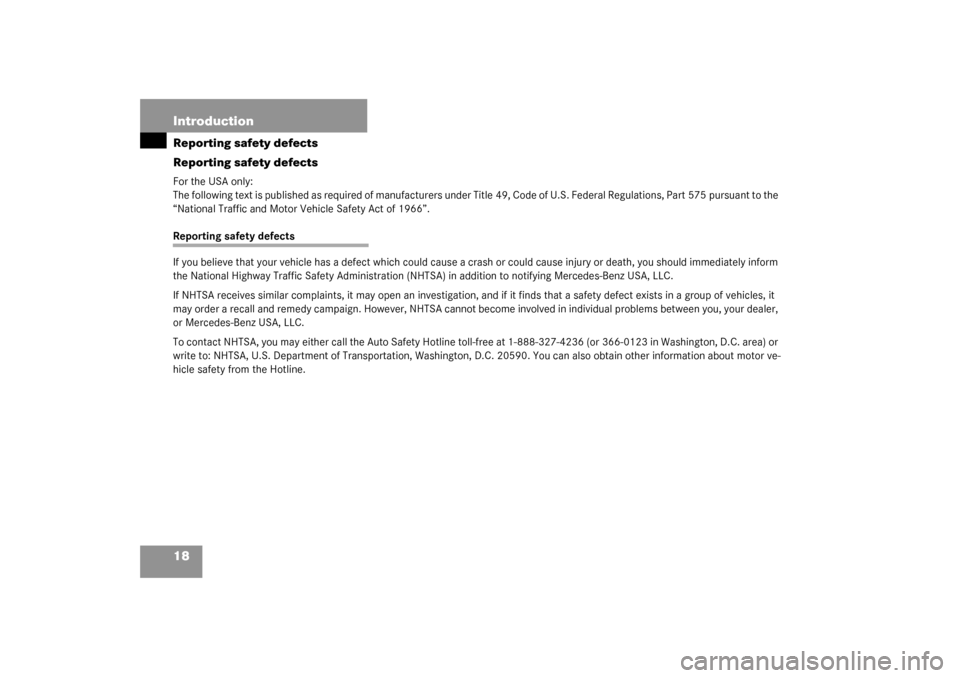

18 IntroductionReporting safety defects
Reporting safety defectsFor the USA only:
The following text is published as required of manufacturers under Title 49, Code of U.S. Federal Regulations, Part 575 pursuant to the
“National Traffic and Motor Vehicle Safety Act of 1966”.Reporting safety defects
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform
the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Mercedes-Benz USA, LLC.
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it
may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your dealer,
or Mercedes-Benz USA, LLC.
To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1-888-327-4236 (or 366-0123 in Washington, D.C. area) or
write to: NHTSA, U.S. Department of Transportation, Washington, D.C. 20590. You can also obtain other information about motor ve-
hicle safety from the Hotline.

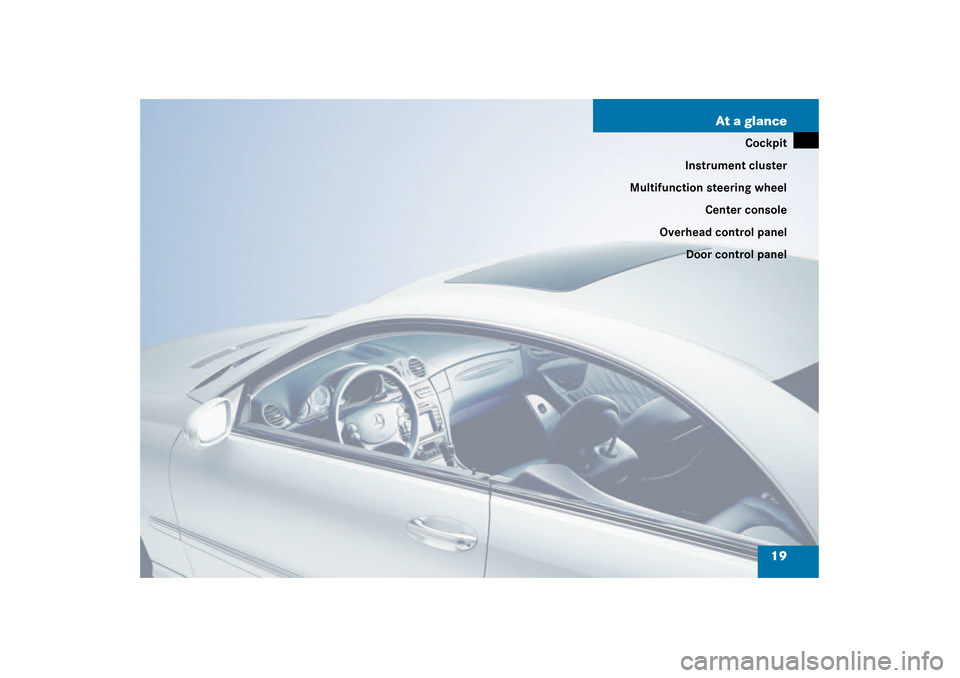

19 At a glance
Cockpit
Instrument cluster
Multifunction steering wheel
Center console
Overhead control panel
Door control panel

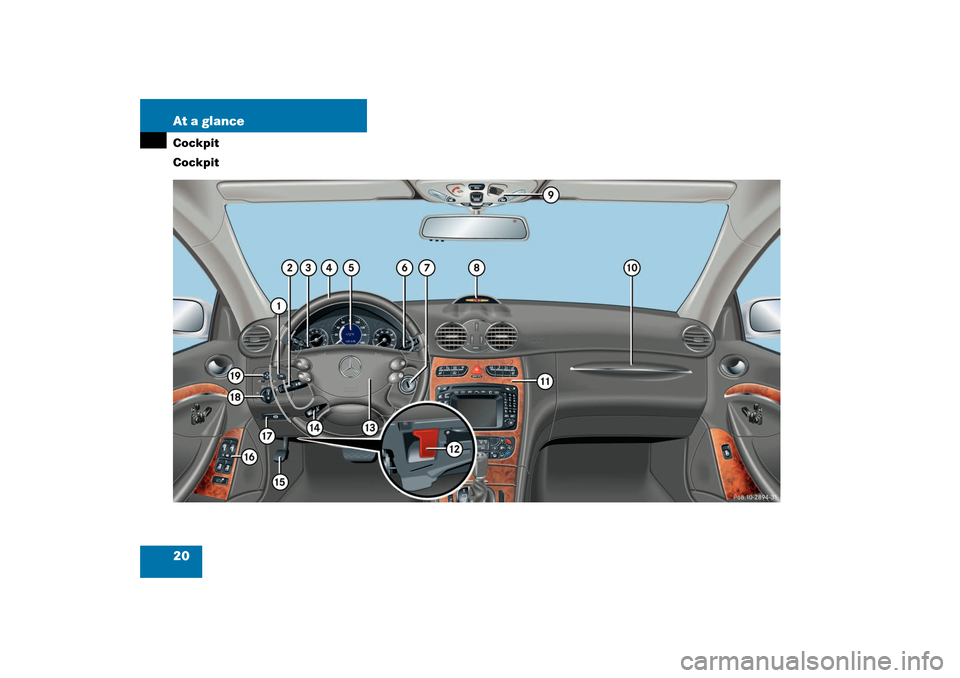

20 At a glanceCockpit
Cockpit

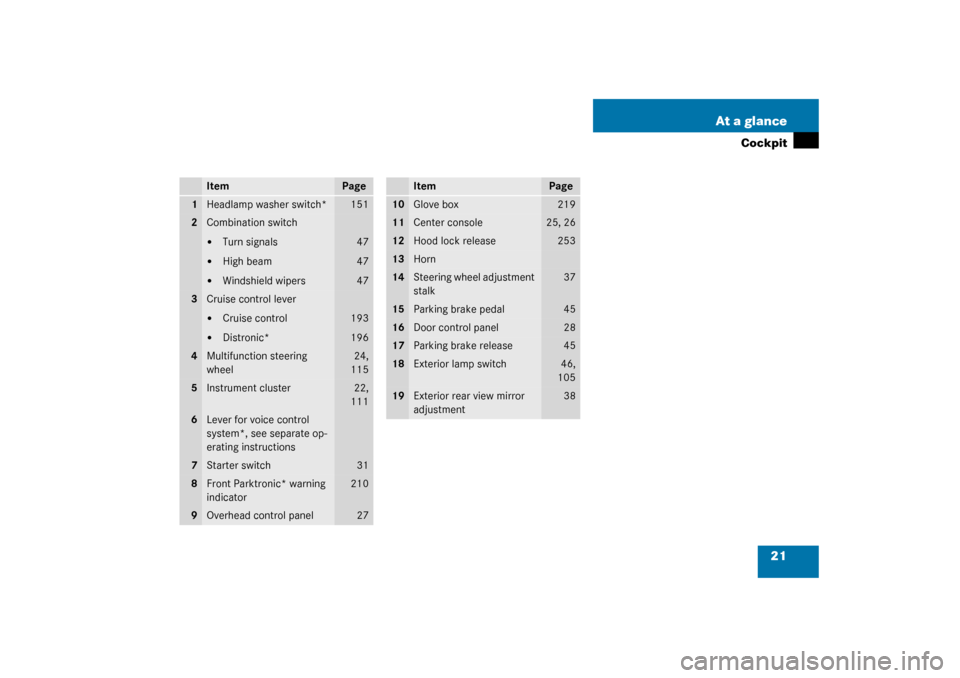

21 At a glance
Cockpit
Item
Page
1
Headlamp washer switch*
151
2
Combination switch

Turn signals


High beam


Windshield wipers
47
47
47
3
Cruise control lever

Cruise control


Distronic*
193
196
4
Multifunction steering
wheel
24,
115
5
Instrument cluster
22,
111
6
Lever for voice control
system*, see separate op-
erating instructions
7
Starter switch
31
8
Front Parktronic* warning
indicator
210
9
Overhead control panel
27
Item
Page
10
Glove box
219
11
Center console
25, 26
12
Hood lock release
253
13
Horn
14
Steering wheel adjustment
stalk
37
15
Parking brake pedal
45
16
Door control panel
28
17
Parking brake release
45
18
Exterior lamp switch
46,
105
19
Exterior rear view mirror
adjustment
38

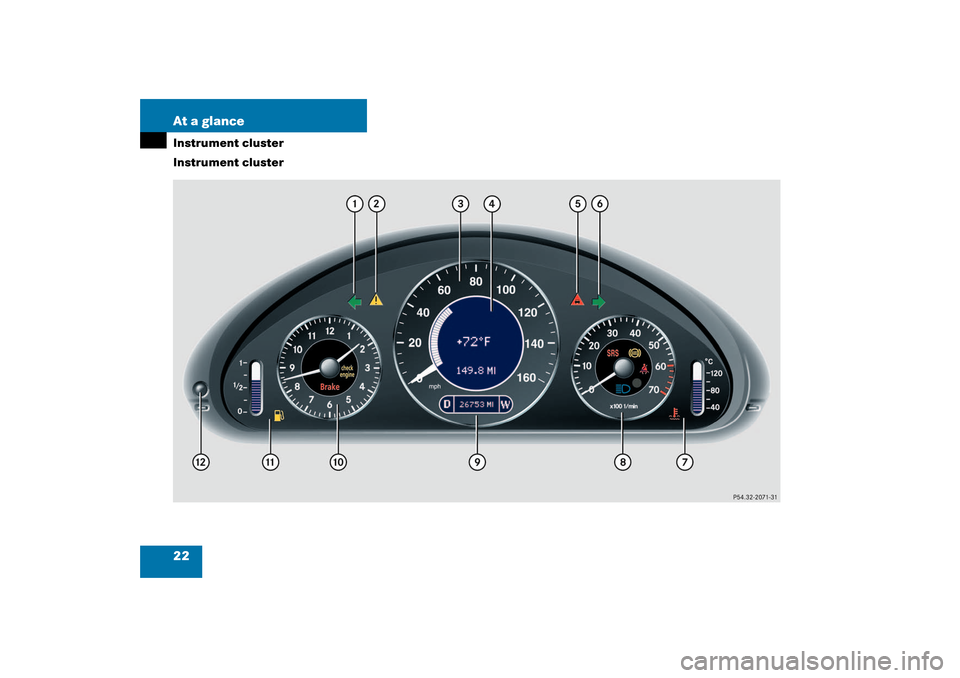

22 At a glanceInstrument cluster
Instrument cluster

23 At a glance
Instrument cluster
Item
Page
1
L
Left turn signal indi-
cator lamp
47
2
v
Electronic Stability
Program (ESP)
warning lamp
276
3
Speedometer
4
Multifunction display
with:
114
Basic display with outside
temperature display
119,
128
Status indicator with mal-
function warning message
119,
122
Trip odometer
112
5
l
Distance warning
lamp
1
1Vehicles without Distronic*: Warning lamp without
function. It illuminates with key in starter switch
position 2. It should go out when the engine is run-
ning.
277
6
K
Right turn signal in-
dicator lamp
47
Item
Page
7
Coolant temperature dis-
play with:
112
Ï
Coolant tempera-
ture warning lamp
281,
290
8
Tachometer with:
113
1
Supplemental
restraint system
indicator lamp
278,
303
-
Antilock Brake Sys-
tem (ABS) malfunc-
tion indicator lamp
277
<
Seat belt nonusage
warning lamp
280,
299
A
High beam head-
lamp indicator
108
9
Main odometer with:

Selector lever position
114


Program mode
114
Item
Page
10
Clock with:
128
;
Brake warning
lamp, except
Canada
279
3
Brake warning
lamp, Canada only
?
Engine malfunction
indicator lamp
280
11
Fuel display with:W
Fuel reserve warn-
ing lamp
280
12
Reset knob for:

Resetting trip
odometer
111


Instrument cluster illu-
mination
111


Confirming new time
settings
128

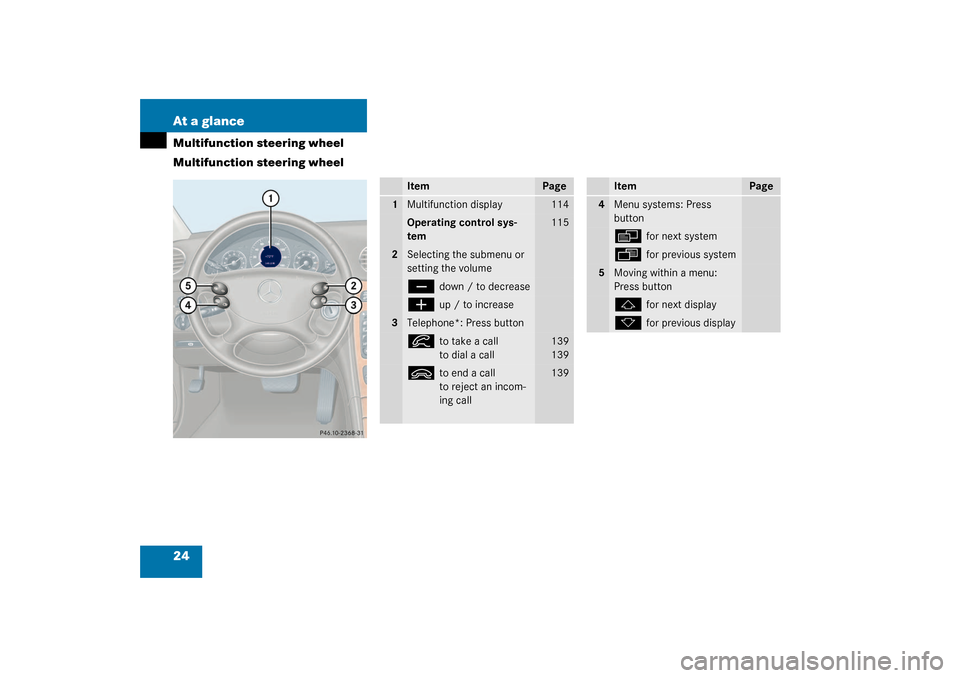

24 At a glanceMultifunction steering wheel
Multifunction steering wheel
Item
Page
1
Multifunction display
114
Operating control sys-
tem
115
2
Selecting the submenu or
setting the volumeç
down / to decrease
æ
up / to increase
3
Telephone*: Press buttoní
to take a call
to dial a call
139
139
ì
to end a call
to reject an incom-
ing call
139
Item
Page
4
Menu systems: Press
buttonè
for next system
ÿ
for previous system
5
Moving within a menu:
Press buttonj
for next display
k
for previous display
