Lighting
Lighting
For notes on how to switch on the head-
lamps and use the turn signals, see the
“Getting started” section (
page 46).

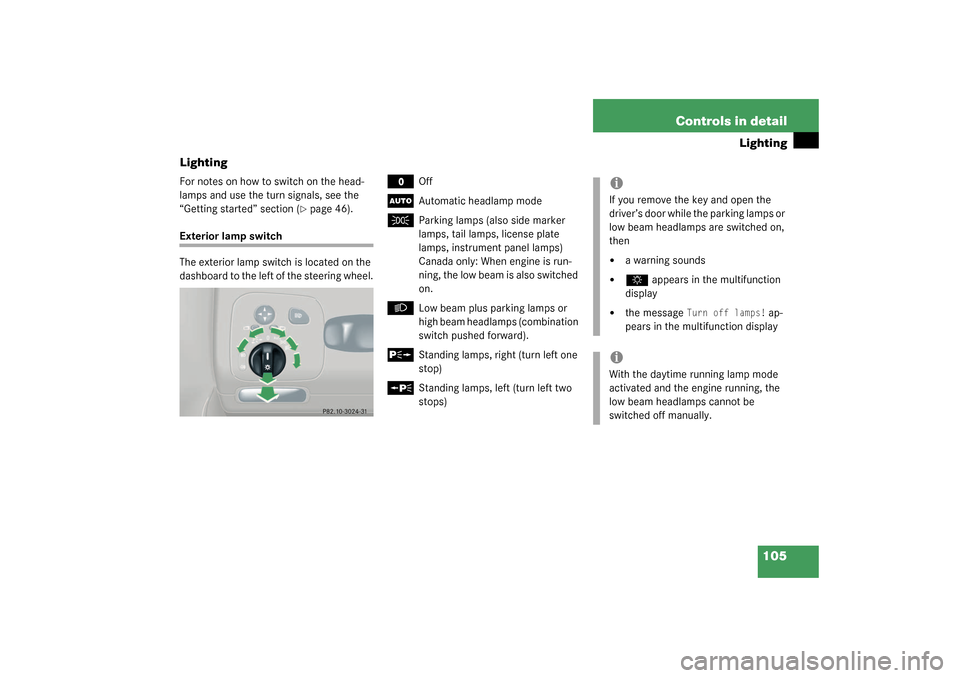

Exterior lamp switch
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.
M
Off
U
Automatic headlamp mode
C
Parking lamps (also side marker
lamps, tail lamps, license plate
lamps, instrument panel lamps)
Canada only: When engine is run-
ning, the low beam is also switched
on.
B
Low beam plus parking lamps or
high beam headlamps (combination
switch pushed forward).
ˆ
Standing lamps, right (turn left one
stop)
‚
Standing lamps, left (turn left two
stops)
iIf you remove the key and open the
driver’s door while the parking lamps or
low beam headlamps are switched on,
then

a warning sounds


$
appears in the multifunction
display


the message
Turn off lamps!
ap-
pears in the multifunction display
iWith the daytime running lamp mode
activated and the engine running, the
low beam headlamps cannot be
switched off manually.

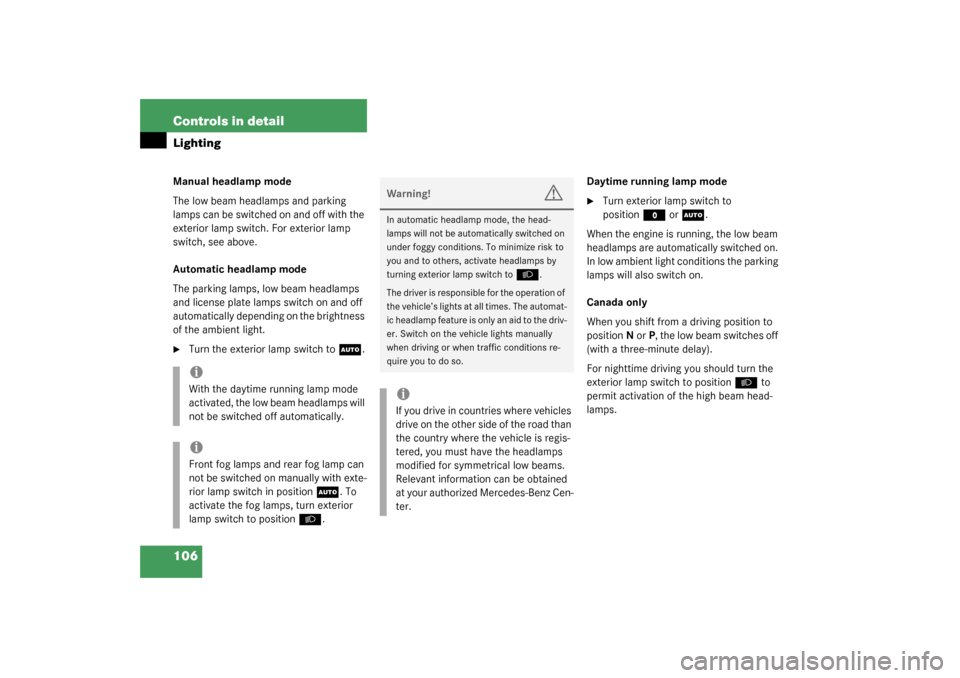

106 Controls in detailLightingManual headlamp mode
The low beam headlamps and parking
lamps can be switched on and off with the
exterior lamp switch. For exterior lamp
switch, see above.
Automatic headlamp mode
The parking lamps, low beam headlamps
and license plate lamps switch on and off
automatically depending on the brightness
of the ambient light.
Turn the exterior lamp switch to
U
.Daytime running lamp mode

Turn exterior lamp switch to
position
M
or
U
.
When the engine is running, the low beam
headlamps are automatically switched on.
In low ambient light conditions the parking
lamps will also switch on.
Canada only
When you shift from a driving position to
positionN orP, the low beam switches off
(with a three-minute delay).
For nighttime driving you should turn the
exterior lamp switch to position
B
to
permit activation of the high beam head-
lamps.
iWith the daytime running lamp mode
activated, the low beam headlamps will
not be switched off automatically.iFront fog lamps and rear fog lamp can
not be switched on manually with exte-
rior lamp switch in position
U
. To
activate the fog lamps, turn exterior
lamp switch to position
B
.
Warning!
G
In automatic headlamp mode, the head-
lamps will not be automatically switched on
under foggy conditions. To minimize risk to
you and to others, activate headlamps by
turning exterior lamp switch to
B
.
The driver is responsible for the operation of
the vehicle’s lights at all times. The automat-
ic headlamp feature is only an aid to the driv-
er. Switch on the vehicle lights manually
when driving or when traffic conditions re-
quire you to do so.
iIf you drive in countries where vehicles
drive on the other side of the road than
the country where the vehicle is regis-
tered, you must have the headlamps
modified for symmetrical low beams.
Relevant information can be obtained
at your authorized Mercedes-Benz Cen-
ter.

107 Controls in detail
Lighting

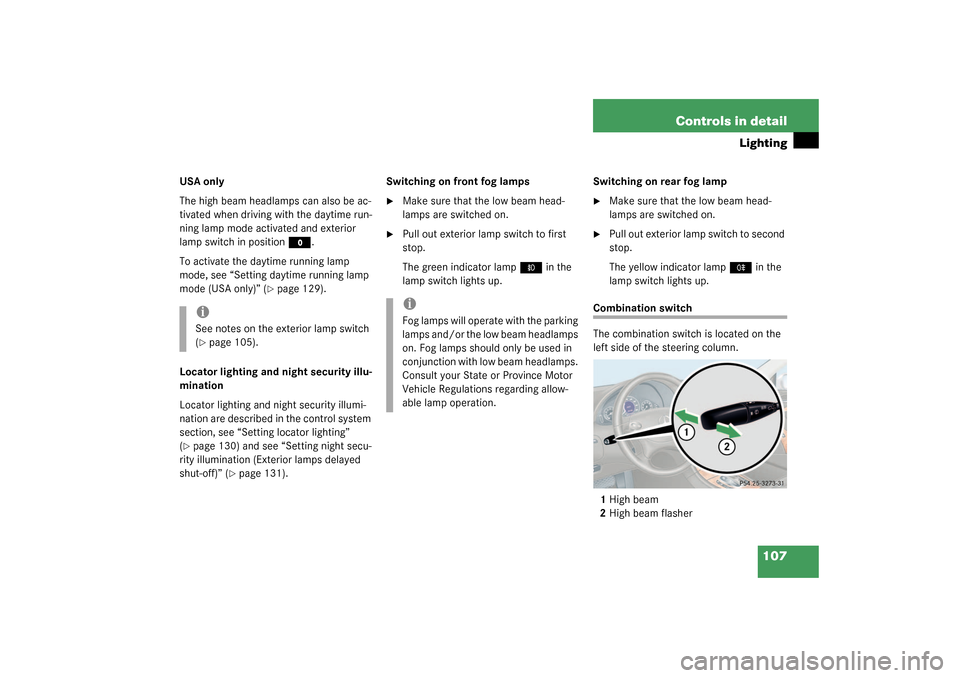

USA only
The high beam headlamps can also be ac-
tivated when driving with the daytime run-
ning lamp mode activated and exterior
lamp switch in position
M
.
To activate the daytime running lamp
mode, see “Setting daytime running lamp
mode (USA only)” (
page 129).
Locator lighting and night security illu-
mination
Locator lighting and night security illumi-
nation are described in the control system
section, see “Setting locator lighting”
(
page 130) and see “Setting night secu-
rity illumination (Exterior lamps delayed
shut-off)” (
page 131).Switching on front fog lamps

Make sure that the low beam head-
lamps are switched on.

Pull out exterior lamp switch to first
stop.
The green indicator lamp
‡
in the
lamp switch lights up.Switching on rear fog lamp

Make sure that the low beam head-
lamps are switched on.

Pull out exterior lamp switch to second
stop.
The yellow indicator lamp
†
in the
lamp switch lights up.
Combination switch
The combination switch is located on the
left side of the steering column.
1High beam
2High beam flasher
iSee notes on the exterior lamp switch
(page 105).
iFog lamps will operate with the parking
lamps and/or the low beam headlamps
on. Fog lamps should only be used in
conjunction with low beam headlamps.
Consult your State or Province Motor
Vehicle Regulations regarding allow-
able lamp operation.

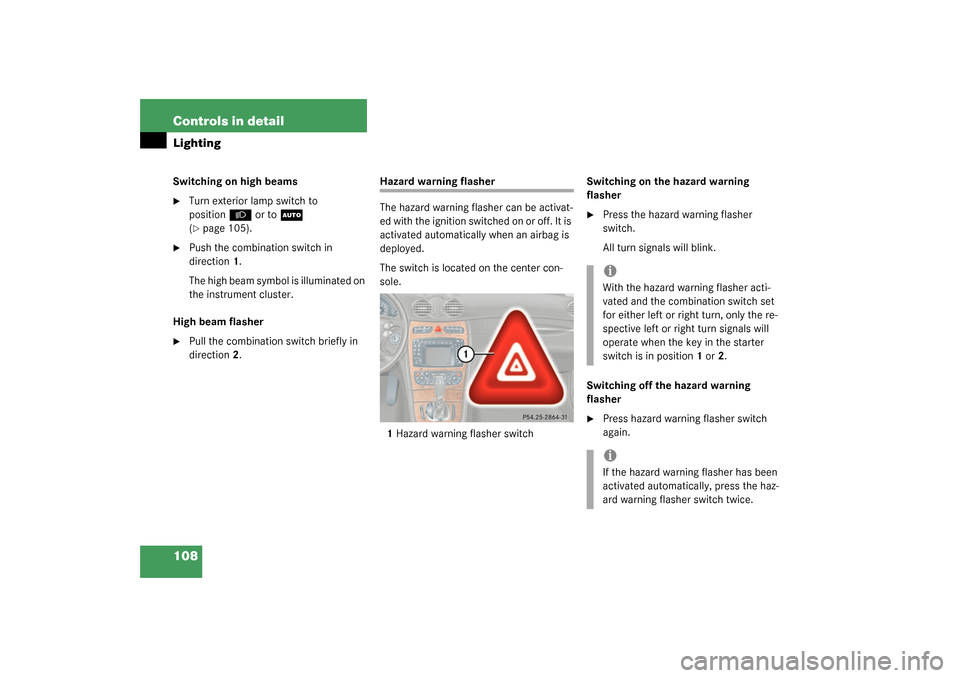

108 Controls in detailLightingSwitching on high beams
Turn exterior lamp switch to
position
B
or to
U

(
page 105).

Push the combination switch in
direction1.
The high beam symbol is illuminated on
the instrument cluster.
High beam flasher

Pull the combination switch briefly in
direction2.
Hazard warning flasher
The hazard warning flasher can be activat-
ed with the ignition switched on or off. It is
activated automatically when an airbag is
deployed.
The switch is located on the center con-
sole.
1Hazard warning flasher switchSwitching on the hazard warning
flasher

Press the hazard warning flasher
switch.
All turn signals will blink.
Switching off the hazard warning
flasher

Press hazard warning flasher switch
again.iWith the hazard warning flasher acti-
vated and the combination switch set
for either left or right turn, only the re-
spective left or right turn signals will
operate when the key in the starter
switch is in position1 or2.iIf the hazard warning flasher has been
activated automatically, press the haz-
ard warning flasher switch twice.

109 Controls in detail
Lighting

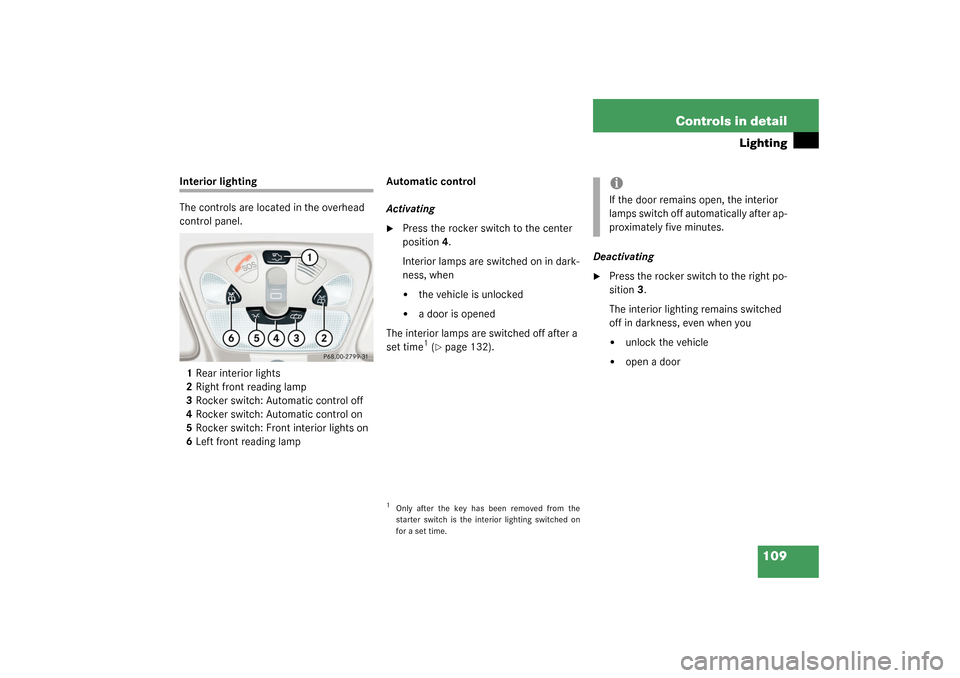

Interior lighting
The controls are located in the overhead
control panel.
1Rear interior lights
2Right front reading lamp
3Rocker switch: Automatic control off
4Rocker switch: Automatic control on
5Rocker switch: Front interior lights on
6Left front reading lampAutomatic control
Activating

Press the rocker switch to the center
position 4.
Interior lamps are switched on in dark-
ness, when

the vehicle is unlocked


a door is opened
The interior lamps are switched off after a
set time1 (page 132).Deactivating

Press the rocker switch to the right po-
sition 3.
The interior lighting remains switched
off in darkness, even when you

unlock the vehicle


open a door
1Only after the key has been removed from the
starter switch is the interior lighting switched on
for a set time.
iIf the door remains open, the interior
lamps switch off automatically after ap-
proximately five minutes.

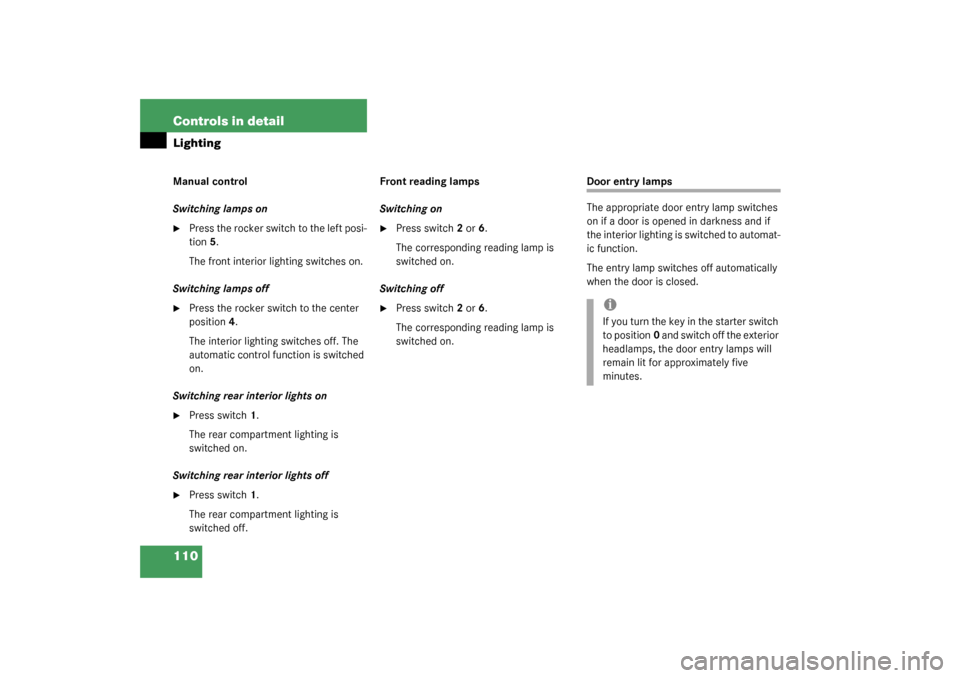

110 Controls in detailLightingManual control
Switching lamps on
Press the rocker switch to the left posi-
tion 5.
The front interior lighting switches on.
Switching lamps off

Press the rocker switch to the center
position4.
The interior lighting switches off. The
automatic control function is switched
on.
Switching rear interior lights on

Press switch1.
The rear compartment lighting is
switched on.
Switching rear interior lights off

Press switch1.
The rear compartment lighting is
switched off.Front reading lamps
Switching on

Press switch 2 or 6.
The corresponding reading lamp is
switched on.
Switching off

Press switch 2 or 6.
The corresponding reading lamp is
switched on.
Door entry lamps
The appropriate door entry lamp switches
on if a door is opened in darkness and if
the interior lighting is switched to automat-
ic function.
The entry lamp switches off automatically
when the door is closed.
iIf you turn the key in the starter switch
to position0 and switch off the exterior
headlamps, the door entry lamps will
remain lit for approximately five
minutes.

111 Controls in detail
Instrument cluster
Instrument cluster
A full view illustration of the instrument
cluster can be found in the “At a glance”
section of this manual (
page 22).
The instrument cluster is activated when
you


open a door


turn on the ignition


press the reset knob, see below


switch on the exterior lamps
You can change the instrument cluster set-
tings in the Instrument cluster submenu of
the control system (
Seite 126).
Instrument cluster illumination
1Reset knob
Use the reset knob to adjust the illumina-
tion brightness for the instrument cluster.To brighten illumination

Turn reset knob1 in the instrument
cluster clockwise.
The instrument cluster illumination will
brighten.
To dim illumination

Turn reset knob1 in the instrument
cluster counterclockwise.
The instrument cluster illumination will
dim.
iThe instrument cluster illumination is
dimmed or brightened automatically to
suit ambient light conditions.
The instrument cluster illumination will
also be adjusted automatically when
you switch on the vehicle’s exterior
lamps.

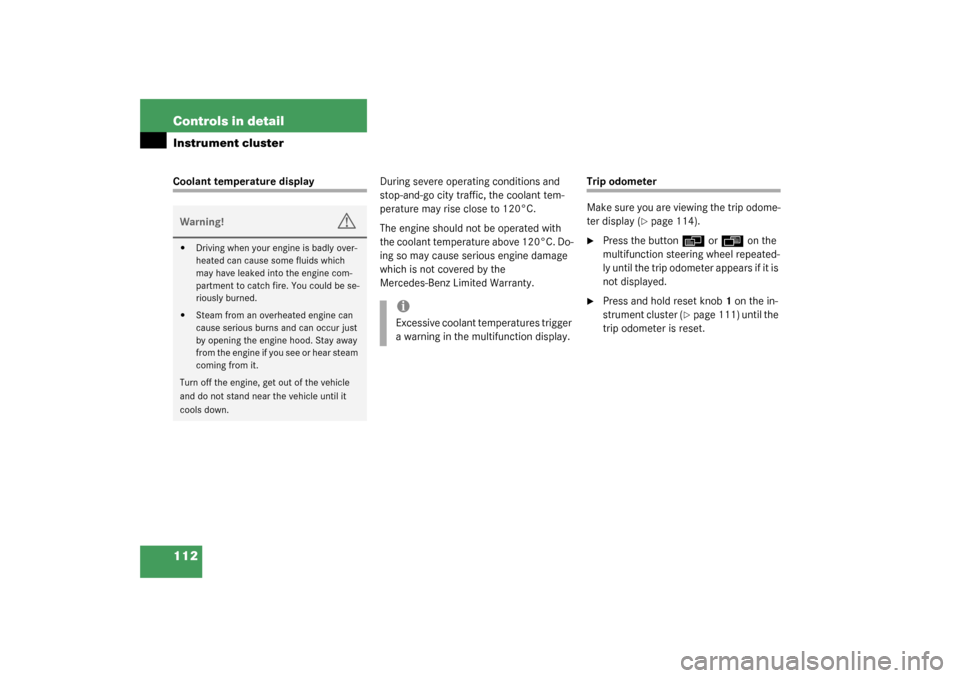

112 Controls in detailInstrument clusterCoolant temperature displayDuring severe operating conditions and
stop-and-go city traffic, the coolant tem-
perature may rise close to 120°C.
The engine should not be operated with
the coolant temperature above 120°C. Do-
ing so may cause serious engine damage
which is not covered by the
Mercedes-Benz Limited Warranty.
Trip odometer
Make sure you are viewing the trip odome-
ter display (
page 114).

Press the button
è
or
ÿ
on the
multifunction steering wheel repeated-
ly until the trip odometer appears if it is
not displayed.

Press and hold reset knob1 on the in-
strument cluster (
page 111) until the
trip odometer is reset.
Warning!
G


Driving when your engine is badly over-
heated can cause some fluids which
may have leaked into the engine com-
partment to catch fire. You could be se-
riously burned.


Steam from an overheated engine can
cause serious burns and can occur just
by opening the engine hood. Stay away
from the engine if you see or hear steam
coming from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until it
cools down.
iExcessive coolant temperatures trigger
a warning in the multifunction display.
